PVC Insulation Copper wire BV/BVR/BVV/BVVB

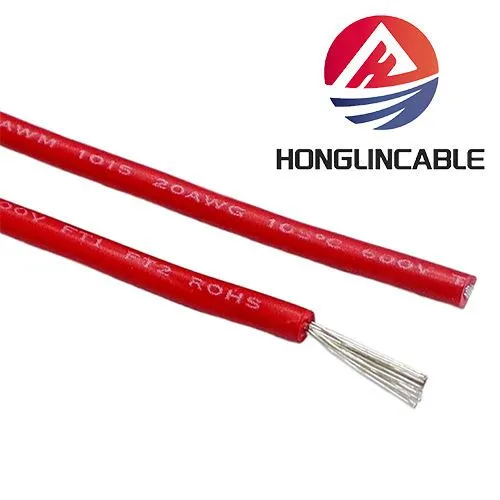

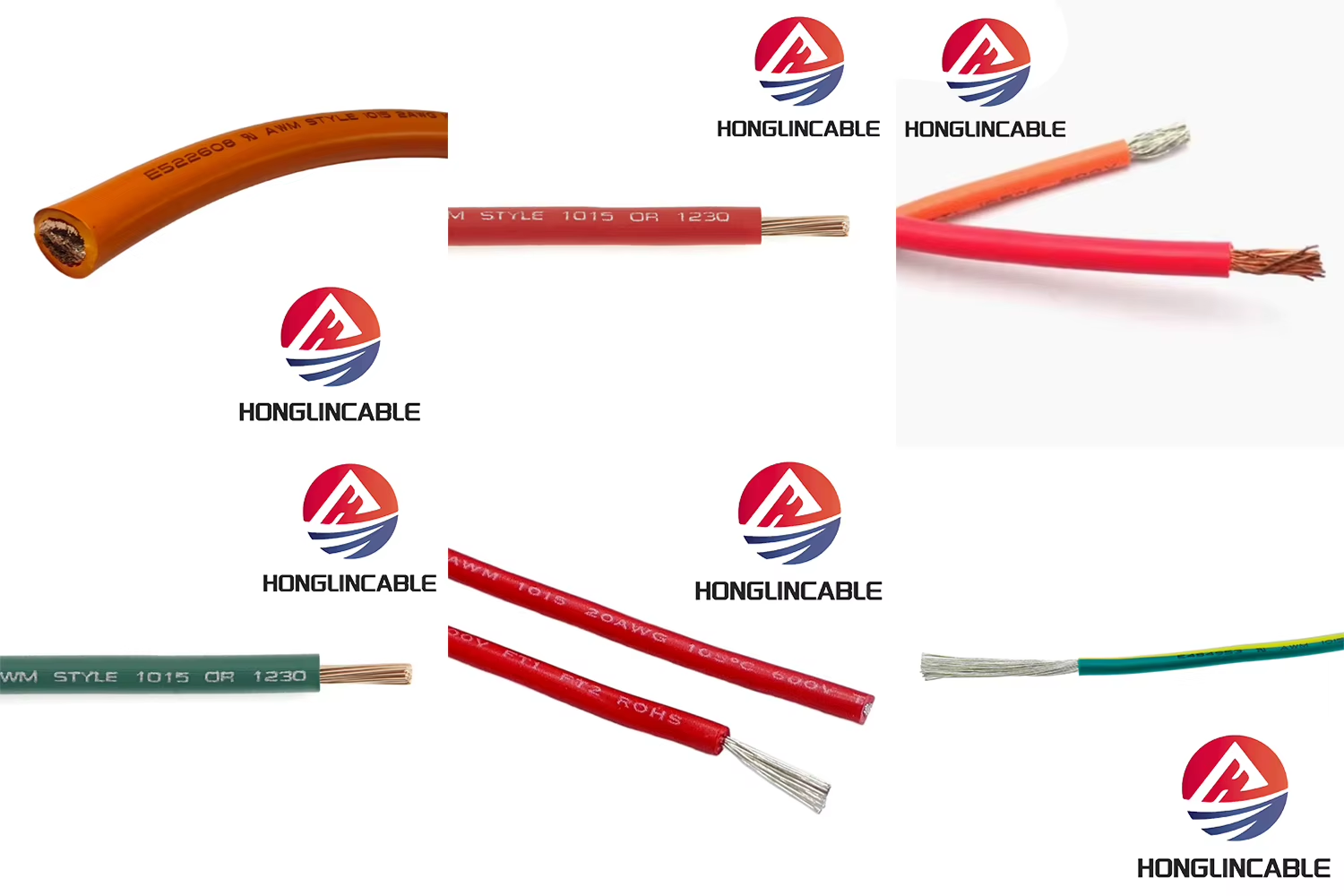

The UL1015 connector is a US standard AWM single-core equipment wiring cable, rated at 600V and 105℃ high temperature resistant. The insulation uses environmentally friendly PVC with uniform wall thickness, making it easy to cut and strip. The conductor can be either bare copper or tin-plated stranded copper wire, including an OS-1 pre-plating and then stranding structure, offering excellent soldering and oxidation resistance.

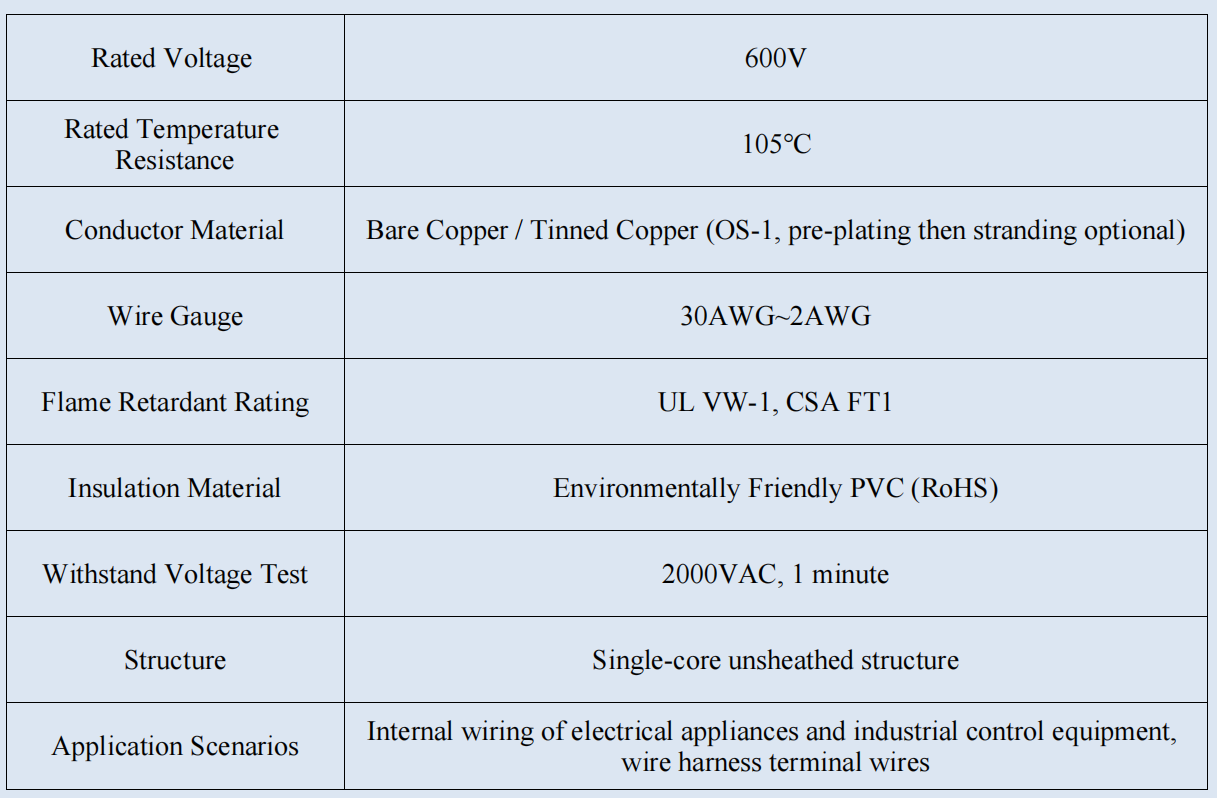

The UL1015 connector is a US standard AWM single-core equipment wiring cable, rated at 600V and 105℃ high temperature resistant. The insulation uses environmentally friendly PVC with uniform wall thickness, making it easy to cut and strip. The conductor can be either bare copper or tin-plated stranded copper wire, including an OS-1 pre-plating and then stranding structure, offering excellent soldering and oxidation resistance. It is UL VW-1 and CSA FT1 flame-retardant certified, with conductor sizes ranging from 30AWG to 2AWG, stable resistance, and a withstand voltage of 2000V. Suitable for industrial control cabinets, switching power supplies, and internal wiring harness processing, it complies with RoHS environmental standards and is suitable for internal wiring of North American export equipment and terminal crimping of wiring harnesses. It is durable in bending and not prone to aging or damage under high-temperature conditions.
