Small-diameter wiring still does a lot of heavy lifting. The 26 AWG cable is a favorite for engineers who need a balance between compact size, flexibility, and dependable electrical performance. It’s thin enough to route through tight bundles and high-density boards, yet robust enough for many signal and low-power tasks found across industrial, networking and electronic applications.

When you specify a 26 AWG cable you’re choosing a conductor diameter that gives a particular resistance per foot and a predictable ampacity under typical conditions. Unlike thicker power conductors, this gauge suits short-run low-current uses, signal pairs, and patch cords. Knowing the gauge lets you calculate voltage drop, check connector compatibility, and choose the right insulation for temperature and environmental exposure. (See industry ampacity and wire-size tables for design guidance.)
A 26 AWG cable comes in multiple constructions to suit different needs:

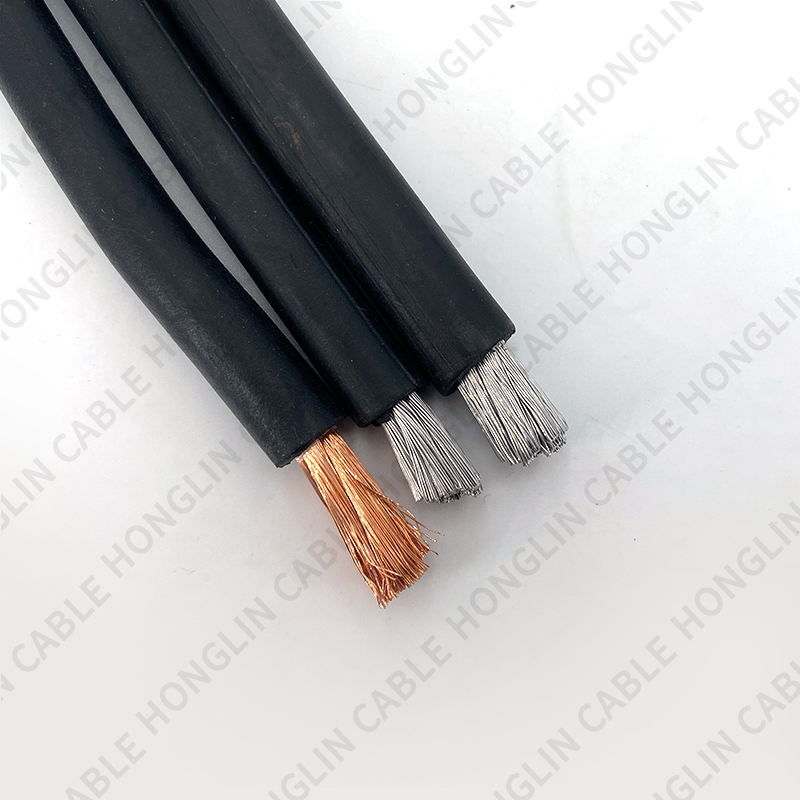

Solid vs. stranded conductors. Stranded variants (7/34, 19/36 etc.) increase flexibility for repeated motion or reeling; solid cores simplify board-soldering and termination in fixed runs.
Conductor finish. Tinned copper improves corrosion resistance in humid or plated environments; bare copper is often slightly lower resistance for controlled interiors. (MIL and UL product pages list these options explicitly.) awcwire.com+1
Insulation choices. From economical PVC to high-temp FEP or PTFE: the insulation determines temperature rating, dielectric strength, and chemical resistance. Choose insulation to match operating temperature and any chemical or cleaning exposure expected during service. remingtonindustries.com
These choices affect flexibility, termination method, and ambient performance — all real considerations when evaluating a 26 AWG cable.
The 26 AWG cable finds repeated use in:
Signal and control wiring inside instruments and control panels — where small size eases routing and reduces bundle bulk.
High-density patch cords and slim network leads (often stranded for flexibility), used in crowded racks and equipment rooms. smartechcables.com
Multi-pair assemblies and harnesses for sensors, medical devices and compact instrumentation. Bulk 26 AWG cable on spools lets fabricators build custom harnesses to exact length and shielding needs. l-com.com
Board-to-board and interconnect jumpers in electronics where space and bend radius drive gauge choice.
Because this gauge is widely stocked, variants exist for most use cases — shielded, color-coded, tinned, and with multiple insulation chemistries.
Although versatile, the 26 AWG cable has limits:
Current carrying capacity is modest — it’s intended for low-current circuits and signals. Use ampacity charts and account for insulation temperature rating and installation conditions (bundled conductors require derating). Cerrowire
Voltage drop becomes significant on long runs; for DC or low-voltage systems plan to keep run lengths short or upsize to a heavier gauge where voltage stability matters.
Thermal considerations — when bundling many small conductors heat buildup can raise operating temperature; always apply the manufacturer’s and NEC guidance for grouped-cable installations. media.distributordatasolutions.com
Respecting these limits ensures the 26 AWG cable performs reliably throughout the product lifetime.
In electrically noisy environments, choose shielded 26 AWG cable construction: foil + drain or braided shields reduce EMI and crosstalk for sensitive analog or digital lines. Many multi-pair 26 AWG assemblies include pair-level shielding and a common outer shield for best practice in industrial sensor arrays and communication links. Prysmian and similar manufacturers publish datasheets for shielded 26 AWG multi-pair cables used in communications and VDSL systems. prysmian.com
Terminations determine field reliability. For 26 AWG cable:
Use crimp contacts rated for fine-strand wire to avoid loose joints.
When soldering, provide mechanical strain relief to isolate the joint from flexing.
Ferrules and miniature bootlace terminals improve screw-termination reliability in panel work.
For IDC connectors verify the connector rating for 26 AWG; some IDCs are designed specifically for this size.
Proper termination reduces intermittent faults and dramatically improves MTBF in product installations.
Select a 26 AWG cable with the right temperature and chemical resistance for your environment. Military and mil-spec variants of 26 AWG wire list wide temperature ranges and rigorous tests; commercial hook-up wires offer 105°C / 300V ratings for general use. For outdoor, high-temperature, or solvent-exposed settings, choose a fluoropolymer or high-grade elastomer insulation. (Supplier datasheets make these trade-offs explicit.) milspecwiring.com+1
When you request quotes or prepare an RFQ, include:
Conductor: solid or stranded, tinned or bare, strand count.
Insulation: material and temperature rating.
Shielding: none, foil+drain, braid, or pair-level shields.
Voltage and temperature ratings (e.g., 300V/105°C or MIL spec values).
Reel length and packaging, and any required test certificates or traceability.
Intended application (signal, power, patch cord) so suppliers can propose the right variant.
A precise RFQ yields comparable bids and avoids substitutions that fail in the field.
To preserve cable life and performance:
Avoid kinking and tight bends; respect minimum bend radii recommended by the manufacturer.
Use controlled pay-off when unspooling long lengths to avoid twist.
Bundle carefully and allow ventilation for heat dissipation in tight harnesses.
Label both ends during installation to aid later troubleshooting.
These practical steps protect your investment and reduce installation rework.
A medical device OEM replaced mixed unspecified hook-up wires with a specified, tinned-strand 26 AWG cable rated 105°C for internal harnesses. The result: fewer field returns for broken leads during device sterilization cycles, improved assembly yield on automated machines, and simpler regulatory documentation due to consistent material traceability. In other words, the right 26 AWG cable reduced warranty costs and improved production throughput.
The 26 AWG cable is a small but strategic component. When you match its construction and insulation to the application, and follow good termination and installation practice, it delivers reliable signal transmission and convenient routing in compact systems. For high-density patching, sensor harnesses, and internal wiring where space and flexibility matter, 26 AWG cable often offers the best compromise of size, performance and cost.
