To choose the right LAN cable, you must understand the "Cat" (Category) classification system. The number following "Cat" indicates the official specification standard to which the cable was manufactured. As the numbers increase, so do the data transmission speeds, bandwidth capacities, and frequency technologies.
Though largely phased out for new installations, Cat5e (Category 5 Enhanced) remains common in older households. It supports speeds up to 1 Gbps with a bandwidth frequency of 100 MHz. While it handles basic browsing, it struggles with simultaneous multi-device heavy loading and is highly prone to crosstalk (interference from neighboring cables).
Cat6 is the current gold standard for domestic and small-business networking. Boasting a bandwidth of 250 MHz, it can transmit data at speeds up to 10 Gbps over shorter distances (up to 37 meters) and a guaranteed 1 Gbps over a full 100-meter run. It features internal physical separators (splines) that drastically isolate wires and reduce signal degradation.
The "a" stands for Augmented. Operating at 500 MHz, Cat6a supports full 10 Gbps speeds across the entire 100-meter maximum length. It features superior grounding and shielding, making it the ideal choice for in-wall installations (riser/plenum) where replacing cables down the road is difficult and costly.
Cat7 (600 MHz) and Cat8 (2000 MHz) represent the cutting edge of copper networking. Cat8 can achieve staggering speeds of 25 Gbps or 40 Gbps, but only over short distances up to 30 meters. These LAN cables are highly specialized, thick, rigid, and require compatible high-end hardware (like 10G/40G switches) to show any real performance gains.
When hunting for the perfect LAN cable, don't just look at the price tag or the maximum speed printed on the box. Consider these structural and environment-specific elements:
AWG (American Wire Gauge): This measures the thickness of the copper wires inside. A lower AWG number means thicker wires, which translates to better signal integrity over long distances. Most high-quality Cat6 cables range between 23 AWG and 24 AWG.
Solid vs. Stranded Copper: Solid copper cables use a single solid wire for each conductor, making them ideal for permanent in-wall installations due to lower attenuation. Stranded copper cables use multiple intertwined thin wires, making them highly flexible and perfect for patch cords on desks or entertainment centers.
Copper-Clad Aluminum (CCA) Warning: To cut costs, some manufacturers sell CCA cables (aluminum coated in a thin layer of copper). Avoid CCA cables. They break easily, have higher electrical resistance, degrade signals quickly, and do not comply with official TIA/EIA safety standards. Always look for 100% Pure Bare Copper.
The internal construction of a LAN cable dictates how well it wards off Electromagnetic Interference (EMI) from appliances, power lines, and wireless routers.

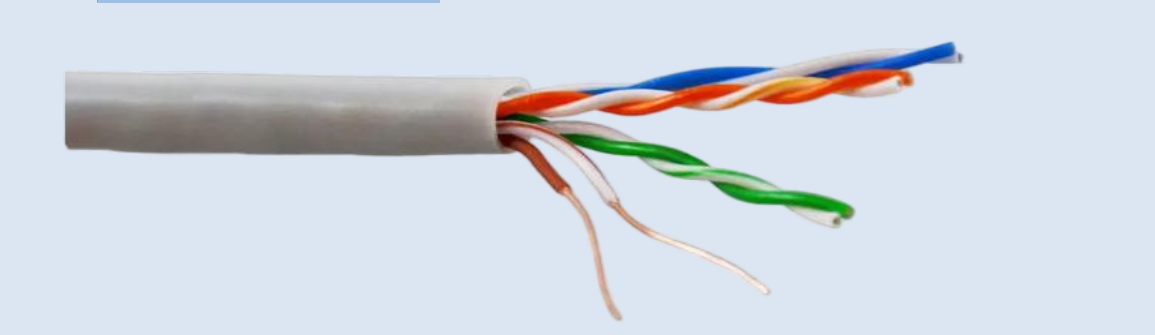

UTP (Unshielded Twisted Pair): This is the most common variant. It relies on the precise twisting of wire pairs to cancel out noise. It is thin, highly flexible, inexpensive, and perfectly suited for typical residential homes.
STP/FTP (Shielded/Foiled Twisted Pair): These cables feature an internal protective foil layer wrapping around the wires. Shielding stops outside electrical noise entirely. Use shielded LAN cables if you are running lines directly parallel to heavy electrical mains, inside industrial environments, or bunched tightly with dozens of other cables.
| Cable Category | Max Data Transfer Speed | Max Bandwidth Frequency | Max Reliable Distance | Primary Application | Cost Efficiency |
| Cat5e | 1 Gbps | 100 MHz | 100 Meters | Legacy home systems, basic IoT | Low / Outdated |
| Cat6 | 1 Gbps (10 Gbps @ 37m) | 250 MHz | 100 Meters | Standard gaming, 4K streaming | Excellent (Best Value) |
| Cat6a | 10 Gbps | 500 MHz | 100 Meters | Future-proof smart homes, NAS | High Value / Balanced |
| Cat7 | 10 Gbps | 600 MHz | 100 Meters | Specialized audio/video setups | Low Value (Proprietary) |
| Cat8 | 40 Gbps | 2000 MHz | 30 Meters | Enterprise Data Centers, Servers | Expensive / Niche |
The Goal: Minimal ping, zero packet loss, maximum stability.
The Recommendation: Cat6 UTP (Pure Copper). Gamers do not need the 40 Gbps speeds of Cat8 because gaming relies on low latency rather than massive raw file throughput. A 100% pure copper Cat6 cable ensures instantaneous ping transmission without the added stiffness and cost of premium shielded alternatives.
The Goal: Transferring massive 4K/8K video files to local Network Attached Storage (NAS) units while handling continuous Zoom calls.
The Recommendation: Cat6a. Content creation local networks thrive on 10 Gbps architectures. Cat6a ensures that when you edit footage directly off your server, you encounter zero bottlenecks, even across long distances spanning different floors.
The Goal: Wiring a newly renovated house with permanent lines hidden behind drywall.
The Recommendation: Cat6a Shielded (Solid Copper, Shielded/CMR rated). Because replacing in-wall cables requires tearing down drywall, cutting corners here is a critical mistake. Solid copper Cat6a offers full 10 Gbps headroom for the next two decades, and shielding protects the signals from intersecting electrical wires inside the framework.
No. Your internet speed is strictly capped by the plan you purchase from your Internet Service Provider (ISP). If your plan provides 500 Mbps, switching from a Cat6 cable to a Cat8 cable will not increase your speed to 40 Gbps. It simply ensures your internal local area network handles data smoothly up to its max capabilities.
Yes, all modern Ethernet cables use the standardized RJ45 connector plug, meaning you can plug a Cat8 cable into an old Cat5e port. It will work flawlessly, but it will scale down to match the maximum speed of the slowest connected port or device.
Yes, but only if you exceed standard structural limits. For Cat5e, Cat6, and Cat6a, performance remains constant up to 100 meters (approx. 328 feet). Past that length, signals weaken, latency increases, and data packets drop. If you must run connections over 100 meters, you will need a network switch or signal repeater in between.
Flat LAN cables are designed to slide invisibly under carpets, rugs, or baseboards. They are highly convenient but generally lack internal shielding (splines). Round cables offer much better protection against cross-talk, heavy physical crushing, and external interference, making them the superior choice for high-reliability setups.
