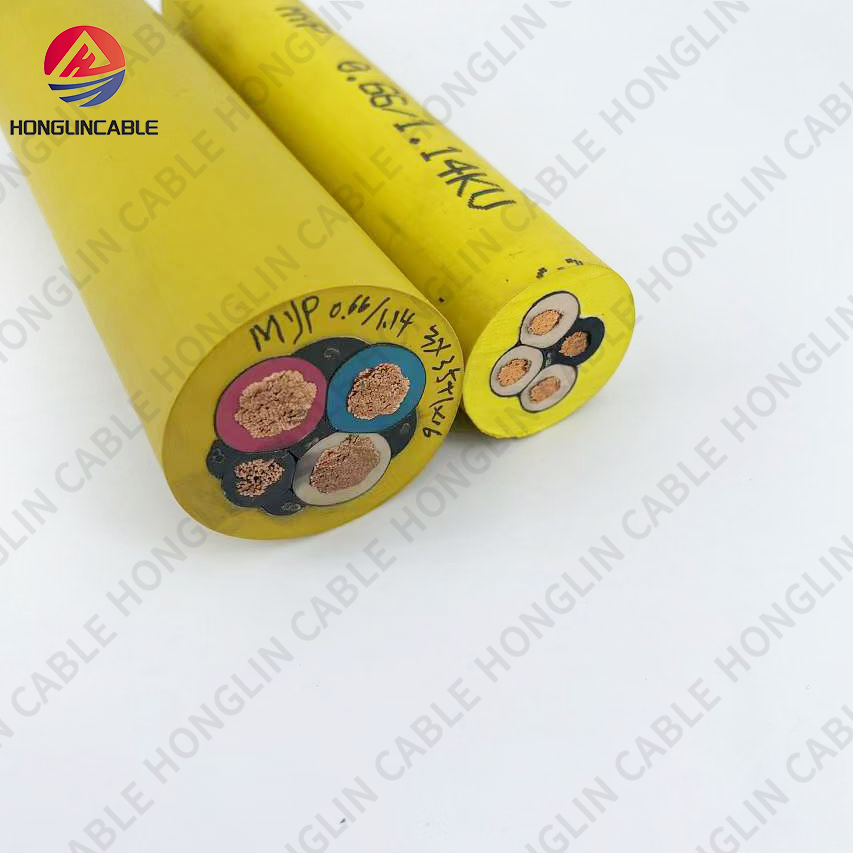

A mining drill cable is a flexible power lead designed specifically for hand-held, boom-mounted or rotary drilling rigs used in mining and quarrying. Unlike generic trailing cable, drill cores are often required to be highly flexible, abrasion-resistant and sometimes screened or tinned to resist corrosion. Drill cables come in single-core and multi-core variants; single-core (or specially constructed drill cords) are common where the cable must be spooled or routed tightly, while multi-core variants simplify multi-circuit supply when the application allows it.
Key design priorities are conductor flexibility (high strand counts), mechanically robust elastomeric insulation, and a sheath that resists cuts, abrasion and chemical attack. For many drill applications, manufacturers balance those needs with a jacket that remains flexible at low temperatures and resists molten-rock splatter or cutting fragments in the face.
To evaluate any candidate mining drill cable, inspect the construction from the inside out:
Conductor: finely stranded copper, sometimes tinned for corrosion resistance. High strand counts reduce the risk of internal strand fatigue under repetitive bending.
Insulation: elastomeric compounds (EPR, EPDM or specialty rubbers) that tolerate mechanical flex and provide thermal stability at rated temperatures.
Optional insulation screen/semiconductive layer: used in some drums and reeling systems to control voltage stress.
Inner bedding/filler: keeps cores balanced and absorbs local indentation energy.
Outer sheath: typically CPE, neoprene, polyurethane or another engineered elastomer chosen for abrasion, oil and chemical resistance.
Optional screen/earth return: for safety and to reduce electromagnetic interference, some drill cables include metallic braids or concentric earths; these are often tinned for longevity underground.
Ask manufacturers for exact strand counts, insulation thickness, jacket chemistry and shore hardness — these numbers determine how the cable will behave under real service conditions.
In many drilling operations, single-core cables (or single power core with pilot/control elements) are preferred because they spool cleanly and minimize internal stresses on reeling drums. However, multi-core cables are useful where multiple circuits (power + control) must be delivered in a single run and where there is less spooling.
When your operation reels cable on/off drums frequently, prioritize single-core constructions with very high strand counts and validated spooling test data. If you prefer the convenience of bundled circuits and fewer external terminations, a well-designed multi-core drill cable with tailored conductor classes can be appropriate. The important point is to match the cable geometry to the movement profile.
Mining drill cables are typically low-voltage flexible power leads — common classes appear in the 0.3/0.5 kV to 0.66/1.14 kV ranges depending on national standards and machine requirements. Select conductor cross-sections to handle continuous motor load plus starting/inrush currents, and ensure the ampacity figures correspond to the cable’s rated continuous temperature. Where drills cycle on and off frequently, consider thermal effects on conductor heating and apply appropriate derating for bundling or high ambient temperatures.
A good supplier will provide ampacity tables for the exact conductor size and jacket type — use those to confirm the cable you accept matches the drill motor’s thermal profile.
Three mechanical metrics are critical for drill leads:
Minimum bend radius: defines safe routing and drum sizing. Reeling drums often have a specified minimum diameter to avoid conductor stress.
Spooling/flex cycles to failure: validated laboratory or manufacturer spooling tests at your drum diameter give realistic life expectations.
Abrasion, cut and tear resistance: measured test results (Taber abrasion, tear strength) show how the jacket resists the very real abrasion from rock, metal edges and debris.
When evaluating mining drill cable, insist on the manufacturer’s specified minimum bend radius, spooling cycle data (ideally at your actual drum diameter), and abrasion test values — these are the best predictors of in-service longevity.
Drill cables operate in hostile environments. Add these requirements into procurement specifications:
Oil and chemical resistance — if hydraulic fluids, fuels or solvents are present.
Water ingress and submersion rating — for wet drifts or water-prone sites.
Cold-flexibility — if drilling in low temperatures the jacket must remain pliable.
Flame retardance/low smoke — where operator safety and escape routes require reduced smoke and toxic emissions.
Corrosion-resistant components — tinned conductors and tinned braid where salt or acidic aerosols exist.
Each environmental requirement should be backed by material datasheets and test reports so acceptance testing is straightforward.
To avoid surprises, require per-reel documentation that includes:
Insulation resistance and DC conduction tests (per reel).
Dielectric (hipot) test results.
Spooling/flex cycle test certificate for the supplied lot or identical batch.
Abrasion/tear/cut test results for the declared jacket compound.
Material datasheets (MSDS) for insulation and jacket, including temperature and chemical compatibility data.
Lot/serial marking on reels so each installed length can be traced to its test certificate.
Vendors who cannot provide this traceable data should be treated cautiously; drilling environments are unforgiving of undocumented materials.
Even the best mining drill cable will fail if mishandled. Use these field practices:
Use drums with the manufacturer-recommended diameter and controlled tension when reeling.
Respect the minimum bend radius at terminations and over rollers.
Fit protective guides and rollers where the cable passes edges or abrasive surfaces.
Apply compatible strain relief and glands sized to the jacket chemistry to prevent pull-outs and seal against contaminants.
Keep spare ends and spare reels labeled and stored dry; contamination during storage is a frequent source of early failures.
Proper handling often doubles a cable’s useful service life.
A proactive program makes drill cable performance predictable:
Daily visual checks for jacket cuts, bulges and kinks.
Periodic insulation resistance tests to detect moisture ingress or insulation degradation.
Thermal imaging at terminations to find resistive heating before it leads to failures.
Planned replacement thresholds (e.g., sheath thinning beyond X mm, visible cuts deeper than Y mm) rather than waiting for catastrophic failure.
Track failures by reel lot number to identify batch or vendor issues and refine future procurements.
A premium mining drill cable may cost more per metre, but total cost of ownership tends to favor quality: fewer emergency splices, less downtime, reduced scrap of expensive drill bits caused by electrical incidents, and lower labor costs overall. When uptime drives revenue, the right cable choice pays back quickly.
required conductor mm² and strand class
rated voltage and continuous temp rating
single-core or multi-core preference and rationale (spooling vs multi-circuit)
minimum bend radius and recommended drum diameter
spooling/flex cycle test requirement at specified drum diameter
jacket compound name + MSDS and abrasion/cut/chemical test data
tinned conductors / tinned braid requirement if corrosive conditions apply
per-reel test certificates + reel lot marking requirement
recommended glands/boots and termination kit compatibility
lead time, MOQ, spare-reel policy and warranty terms
Using this checklist turns vendor marketing into verifiable technical bids.
A mining drill cable is not a commodity — it’s a high-demand, high-stress tool in your power distribution system. Specify exact mechanical and environmental requirements, insist on traceable factory tests, install with care and maintain proactively. Do that, and your drilling fleet will spend time drilling rock — not repairing cables.
