Jan. 16, 2026
A 12 core control cable bundles a dozen individually insulated conductors inside a single outer sheath so you can run multiple control circuits between the same endpoints with one clean assembly. For machine builders, panel shops and systems integrators, this reduces tray congestion, simplifies termination, and lowers wiring errors on complex systems. Choosing a purpose-built 12 core control cable removes the headache of dozens of discrete runs and makes commissioning predictable.
Typical buyers are OEMs, panel builders, plant electrical teams and building automation contractors. They use a 12 core control cable for PLC I/O bundles, sensor clusters, lighting and access control trunks, and motor control signalling where multiple small conductors travel together. In retrofit jobs a 12 core control cable can also tidy up messy looms and make future maintenance far easier.

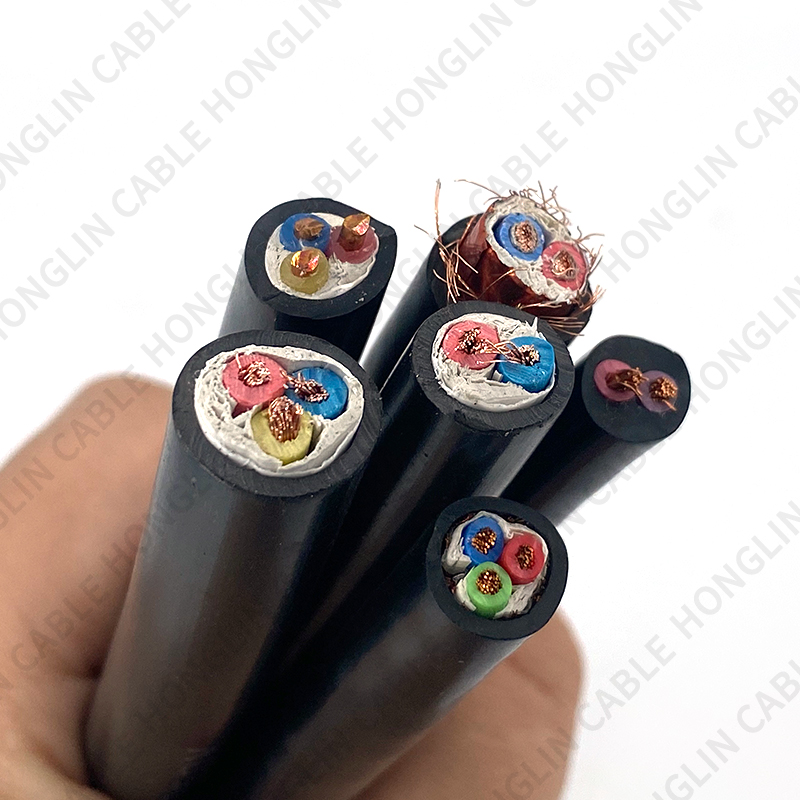

A 12 core control cable is defined by a few core design choices that determine field performance:
Conductor: copper is standard; specify AWG or mm² and strand class. For flex duty choose fine-stranded (Class 5/6); for fixed runs a coarser strand is acceptable.
Insulation: PE, XLPE or engineered PVC — insulation affects capacitance and temperature rating.
Screening: foil, braid, or foil+braid to stop EMI. A properly terminated screen keeps digital I/O and analogue loops stable.
Jacket: PVC, LSZH, PUR or oil/UV resistant compounds chosen to match environment and code requirements.
When a datasheet lists conductor size, strand count, braid coverage and voltage/temperature ratings, you can compare parts apples-to-apples — and that’s exactly what technical buyers do.
In quiet control rooms an unscreened 12 core control cable (YY/PPYY style) is economical and usually sufficient. In noisy industrial spaces—near VFDs, welders or large motors—choose a screened variant (LiYCY/CY or foil+braid) to prevent induced faults. For mixed noise environments a combined foil + braid shield in a 12 core control cable gives wideband protection and mechanical robustness.
Specify jacket chemistry early. Plenum and return-air spaces require low-smoke, zero-halogen materials; outdoor or exposed runs need UV and oil resistance; cable trays in fabrication shops often call for PUR or oil-resistant jackets. Confirm regulatory classes (CMP/CMR/CPR/CPD where applicable) in the RFQ—getting this wrong leads to failed inspections and expensive rework.
If the cable will ride in a cable carrier, hang from moving gantries, or handle repeated bends, select a flex-rated 12 core control cable with fine strands and elastomeric insulation. Vendors publish flex classes or recommended cycle lives—require those numbers for dynamic applications. Using a fixed-duty cable in motion duty is the most common cause of early field failure.
To get comparable quotes, include these required fields in every RFQ for a 12 core control cable:
number of cores (12) and conductor cross-section (AWG or mm²) and strand class;
insulation material and thickness;
shield type and braid coverage % (if any) and drain conductor spec;
jacket compound, flame/smoke rating and temperature range;
rated voltage and required approvals/standards;
minimum bend radius and flex rating (if motion expected); and
packaging (spool, coil, cut lengths), sample policy and lead time.
Vendors who return datasheets and test certificates make procurement predictable and speed approvals.
A screen only works if it’s terminated correctly. On a 12 core control cable you should:
fold back the screen neatly and attach a properly crimped drain lug,
bond the screen to earth at the recommended single point (avoid ground loops unless the system requires otherwise),
use ferrules on stranded conductors and torque screw terminals to spec, and
secure strain reliefs at cabinet entry points to avoid movement that fatigues conductors.
Document these steps in your installation pack—consistent field practice prevents the majority of intermittent control faults.
Simple routing rules protect your 12 core control cable from trouble:
separate power and control runs where possible; if they must cross, do so at right angles,
avoid long parallel runs with high-current feeders, and
respect the minimum bend radius when pulling through trays and conduits.
These rules keep induced voltages low and reduce commissioning callbacks.
Before permanent install test every reel: continuity for all cores, insulation resistance between conductors, shield continuity, and for power cores a loaded voltage-drop check. For large orders ask for factory test certificates (DCR, HV test, insulation resistance) and validate a sample reel with a bench flex test if motion duty is expected.
Common catalog variants include:
12-core unscreened YY/PPYY for general control and signal runs, economical and easy to strip;
12-core screened LiYCY or CY for EMI-sensitive environments;
12-core flex-rated with fine strands and elastomeric jackets for cable carriers;
12-core armored or steel-tape protected for mechanical risk or buried ducts.
Each variant matches a specific use case—match the cable to the duty, not the other way round.
Buyers appreciate small extras that reduce site time:
numbered or colour-coded cores for rapid termination,
printed footage marks and door or circuit IDs,
spare pairs included for future expansion, and
tinned braid or tinned conductors for humid or marine environments.
These modest options save hours of labour and make future maintenance painless.
For typical plant wiring choose established catalog parts to speed delivery. For large capital projects or special environments ask manufacturers for custom runs—exact conductor mixes, special jackets, printed markings and batch traceability. For critical runs insist on sample reels before bulk acceptance.
Great suppliers publish detailed datasheets, offer sample reels, and provide local support. They can trace batches and supply mill/test certificates. For long programs prefer manufacturers who can lock part numbers to avoid production drift between deliveries.
A correctly specified 12 core control cable costs more per metre than the cheapest commodity option but reduces installed cost and lifecycle expense. Fewer re-pulls, fewer service calls, faster commissioning and less unplanned downtime mean the correct cable pays for itself quickly.
On a packaging line plagued by intermittent encoder faults, technicians replaced loose bundled single cores with screened 12 core control cable for the encoder runs. The immediate result was stable signals, fewer faults and a measurable drop in line stops—payback came through avoided production losses, not the cable price.
Treat the 12 core control cable selection like an engineering milestone: define duty (static vs flex), demand datasheets and samples for mission-critical runs, document termination and routing rules for the installation team, and enforce acceptance testing. Do this once and your cable becomes trusted infrastructure, not a recurring problem.
