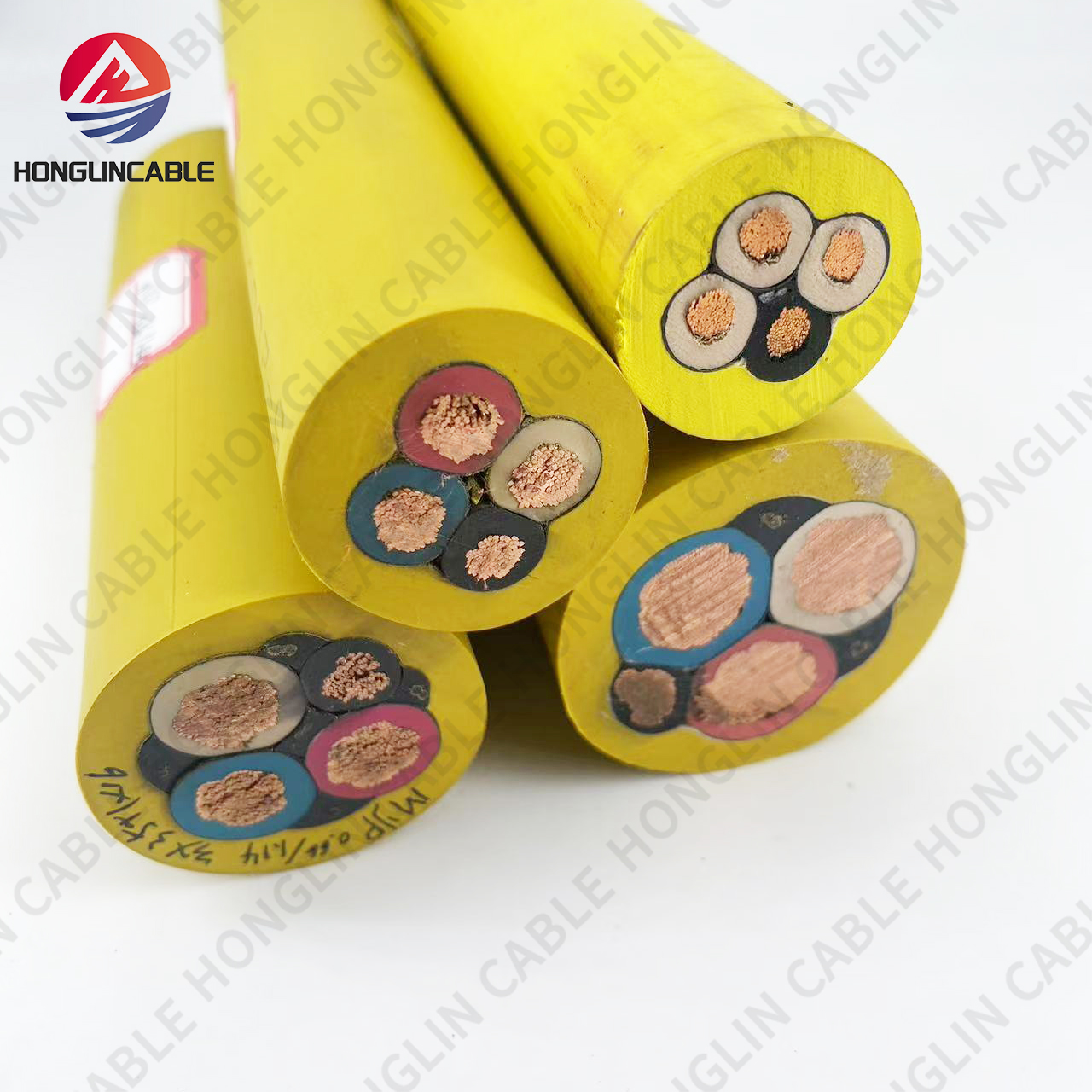

When coal faces, panels and service galleries depend on steady power, the cable between the supply and the equipment must be counted on to survive harsh conditions. The right underground coal mining cable prevents avoidable stoppages, reduces emergency splices in damp, cramped conditions, and keeps crews safer. This guide explains how to pick the correct construction, what measurable test evidence to require, practical installation and maintenance steps, and how to make procurement decisions that minimize lifecycle cost.
A coal mine is a hostile place for cable. Typical threats include:
continuous mechanical flexing and reeling on portable equipment,
abrasion and cut risk from rock, edges and moving equipment,
oil, hydraulic fluids and chemical exposure in workshops and faces,
water, slurry and long-term humidity in drifts and sump areas,
exposure to heat near motors and sun on surface reels, and
requirement for explosion-safe or flame-retardant jackets in certain zones.
A well-specified underground coal mining cable addresses all of these hazards in its materials, construction and verified performance tests, not by accident but by design.
Understanding cable layers helps you specify them properly:
Conductors — strand count matters
Mining cables use finely stranded copper to maximize flex life. For heavily reeled or portable leads, choose higher strand counts (class 5 or above) so individual strands aren’t repeatedly fatigued. In corrosive or wet conditions, tinned conductors add meaningful corrosion resistance.
Insulation — elastomeric for flex and heat
Elastomeric insulations (EPR, EPDM, or specially compounded rubbers) hold up to bending and thermal stress better than many thermoplastics. Where higher continuous temperatures are possible, choose insulations rated appropriately.
Inner bedding and water-blocking
For pump and submersible leads, water-blocking tapes, swellable fillers or sealed cores prevent water migration along the conductor path. Bedding also helps absorb localized impacts and preserves roundness for predictable spooling.
Jacketing — the visible defense
The outer jacket is what takes most abuse. Common compounds for underground coal use include chlorinated polyethylene (CPE), neoprene blends, and polyurethane — each tuned for abrasion, oil and chemical resistance. Choose a compound based on the dominant hazards at your site and require manufacturer test numbers for abrasion and oil resistance.
Optional armour/screening
Where crushing or EMI control is a concern, a tinned braid or light armor layer can be specified. Armor protects the inner layers but reduces flexibility; balance protection with the need to reel or flex.
A true underground coal mining cable is the sum of these engineered layers working together.

Different uses require different constructions — do not treat them as interchangeable.
Reeling cables: used where a cable is wound repeatedly on drums (e.g., portable pumps, fans). Prioritize flexibility and validated spooling life. Minimum drum diameter recommendations from the manufacturer are critical; insist on flex-cycle test reports at your actual drum diameter.
Trailing cables: dragged along floors or chassis (e.g., drill feeds, excavator leads). These need abrasion and cut resistance plus good oil resistance. A rugged jacket (PU or reinforced CPE) and sacrificial sleeves at contact points extend life.
Fixed-run feeders: stationary connections to motors or substations. For fixed runs, flame performance, mechanical protection and UV stability (for surface runs) are more important than extreme flexibility.
Submersible/pump cables: require sealed cores or water-blocking systems and tinned conductors for corrosion resistance. Hydrostatic test evidence and per-reel water ingress certificates should be mandatory for submerged duty.
When evaluating vendors, state the intended duty clearly so they return a matched construction — the correct underground coal mining cable for a reeling pump is different from the cable you use for a fixed lighting run.
Vague specs like “heavy-duty” or “suitable for mines” invite confusion. Use the following measurable items in every RFQ:
Rated voltage & conductor mm² with ampacity charts.
Conductor strand count and flex class (specify exact strand numbers).
Insulation material name and thickness; dielectric and thermal ratings.
Jacket compound name and minimum thickness; require material datasheet.
Minimum bend radius (as multiple of OD) and recommended drum diameter for reeling.
Spooling/flex cycle test data at your drum diameter (protocol and cycles-to-failure).
Abrasion, tear, and cut-through test numbers (Taber cycles, puncture force, tear N/mm).
Oil/chemical resistance test results for site-specific fluids.
Hydrostatic/immersion tests and water-blocking evidence for pump/submersible cables.
Operating temperature range and cold-flex tests for low-temperature sites.
Per-reel certificates (insulation resistance, dielectric/hipot, mechanical tests) and lot marking on the reel.
Recommended glands & termination kits compatible with jacket chemistry.
Requests returned with numeric test reports and batch certificates are verifiable and reduce procurement risk.
When reels arrive on site, perform these checks before installation:
Visual check: jacket finish, print markings and lot number.
Verify per-reel certificates match the reel lot number.
Spot electrical tests: insulation resistance and DC conductor resistance on a sample length.
Mechanical check: uncoil a short length and confirm minimum bend radius and flexibility at ambient site temperature.
For critical reeling cables: review spooling test reports for the supplied lot or witness a sample spool test.
Don’t install reels that lack matching test evidence — that’s the most common route to failure.
Correct handling stretches cable life dramatically:
Use recommended drum diameters and controlled tension when reeling/unreeling.
Fit smooth guide rollers and protective plates where the cable passes edges.
Apply spiral wraps or sacrificial sleeves at known wear points.
Use glands and boots sized and chemically compatible with the jacket — incompatible sealants are a frequent cause of early failure.
Train crews to avoid sharp kinks and to log reel lot numbers at installation.
Treating cable as a system component rather than a consumable cuts replacement frequency.
A basic maintenance program saves work later:
Daily visual checks for cuts, flattening or exposed cores.
Monthly insulation resistance testing to spot moisture ingress early.
Thermographic scans at terminations to detect resistive heating.
Record spooling cycles and retire reels before predicted end-of-life.
Keep failure logs tied to reel lot numbers to identify manufacturing problems.
Proactive maintenance turns an underground coal mining cable from a liability into a predictable asset.
Selecting the right cable reduces safety hazards and hidden costs. For circuits that form part of escape routes or that operate in potentially explosive atmospheres, require flame retardant and explosion-proof options where applicable and document compliance. Although premium cable costs more initially, the total cost of ownership — fewer emergency repairs, less downtime and reduced labor for splicing — typically favors proper specification.
rated voltage & conductor mm² with ampacity table
conductor strand count & flex class (exact numbers)
insulation type, thickness & dielectric rating
jacket compound name & datasheet; minimum thickness
minimum bend radius & recommended drum diameter
spooling/flex cycles test report at specified drum diameter
abrasion, tear & puncture test numbers
oil/chemical compatibility and hydrostatic/immersion test data (if needed)
temperature range & cold-flex test results
per-reel test certificates and reel lot marking requirement
recommended glands/termination kits & spare parts policy
Paste this list into vendor RFQs and demand numeric test evidence rather than marketing claims. That’s how you get the right underground coal mining cable for your operation — once, correctly, and without the repeated firefighting of avoidable failures.
