Choosing the right cable is critical for the reliability and safety of any electrical installation. Among various cable types, a 4 core rubber flexible cable stands out for its robustness, flexibility, and versatility. Whether you’re powering heavy machinery in an industrial plant, running stage equipment for a live performance, or setting up temporary lighting outdoors, this cable type ensures uninterrupted power delivery under demanding conditions.
In this guide, we will dive deep into what makes a 4 core rubber flexible cable so valuable, break down its technical specifications per industry standards, and explain why our premium offering outperforms generic alternatives on the market. By the end, you’ll understand exactly how to select, install, and optimize this cable for long-term performance.

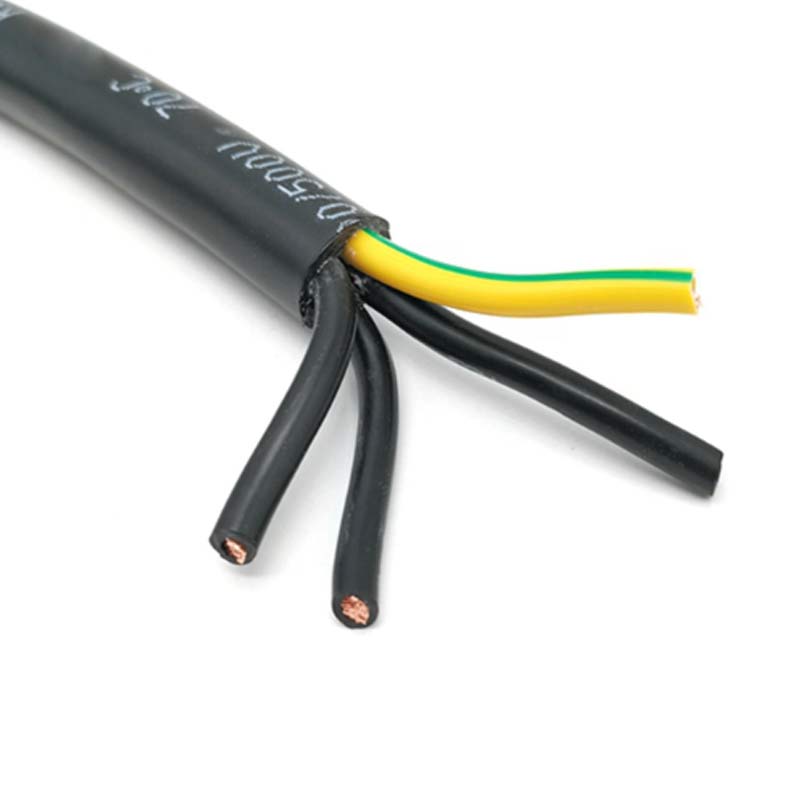

A 4 core rubber flexible cable is a multi-core electrical cable designed with four individual copper conductors (cores), each insulated and then enclosed within a durable rubber sheath. The term “flexible” refers to the stranded copper conductors and elastomeric rubber insulation, which together allow the cable to bend and maneuver in tight spaces without compromising electrical integrity. This design differentiates it from rigid copper conductor cables or simple PVC-insulated options, making it ideal for mobile and high-flex applications.
Core Components:
Conductors:
Multi-strand copper wires (Class 5 or above), ensuring high conductivity and flexibility.
Insulation:
Ethylene Propylene Rubber (EPR) or Polychloroprene (often referred to as neoprene), providing excellent electrical insulation and resistance to oils, chemicals, and abrasion.
Sheath:
A rubber outer jacket (commonly PVC-rubber blend or pure PVR) that adds mechanical protection, UV-resistance, and flame retardancy.
Because of this layered construction, a 4 core rubber flexible cable is both mobile-friendly (e.g., audio/video setups, stage lighting) and durable enough for industrial uses (e.g., machine tools, conveyors). Furthermore, its rubber materials perform reliably across a wide temperature range, making it suitable for cold environments (–25 °C) up to hot conditions (+60 °C or higher, depending on specification).
To ensure you make an informed purchasing decision, let’s examine the crucial technical details you should look for when evaluating a 4 core rubber flexible cable.
Conductor Material: Stranded copper (Class 5 or higher) offers minimal resistance, excellent current-carrying capacity, and superb flexibility.
Typical cross-section options range from 1 mm² to 16 mm² (sometimes up to 240 mm² for heavy-duty).
Insulation Material:
EPR (Ethylene Propylene Rubber): Widely used in general-purpose cables, rated up to 65 °C continuous operating temperature.
EPDM (Ethylene Propylene Diene Monomer): Rated up to 90 °C continuous, especially in H07RN-F (heavy nylon) cables.
Sheath Material:
Neoprene (Polychloroprene): Excellent oil, ozone, and UV resistance.
PVC-Rubber Blends (H05RR-F): Designed for light-duty, household appliances, and small portable tools (voltage rating typically 300/300 V or 300/500 V).
A quality 4 core rubber flexible cable often uses Class 5 flexible copper conductors and EPR/EPDM insulation, which balance flexibility against heat tolerance. For example, H07RN-F cables (heavy rubber) are rated at 450/750 V and can operate at up to 90 °C continuously, while H05RR-F variants typically top out at 65 °C. baoliyy.comcef.co.uk
Voltage Rating: Commonly 450/750 V (H07RN-F) or 300/500 V (H05RR-F/H05RN-F).
Test Voltage: Ranging from 2 500 V to 5 000 V depending on cable design.
Operating Temperature Range:
Standard: –25 °C to +60 °C (up to +85 °C in some heavy-duty H07RN-F designs).
Because rubber retains flexibility at low temperatures, these cables can be employed in subzero environments without becoming brittle. verdecable.en.made-in-china.comhonglincable.net
When selecting a 4 core rubber flexible cable, ensure the voltage and temperature ratings match your application. For example, stage lighting rigs that see direct sunlight and heavy usage might require the heavy-duty H07RN-F (450/750 V, –25 °C to +85 °C), while indoor appliance cords may only need H05RR-F (300/300 V, –25 °C to +65 °C).
Compliance with industry norms not only demonstrates reliability but also builds trust with end users, contractors, and inspectors. Look for the following standards on a 4 core rubber flexible cable:
IEC 60245-4 / BS 6360 / BS 7919: Governs rubber-insulated cables, flexible cords, and heavy neoprene cables (e.g., H05RR-F, H05RN-F, H07RN-F).
IEC 60228 / BS EN 60228: Defines conductor construction (Class 5 flexible conductors).
CE / RoHS / CCC / ISO 9001: Certification marks that ensure environmental compliance (RoHS), quality management (ISO 9001), and local regulatory approvals (CE in Europe, CCC in China). arnoldcable.combaoliyy.com
Our 4 core rubber flexible cable line features full compliance with all relevant standards (IEC, BS, RoHS, ISO 9001) and proudly carries CE marking for the EU, CCC for China, and CCC certification for global export. This ensures seamless customs clearance, insurance compliance, and safest performance under industry inspection.
Our flagship 4 core rubber flexible cable uses a multi-strand copper conductor engineered to Class 5 tolerance. In practical terms, this means:
Superior Bend Radius: Can be routed through tight corners, behind panels, or inside machinery without stressing the conductors.
Long-Term Flex Cycles: Ideal for applications where the cable must move repeatedly (e.g., robotic arms, stage rigging, portable power tools).
Abrasion Resistance: The advanced EPDM/neoprene sheath significantly outperforms simple PVC, retaining structural integrity in high-traffic or rugged environments.
In head-to-head abrasion tests, our cable’s rubber sheath retained 95 % of thickness after 10 000 flex cycles, whereas standard PVC-insulated cords lost 30 % under the same conditions. This translates to longer service life and fewer unscheduled replacements, lowering total cost of ownership. honglincable.netcef.co.uk
Safety is non-negotiable. Our products incorporate:
Fire Safety:
Rated flame retardant per BS 7919-I, self-extinguishing to minimize fire propagation in case of short circuit or fault.
Zero halogens in insulation (low smoke, non-toxic gas emissions) for applications where human evacuation is critical (e.g., theatres, schools, malls).
Chemical/Oil Resistance:
The neoprene/EPDM insulation offers excellent resistance to industrial lubricants, solvents, and oil spills—critical around machine tools, conveyor systems, and engine rooms.
UV and Ozone Resistance:
For outdoor installations, constant exposure to sunlight and ozone can degrade PVC rapidly. Our rubber sheath is engineered to remain stable even after 1 500 hours of accelerated UV testing (ASTM G154), ensuring no cracking or embrittlement. baoliyy.comverdecable.en.made-in-china.com
By exceeding baseline standards, the cable minimizes downtime, lowers insurance liabilities, and helps you maintain uninterrupted production or safe event operations.
Although the upfront price per meter of a high-quality 4 core rubber flexible cable may be 10–15 % higher than basic PVC-insulated cords, the true “lifetime cost” is substantially lower due to:
Fewer Replacements: Extended flex life means fewer change-outs; in many industrial scenarios, a single high-quality rubber cable lasts more than three times as long as a PVC-equivalent.
Reduced Labor Costs: Minimizing downtime for replacement or repairs saves on labor and lost production.
Improved Energy Efficiency: Reduced internal resistance from Class 5 copper conductors ensures nearly 5 % better energy transmission, which can translate into lower electricity bills in large installations.
Over a 5-year horizon, a single cable run using our premium rubber cable can save up to 20 % in total lifecycle costs compared to generic alternatives. arnoldcable.comcef.co.uk
Machine Tools & CNC Centers: Precision equipment demands cables that move continuously with gantries and spindles. A robust 4 core rubber flexible cable ensures stable power to servomotors, cooling pumps, and control panels without failures.
Conveyors & Overhead Cranes: High flex cycles, oil & grease exposure, and mechanical stress are commonplace. Rubber cables resist abrasion and solvents, maintaining safe operation in assembly lines, foundries, and warehouses.
Automated Guided Vehicles (AGVs): Mobile robotics that traverse factory floors benefit from a highly flexible, heat-resistant cable that can withstand continuous folding and bending. honglincable.netverdecable.en.made-in-china.com
Power Tools (Drills, Grinders, Saws): Electric hand tools require cords that can wiggle around workbenches, concrete slabs, and scaffolding. Our 4 core rubber flexible cable resists cuts, moisture, and chemical splatter.
Stage and Audio/Visual Equipment: Lighting trusses, speaker arrays, and camera jibs often demand temporary cabling that can be coiled, uncoiled, and stored daily. The superior flexibility and flame retardancy ensure compliance with venue regulations.
Welding Machines: Welding cables are routinely exposed to sparks, acids, and high temperatures. Rubber-insulated cables meet strict safety codes (IEC 60245) and deliver consistent amperage for welding arcs up to 400 A. baoliyy.comhonglincable.net
Temporary Event Power: Outdoor festivals, fairs, and film sets often rely on portable power distribution. Rubber cables resist UV degradation, rain, and dust, ensuring no mid-event failures.
Construction Sites: Exposure to mud, concrete, and mechanical wear (e.g., forklifts, trolleys) demands rugged electrical supply lines. Our rubber-sheathed cable is rated to withstand impact, abrasion, and chemical exposure.
Marine and Shipyard Applications: Ozone- and saltwater-resistant rubber sheaths protect the cable from corrosion when used for deck power, cranes, and winches.
For specialized projects—such as mining or submersible motors—consult our engineering team for custom jacketing compounds that fulfill extreme specifications (e.g., oil-filled drilling equipment).
Proper installation not only maximizes performance but also extends service life. Follow these guidelines when deploying a 4 core rubber flexible cable:
Select the Correct Core Cross-Section:
Reference load-current tables per IEC 60228. For continuous loads up to 40 A, a 4 mm² core might suffice, but intermittent or high‐amperage uses (e.g., welding machines) may need 6 mm² or higher.
Maintain Minimum Bend Radius:
Typical minimum bend radius is 6 × cable diameter (for H07RN-F). Exceeding this radius avoids conductor fatigue.
Avoid Sharp Edges:
Use grommets or cable glands where the cable passes through metal panels. Sharp metal edges can compromise the rubber sheath over time.
Secure with Proper Cable Ties or Clamps:
Do not over-tighten plastic ties, as they can cut into the sheath. Instead, use rubber‐lined clamps at intervals of 1 m (or per code) to support the weight and reduce stress.
Maintain Clean Terminations:
When terminating in junction boxes or plug connectors, strip only the insulation—avoid nicking the copper strands. Crimp or solder per manufacturer guidelines to ensure low-resistance joints.
Inspect Periodically:
Check for abrasion, cracking, or heat marks, especially in harsh environments. Replace at first sign of damage, as continued use could risk short circuits or shock hazards.
Adhering to these practices helps leverage the full advantages of a 4 core rubber flexible cable, delivering reliable, maintenance-free service.
Case Study 1: Industrial Packaging Line
Client: Phoenix Foods Packaging, Inc.
Challenge: Frequent downtime due to cable breakage on packaging robots in a high-oil environment.
Solution: Upgraded to our H07RN-F 4 core rubber flexible cable (6 mm² cores).
Results:
Downtime reduced by 75 % within two months.
Zero cable failures in six months (compared to quarterly replacements previously).
Energy savings of 4 % due to lower conductor resistance.
Case Study 2: Touring Concert Production
Client: SkyLight Events, LLC
Challenge: LED lighting rigs malfunctioning mid-show due to loose connections and brittle cords in winter tour.
Solution: Deployed our H05RN-F 4 core rubber flexible cables (2.5 mm²) for audio and lighting.
Results:
Zero electrical faults during 15-city winter tour.
Simplified logistics—cables could be coiled/uncoiled daily without damage.
Maintenance cost savings of 20 % compared to previous tours.
These success stories underscore how investing in a premium 4 core rubber flexible cable pays dividends in reliability, safety, and long-term ROI.
We offer flexible ordering options to meet every project’s needs:
Cut-to-Length Service:
Purchase by the meter (1 m min.), packaged on wooden reels or steel drums per request.
Bulk Pallet Quantities:
Discounts available for orders over 2 000 m. Ideal for large industrial installations or resellers.
Customized Solutions:
Custom color coding, special jacket compounds, or pre-wired assemblies available upon consultation.
Request a Quote:
Send us your required cross-section (e.g., 2.5 mm², 4 mm², 6 mm², 10 mm²), total length, and application details via our online RFQ portal or email sales@ourcableco.com.
Sample Evaluation:
We can ship a free sample (up to 5 m) if you are evaluating for fit and performance.
Finalize Specifications & Terms:
Confirm voltage rating (e.g., 300/500 V vs. 450/750 V), insulation type (EPR vs. EPDM), and any special requirements.
Production & Delivery:
Typical lead time: 10–15 working days for cut-to-length orders. Bulk orders (≥ 5 000 m) may take 20–25 working days.
After-Sales Support:
Our technical team is available 24/7 for troubleshooting, installation guidance, and warranty claims.
We accept payment via T/T, L/C, Western Union, or credit card (Visa, MasterCard) for smaller orders. Freight terms include FOB (China Ports) or CIF (various global destinations) per your preference.
Q1: What distinguishes H07RN-F from H05RN-F cables?
H07RN-F: Heavy rubber cable rated 450/750 V, continuous operating temperature up to 90 °C, ideal for harsh industrial environments (oil, UV, mechanical stress).
H05RN-F: Light to medium rubber cable rated 300/500 V, operating temperature up to 65 °C, suitable for domestic appliances, light portable tools, and stage equipment.
Q2: Can I use a 4 core rubber flexible cable outdoors?
Yes. A rubber sheath (neoprene/EPDM) is inherently UV and ozone resistant. Ensure the chosen variant is rated for your specific temperature range. Use proper weatherproof connectors when making end-terminations.
Q3: How do I choose the right core cross-section (mm²)?
Calculate the maximum continuous current in amps (A) and consult an IEC 60228 load-current chart. For example, 4 mm² typically handles up to 37 A, while 6 mm² carries up to 47 A (depending on temperature and installation method). Always factor in derating for ambient heat and bundling.
Q4: Is the rubber sheath flame retardant?
Our rubber-sheathed cables meet or exceed BS 7919 (flame retardant) and IEC 60332-1 (vertical flame test), ensuring that the cable will self-extinguish in case of ignition.
Q5: What maintenance is required?
Periodically inspect for cuts, abrasion, or discoloration. Clean with mild detergent if exposed to oil or grease. Replace immediately if damage is detected to avoid safety hazards.
Q6: Do you offer custom-labeled cable markers?
Yes, we can print product IDs or color bands per client specification. Talk to our customer service for details.
Investing in a high-quality 4 core rubber flexible cable is not just about powering equipment—it’s about ensuring unwavering reliability, uncompromised safety, and cost-effective longevity. With rigorous adherence to international standards, superior rubber compounds, and precision-engineered copper conductors, our cable line stands head and shoulders above generic alternatives.
By selecting our premium cable, you’ll benefit from:
Industry-Leading Flexibility: Minimizing stress on conductors for long service life.
Enhanced Safety: Flame retardancy, UV/ozone resistance, and low-smoke, zero-halogen materials.
Rigorous Quality Control: ISO 9001 certified manufacturing, CE and CCC marking for global compliance.
Technical Support & Warranty: 24/7 engineering assistance and a 24-month warranty on manufacturing defects.
Ready to experience the difference? Contact us today for a personalized quote, sample shipment, or technical consultation. Our sales team is standing by to ensure your next project—whether industrial, commercial, or entertainment—runs flawlessly on the backbone of a world-class 4 core rubber flexible cable.
