Underground environments are unforgiving. Confined spaces, heavy equipment, moisture, and the ever-present risk of fire or mechanical damage make power distribution a major project risk — unless the right cable is specified. A purpose-designed Tunnel Power Cable is not an optional extra; it’s an investment in uptime, safety and predictable maintenance. When selected and installed correctly, the right Tunnel Power Cable keeps lights on, drives turning and critical safety systems operational under the conditions that would disable ordinary wiring.
An outdoor or building power cable may perform acceptably in open, accessible locations, but tunnels and mines present distinct challenges. Soil movement, trampling by construction traffic, tight ducts, and exposure to oil or moisture require materials and construction methods that are proven in the field. A Tunnel Power Cable combines conductor selection, insulation chemistry, mechanical armour and sheath design to match those environmental realities. This reduces the chance of emergent faults, simplifies inspections, and protects both people and assets.

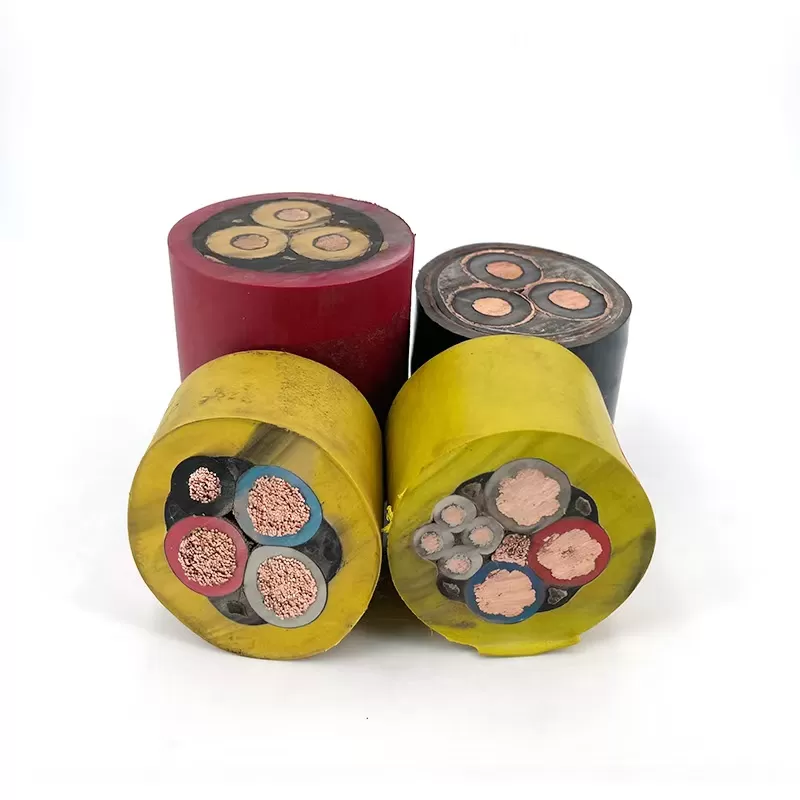

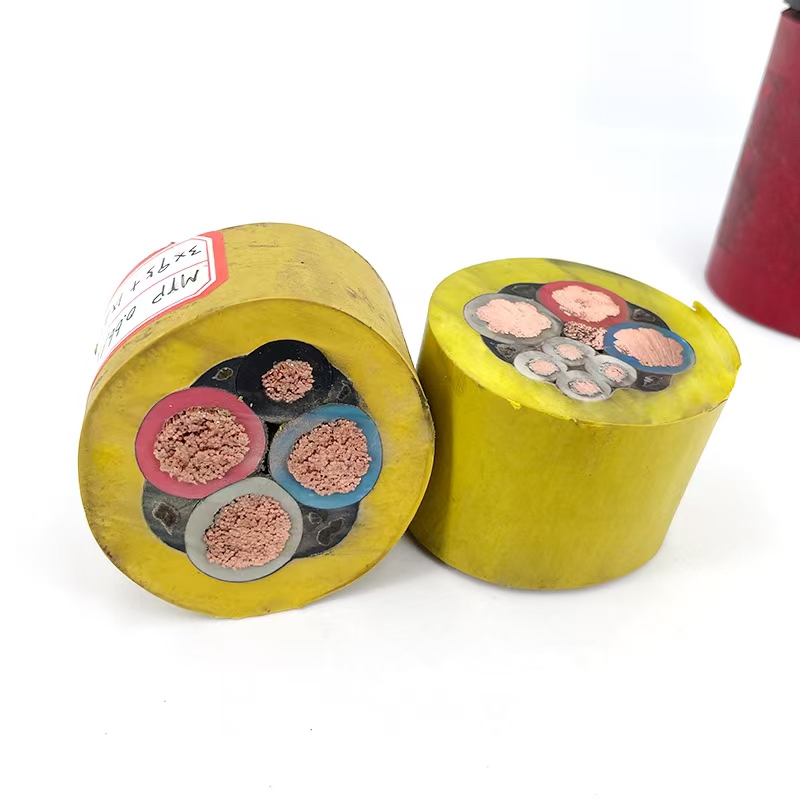

A high-quality Tunnel Power Cable integrates layers engineered for specific functions:
Conductor quality: Select cables with fine-stranded, class-5 copper conductors for low resistance and flexibility under repeated stress.
Insulation chemistry: Choose insulation (XLPE, rubber compounds or cross-linked thermosets) appropriate to operating temperature and short-circuit duty.
Mechanical armour: Steel tape or wire armour protects against crushing and impact during installation and after handover.
Outer sheath: The outer jacket should resist abrasion, oils, moisture and chemical exposure while meeting required fire-performance criteria when necessary.
Test evidence: Manufacturer test records — conductor resistance, dielectric tests, and mechanical verification — assure the cable will meet site demands.
These layers are the reason a Tunnel Power Cable acts as a resilient backbone for underground power networks.
When specifying a Tunnel Power Cable, include numeric performance criteria:
Rated voltage (e.g., 450/750 V for LV distribution, or appropriate MV class for higher systems).
Maximum continuous conductor temperature and short-circuit temperature limits.
Test voltage used at the factory and insulation resistance figures.
Conductor resistance per core at 20°C, to calculate voltage drop across long runs.
Minimum bending radius for fixed and flexed installations.
Numeric clarity avoids ambiguous bids and helps installers plan safe, effective routing.
Fires in tunnels create acute risk: smoke, toxic gases and rapid loss of critical systems can put lives at stake. For many projects, you should specify either fire-resistant cable (which preserves circuit integrity during a specified fire duration) or low-smoke zero-halogen (LSZH) jacketing to minimize toxic emissions. A Tunnel Power Cable that carries the relevant fire performance test certificates shortens approval cycles and reduces risk in emergency scenarios.
The selection of armour depends on how the cable will be routed:
Steel tape armour (STA) gives excellent radial crush resistance for buried or ducted runs.
Steel wire armour (SWA) provides higher tensile strength for long pulls and exposed spans.
Corrugated steel tape (CST) and other corrugated forms offer balance between flexibility and protection.
Specify armour thickness and galvanization level for buried runs or coastal environments where corrosion is a concern.
Primary tunnel distribution: feeding substations and motor control centers where reliability is critical.
Fixed plant: power to conveyor drives, ventilation fans, dewatering pumps and illumination.
Temporary site works: robust cables for mobile pumps, tunnelling machines and construction power.
Emergency circuits: dedicated power paths that must survive and operate during incident response.
In each case, the right Tunnel Power Cable reduces downtime and simplifies maintenance planning.
A resilient Tunnel Power Cable still needs careful handling:
Follow bend radius and pulling tension limits specified by the manufacturer.
Terminate armour correctly using approved glands to ensure earth continuity and mechanical integrity.
Protect terminations from moisture with proper sealing and drainage arrangements.
Keep accurate “as-laid” records and tie each reel to batch numbers for future traceability.
Installation discipline preserves warranty and avoids field failures.
Because access in tunnels is often restricted, preventive maintenance yields high returns:
Regular visual inspections at access chambers and terminations.
Infrared surveys to detect developing hot spots at joints and terminations.
Periodic insulation resistance testing to track aging.
Batch and reel traceability to isolate effects if manufacturing issues arise.
Scheduled maintenance prevents small issues from cascading into stoppages.
To receive comparable and compliant proposals for a Tunnel Power Cable, include:
Exact conductor cross-section and core count.
Rated voltage class and conductor temperature limits.
Armour type, thickness and corrosion protection details.
Sheath material and required fire performance (if any).
Required test certificates, mill reports and sample lengths for acceptance testing.
Packaging, marking and batch traceability requirements.
A clear RFQ reduces ambiguity and speeds procurement.
A lower initial price often conceals higher lifetime costs. A suitably specified Tunnel Power Cable decreases emergency repairs, reduces replacement frequency and lowers production losses caused by outages. When evaluating vendors, consider expected service life, test evidence and supplier support — not just per-meter price.
On one tunnelling project, the initial use of unarmoured conductors in a service corridor caused repeated damage during commissioning. Replacing those runs with a properly specified, armoured Tunnel Power Cable eliminated recurring faults and restored schedule confidence. The project team calculated that the upfront difference in cable cost paid back several times over in avoided delays and repair labor.
For underground power systems, treat cable specification as a core discipline: define numeric ratings, specify armour and sheath chemistry to match route conditions, demand fire-performance certificates where needed, and insist on batch traceability. The right Tunnel Power Cable, correctly installed and maintained, becomes a durable asset — protecting people, equipment and project timelines for years to come.
