Jun. 04, 2025

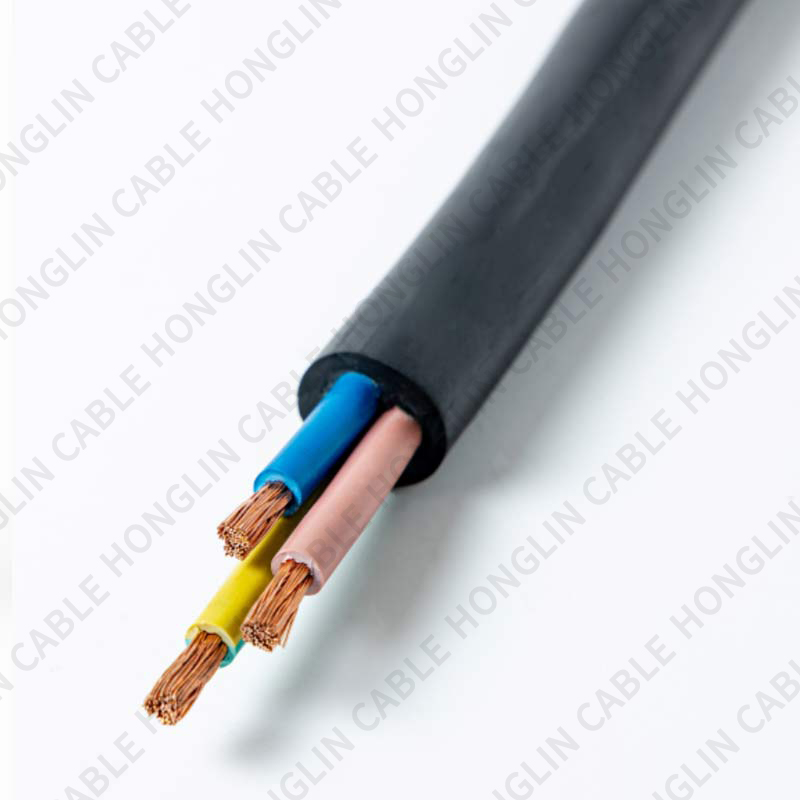

Where electrical systems demand robust power and vital safety redundancy—from stage rigging to industrial machinery—a third core isn’t optional; it’s insurance. For professionals engineering reliability in harsh environments, the 1.5 mm 3 core rubber cable stands as the definitive solution. This specific configuration delivers live, neutral, and crucially, a dedicated earth conductor within a single, ultra-durable jacket. Forget makeshift solutions; this cable integrates safety and performance where failure carries catastrophic consequences.
The 1.5 mm 3 core rubber cable solves critical challenges standard cables cannot:
Mandatory Earth Continuity:
The dedicated earth core (green/yellow) provides a low-resistance path for fault currents. This is non-negotiable for Class I equipment (earthed metal housings), preventing electric shock if insulation fails. In wet environments or with portable tools, this core saves lives.
Optimised Power Delivery:
The 1.5mm² cross-section handles 16 Amps safely—perfect for motors, larger power tools, or equipment clusters requiring robust supply. Live (brown) and neutral (blue) cores deliver power; the earth core ensures safety.
Unmatched Durability in One Package:
Encased in EPDM or Neoprene rubber, this heavy-duty rubber flex withstands punishing conditions:
Abrasion: Survives dragging across steel decks or concrete.
Oils & Solvents: Resists degradation in workshops or factories.
Extreme Temperatures: Flexible from -25°C to +60°C—no cracking in cold.
Moisture & UV: Performs outdoors or in marine atmospheres.
Simplified Installation & Compliance:
One tough cable replaces separate live/neutral/earth runs—reducing clutter, tripping hazards, and installation time. Pre-defined core colours (brown/blue/green-yellow) meet IEC/BS wiring standards, speeding inspections.
The 1.5 mm 3 core rubber cable is specified by engineers prioritizing safety and reliability:
Stage & Event Power: Powers moving lights, dimmer racks, and speaker stacks. Earth continuity prevents lethal shocks on metal trusses; flexibility enables clean rigging.
Industrial Machinery: Feeds motors, pumps, and CNC equipment requiring secure earthing. Oil resistance ensures longevity on factory floors.
Marine & Coastal Equipment: Supplies deck machinery, winches, and shore power connections. Salt spray resistance and mandatory earthing are critical.
Construction Site Distribution: Powers 16A+ equipment (cement mixers, temporary HVAC) via rugged, earthed trailing sockets.
Commercial Kitchens & Washdown Areas: Handles mixers, ovens, and cleaning gear. Waterproofing and grease resistance prevent failures; earthing protects staff.
Fixed Outdoor Installations: Safely powers garden machinery, gate motors, or external lighting with integrated earth protection.
Counterfeit or sub-spec 1.5 mm 3 core rubber cable risks lives and compliance. Verify these essentials:
Core Integrity:
CSA: Precisely 1.5mm² x 3 cores (no undersizing).
Colour Coding: Brown (L), Blue (N), Green/Yellow (Earth) per IEC 60446.
Conductor: Stranded copper. Tinned copper resists salt corrosion.
Voltage Rating:
300/500V for general use.
450/750V for industrial/marine systems (verify requirements).
Sheath Performance:
EPDM: Superior cold flexibility, ozone/UV resistance (stages, outdoors).
Neoprene (CR): Enhanced oil/flame resistance (workshops, kitchens).
Articulated/Braided: For extreme cold or cut/abrasion risks (e.g., mining).
Certifications (Demand Proof):
IEC 60245-4 (H07RN-F 3G): Global rubber flex standard with earth core.
BS 6500 / BS 7919: UK safety benchmarks.
Independent Certification: BASEC, HAR, LPCB marks. LSZH/FR variants for confined spaces.
When safety and uptime hinge on cable integrity, [Your Brand] delivers guaranteed performance:
Zero Compromise Materials: Virgin EPDM/Neoprene sheaths and 99.9% copper conductors (plain or tinned). No recycled metals or subpar rubber.
Rigorous Manufacturing: Cables exceed H07RN-F 3G and BS 6500 specs. Every batch undergoes dielectric, tensile, and flame tests.
Safety-First Inventory: Stock includes black, orange, and yellow 1.5 mm 3 core rubber cable in plain, artic, and braided designs. LSZH variants available.
Technical Expertise: Our engineers help select cable for your stage rig’s amp load, marine winch’s salt exposure, or factory robot’s oil resistance—ensuring compliance.
Full Traceability: Certificates (BASEC, UKCA, test reports) with every order. Mill certificates available for critical projects.
Using uncertified 1.5 mm 3 core rubber cable invites catastrophic losses:
Lethal Safety Failures: A compromised earth core won’t trip breakers during faults—exposing users to live metal casings.
Project Shutdowns: Failed inspections halt events, construction, or production over non-compliant wiring.
Fire & Equipment Damage: Undersized cores overheat; poor insulation causes shorts.
Legal Liability: Electric shock incidents trigger criminal negligence investigations.
Hidden Expenses: Re-cabling costs, downtime penalties, and reputational damage dwarf cable savings.
Genuine 1.5 mm 3 core rubber cable from HonglinCable delivers:
Guaranteed Safety: Earth core integrity proven to 25kA+ fault currents.
Uninterrupted Operations: 10+ year service life in harsh conditions.
Regulatory Confidence: Passes audits and inspections effortlessly.
When your application demands robust power and failsafe earth protection—whether suspending lights above audiences or operating machinery in rain—the 1.5 mm 3 core rubber cable is the engineer’s imperative. It’s not merely cable; it’s your critical defense against shock, fire, and liability.
Install with confidence. Protect without compromise.
Explore our certified range of H07RN-F 3G 1.5 mm 3 core rubber cable, heavy-duty rubber flex, and 3 core rubber sheathed cable: [Direct Product Link]
