Oct. 29, 2025
Choosing the correct wire size is one of the simplest decisions that delivers outsized benefits: safety, performance and long-term reliability. The term awg cable encapsulates a family of conductor sizes used across electronics, building wiring, solar installations and automotive systems. Whether you’re equipping a workshop, wiring a panel, or designing a battery array, understanding how to select and use AWG cable will save you time and money while keeping operators safe.
When you read a product label marked with an AWG number, you’re seeing a direct indication of conductor diameter and electrical capacity. Lower AWG numbers mean thicker wire, lower resistance and higher current-carrying capacity; higher numbers mean thinner wire suitable for low-current or signal applications. That single number simplifies comparisons between wire choices, but to get it right in the field you need to combine the AWG value with application context: expected current, run length, insulation type and allowable voltage drop.
Two practical numbers decide the suitability of any awg cable for a job: the ampacity (how much current it can safely carry) and the allowable voltage drop over the run. Ampacity depends on conductor size, insulation temperature rating and installation conditions (bundled in a conduit, free air, enclosed equipment). The result is simple: undersize the cable and it overheats; oversize it and you waste material and space. A well-engineered specification balances cost, safety, and long-term performance.
Different tasks call for different gauge ranges. For example:
Small signal wiring and electronics: 22–30 AWG. These thin awg cable types are flexible and easy to route in tight boards.
Low-voltage lighting and control: 16–18 AWG. Good for control circuits, small fixtures, and speaker wiring.
Branch circuits in homes: 12–14 AWG. Typical household circuits use these sizes for 20 A and 15 A circuits respectively.
Heavy loads and welding leads: 2–4 AWG or thicker. These larger awg cable types handle motors, inverters and high-current cables.
These ranges are starting points; always cross-check with ampacity tables and the device or code requirements for your jurisdiction.

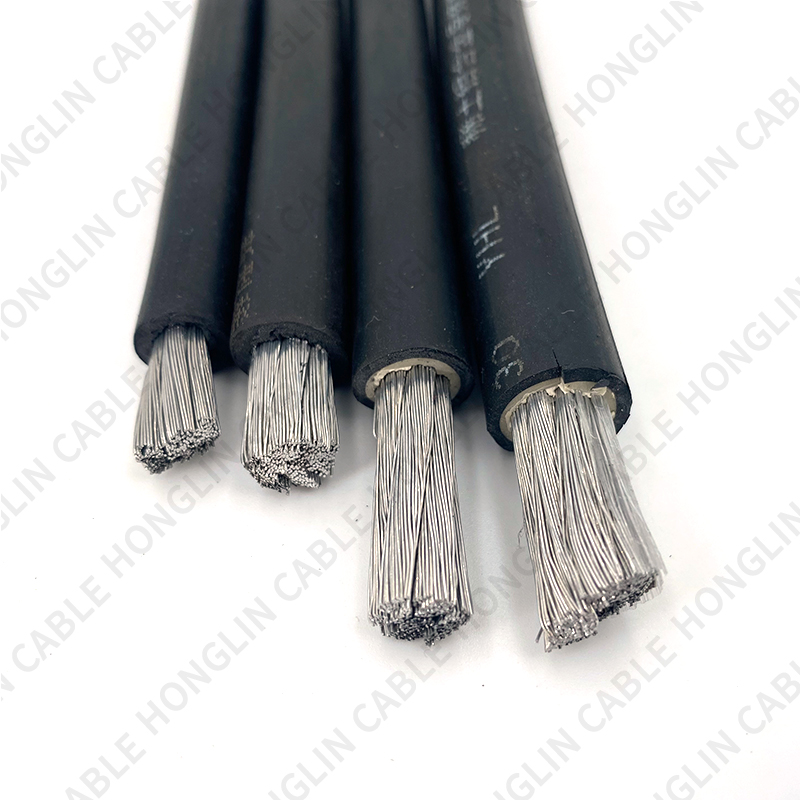

An awg cable can be solid or stranded. Solid conductors are simple and stable in fixed runs; stranded conductors are more flexible and better for movable assemblies, reeling, or frequent vibration. For battery leads, audio, and flexing power runs, stranded AWG cable is usually the correct choice. When evaluating strands, look at both strand size and strand count — a high number of fine strands improves bend life and reduces fatigue.
The insulation around an awg cable matters as much as the conductor inside. Different insulation compounds withstand different temperatures, chemical exposures and UV. When the cable will run near heat sources, inside hot equipment, outdoors, or where oil and solvents are present, choose an insulation type with a higher temperature rating and the appropriate chemical resistance. Note also that a higher temperature rating typically increases allowable ampacity — another reason to match insulation spec to the application.
A common field mistake is to ignore voltage drop on long runs. An undersized awg cable may deliver correct current at the fuse but not enough voltage at the device, causing motors to run hot or lamps to dim. As a rule of thumb, for DC or sensitive equipment keep voltage drop under 3% of nominal voltage; for general AC circuits under 3–5% is acceptable. Use voltage-drop calculators or tables to pick the right AWG for the run length and load.
Good materials are only half the job — installation practice matters. When working with awg cable:
Secure cables to avoid mechanical strain and chafing.
Respect the minimum bend radii, especially for fine-stranded cable.
Use rated terminals and lugs sized for the AWG selected.
Label both ends of longer runs to aid future troubleshooting.
Where multiple conductors run together, account for derating due to bundling.
Simple discipline in installation multiplies the lifespan of the wiring and reduces service calls.
Battery arrays and solar installations make AWG choices critical. High currents at low voltages put stronger demands on conductor size: a small AWG cable that is fine for control wiring can create large percentage voltage drops in DC systems. For battery connections, choose awg cable with sufficiently low resistance and proper temperature-rated insulation — and always plan for the peak currents the system may encounter.
In audio and signal applications, conductor size affects not just power delivery but also signal integrity. For long speaker runs or low-impedance systems, use thicker awg cable to minimise resistive losses and preserve damping factor. For high-frequency signal wiring, conductor geometry and shielding become important — AWG is still the first filter, but it is not the whole story.
Copper is the usual choice for AWG cable conductors, but in certain environments tinned copper or special alloys improve corrosion resistance. For marine, coastal or chemically aggressive environments, specify tinned conductors to avoid long-term degradation. The AWG number describes size, but conductor plating and metallurgy describe long-term performance — both matter.
When you purchase AWG cable, look for clear datasheets that list conductor area, DC resistance at 20°C, insulation type and temperature rating. Reputable suppliers provide batch traceability and test reports. If the application is critical, request mill certificates and confirm that the cable meets relevant electrical standards for your region.
Assuming all AWG charts are interchangeable — check insulation and temperature conditions used to calculate ampacity.
Using AWG by diameter only — stranded wires have different effective diameters and properties than solid wire of the same AWG.
Neglecting voltage drop for long DC or low-voltage AC runs.
Failing to derate when cables are bundled or run in high ambient temperatures.
Avoiding these mistakes keeps installations safe and long-lived.
Installing the correct awg cable reduces energy losses, prevents overheating, and avoids premature replacement. While thicker conductors cost more upfront, the savings accrue through lower losses, fewer service interruptions, and less risk of fire or equipment damage. In many industrial contexts the right AWG choice is a small capital expense that eliminates large operational expenses over time.
When you write a cable spec or place an order, include:
Exact AWG number for each conductor function.
Solid vs stranded conductor type and strand breakdown.
Insulation material and temperature rating.
Expected continuous current and maximum surge current.
Maximum allowed voltage drop and run length.
Environmental exposures (oil, UV, chemical) and required sheath characteristics.
A complete spec ensures the awg cable delivered matches the safe, efficient performance you expect.
