May. 13, 2026
Client Name: Mr. Deen
Company: Lanka Corrugated Industries (pvt) ltd
Country: Sri Lanka
Core Product: Steel Wire Armoured Cable (SWA Cable)
Order Quantity: 10,000 Meters
Agreement Date: May 7, 2026
Technical Consultant: Nikita (HonglinCable Engineering Distribution Team)
In heavy manufacturing environments, physical infrastructure is the unseen engine driving large-scale production lines. For industrial packaging and box fabrication facilities, power transmission must remain completely uninterrupted. Minor fluctuations or cable failures due to mechanical impacts do not just pause assembly—they generate massive operational losses, wasted raw materials, and logistical delays.
When dealing with heavy industrial plants that feature severe mechanical stress, shifting terrain, or underground routing, standard unarmoured cabling simply falls short. This is where high-tensile, ruggedized power links become mandatory. On May 7, 2026, HonglinCable officially finalized a major supply contract to manufacture and ship 10,000 meters of premium-grade Steel Wire Armoured Cable to Lanka Corrugated Industries (pvt) ltd in Sri Lanka, successfully resolving a critical infrastructure expansion challenge overseen by their leading procurement head, Mr. Deen.
As a dominant force in Sri Lanka's industrial packaging sector, Lanka Corrugated Industries (pvt) ltd operates high-capacity corrugated manufacturing lines. The plant houses massive corrugators, high-speed rotary die-cutters, flexo folder-gluers, and heavy steam-heating equipment. These systems run simultaneously, drawing heavy electrical currents and subjecting the physical plant floor to constant, low-frequency mechanical vibrations.
To support a facility expansion aimed at boosting their regional export capacities, the engineering team required a comprehensive overhaul of their primary main-distribution power lines. The new power infrastructure needed to be routed underground from an on-site substation directly through concrete trenches into the main production wings, demanding ultimate resistance against crushing, moisture intrusion, and potential chemical exposure.
During the initial engineering blueprint phase, Mr. Deen faced several critical technical obstacles specific to the geographic and operational landscape of Sri Lanka:
Mechanical Impact Risk: High-density material-handling equipment, including heavy-duty forklifts and automated roll-transporters, constantly traverse the facility floor. Underground lines needed to withstand severe compressive forces.
Harsh Tropical Climate: Sri Lanka's soil and sub-surface conditions exhibit high humidity, elevated ambient temperatures, and seasonal waterlogging, which can cause accelerated insulation degradation in substandard cables.
Long-Distance Consistency: Distributing stable voltage across a continuous 10,000-meter physical layout requires extremely tight control over conductor purity to prevent voltage drop-off and thermal buildup.
Seeking an experienced industrial manufacturer capable of handling high-volume custom production, Mr. Deen initiated technical consultations with Nikita, a senior technical sales engineer at HonglinCable.
Rather than merely providing a standard price estimate, Nikita conducted an exhaustive structural assessment of the facility’s power blueprints. Over multiple technical sessions, Nikita guided the client through the specific benefits of Cross-linked Polyethylene (XLPE) versus standard PVC insulation for tropical regions, explaining that a higher thermal threshold of 90°C would safeguard the factory against unexpected peak surges.
To provide absolute transparency, Nikita supplied comprehensive mechanical performance data, third-party laboratory verification certificates, and precise weight-per-meter logistical calculations. This rigorous, engineering-first approach provided Mr. Deen and his technical board with the ultimate confidence to proceed with a large-scale project partnership.

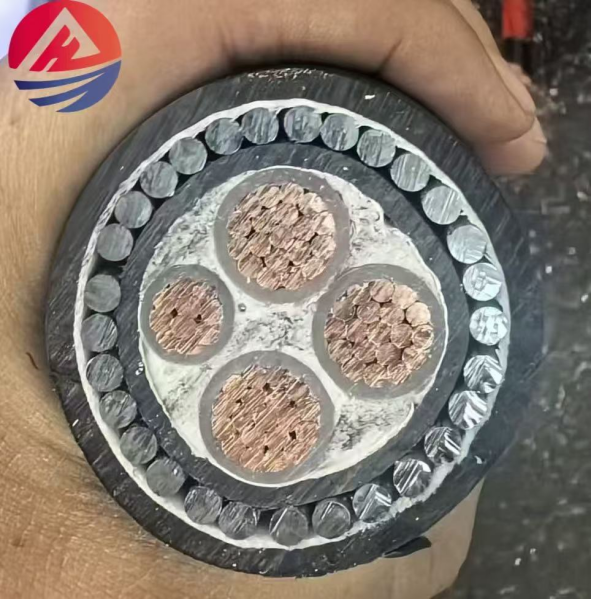

The product selected for Lanka Corrugated Industries (pvt) ltd is a multi-layer protective power link, engineered to handle extreme physical and electrical stress. The cable's structural layers include:
High-Purity Annealed Copper Conductors: Class 2 stranded copper wires manufactured to strict international standards, ensuring minimal electrical resistance and maximum current carrying efficiency.
XLPE Thermal Insulation: Offers a high 90°C continuous operating temperature limit, enabling excellent short-circuit resistance and superior longevity under sustained thermal load compared to standard PVC insulation.
Extruded PVC Bedding Layer: A robust, protective interior layer that firmly binds the insulated cores together, creating a perfectly round profile and acting as a shock-absorbing cushion for the metallic armour.
Galvanized Steel Wire Armour (SWA): A dense helical wrap of high-tensile galvanized steel wires. This is the structural core of the cable, offering elite mechanical armor against impact, crushing forces, and severe longitudinal pulling tension during complex duct installations.
Flame-Retardant, UV-Stabilized PVC Outer Sheath: Formulated with premium flame-retardant additives to prevent vertical fire propagation, wrapped in a black, UV-stabilized compound designed to resist direct tropical sunlight and underground acidic soils.
| Technical Parameter | Specification / Value | Engineering Standard Compliance |
| Cable Core Type | Multi-Core Heavy Power Cable | IEC 60502-1 / BS 5467 |
| Armour Design | Galvanized Steel Wire Armoured (SWA) | BS EN 10257-1 |
| Conductor Material | Class 2 Stranded Pure Annealed Copper | IEC 60228 / BS EN 60228 |
| Insulation Material | Cross-linked Polyethylene (XLPE) | Rated for continuous 90°C performance |
| Rated Voltage (Uo/U) | 600 / 1000V (0.6 / 1kV) | Industrial Low Voltage Standard |
| Dielectric Test Voltage | 3,500V / 5 Minutes (Zero Breakdown) | Factory Passed Quality Protocol |
| Outer Sheath Properties | Flame-Retardant (FR-PVC), UV-Stabilized | IEC 60332-1-2 |
On May 7, 2026, the partnership was finalized. HonglinCable immediately authorized the production schedule across its advanced manufacturing lines. Producing a 10,000-meter run of heavy Steel Wire Armoured Cable requires flawless operational synchronization.
HonglinCable utilizes real-time laser micrometer extrusion monitors to ensure that the inner insulation and the outer PVC sheath maintain absolute concentricity. A deviation of even 0.1mm across several kilometers could compromise the cable's structural integrity when buried underground. Each individual drum of cable underwent intensive testing, including conductor resistance measurements, high-voltage water bath testing, and armour coverage inspections prior to dispatch.
Client Testimonial:
"Navigating large infrastructure updates is always an intimidating operational challenge. HonglinCable’s engineering support, spearheaded by Nikita, turned a highly complex cable procurement into a smooth, seamless transaction. The build quality of the Steel Wire Armoured Cable exceeded our mechanical demands, and the electrical stability across our main line is perfect. They have earned our position as a trusted manufacturing partner."
— Mr. Deen, Director of Procurement & Logistics, Lanka Corrugated Industries (pvt) ltd
A: Steel Wire Armour (SWA) provides exceptional longitudinal tensile strength alongside excellent crush protection. This makes it highly superior for pulling through long industrial conduits, laying in open trenches, or routing vertically. Steel Tape Armour (STA) provides good crushing protection but lacks the heavy tensile strength required for challenging industrial pull runs.
A: Yes. The heavy-duty outer sheath is constructed from specialized anti-corrosive, UV-stabilized PVC. Combined with the galvanized coating on the internal steel wires, our cable is fully engineered to withstand direct burial in tropical soils prone to heavy seasonal rain, chemical run-off, and continuous waterlogging.
A: Our facilities employ continuous inline laser diameter control systems and automated spark testing during the outer jacket extrusion phase. This guarantees that every meter of the 10,000-meter order meets identical wall-thickness, mechanical protection, and dielectric insulation standards without any variation.
The flawless execution of this 10,000-meter delivery solidifies HonglinCable's reputation as an elite global provider of heavy-duty power links. By combining the unmatched raw material standards of our manufacturing lines with the dedicated, expert advisory support of engineers like Nikita, we ensure that modern industrial leaders like Mr. Deen can expand their plants with zero risk.
As industrial facilities worldwide transition toward heavier automation and larger production capacities, your foundational power infrastructure must be built to endure. Do not let regular cables become the failure point of your commercial facility. Discover the uncompromising safety and raw mechanical durability of HonglinCable's heavy infrastructure systems. Reach out to our technical sales distribution team today to request custom product datasheets, bulk project estimates, and tailored engineering solutions for your next big project.
