When your electrical installations—from building wiring and machinery feeds to solar inverters and data‑center tie‑ins—require reliable low‑voltage power, choosing the right LV cable is critical for safety, efficiency, and longevity. Our LV cable portfolio combines decades of materials expertise, stringent testing, and global service to deliver:
Versatile Voltage Ratings (0.6/1 kV) for all common low‑voltage applications
Conductor Options: copper or aluminum, 1.5 mm²–500 mm² cross‑sections
Insulation Types: PVC, XLPE, or EPR for temperature, chemical, and fire performance
Armour & Jackets: steel‑tape, steel‑wire, LSZH, UV‑resistant, and halogen‑free variants
Full Lifecycle Support: custom design, factory pre‑termination, global logistics, and 24/7 technical hotline
Below, discover why our LV cable solutions set the benchmark, how to choose the ideal variant for your needs, and how we support you every step of the way.
Using substandard LV cable can lead to:
Electrical Failures: Poor insulation invites partial discharges and shorts.
Mechanical Damage: Brittle jackets crack under stress, exposing conductors.
Safety Hazards: Inadequate flame performance or toxic smoke in fires.
Hidden Costs: Frequent replacements, project delays, and warranty claims.
Our LV cable solutions mitigate these risks through:

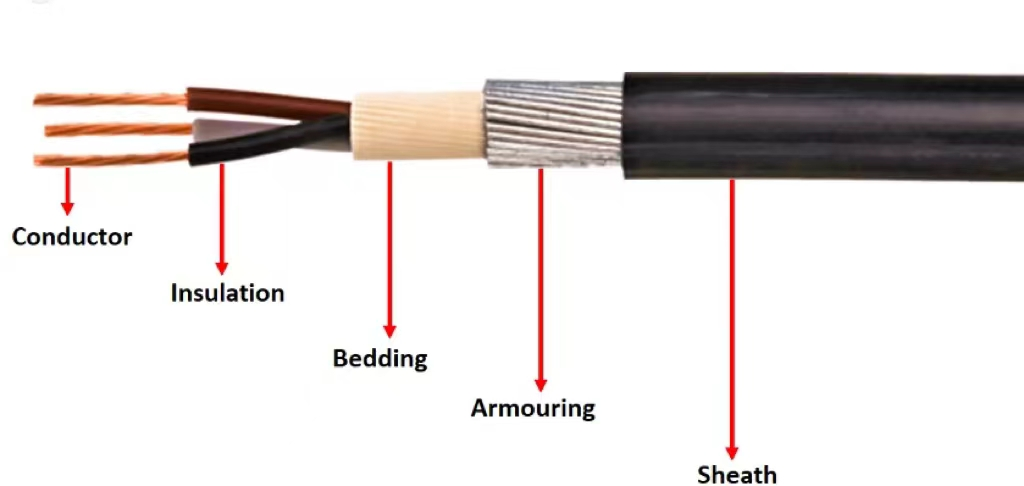

Premium Conductor Materials
Oxygen‑Free Copper or Aluminum Alloy—sized and stranding‑optimized for your ampacity and flexibility needs.
Engineered Insulation Systems
PVC for general duty; XLPE for higher temperature and dielectric performance; EPR for extreme environments.
Rigorous Factory Testing
All LV cable is 100% continuity‑tested, high‑pot‑tested to 3 kV, and supplied with batch‑traceable certificates.
| Feature | Benefit |
|---|---|
| Voltage Rating: 0.6/1 kV | Fits building wiring, machinery feeds, solar inverters, and control circuits |
| Conductor Sizes: 1.5 mm²–500 mm² | From lighting and control to heavy‑duty power distribution |
| Insulation: PVC / XLPE / EPR | Tailor for temperature, chemical exposure, and fire‑performance needs |
| Armour Options: Steel‑Tape / Steel‑Wire | Mechanical protection for buried, tray, or tray‑mounted installations |
| Jacket Compounds: PVC, LSZH, UV‑Resistant | Select for indoor plenum, outdoor UV, or low‑smoke halogen‑free requirements |
| Core Counts: Single, 2‑Core, 3‑Core, 4‑Core | Phase‑neutral‑earth configurations or multi‑phase power feeds |
| Custom Lengths & Pre‑Terminations | Factory‑assembled stress cones, glands, and lugs to accelerate field deployment |
Building & Utility Wiring
LV cable rated 0.6/1 kV powers lighting, sockets, and distribution boards—PVC‑insulated, steel‑tape‑armoured variants in buried conduits and cable trays.
Industrial Machinery Feeds
XLPE‑insulated, steel‑wire‑armoured LV cable feed motors, pumps, and CNC machines—resisting oils, chemicals, and mechanical stress on factory floors.
Renewable Energy Systems
LV cable connects solar inverters and wind‑turbine transformers—halogen‑free jackets for plinths and cable tunnels, ensuring low smoke in enclosed substations.
Data Centers & Telecom
Low‑smoke zero‑halogen LV cable links UPS systems and switchgear—pre‑terminated runs in color‑coded jackets speed rack‑to‑rack deployments.
Infrastructure & Transport
Tray‑mounted LV cable supplies lighting and control in rail tunnels and airports—LSZH and UV‑resistant compounds meet stringent safety standards.
“Upgrading to your XLPE‑insulated LV cable cut voltage‑drop losses by 15% and improved our sub‑board reliability.”
—Angela W., Facility Engineer, Metro Data Center
Follow these steps to specify the optimal LV cable:
Determine Voltage & Load
0.6/1 kV rating covers nearly all low‑voltage power circuits.
Use ampacity tables to choose conductor cross‑section for continuous load.
Choose Insulation & Jacket
PVC for general wiring; XLPE for >90 °C operation; EPR for chemical/oil exposure.
LSZH or halogen‑free for confined spaces; UV‑resistant for outdoor runs.
Select Armour if Needed
Steel‑tape for buried or tray installations; steel‑wire for dynamic reel feeds or mechanical stress.
Decide Core Count & Configuration
Single or 2‑core for phase‑loop circuits; 3‑core for three‑phase systems; 4‑core adds protective earth.
Value‑Add Features
Pre‑terminated glands, stress cones, and lugs.
Color‑coded jackets and printed identification legends.
Our engineering team provides detailed spec sheets, ampacity calculations, and bend‑radius guidelines to ensure your chosen LV cable meets every project requirement.
Maintain Bend Radius
Abide by manufacturer’s static (6× OD) and dynamic (8× OD) bend‑radius specs to avoid damage.
Use Proper Glands & Connectors
Ensure shield continuity and moisture seals with IP‑rated terminations.
Secure & Support
Employ cable cleats, trays, and conduits to protect against abrasion and strain.
Test Before Energization
Perform insulation‑resistance and continuity tests after laying and before power‑up.
Label & Document
Apply durable markers to both ends; update cable schedules and as‑built drawings.
Following these guidelines maximizes the life and reliability of your LV cable installations.
Decades of LV Expertise
Over 30 years designing and supplying LV cable solutions for utilities, industry, and infrastructure worldwide.
Stringent Quality Assurance
ISO 9001 and ISO 14001 certified manufacturing; 100% electrical, mechanical, and environmental testing.
Global Footprint, Local Support
Regional warehousing and field engineering ensure rapid response and on‑site assistance.
Custom Engineering Services
Bespoke insulation compounds, pre‑terminated assemblies, and rapid prototyping to meet unique specs.
Sustainability & Compliance
RoHS/REACH compliant materials, recyclable jackets, and cable scrap recycling programs support your ESG objectives.
Partnering with us means you gain a full‑service LV cable specialist committed to your project’s success from specification through decades of operation.
Initial Consultation
Share your voltage, load, environment, and installation method—receive a custom LV cable recommendation within 4 hours.
Detailed Proposal & Samples
Within 24 hours, get a complete quote, datasheets, and sample reels or assemblies.
Approve & Schedule Production
Stocked LV cable ships in 3–5 business days; custom lengths and terminations in 7–10 business days.
Global Logistics & Tracking
Choose DDP, CIF, or EXW terms; track your LV cable from our dock to your site in real time.
Post‑Delivery Support
On‑site commissioning assistance, splicing services, and a 24/7 technical hotline ensure smooth deployment.
Our streamlined workflow ensures your LV cable arrives on time, on budget, and ready to perform.
24/7 Technical Hotline
Our cable engineers are available around the clock for specification, installation, and troubleshooting support.
Comprehensive Warranty
Every LV cable comes with a two‑year workmanship and materials warranty; extended warranties up to 25 years available.
Preventive Maintenance Programs
Scheduled IR testing, partial‑discharge surveys, and mechanical inspections catch wear trends before failures.
Knowledge Portal
Access whitepapers, installation videos, ampacity calculators, and best‑practice guides anytime via our online platform.
Elevate your low‑voltage power distribution with our engineered LV cable solutions—combining advanced materials, rigorous testing, and full lifecycle support.
Contact us today for a free consultation, custom spec sheet, and competitive quote—and ensure your next project runs on the most reliable LV cable in the industry.
