In the world of electrical infrastructure, reliability starts with the right cable. Among the many voltage ratings and insulation types, the 0.6/1kV cable stands out as the workhorse for low-voltage power transmission in both industrial and commercial environments. Whether it's for underground wiring, indoor distribution, or high-demand equipment, the 0.6/1kV cable delivers consistent, safe, and efficient performance.
With global standards and growing safety requirements, choosing the correct 0.6/1kV cable is more than just a technical decision — it’s a long-term investment in your system’s durability and stability.
The term 0.6/1kV refers to the voltage rating of the cable:
0.6kV is the maximum phase-to-ground voltage.
1kV is the maximum phase-to-phase voltage.
This voltage range makes 0.6/1kV cables ideal for most low-voltage power distribution systems in industrial, commercial, and residential settings.

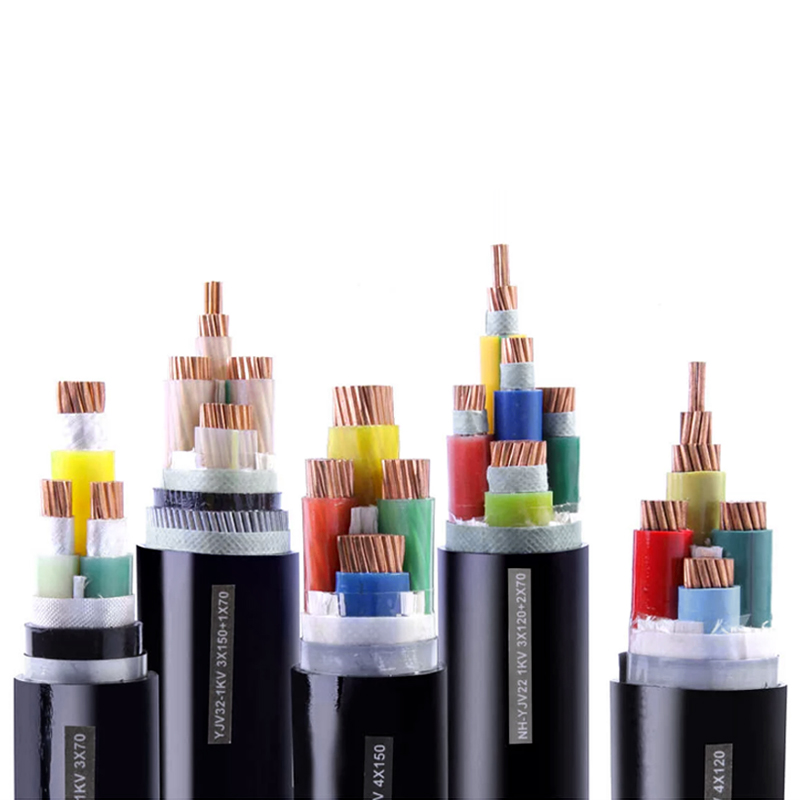

The structure of a 0.6/1kV cable is carefully engineered for performance and safety. Standard components include:
Conductor: Stranded or solid copper (Class 1, 2, or 5 according to IEC 60228)
Insulation: XLPE (Cross-linked polyethylene), EPR (Ethylene Propylene Rubber), or PVC
Inner Sheath: Optional bedding to enhance circular shape and reduce movement
Armoring: Optional steel wire armor (SWA) or aluminum tape for mechanical protection
Outer Sheath: PVC, LSZH (Low Smoke Zero Halogen), PE, or CPE depending on environment
All materials are selected for electrical insulation, thermal resistance, and environmental durability.
Using a 0.6/1kV cable brings several technical and operational advantages:
High Thermal Stability: Withstands continuous operation up to 90°C, short-circuit conditions up to 250°C
Excellent Insulation Resistance: Especially with XLPE or EPR insulation
Flame Retardant Options: Available in LSZH and CPE jackets
Mechanical Durability: Armored versions provide impact and crush resistance
Flexibility: Suitable for both fixed and flexible installations
These features make it a dependable solution in even the most demanding electrical systems.
The 0.6/1kV cable is versatile and widely used across various sectors:
Commercial Construction – Power distribution in malls, hotels, office buildings
Industrial Facilities – Motors, generators, compressors, and control panels
Underground Systems – Direct burial with armored options
Renewable Energy – Solar farms, wind turbines, inverter wiring
Marine & Offshore – With special sheath materials for saltwater resistance
Temporary Power – Festivals, events, and emergency backup systems
Its broad applicability is supported by an array of customization options tailored to site requirements.
All our 0.6/1kV cables are manufactured in compliance with major international standards:
IEC 60502-1 – Power cables with extruded insulation and rated voltages from 1 kV (Um = 1.2 kV)
BS 5467 – Low voltage armoured cables for UK installations
AS/NZS 5000.1 – Standard for power cables in Australia and New Zealand
RoHS & REACH – Environmentally compliant and free of hazardous substances
UL and CSA – North American approval available on request
Whether you're bidding for a global project or handling local wiring jobs, certified cables ensure code compliance and peace of mind.
Not all electrical environments are the same. That’s why we offer a wide range of 0.6/1kV cable configurations, including:
Conductor Size: From 1.5mm² to 400mm²
Core Number: Single, twin, 3-core, 4-core, or multi-core
Sheathing Type: PVC, PE, CPE, LSZH, or fire-resistant variants
Armoring: Optional SWA, AWA, or galvanized steel tape
Color Coding: As per IEC, BS, or national standards
We can also offer flame-retardant, fire-resistant, halogen-free, and UV-stabilized versions depending on your specific application.
Proper installation ensures long-term performance of your 0.6/1kV cable. Follow these general practices:
Bending Radius: Typically 8 × outer diameter for non-armored cables
Support: Use appropriate cleats or cable trays in vertical runs
Temperature Range: -15°C to +90°C (operating); -25°C to +70°C (installation)
Moisture Protection: Use sealed glands or armored cables for wet environments
Compatibility: Match insulation material with your connectors and termination kits
A metropolitan utility provider needed to upgrade power distribution in a congested underground grid. Using our armored 0.6/1kV cable with XLPE insulation and LSZH outer sheath, the project achieved:
25% reduction in cable failure rates
Easier compliance with new fire safety codes
Seamless integration with existing switchgear
Result: reduced downtime, increased capacity, and improved safety.
Q: Is 0.6/1kV cable suitable for outdoor use?
A: Yes, especially with UV-resistant or armored versions.
Q: What is the difference between 0.6/1kV and 1.8/3kV cables?
A: The main difference is voltage rating — choose based on system requirements.
Q: Can I use this cable in underground ducts?
A: Absolutely, especially when armored or moisture-protected.
Q: Is customization available?
A: Yes, we provide cables tailored to size, core number, sheath type, and insulation.
In any power distribution system, cable quality is non-negotiable. The 0.6/1kV cable offers the ideal mix of safety, efficiency, and versatility for your electrical needs. From small buildings to large factories, from sunny rooftops to wet underground vaults, these cables consistently deliver power where and when it’s needed.
Choose a cable that’s engineered to perform — choose the 0.6/1kV cable that professionals trust around the world.
