Reliable power distribution starts with the right conductor, and the 16mm2 Cable delivers the resilience, performance, and compliance essential for demanding installations. Whether you’re wiring a generator, operating heavy machinery, or delivering temporary site power in tough environments, choosing the correct 16mm2 Cable makes all the difference.
The 16mm2 Cable is the optimal intersection of capacity and versatility. It supports currents around 97 A in air, rising to 130 A when buried—perfect for a broad spectrum of industrial uses. The conductor's cross-sectional area balances manageable size and substantial load capability, ideal for motors, converters, site power, and more.
A quality 16mm2 Cable is built for performance:

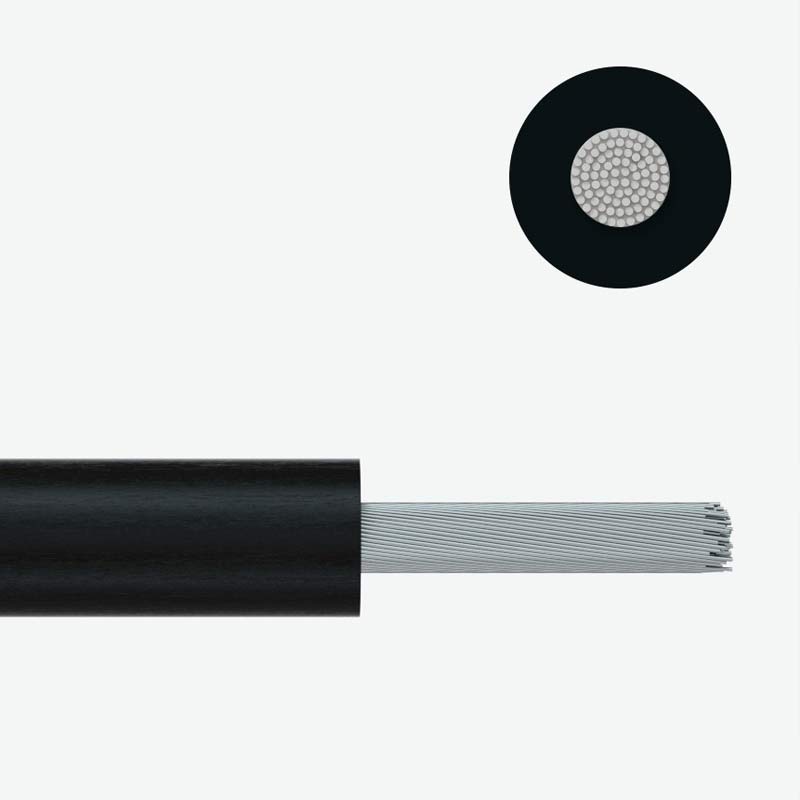

Conductor: Stranded copper (Class 2 or 5) for flexibility and low resistance
Insulation/Sheath Options:
XLPE/PVC: High temperature and dielectric performance
PVC/PVC: Cost-effective and reliable

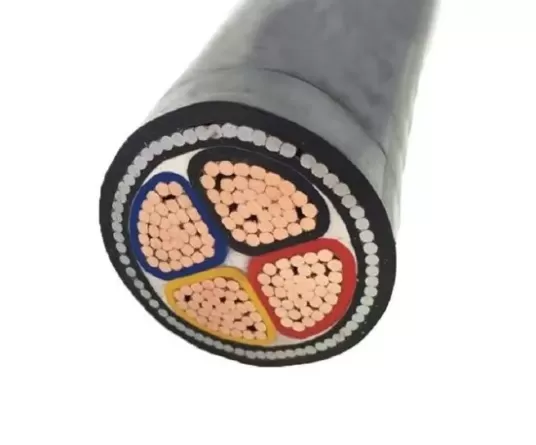

SWA (Steel Wire Armour): Added mechanical strength
Aluminum concentric shielding: Used in service-drop applications
Voltage Rating: 0.6/1 kV per IEC 60502‑1 standard
Operating Temperature: −15 °C to +90 °C; short‑circuit withstand up to 250 °C
Dimensions & Weight:
Outer diameter ~17–21 mm depending on construction
Weight ~480–1,100 kg/km baoliyy.com+11hongdacable.com+11goldsupplier.com+11luxingcable.en.made-in-china.com+6goldsupplier.com+6youmats.com+6baoliyy.com+5youmats.co+5reddit.com+5arnoldcable.com+1baoliyy.com+1
Our 16 mm² cable is manufactured to meet rigorous standards:
IEC 60502‑1 for low-voltage power cables
IEC 60228 for conductor classification
BS 5467, VDE 0276, and related armoring standards
CE, ISO marks and RoHS compliance ensure global acceptability
This ensures safe usage in industrial systems worldwide.
This cable is proven in countless environments:
Industrial Equipment: Motors, pumps, welders—load-intensive scenarios
Construction Sites: Flexibility and SWA protect amidst heavy work
Shipyards & Marine: UV, oil, and mechanical-resistant cable types
Underground/Outdoor Runs: SWA PVC versions offer rugged protection
Aerial Service Drops: Aluminum-concentric cables deliver safe utility connections
For any scenario needing reliable power, the 16mm2 Cable is the go-to choice.
Tailor the 16mm2 Cable to meet your specifications:
Sheath/Insulation: XLPE, PVC, SWA, LSHF
Armor/Shielding: Steel wire or aluminum concentric options
Core Configuration: Single, twin, or multicore
Color Marking: Custom phase identification
Length and Packaging: Drum, coil, cut‑to‑length solutions
You can specify based on environmental exposure, load needs, and mechanical demands.
Ensure optimal performance with these guidelines:
Bend Radius: ≥6× diameter for fixed installation; more for flexible runs
Cleats and Supports: Use appropriate fittings to avoid sheath abrasion
Temperature Constraints: Avoid subzero unless cold-rated versions are used
Moisture Protection: Seal gland entries for underground or marine installations
Proper care protects both cable life and installation integrity.
A busy shipyard replaced outdated cables with 16 mm² SWA PVC cable for crane power lines. Results included:
40% increase in cable lifespan under heavy mechanical stress
Zero downtime from electrical faults
Full compliance with marine safety standards thanks to LSHF sheath
The upgrade proved both durable and compliant.
Q: Can I use a 16 mm² cable for a 60 A motor?
A: Yes. With a 16 mm² conductor, air rating ~97 A, so a 60 A load is well within capacity reddit.com+11arnoldcable.com+11baoliyy.com+11youmats.com+7hongdacable.com+7yifangcable.en.made-in-china.com+7baoliyy.comyifangcable.en.made-in-china.combaoliyy.com+2goldsupplier.com+2reddit.com+2reddit.comyoumats.co.
Q: Is an SWA cable needed indoors?
A: Only when mechanical protection is required, such as in industrial areas or underground runs.
Q: What sheath material resists oil/UV best?
A: Choose PVC over XLPE or specify UV/oil-resistant compounds.
Q: How does pound-wise cost compare?
A: Though heavier, the SWA version’s durability often offsets replacement costs over time.
The 16 mm² cable delivers:
Reliable current capacity for demanding loads
Robust mechanical protection with SWA options
Versatility across environments—from factories to docks to construction sites
Global compliance with standards and certifications
Custom options to match your precise project needs
When reliability, safety, and compliance are non-negotiable, trust the 16mm2 Cable. With superior load handling, certified quality, and tailored design options, it's the foundation of dependable power systems—no matter where or how you use it. Choose this cable, and empower every installation with strength, efficiency, and confidence in your electrical performance.
