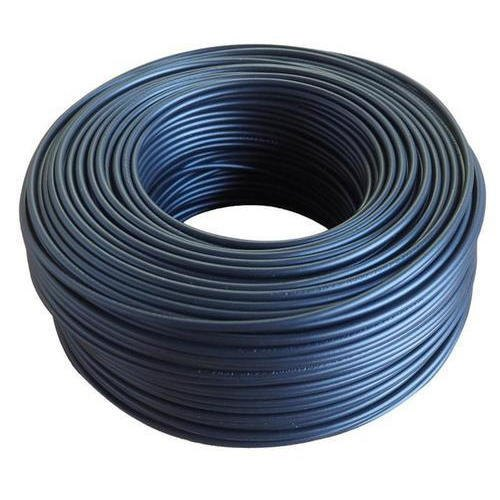

When your project demands a robust conductor that balances current‑carrying capacity, flexibility, and ease of installation, you need 8mm electrical wire that’s engineered for reliability and longevity. Whether you’re wiring a small motor, installing an inverter system, or setting up heavy‑duty appliances, our 8 mm electrical wire delivers:
High Conductivity with oxygen‑free, tinned or bare copper options
Durable Insulation rated up to 750 V AC / 1 000 V DC, temperature‑resistant from –40 °C to +105 °C
Optimized Flexibility via Class 5 fine‑strand stranding for tight bends (minimum bend radius 6× OD)
Comprehensive Compliance to IEC 60228, BS 6004, UL 758, and RoHS/REACH standards
End‑to‑End Service from custom cut‑lengths and labeling to global logistics and lifetime support
Below, learn why our 8mm electrical wire outperforms generic alternatives, how to choose the right variant, and why partnering with us ensures flawless power delivery—every time.
Cheap wire may save pennies per meter, but the hidden costs of voltage drop, insulation failures, and downtime can cost far more. Our 8mm electrical wire stands out because:
Superior Conductor Quality
We use 99.99% oxygen‑free copper, with an option for tinned finish to resist corrosion in damp or marine environments.
Each conductor is fine‑stranded (Class 5 per IEC 60228), giving you the perfect balance of flexibility and ampacity.
Engineered Insulation Systems
Standard PVC jackets provide abrasion and chemical resistance for indoor industrial use.
For harsher environments, choose XLPE or TPE compounds rated to +105 °C and offering improved dielectric strength.
Rigorous Testing & Traceability
Every spool is continuity‑tested, high‑pot tested at 2 kV AC, and comes with a batch‑traceable certificate.
We perform mechanical flex‑cycle and thermal‑cycling tests to guarantee performance under real‑world stresses.
Investing in our 8mm electrical wire means fewer service calls, lower energy losses, and a safer installation.
| Feature | Benefit |
|---|---|
| Conductor Size: 8 mm² | Equivalent to AWG 6—handles up to 55 A (AC) with minimal voltage drop |
| Conductor Material | Oxygen‑free copper or tinned copper for maximum conductivity and corrosion resistance |
| Stranding: Class 5 | High flexibility; works in conduit runs and cable chains with a 6× OD bend radius |
| Insulation: PVC / XLPE / TPE | Choose based on temperature, chemical, or outdoor exposure requirements |
| Voltage Rating: 450/750 V AC | Suitable for motor leads, inverter feeds, battery interconnects, and more |
| Temperature Range: –40 °C to +105 °C | Reliable performance in freezers, ovens, and outdoor installations |
| Standards: IEC 60228, BS 6004, UL 758 | Ensures global code compliance and inspection approval |
| Custom Options | Pre‑cut lengths, color jackets, printed legends, and pre‑terminated ends |
Your 8 mm² cables drive single‑phase and three‑phase motors up to 5 HP. The fine‑strand conductors flex through motor terminal boxes, and the robust jackets resist oils and vibrations in pump houses.
Inverters converting DC to AC need low‑inductance, high‑flex wiring. Our 8mm electrical wire carries up to 55 A at 230 VAC to grid‑tie inverters and motor drives, minimizing I²R losses over cable runs.
“Since switching to this 8 mm electrical wire for our solar array inverters, voltage drop has halved and panel performance is noticeably more stable.”
—Priya S., Renewable Energy Engineer
For off‑grid and UPS battery banks, 8 mm cables bridge charge controllers, disconnects, and battery terminals. Tinned‑copper variants resist corrosion in high‑humidity battery rooms.
Washing machines, deck saws, and commercial kitchen equipment draw 30–50 A—our 8 mm² wiring meets code for permanent fix wiring, ensuring safe, continuous operation.
Within control enclosures, 8 mm cable pairs organize three‑phase feeds and grounding runs. Color‑coded jackets and printed legends simplify maintenance and reduce wiring errors.
Follow these steps to specify your ideal 8 mm electrical wire:
Confirm Current & Voltage Requirements
Use ampacity tables: 8 mm² copper at +30 °C ambient carries ~55 A (AC) per IEC/BS standards.
Choose insulation rated at least 1.2× your system voltage.
Choose Conductor Finish
Bare Copper for dry, indoor installations.
Tinned Copper for any exposure to moisture, chemicals, or outdoor conditions.
Select Insulation Compound
PVC for general‑purpose wiring in control panels and dry areas.
XLPE for higher temperature or direct‑burial exposures.
TPE for extreme flexibility and UV resistance in outdoor runs.
Determine Stranding Class
Class 5 (finestrand) for conduit and cable‑carrier use.
Class 6 (ultraflex) if frequent movement or reel spooling is required.
Specify Ancillaries
Pre‑cut lengths with factory‑applied markings.
Over‑molded lugs, boots, or crimp‑on terminals to speed installation.
Custom jacket colors for phase or function identification.
Our technical sales team provides ampacity charts and bend‑radius guides to ensure your 8mm electrical wire meets every specification with headroom for future upgrades.
Proper installation maximizes the life and safety of your 8 mm electrical wire:
Maintain Bend Radius
Never bend tighter than 6× the overall cable diameter to avoid conductor fatigue and insulation cracking.
Use Correct Connectors
Match lug or terminal bore size to the 8 mm conductor cross‑section; ensure full conductor insertion before crimping.
Secure & Protect
Route cables through cable glands, trays, or conduit to prevent abrasion. Use UV‑resistant ties for outdoor applications.
Test and Verify
After pulling and termination, perform continuity, polarity, and insulation‑resistance (megger) tests to confirm integrity.
Label and Document
Apply durable cable markers to each end; maintain an as‑built wiring schedule for future service.
Adhering to these guidelines ensures your 8 mm electrical wire installations remain problem‑free for decades.
Decades of Conductor Expertise
With over 30 years in copper‑wire manufacturing, we perfect every aspect of conductor drawing, stranding, and compounding.
Stringent Quality Control
ISO 9001 and UL‐approved processes, with 100% electrical and mechanical testing on each spool.
Global Manufacturing & Local Support
Regional production sites in North America, Europe, and Asia ensure rapid turnaround and in‑region field engineering.
Custom Engineering Services
From bespoke insulation compounds to integrated sensor cores and terminations, our R&D team tailors each cable to your needs.
Sustainability & Compliance
All materials are RoHS/REACH compliant; we offer PVC‑free and recyclable-jacket options to meet your ESG goals.
Partnering with us means you gain a true 8 mm electrical wire specialist committed to your project’s success—long after the cables are installed.
Submit Your Requirements
Provide current, voltage, environment, and length—receive a tailored proposal within 4 hours.
Review Quote & Samples
Within 24 hours, you’ll get datasheets, ampacity charts, and sample lengths at minimal cost.
Approve & Schedule Production
Standard lead times: 3–5 business days for stocked items; 7–10 days for custom compounds or pre‑terminations.
Global Logistics & Tracking
Choose DDP, CIF, or EXW shipping; track your order in real time from factory dock to job site.
Post‑Delivery Support
On‑site commissioning assistance, cable‑certification testing, and 24/7 technical hotline ensure a smooth startup.
Our streamlined workflow gets your 8 mm electrical wire when and where you need it—no surprises, only peak performance.
24/7 Technical Hotline
Our conductor experts are on call around the clock to answer installation, specification, and troubleshooting questions.
Comprehensive Warranty
We back every spool of 8 mm electrical wire with a two‑year workmanship and materials warranty; extended warranties up to 10 years available.
Preventive Maintenance Programs
Schedule periodic IR testing, thermal‑imaging audits, and conductor‑continuity checks to catch wear before failures occur.
Knowledge Portal
Access whitepapers, installation videos, spec calculators, and best‑practice guides anytime via our online platform.
Reliable power delivery starts with the right conductor. Choose our premium 8 mm electrical wire solutions—engineered for excellence, built for endurance, and backed by world‑class support.
Contact us today for a free consultation, custom spec sheet, and competitive quote—and experience the difference that expert‑grade 8 mm wire makes in your installations.
