When your projects demand reliable low-voltage power distribution—whether you’re wiring factories, infrastructure sites, commercial buildings, or renewable energy installations—you need a cable that delivers performance, consistency, and cost-efficiency. NYCWY 0.6/1 kV PVC Insulated and Sheathed Cable is engineered precisely for this purpose.
In this extensive, practical guide you'll discover:
Why the NYCWY 0.6/1 kV PVC Insulated and Sheathed Cable consistently outperforms alternatives in real-world installations.
How to match the right variant to your project’s technical, environmental, and economic constraints.
Installation best practices that safeguard safety, performance, and service life.
Why partnering with a professional supplier makes the difference between headache-free commissioning and costly rework.

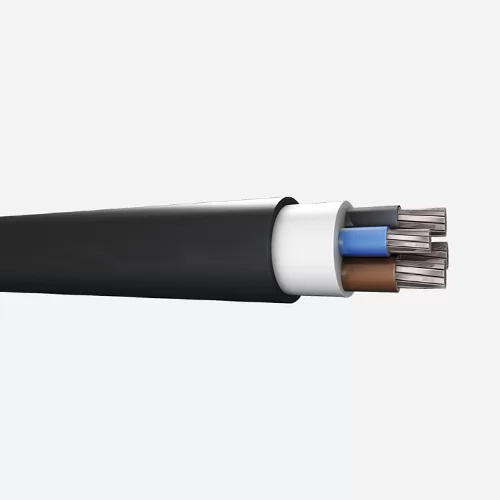

At its core, NYCWY 0.6/1 kV PVC Insulated and Sheathed Cable is a harmonised specification describing an unarmoured low-voltage aluminium conductor cable with PVC insulation and outer sheath, rated up to 0.6/1 kV. Key strengths include:
Cost-Effective Conductivity
Aluminium has a lower unit cost and density compared to copper. When properly sized, NYCWY maintains voltage drop and thermal performance comparable to copper at a lower material and installation cost.
Balanced Flexibility and Durability
PVC insulation and sheath formulations in NYCWY cables are hardened to resist abrasion, UV, and mechanical contact. They maintain performance in ducts, direct burial, or conduit, yet remain reasonably flexible for handling.
Broad Application Envelope
Rated to conductor temperatures of about +70 °C and suitable for normal installation range from –15 to +70 °C, NYCWY handles commercial interiors, duct banking, and even industrial surface trays without failure.
Consistent Regulatory Compliance
Manufactured to meet IEC 60502-1 and BS 7870 standards, these cables align with utility grid specs, building codes, and inspection requirements — a crucial element in projects with tight audit checkpoints.
If your project involves medium-distance feeders in industrial or building infrastructure, NYCWY 0.6/1 kV PVC Insulated and Sheathed Cable offers transformers-to-panel feeds, local distribution, or multicore transitions—without overpaying for armoured or exotic insulations.
Run NYCYW cable from meter centers or substations to main switchboards, lighting panels, and outlet boards. The flexible PVC sheath handles bends in conduit and terminals gracefully; aluminium cores reduce feeder weight—ideal for tightly-packed service risers.
NYCWY feeds auxiliary transformers, machinery switchboards, or warehouse lighting circuits. Its durability handles incidental kicks or rolling carts and samples well to repeated flex during commissioning.
In solar farms, NYCWY works as collector loop feeders or inverter output cable where high flexibility isn’t required. Its aluminum price advantage becomes significant over long runs, especially in large-scale renewables.
For modular construction or site offices, NYCWY provides robust feeder flexibility and easy deployment. It withstands surface, duct, and cable trench conditions—enabling quick roll-out and safe power supply with minimal asset cost.
Waterworks, pumping stations, transit installations—NYCWY runs through buried conduits or service pits handle soil compaction and exposure. PVC sheaths in NYCWY dissipate abrasion and deflection stress effectively during installation and operation.
Here’s how to specify the proper version of NYCWY 0.6/1 kV PVC Insulated and Sheathed Cable:
Select Conductor Cross-section Carefully
Match current requirements and enforce voltage drop limits. For example:
50 mm² → approx. 81 A (30 °C), suitable for small transformer feeders
95 mm² → approx. 145 A, for larger motor or panel distribution
Adjust conductors based on ambient temperature, grouping, and derating factors.
Decide Core Configuration
Single-core for radial runs or paralleled feeders
3-core for three-phase circuits
Optional green-yellow core variant (NAYY W) if protective earth must be included
Confirm Installation Conditions
Indoor or conduit: standard PVC is adequate
Direct bury: specify soil-compatible sheath and ensure minimum cover
Outdoor exposed ducts: request UV-stabilised PVC compound
Define Temperature Profiles
If you anticipate ambient temperatures above 70 °C (e.g. near HVAC exhausts), consult for elevated temperature-rated grades or derating instructions.
Plan Terminations Correctly
Use properly crimped aluminium lugs and oxide-inhibitor paste. Aluminium requires torque-controlled crimping and no oxidised surfaces for long-term reliability.
Order Value-Adds as Needed
Custom reel lengths, printed legends, phase color coding, and preterminated ends all reduce site labor and improve wiring accuracy.
PVC-sheathed NYCWY cables behave well but still have mechanical limits. Keep bend radii at least 6× overall diameter to avoid sheath deformation or internal conductor stress.
Use clamp sets designed for aluminum PVC cable size — avoid sharp metal edges or unprotected sheaths. Keep cable runs secured every 1.5 m in vertical pipes and every 300 mm in tray sections.
Clean conductor ends, apply anti-oxidant paste, and use dedicated aluminium crimp lugs. Then, coat the joint with PVC-compatible heat-shrink or tape to maintain sheath continuity.
Test insulation resistance (e.g., ≥ 1 MΩ per km) and continuity after installation. Record as-built meter logs for future maintenance.
Label both ends of the same cable, update single-line diagrams, archive batch test records, and photograph pull points—making future troubleshooting faster and deliveries safer.
In-Bound Engineering Support
Share your load schedule and layouts; we’ll provide a complete cable pull schedule, cable sizing, and installation plan—no late surprises.
On-Time, Project-Aligned Delivery
Standard sizes are stocked; custom reeling and drop shipping deliver exactly when needed so site teams can work non-stop.
Full Certification Bundle
Each reel ships with test certificates, batch traceability, CE/UKCA compliance, and installation notes—streamlining handover and sign-off.
Local Support & Warranty
We back NYCWY Cable with a two-year workmanship and materials warranty. On-site technical support and guidance is just a phone call away.
Cost Efficiency Over Lifecycle
Lightweight aluminum reduces forklift, anchoring, and labor costs. Delivering cable that performs reduces rework, downtime, and inspection delays—returning value beyond material cost.
Reliable low-voltage performance with predictable power delivery
Cost-effective aluminium conductor without sacrificing safety
Flexible, durable PVC insulation and sheath handles real-site conditions
Well-defined standards mean fast approval and inspection
Practical support flows from quoting through commissioning with local engineering help
Pick NYCWY 0.6/1 kV PVC Insulated and Sheathed Cable whenever your project requires a rugged, economical, and standardized conductor solution. Contact us today for a custom cable schedule, free application review, and seamless delivery — making sure your power infrastructure stands the test of time.
