Aug. 28, 2025
When a project hinges on safe, predictable power delivery—year after year—you need a cable family that simply works. NAYY Cable has become the industry’s straight-shooting answer for low-voltage distribution, offering a balance of electrical performance, installation versatility, and lifecycle economy that specifiers, contractors, and plant engineers can trust.
Unlike niche cords designed for constant flexing or exotic chemistries, NAYY Cable is purpose-built for fixed installations. Its aluminium conductor keeps system costs and weight in check, while PVC insulation and sheath deliver robust dielectric strength and environmental resilience in ducts, direct burial, and open air. What follows is a practical buyer’s guide to help you move from requirement to reel—with zero drama during inspection or commissioning.

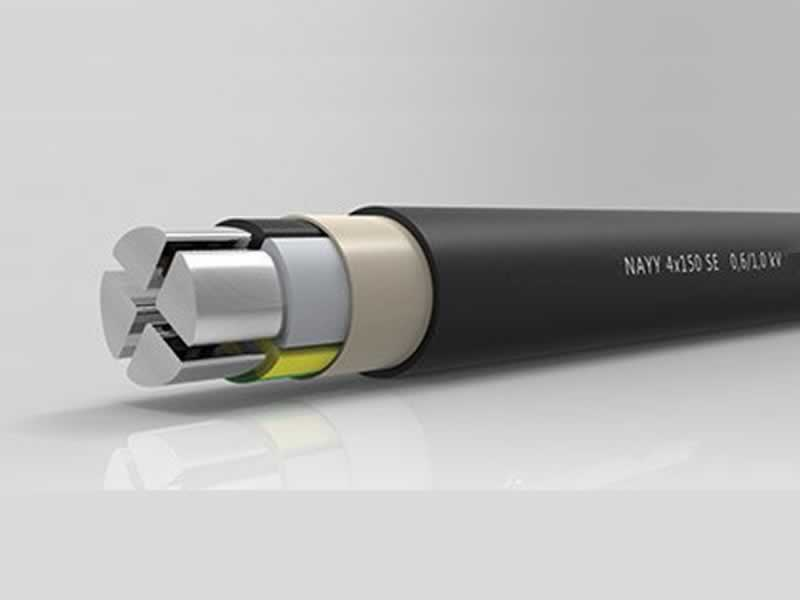

At its core, NAYY is a harmonized designation for an unarmoured, aluminium-conductor power cable with PVC insulation and PVC oversheath, typically rated 0.6/1 kV for low-voltage networks. That simple recipe answers three common project constraints:
Budget and Weight
Aluminium’s lower density and commodity cost help you hit budget targets without sacrificing conductor cross-section. On long feeders and multi-core runs, the savings add up quickly in both material and handling.
Installation Flexibility
The PVC sheath tolerates sunlight, soil contact, and moisture; properly bedded, the cable can be buried directly or pulled through ducts and trays with predictable bending behavior.
Standards and Inspectability
With widely recognized construction rules and ratings, acceptance testing is straightforward: ground-resistance values, insulation resistance, and high-potential tests all have well-documented benchmarks.
If the job spec reads like a typical campus, plant, or subdivision expansion, NAYY Cable is often the cleanest way to meet electrical and civil requirements without over-engineering.
Great outcomes come from disciplined materials and process control. Our production focuses on three pillars:
Conductor Quality
Precisely stranded aluminium (round or sector) ensures compact geometry and stable resistance per kilometre. Consistency here translates to accurate voltage-drop calculations and predictable thermal behavior.
PVC Compounds Tuned for Service
Insulation and outer sheath formulations are optimized for dielectric strength, thermal endurance, and abrasion resistance. Additives are selected to balance flame performance with processability, so every reel extrudes identically and terminates cleanly.
Meticulous Testing
From continuity and high-pot to mechanical stretch and aging, each batch is verified before shipment. That data rides with your reels, simplifying audits and commissioning paperwork.
By the time a pallet leaves the plant, you’re not “hoping” a general-purpose cable will cope with real-world conditions—you already know it will. That reliability is why EPCs return to NAYY Cable for repeat builds and fast-track expansions.
Voltage class: 0.6/1 kV
Conductor: Aluminium, solid or stranded (round/sector)
Insulation: PVC
Sheath: PVC (black; UV-stable variants available)
Core identifiers:
NAYY-O: without green-yellow (no dedicated PE)
NAYY-J: includes green-yellow protective conductor
Operating temp (conductor): typically up to +70 °C
Install environments: indoor/outdoor, ducts, direct burial, occasional water contact (non-pressurized)
These headline specifications are the backbone of the family; your exact size, core count, and sheath compound are then tailored to the route and load profile.
Campus & Utility Distribution
Ring mains, lateral feeders, and transformer-to-MCC runs benefit from aluminium’s mass/price advantage. With correct cross-sectioning, voltage drop remains within design limits even at extended distances.
Industrial Facilities & Process Plants
When you’re feeding multiple substations or large motor groups, NAYY Cable delivers a tidy cable schedule: common volt class, repeatable pulling forces, and predictable tray fill ratios.
Commercial & Residential Developments
Parking structures, retail shells, and multi-unit housing often specify unarmoured, buried feeders. Bed the trench correctly, respect minimum cover, and these circuits quietly do their job for decades.
Renewables & Distributed Energy
Low-voltage collector circuits that don’t require armour get a budget-friendly backbone—especially when trenching distance makes copper cost-prohibitive.
Municipal Infrastructure
Pump stations, treatment plants, and public facilities frequently mix ducted and direct-buried sections. NAYY Cable handles both without changing cable families mid-project.
A reliable selection process starts with a few transparent decisions:
1) Define the current and allowable voltage drop
Use the real operating current (not just breaker frame size) and route length to back-solve the cross-section. Aluminium’s resistivity is higher than copper, so be honest about run length and diversity. The goal is a conductor size that meets both steady-state drop and thermal rise.
2) Choose the core configuration
Single core for high-current feeders and parallel runs
Three-core or four-core for balanced three-phase circuits
NAYY-J when you want an integrated protective earth; NAYY-O when PE is handled separately or the design forbids a combined jacket
3) Confirm burial conditions
Soil thermal resistivity, ambient ground temperature, and installation depth all influence ampacity. If your trench shares space with other heat sources or ducts, derate accordingly.
4) Map your pulling method
Calculate pulling tension and sidewall pressure from duct geometry. For long ducted sections with multiple bends, consider sectioning the run and using intermediate vaults rather than forcing aggressive sidewall loads.
5) Plan the terminations
Aluminium needs the right lugs, oxide-inhibiting compound, and torque procedures. With proper preparation, terminations are as robust as any copper joint—just don’t improvise the tooling or paste.
This disciplined approach keeps the cable schedule lean while ensuring the installed system meets both code and performance metrics.
Respect Bend Radii and Tensions
PVC-sheathed cables will forgive a lot, but not everything. Keep bends within specified diameters and measure sidewall loads at tight sweeps.
Prepare Aluminium Like a Pro
Clean conductor surfaces, apply oxide inhibitor, use calibrated crimpers, and torque to spec. The result is a gas-tight, low-resistance joint that stays stable through thermal cycling.
Bed and Backfill Correctly
Free of sharp stones, compacted to the right density, and drained where water can sit. The cheapest trench mistakes are the most expensive to fix after energization.
Document, Tag, Photograph
As-built documentation with photos of joint bays and depth markers saves days during future upgrades or fault-location work.
Test Before You Backfill
A short insulation-resistance and continuity routine before you close the trench can save an entire re-dig.
Follow these basics and NAYY Cable will disappear into the background of your facility—the way infrastructure should.
Every supplier can list a standard. What differentiates outcomes is how you’re supported from design to energization:
Application Engineering on Tap
Send us your single-line, route sketches, and load table. We’ll return a conductor schedule, voltage-drop report, and pulling plan—so you buy the right sizes the first time.
Repeatable Quality
ISO-certified compounding and extrusion deliver the same geometry, insulation concentricity, and sheath robustness reel after reel. Fewer surprises means tighter project control.
Civil-Friendly Logistics
Reels sized to your vault spacing, staggered deliveries matched to trench progress, and on-site handling guidance prevent idle crews and crushed jackets.
Transparent Certification Packet
Batch-level test sheets, material declarations, and flame-test reports ship with your order, smoothing inspections and CPR-related documentation where needed.
Post-Energization Support
From infrared scans at load to joint-bay audits, we stick around to confirm the installation is behaving exactly as designed.
This is why repeat EPCs and utilities standardize with us on NAYY Cable for multi-year build programs.
A manufacturing campus feeder upgrade
A regional manufacturer needed to bump campus capacity without shuttering operations. Our route analysis showed that switching to parallel single-core NAYY Cable runs would hold voltage drop below 3% across the longest span while keeping pull tensions mild through existing ducts. The project finished a week early; the maintenance team now has a unified spare strategy for all three substations.
A coastal municipal pump station
Civil works called for mixed duct-and-buried installation across sandy backfill. We supplied three-core NAYY Cable with an oversheath blend optimized for UV and splash, plus termination kits and on-site training for the aluminium lugs. Five years on, thermal scans remain boring—in the best possible way.
Material and Handling
Aluminium conductor reduces both up-front spend and rigging load. Lighter reels mean fewer equipment hours and safer pulls.
Standardized Accessories
When you keep accessories consistent across feeders—glands, lugs, heat-shrink—the spares shelf gets simpler and cheaper.
Time Is Money
Predictable pulling behavior and familiar termination workflows reduce rework and inspection delays. Your civil crews can trench and backfill to a single playbook.
Add it up and the tender that looked “average” on the day of award becomes a clear winner when the project closes out on time and the maintenance team inherits a clean, documented system.
Is aluminium “good enough” for mission-critical circuits?
Yes—provided the conductor is sized correctly and terminations are made with proper materials and torque procedures. Thermal cycling stability and resistance values remain well within design limits.
Do we need armour?
If civil design and route protections eliminate credible mechanical risks, unarmoured NAYY Cable is appropriate. Where impact or dig-ins can’t be ruled out, specify mechanical protection outside the cable (ducts, slabs, trench covers) or step up to an armoured family.
Can we mix copper and aluminium in the same panel?
Yes, with the right lugs and bi-metallic transition strategies. Consistency is more important than material purity—standardize the approach across all feeders.
What about fire performance in buildings?
PVC-sheathed NAYY can meet flame-retardant criteria typical for fixed installations. If local code demands specific smoke or acidity limits in public spaces, tell us up front; we’ll match the compound to those rules.
Send the one-line and route
We’ll help nail conductor sizes, core counts, and termination details.
Approve the submittal pack
Datasheets, test certificates, and cable schedules arrive ready for review.
Stage deliveries to civil progress
Reels arrive when the trench is ready, not months early.
Install with confidence
On-site guidance is a call away during pulls and jointing.
Commission and document
We’ll assist with testing and handover records so maintenance inherits a clean system.
From first drawing to first kilowatt flowing, we make NAYY Cable painless to buy, install, and support.
The most sustainable infrastructure decision is the one you don’t have to revisit. By selecting NAYY Cable, you choose a stable, standards-anchored platform with wide market support for decades to come. Spare parts remain easy to source, crews already know the handling rules, and future expansions plug into the same, proven playbook.
If you’re ready to simplify your next low-voltage project—without sacrificing performance—talk to us about your route, load, and timeline. We’ll turn that into a precise bill of materials and a delivery plan that respects how jobs really get built. Then, when you throw the switch, NAYY Cable will do what it always does: carry the load quietly, safely, and efficiently.
