Aug. 28, 2025

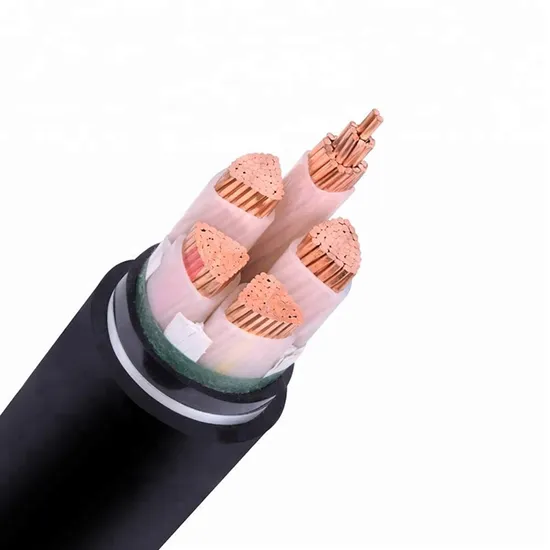

When the reliability of your power distribution matters — in industrial plants, tunnels, buried feeder routes or substation yards — choosing the right cable makes the difference between years of trouble-free service and repeated site visits. The N2XBY CU/XLPE/STA/PVC LV Cable is a workhorse solution: copper conductors, XLPE insulation for thermal performance, strong steel-tape armour for mechanical protection, and a durable PVC outer sheath that tolerates exposure during installation and long service life.
This article explains why the N2XBY CU/XLPE/STA/PVC LV Cable is selected for demanding installs, how to pick the right size and variant, recommended installation and termination practices, and the commercial reasons procurement teams prefer this family of cables.
There are three practical reasons N2XBY keeps showing up in project specs:
Mechanical robustness without excessive bulk. The double layer galvanized steel-tape armour gives substantial mechanical protection against crushing, rodent damage, and localized impacts while keeping the cable profile manageable for trays and ducts. That armour is why N2XBY is appropriate for tunnels, direct burial (with correct bedding) and tray-mounted distribution runs.
Thermal and electrical reliability. XLPE insulation offers excellent dielectric strength and higher continuous operating temperatures than older PVC-only designs. For copper conductors in low-voltage distribution, the XLPE core keeps dielectric losses low and tolerates normal thermal cycling in busy substations or motor distribution networks.
Wide installation envelope. The PVC outer sheath is selected for abrasion resistance, UV stability where needed, and chemical tolerance in many industrial soils and service yards. Together with the STA layer and copper cores, the N2XBY design copes with indoor, outdoor-ducted, buried and tunnel installations with a single, standardized product family.
Those strengths translate into fewer cable types on site, simpler spares management, and a reduced risk profile at handover.
Industrial feed and plant distribution: Fixed feeder runs supplying MCCs, substations and heavy equipment often require armoured protection because of incidental mechanical risks. N2XBY fills that need while keeping the handling effort reasonable.
Underground and tunnel infrastructures: Urban utility ducts, transport tunnels and service galleries favor the mechanical protection and durable outer sheath that N2XBY provides.
Buried campus and substation feeders: For medium-length buried feeders where mechanical protection is a project requirement, N2XBY installed with proper bedding avoids the cost of concrete ducting while assuring longevity.
Power plants and substations: Where feeders route through yards or service trenches, the STA armour protects the cores during civil works and future maintenance activity.
Fixed distribution in heavy facilities: Facilities with forklifts, rolling stock, or frequent civil movement benefit from the cable’s ability to withstand incidental strikes and abrasion.
1. Define electrical requirements first. Start with load currents, diversity factors, and permissible voltage drop. Use those values to determine conductor cross-sections. With copper conductors, N2XBY delivers predictable ampacity and low resistive loss for long runs.
2. Choose core configuration appropriately. Three-core variants are common for three-phase feeders; single-core units are often used in parallel for high current runs or where installation geometry favors single cores. Confirm whether a protective earth core is required within the jacket or if PE is handled externally.
3. Match mechanical and environmental constraints. If the cable will be buried without rigid ducting, size bedding and cover appropriately and choose N2XBY variants with PVC formulations rated for soil exposure. If the route is primarily indoor in cable trays, standard sheath formulation is usually sufficient.
4. Consider pulling and bending limits. Armoured multi-core cables are robust but have minimum bending radii and pulling tension limits. For long ducted runs with multiple bends, plan intermediate access chambers to avoid excessive sidewall pressure.
5. Plan terminations at the outset. Properly designed termination kits and bolt-on lugs for copper conductors are essential. Choose glands and armour clamps that maintain earthing continuity and protect the cable end.
Bed the trench correctly when burying. Use sand or fine soil bedding, separate from stones and debris, and maintain specified cover depth. Proper bedding reduces concentrated pressure on the armour and sheath.
Respect minimum bend radius. For multi-core armoured cables the minimum bend radius is typically many times the overall diameter — follow the manufacturer’s guidance to avoid conductor strain or sheath damage.
Use proper armour clamping and earthing. Make sure armour is terminated with certified clamps that provide mechanical holding and electrical continuity to earth systems. Improper armour termination is a leading cause of faults.
Clean and prepare copper conductors before lugs. Remove surface contamination, apply approved anti-oxidant if specified, and use calibrated crimping tools or bolted copper lugs suited for the cross-section.
Test before and after backfill. Insulation resistance measurements, continuity checks, and visual inspections of terminations ensure there are no hidden issues before civil works close over the cable.
Standardization reduces inventory complexity. Using a single cable family for varied installation types simplifies spares and streamlines training for termination crews.
Lower lifecycle risk. Armoured, XLPE-insulated cables reduce repair events caused by mechanical damage or insulation breakdown, saving operations budgets over the life of the installation.
Competitive unit cost relative to heavily armoured copper alternatives. Because N2XBY is designed as an efficient copper-XLPE-armour construction, the project balances durability and installed cost sensibly compared with specialized subsea or exotic compound cable types.
Vendor traceability and test documentation. Reputable suppliers deliver batch test certificates, material declarations and installation notes that accelerate acceptance by inspectors and reduce commissioning delays.
A manufacturing site needed parallel feeders from a mobile substation to a new production hall. The route included a shallow buried section, a ducted section under the yard, and a short tray-mounted section. The team selected N2XBY CU/XLPE/STA/PVC LV Cable, sized the conductor for voltage drop across the full run, used single-core paralleled conductors for flexibility during installation, and terminated with certified armour clamps and copper lugs. The result: faster pulls through the yard duct, no cable damage during commissioning, and predictable thermal performance under load.
Confirm conductor cross-section and core configuration.
Decide single-core vs multi-core based on install geometry.
Request manufacturer bending radius and pulling-tension limits.
Order compatible termination and armour clamping kits.
Ask for batch test reports and ensure EN/IEC/DIN compliance is documented.
Schedule deliveries to match civil progress to avoid long site storage.
For projects where mechanical protection, reliable thermal performance, and a wide installation envelope are required, the N2XBY CU/XLPE/STA/PVC LV Cable is a pragmatic, proven choice. Its combination of copper conductors, XLPE insulation, steel-tape armour and PVC sheath addresses the common failure points in demanding installs: external impact, thermal stress and exposure during installation.
If you’re planning a feeder upgrade, a new substation yard, a tunnel installation or any fixed low-voltage distribution run that demands durability, start with the N2XBY family as your standard. Share your single line diagram and route details with your supplier and ask for a tailored cable schedule — that small step up front prevents costly changes later and keeps power flowing reliably for years.
