Feb. 14, 2026
If your operation relies on cables that are dragged, spooled or routed across abrasive surfaces, you already know the failure pattern: a once-intact jacket thins, is cut through by sharp fragments or edges, and moisture or contaminants then attack the insulation. The result is a short circuit, an emergency splice, and unplanned downtime. A correctly specified MYP wear resistant cable removes that failure pattern by combining flexible conductors with jacket compounds and construction details specifically chosen to resist wear, cuts and chemical attack. The result: fewer failures, more predictable maintenance and better uptime.
This guide explains what an MYP wear resistant cable is, how to match jacket chemistry to the hazard, what measurable tests to require from suppliers, and practical installation and lifecycle practices that let the cable perform for years rather than months.
The phrase “wear resistant” is useful but vague unless you attach measurable tests and context. For an MYP wear resistant cable, wear resistance should be documented by:
abrasion testing (Taber or equivalent) with numeric values,
cut-through and tear strength figures,
comparative flex/spooling fatigue tests when the cable will be reeled, and
chemical compatibility for oils, lubricants or solvents encountered on site.
A wear resistant MYP product is thus a compound + construction package — jacket chemistry, jacket thickness, conductor flex class and optional reinforcement — validated by test reports. Demand the numbers, not the adjectives.

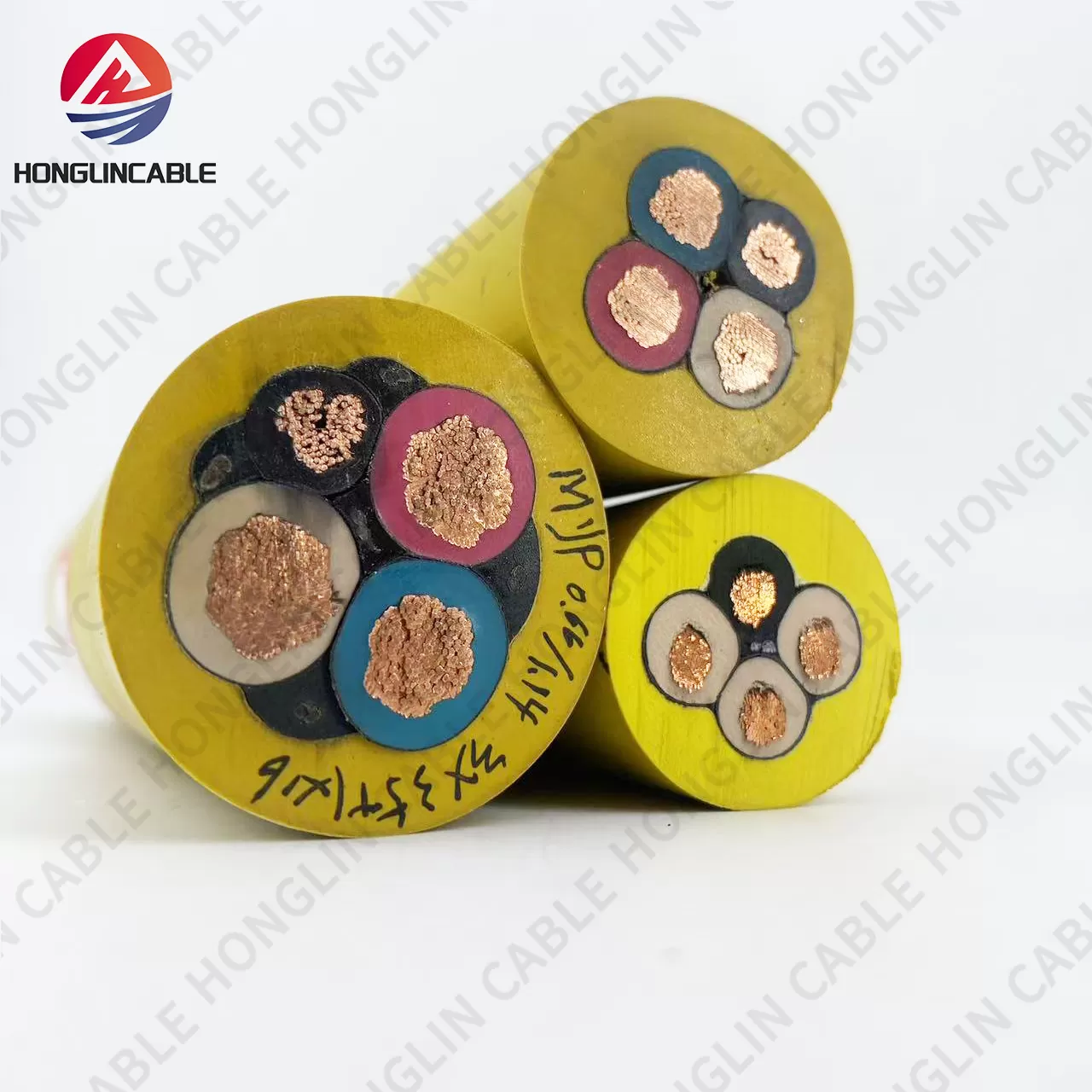

A robust MYP wear resistant cable uses a layered engineering approach:
Flexible conductor: fine-stranded copper (often class 5 or greater) preserves conductor life during repeated bending. Tinned copper is common where corrosion is a factor.
Elastomeric insulation: EPR, EPDM or similar rubbers that maintain dielectric properties while being flexible.
Optional insulation screen or semi-conductive layer: improves electric stress control for higher voltages.
Metallic screen or braid (optional): for earthing and EMI control where needed.
Wear-resistant outer jacket: engineered compounds such as chlorinated polyethylene (CPE), neoprene blends, polyurethane (PU) or specialty rubbers selected for abrasion, cut-through and oil resistance. Jacket thickness and reinforcement profiles are tuned to the movement profile (dragged, spooled, onboard).
Optional armor or reinforcement: in crush or impact zones a light armor or woven reinforcement can protect the jacket without eliminating flexibility.
Each of these layers should be specified to the real conditions the cable will face; the jacket is the visible defense, but conductor flexibility and insulation toughness are equally important for long service life.
Different compounds behave very differently in abrasion and chemical exposure. Typical choices include:
CPE (chlorinated polyethylene): balanced abrasion and oil resistance with good flexibility over a wide temperature range; a common choice for mining and heavy mobile applications.
Neoprene blends: good mechanical toughness and general oil resistance; often used where a robust, economical jacket is required.
Polyurethane (PU): outstanding abrasion and cut resistance and high tear strength; ideal for extremely abrasive paths but generally more costly and sometimes more sensitive to certain chemicals.
Specialty engineered rubbers: manufacturers formulate compounds to meet multi-hazard needs (abrasion + oil + flame retardancy), which can be specified when a single hazard profile is insufficient.
Pick the compound that matches the worst credible hazard on the route. For example, conveyor crossings with sharp fragments favor PU or reinforced CPE; oily machine bays generally favor CPE or neoprene with proven oil resistance.
To avoid vague offers, include these measurable fields in every RFQ for an MYP wear resistant cable:
Jacket compound name and full material datasheet (abrasion, oil resistance, low-temperature flexibility).
Jacket minimum thickness (mm) for high-wear sections.
Abrasion test results (e.g., Taber cycles to a defined weight loss or abrasion index).
Tear strength and cut-through resistance (numeric values).
Flex/spooling cycle test evidence for reeling applications at your drum diameter.
Minimum bend radius (multiple of OD) for routing and spooling.
Operating temperature range and aging data (thermal ageing tests).
Per-reel factory certificates including insulation resistance, dielectric test, DC resistance and mechanical tests tied to lot numbers.
Recommended glands/boots and termination accessories compatible with jacket chemistry.
When supplier responses include these data points, you can make an apples-to-apples technical comparison rather than negotiating around marketing claims.
1. Trailing cable across rough floors
Recommended: reinforced CPE or PU jacket, thicker sheath in wear zones, fine-stranded conductor class, and roller protection at edges.
Tests to demand: Taber abrasion cycles, tear strength, oil resistance.
2. Reeling drum for long spool runs
Recommended: flexible conductor class with proven spooling cycles, jacket compound validated for cyclic flex fatigue, and supplier guidance on minimum drum diameter.
Tests to demand: spooling cycle report at specified drum diameter, flex fatigue data.
3. Conveyor crossing or chute area
Recommended: PU jacket or CPE with additional protective sleeve; consider armor for exceptional impact zones.
Tests to demand: cut-through resistance, puncture resistance, and abrasion index.
4. On equipment (mounted)
Recommended: jacket with chemical and oil resistance plus UV/ozone resistance if exposed; ensure termination strain relief is compatible.
Tests to demand: chemical compatibility list and low-temperature flexibility.
Applying scenario-based specs keeps procurement realistic and avoids over- or under-engineering.
When reels arrive, do not accept them blind. Use this acceptance checklist:
Visual inspection: consistent jacket finish, proper print marking, no extrusion defects or surface voids.
Verify per-reel certificates: confirm insulation resistance, dielectric test and any mechanical test reports match the order and are lot-linked to the reel.
Sample abrasion check (where practical): compare a short sample against expected abrasion resistance using a portable test or visual comparison against a known reference.
Confirm minimum bend radius and flexibility: uncoil a short length and check handling and cold-flex where applicable.
Check marking and traceability: every reel should show a lot number that corresponds to the factory test sheet.
Reject or quarantine reels that fail to deliver the promised test evidence or show obvious production defects.
Even the best jacket can be defeated by poor installation:
Use smooth rollers and guides where the cable changes direction or crosses edges.
Add protective sleeves or spiral wraps at known wear points (entry/exit points, chutes, guide rails).
Avoid tight reversal bends and kinks—always follow manufacturer minimum bend radius.
Control tension on spools during reeling and unreeling to avoid local deformation.
Train crews in coil handling, storage and lifting to avoid flat spots or crushed areas that concentrate wear.
Simple mitigation measures significantly multiply jacket life.
Plan a maintenance regime tailored to wear-prone routes:
Frequent visual inspections in high-wear areas; log condition and measure sheath thickness where feasible.
Periodic insulation resistance testing at terminations to detect moisture ingress from jacket failures.
Infrared scans at connectors to find resistive heating before it damages insulation.
Defined replacement thresholds based on measurable wear (e.g., jacket thinning beyond X mm or visible cuts) rather than waiting for failure.
Recording mean time between replacement (MTBR) per route and per batch gives you the data to optimize future purchases and negotiate warranties.
Work with suppliers who provide:
complete material datasheets and measurable test data,
batch test certificates tied to reel lot numbers,
field references for similar abrasion-heavy installations,
clear spare-reel availability and lead times, and
warranties that reference measurable abrasion thresholds and require installation compliance.
Contract language should make warranty claims traceable and enforceable — for example, require that claims include worn sections retained with reel lot numbers and proof of installation compliance.
An MYP wear resistant cable costs more up front than a commodity cord, but when weighed against emergency repairs, lost production, and the labor of frequent splices, the lifecycle value is clear. Improved jacket longevity reduces unplanned stoppages, lowers maintenance labor, and preserves safety margins by preventing insulation exposure and short circuits.
jacket compound and full material datasheet (abrasion, oil, low-temp data)
minimum jacket thickness (mm) in wear zones
abrasion test data (Taber or equivalent) and cut-through values
flex/spooling cycle test report for required drum diameters
minimum bend radius (multiple of OD)
per-reel factory test certificates and lot marking
recommended glands/boots and protective sleeve options
lead time, MOQ, spare-reel policy, warranty terms tied to measurable thresholds
A properly specified MYP wear resistant cable is a strategic infrastructure decision, not an expendable commodity. By specifying measurable jacket properties, demanding per-reel test evidence, applying scenario-matched construction choices and enforcing good installation and inspection practices, you transform cable from a recurring maintenance problem into a predictable, long-lived asset that protects uptime and safety.
