Feb. 16, 2026
When your operation places mobile equipment or temporary power runs in wet, humid or splash-prone environments, selecting the right cable is not optional — it’s a safety and reliability decision. A properly specified MYP waterproof cable keeps power flowing, prevents moisture-related failures, and reduces emergency repairs. Designed for movable and reeling applications, these cables combine flexible conductors with insulation and jacket systems that resist water ingress while preserving mechanical flexibility.
This guide explains what “waterproof” actually means for MYP-family cables, how to choose constructions for specific wet-environment use cases, what test evidence to require from suppliers, and practical installation and maintenance steps that maximize service life.
“Waterproof” can be used loosely in marketing; for procurement you need a precise, testable definition. For MYP waterproof cable, waterproofing typically refers to one or more of the following, designed into the cable assembly:
jacket compounds with low water absorption and good hydrolytic stability;
jacket sealing and extrusion quality that prevents water penetration along the sheath;
internal construction or filler materials that reduce water migration;
optional inner seals or water-blocking tapes for extra protection;
factory tests and certificates demonstrating water resistance (immersion, water-spray, or specific ingress tests).
A waterproof MYP cable is not just a jacket that tolerates occasional spray — it is an assembly engineered for repeated exposure to moisture with documented test evidence to prove it.
Wet sites and moisture risks appear in many contexts:
outdoor yards and rainy climates where reels are deployed;
wet process areas and washdown zones in food or chemical plants;
dockside or marine adjacent installations exposed to splashes and salt spray;
underground faces where water ingress is common;
temporary setups in storm-prone sites or during seasonal work.
In these scenarios, water ingress can produce insulation tracking, reduced insulation resistance, corrosion at conductors and screens, and early failure of terminations. An MYP waterproof cable reduces these risks by providing a water-resilient jacket and internal design that slows or prevents water penetration, giving maintenance teams a predictable, safer system to work on.

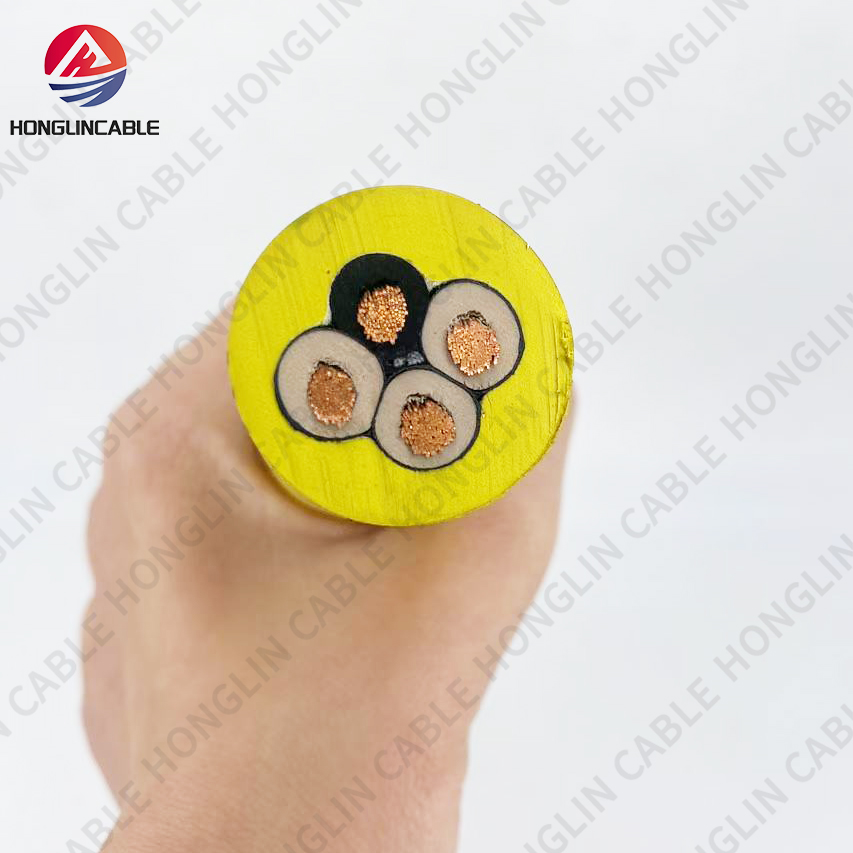

When specifying a MYP waterproof cable, inspect the cable layer by layer:
Conductors — finely stranded copper with appropriate plating (tinned where moisture and corrosion are likely) to preserve conductivity and avoid strand corrosion when any moisture does reach the conductor surface.
Insulation — elastomeric insulation (EPR/EPDM or similar) that retains dielectric properties when exposed to humidity and resists water-related ageing.
Inner protection — in some waterproof variants, manufacturers add water-blocking tapes, swellable fillers, or sealed core wraps that slow or stop water migration into the core area.
Shielding/screen — metallic braid or tape where required; ensure the screen is bonded and protected against corrosion (tinned braid improves life in damp conditions).
Outer jacket — a waterproof-rated elastomer with low moisture absorption and good hydrolytic stability. Compound selection matters: some formulations offer better long-term resistance to salt, detergents and repeated washdown.
Each of these design choices contributes to a cable that resists short-term splash and long-term humidity and immersion exposure.
To avoid ambiguity, require these measurable items in your RFQ for an MYP waterproof cable:
Jacket material & datasheet — name the compound and provide water absorption, hydrolytic stability and chemical compatibility data.
Water ingress test reports — ask for specific test methods and results (e.g., immersion tests, water-spray tests, IEC/EN methods if applicable).
Tinned conductors or anti-corrosion measures — specify conductor plating if site conditions are corrosive.
Water-blocking features — request information on swellable tapes, fillers, or inner wraps, and their expected performance.
Per-reel test certificates — insulation resistance and dielectric test results, linked to lot numbers; these should be included with waterproof tests if performed.
Termination/gland recommendations — require compatible glands and sealing methods that preserve waterproofing at terminations and splices.
Minimum bend radius and reeling guidance — ensure waterproof features do not conflict with required flexibility for your reeling/drum diameters.
When vendor responses include numeric test evidence and datasheets, comparisons become objective and acceptance testing is straightforward.
1. Dockside and marine-adjacent power lines
Use tinned conductors and jackets with proven salt-spray resistance; require water-blocking inner layers for long term exposure.
2. Washdown and food-processing areas
Specify compounds that resist detergents and repeated spray cycles; require glands rated to the same washdown class.
3. Outdoor temporary reels in rainy climates
Require immersion or water-spray test certificates and tight sealing reconciliation between reel flange and cable ends.
4. Underground faces with water seepage
Choose water-blocking inner layers and robust outer jackets, and request batch test evidence for moisture ingress under pressure.
5. Portable equipment that crosses wet zones
Insist on tinned conductors, sealed gland solutions, and quick replacement spool policies to minimize downtime.
Each case has slightly different waterproofing priorities — match features to the dominant water hazard.
A waterproof jacketing without proper termination sealing only delays failure. For every MYP waterproof cable purchase, require or procure:
Glands and boots specifically sized for the jacket compound and outer diameter, with IP-rated sealing performance;
Sealing kits for splices that match cable chemistry (adhesive, resin or thermoshrink systems that bond to the jacket);
Procedures for field sealing and recommended torque/installation steps to preserve IP rating of the assembled termination;
Training or on-site support from the supplier for first installations to ensure crews use the correct sealing technique.
Specify these items in procurement so waterproof performance is maintained through installation and service.
Don’t accept reels without verification. Standard acceptance checks for MYP waterproof cable include:
Visual inspection for consistent jacket extrusion, correct markings and absence of surface defects.
Verification of per-reel documentation: insulation resistance, dielectric/hipot, and any advertised water-resistance tests tied to the reel lot number.
Spot immersion or water-spray confirmation (where practical) on a short sample to confirm the claimed performance, especially for critical circuits.
Check termination/gland compatibility with supplied sealing hardware and verify samples of assembled glands meet IP rating.
If documentation or physical checks raise doubt, quarantine the reel until the supplier provides clarifying tests.
Maintain correct gland selection and installation practice — improper torque or incompatible gaskets defeat waterproofing.
Ensure proper sealing of splices with manufacturer-approved kits.
Route cables to minimize standing pools — avoid low points where water can accumulate near terminations.
Use drip loops and protective housings around critical terminations in outdoor deployments.
Document as-installed lot numbers and sealing methods so future maintenance can validate the same standards.
Good installation preserves the cable’s designed waterproof attributes and reduces repair cycles.
Waterproof features reduce failure risk but are not maintenance-free. Implement:
Periodic visual inspection around glands, splices and low points.
Regular insulation resistance measurements to detect early moisture ingress.
Scheduled resealing or replacement of glands and boots as materials age under UV or chemical exposure.
Spare reels and a rapid-response plan for critical circuits so degraded reels can be replaced without long outages.
Track reel lot performance and feed that data back into future procurement decisions.
A properly specified MYP waterproof cable is an investment: fewer moisture-related failures, reduced emergency labor, fewer splices that can act as failure points, and improved safety where electrical systems run in wet or corrosive environments. When production downtime or safety exposure has high cost, waterproofing pays for itself through reliability gains and reduced incident responses.
To procure a reliable MYP waterproof cable, do three things:
Specify measurable waterproof features (compound, tests, tinned conductors, water-blocking layers).
Require per-reel documentation and sample testing where the application is critical.
Include glands, sealing kits and installation guidance in the same procurement package so waterproofing is preserved through installation.
