When uptime, safety and predictable maintenance matter, the cable you choose to feed mobile equipment matters as much as the machine itself. A properly specified MYP mining power cable delivers the flexibility, mechanical protection, and electrical stability required in both underground and surface mining environments. This article explains what distinguishes a high-quality MYP mining power cable, how to select the right construction and rating for your application, and what to demand from suppliers so you receive cable that performs in the field — not just on paper.

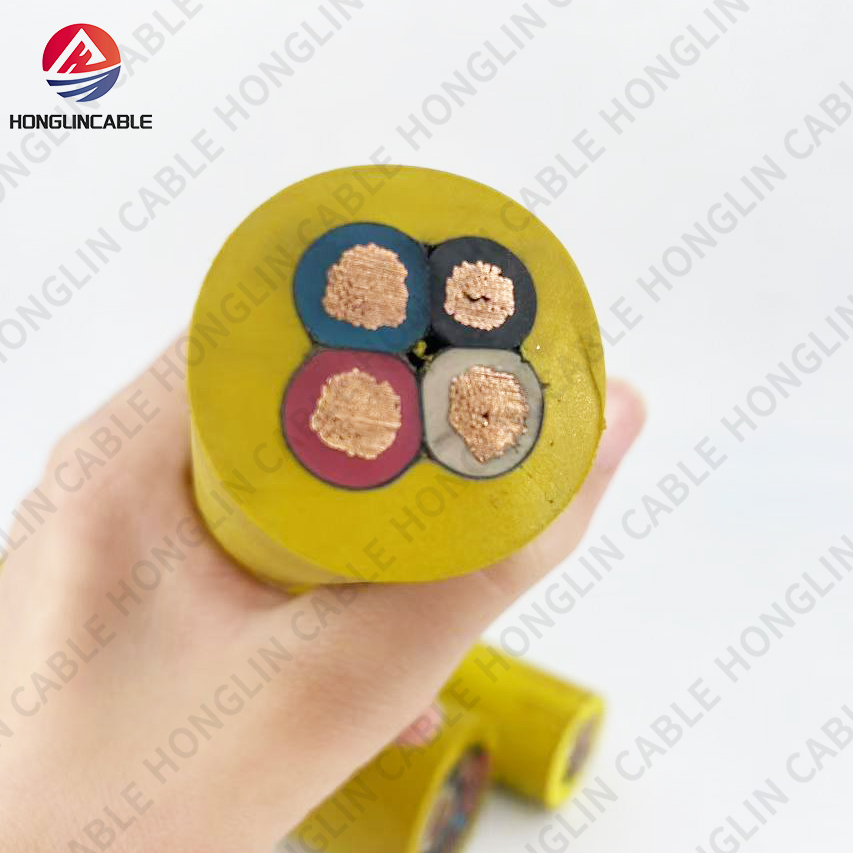

An MYP mining power cable is a rubber-sheathed, flexible power cable engineered for mobile mining applications — trailing cables for loaders and shuttle cars, reeling cables for heavy drum applications, and flexible feeders for movable transformers. These cables combine finely stranded conductors for bend endurance, elastomeric insulation for thermal and chemical resilience, metallic screening where required, and an abrasion-resistant outer jacket that resists tearing, oil, and mechanical abuse.
Unlike general-purpose industrial cable, the MYP family is designed from the ground up for movement and abuse. Its construction inherently addresses the common failure modes found in mining — conductor fatigue from repeated bending, jacket abrasion from contact with rock and equipment, moisture ingress at terminations, and insulation aging due to thermal cycling.
When specifying an MYP mining power cable, pay attention to each engineered layer:
1. Conductors — Choose fine-stranded copper (often class 5 or higher) to maximize flex life. For chemically aggressive or damp environments, consider tinned conductors to reduce corrosion risk.
2. Insulation — Elastomeric compounds such as EPR (ethylene-propylene rubber) or other mining-grade rubbers retain dielectric strength while remaining flexible through thermal cycles. Insulation thickness matters for dielectric performance and mechanical separation between cores.
3. Metallic screen — In screened MYP variants a copper braid or tape provides a defined earth path and reduces electromagnetic interference (EMI) for control circuits that run near power feeders.
4. Outer sheath — The jacket is the primary mechanical defense. Materials like chlorinated polyethylene (CPE), neoprene, or specially formulated polyurethane blends offer the abrasion resistance and oil/chemical tolerance required in mining galleries.
5. Optional armor or reinforcement — In high-impact zones or where crushing is plausible, armored variants or reinforced jackets provide extra protection at the expense of additional weight.
A well-balanced selection of these elements yields an MYP mining power cable that tolerates both movement and the harsh environment of the mine.
MYP cables are produced in several rated voltage classes — common low-voltage classes include 0.38/0.66 kV and 0.66/1.14 kV, while larger power needs may require higher classes. Select the voltage class and conductor cross-section to match:
Continuous load (expected motor or transformer current)
Starting or inrush currents (motor starts can require temporary higher conduction capacity)
Ambient operating temperature and grouping effects (bundled cables may need derating)
Mechanical flexibility (larger conductors are less flexible)
Where trailing and reeling are involved, prioritize a conductor geometry that preserves flexibility at required cross-sections — this is often achieved with more strands rather than fewer, large sub-conductors.
In procurement documents, make specifications measurable. For example:
Minimum bend radius — many flexible MYP constructions specify minimums such as 6× the overall diameter; follow manufacturer guidance, especially for spooled runs.
Abrasion resistance — ask for abrasion test data or comparative ratings versus standard jackets.
Oil and chemical resistance — require compound compatibility data for site contaminants.
Low-temperature flexibility — confirm the jacket remains pliable at expected mine temperatures.
Flame/smoke characteristics — if required by regulation or site policy, specify low-smoke or flame-retardant compounds.
These quantifiable requirements make supplier responses comparable and protect long-term performance.
Trailing power (dragged cables): Cables used for trailing are dragged across surfaces and subject to abrasion and impact. For this application choose a jacket with high abrasion resistance and a conductor designed for frequent bending. Ensure proper strain relief at terminations.
Reeling (spooled) applications: Reeling cables cycle through bending and spooling. Jacket fatigue and conductor flex fatigue are dominant failure modes here — choose cables tested for spooling cycles and confirm recommended minimum drum diameters.
Fixed feeders (but exposed to harsh environment): These runs may not move frequently, but they must resist abrasion, impact and moisture. A more robust jacket or even armored options make sense where the routing exposes the cable to traffic or mechanical hazards.
Match the MYP mining power cable type to the movement profile of your run — this is where most installations either succeed or fail.
Even the best cable will fail prematurely if installed poorly. Enforce these practices:
Respect minimum bend radii when routing and especially at terminations.
Provide proper strain relief and glands to prevent tensile loads on conductor joints.
Use protective guides and rollers where the cable passes edges or across vehicle paths.
Seal terminations and splices to keep moisture and conductive dust out.
Label and document cable runs for future maintenance and spares planning.
Good installation discipline transforms a specified MYP mining power cable into a durable system component.
When you request quotes, require the following to minimize procurement risk:
Complete datasheets listing conductor stranding class, insulation/jacket compounds, rated voltages, recommended bend radius and mechanical test claims.
Batch test certificates for each reel: insulation resistance, dielectric/high-voltage withstand, conductor continuity and — where relevant — flex/cycle test evidence.
Material data sheets documenting chemical and abrasion resistance.
Traceability marking on reels linking installed cable to factory tests.
Field references or case studies for similar applications where possible.
Reputable suppliers deliver these items routinely; insisting on them up front avoids disputes at acceptance and reduces hidden risk.
Plan a predictable maintenance regime for your cable network:
Visual inspections for jacket wear, cuts, bulges and deformation.
Electrical tests (insulation resistance at intervals) to detect moisture ingress or insulation degradation.
Infrared thermography at terminations to catch high-resistance heating before it becomes a failure.
Replace proactively based on measurable wear thresholds rather than waiting for catastrophic failure.
A consistent maintenance program protects the investment in your MYP mining power cable and supports safer operations.
In underground environments, fire performance and smoke toxicity are critical. Where regulations or site safety policies demand it, choose jacketing and insulation compounds that meet low-smoke, flame-retardant criteria. Require supplier test evidence for relevant fire and smoke tests when safety is a primary concern.
Additionally, ensure that cable routing, emergency shutdowns and grounding schemes are designed to minimize the impact of any electrical fault. Cable choice is one element in a holistic safety strategy.
An MYP mining power cable may cost more per meter than a generic industrial cable, but its value shows up in the lifecycle:
fewer emergency replacements and associated labor;
reduced unplanned downtime and lost production;
lower frequency of costly splices and field repairs;
improved safety insurance and regulatory compliance outcomes.
When downtime is measured in high production cost per hour, investing in the right cable frequently pays back quickly.
Treat cable procurement as infrastructure investment and not a commodity buy. To maximize the value of a MYP mining power cable:
Define the movement profile (trailing/reeling/static) and environmental hazards up front.
Specify measurable testable attributes (bend radius, abrasion resistance, oil resistance, fire/smoke behavior).
Demand batch test certificates and reel traceability from suppliers.
Enforce installation discipline with proper glands, strain relief, guides and acceptance tests.
Put a maintenance plan in place with inspection cadences and numeric replacement triggers.
Following these steps turns cable selection into a predictable contributor to safety and uptime rather than an ongoing problem.
