Feb. 14, 2026

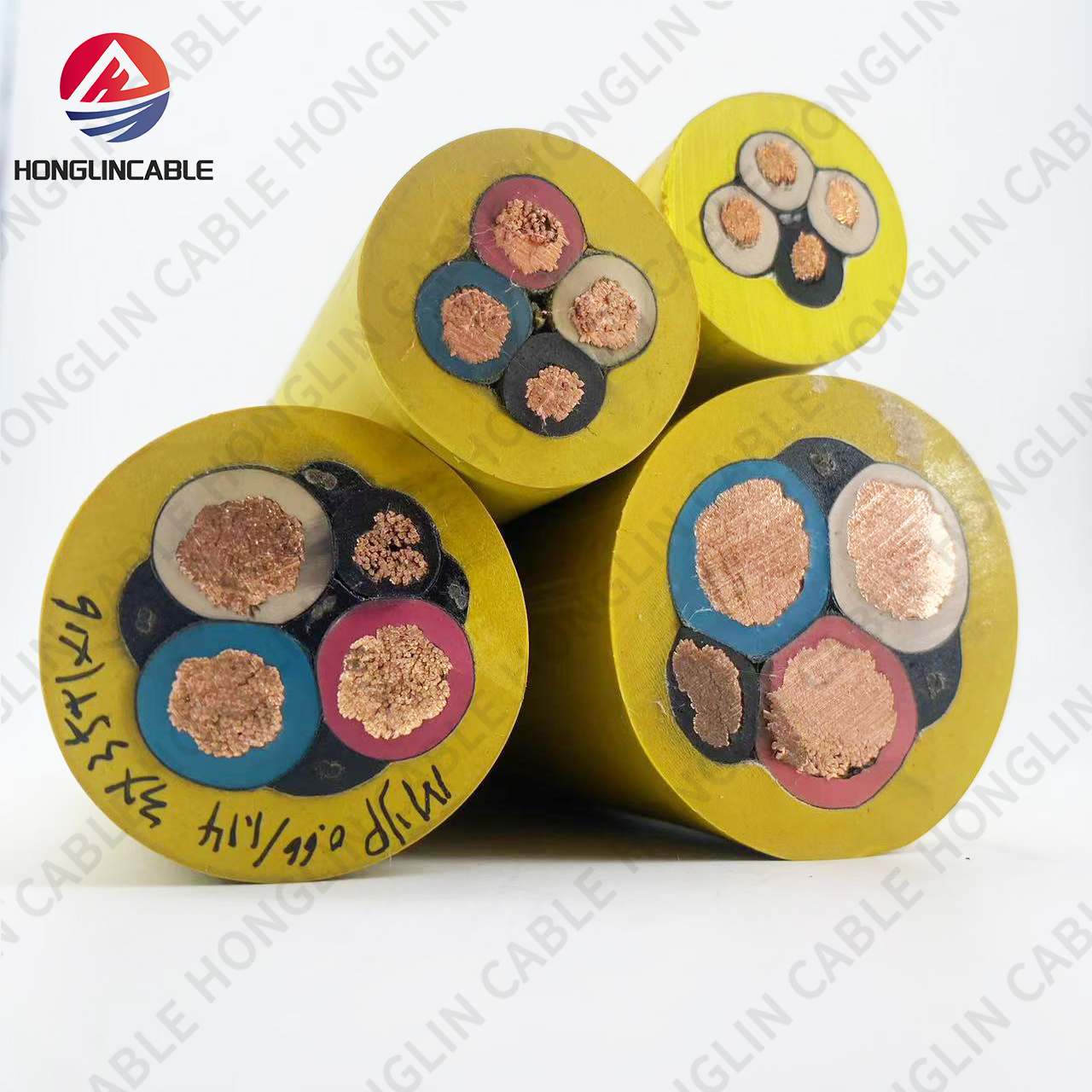

When mission-critical equipment needs flexible, mobile power in harsh environments, the cable you choose is a functional part of the system — not just a length of copper and rubber. An MYP elastomer sheathed cable blends highly flexible conductors with elastomeric insulation and a rugged elastomer outer jacket designed to resist abrasion, oils, temperature cycles and repeated bending. That combination makes it the right choice for mobile mining machinery, reeling drums, movable transformers and industrial equipment that must survive real-world abuse without constant repair.
This guide is written for procurement engineers, electrical designers and maintenance supervisors. It tells you what an MYP elastomer sheathed cable is, how to choose the right elastomer chemistry for your environment, which measurable test evidence to demand, and the installation and maintenance practices that turn good cable into long service life.
“Elastomer sheathed” describes the jacket and insulation materials used in the cable — rubbery compounds (elastomers) that remain flexible across a wide temperature range and resist cracking, tearing and chemical attack. Compared with simple PVC jackets, elastomer sheaths (such as CPE, neoprene blends, polyurethane or custom rubber formulations) offer superior mechanical toughness, better tear strength and superior resistance to oil and solvents. When paired with finely stranded conductors and elastomeric core insulation (EPR, EPDM, etc.), the result is an assembly optimized both for electrical performance and mechanical endurance.
An MYP elastomer sheathed cable therefore prioritizes long-term flexibility and mechanical protection, which are essential where the cable is repeatedly bent, reeled, dragged or exposed to lubricants and abrasive surfaces.
A reliable MYP elastomer sheathed cable is a layered, engineered product. Inspect these layers closely when you evaluate suppliers:
Conductor: finely stranded copper (high strand counts) improves flexibility and avoids strand fatigue under repeated bending. Tinned conductors are common where moisture or corrosive environments exist.
Core insulation: elastomeric insulation retains dielectric strength during flex and thermal cycling. EPR or EPDM variants are typical because they maintain pliability and resist aging.
Optional stress control / semi-conductive layers: in some higher-voltage or screened designs these layers smooth electric stress distributions.
Metallic screen/braid (optional): provides a controlled earth path and reduces electromagnetic interference where power and control cables coexist.
Elastomer outer jacket: the heart of “elastomer sheathed” — choose compounds designed for abrasion, oil resistance, low-temperature flexibility and the specific hazards on your route. Available options include chlorinated polyethylene (CPE), neoprene blends and polyurethane (PU) systems.
Optional reinforcement/armor: for high crush or impact zones some constructions add lightweight armor while preserving overall flexibility.
Each component must be specified to the real conditions of use — a durable jacket alone cannot compensate for conductor fatigue or insufficient insulation thickness.
Elastomer chemistry matters because each has strengths and trade-offs:
Chlorinated polyethylene (CPE): excellent overall abrasion and oil resistance combined with good low-temperature flexibility. It’s widely used for mobile and mining cables because it balances durability and cost.
Neoprene (polychloroprene) blends: robust general-purpose jackets with good oil and weather resistance and moderate abrasion properties. Useful when a broad set of hazards exists.
Polyurethane (PU): outstanding abrasion and cut resistance, very high tear strength — ideal where sharp fragments or constant scraping are present. PU can be more expensive and sometimes requires compatibility checks for specific chemicals.
Specialty elastomer formulations: manufacturers can tailor compounds to combine abrasion, oil resistance, flame retardancy or low-smoke characteristics where multiple hazards must be met.
Select the compound by mapping the route’s dominant hazard: sharp, abrasive contact favors PU; oily machine bays favor CPE or neoprene; mixed hazards may require a custom elastomer recipe that balances performance.

To avoid fuzzy marketing claims, require measurable data in your RFQ. For an MYP elastomer sheathed cable, include:
Elastomer compound name and full material datasheet (abrasion index, chemical compatibility, low-temp flexibility).
Minimum jacket thickness (mm) in the nominal design and any reinforced zones.
Abrasion and tear test results (e.g., Taber abrasion cycles, tensile/elongation, cut-through resistance).
Flex/spooling cycle test evidence relevant to your drum diameter or reeling profile.
Minimum bend radius and handling recommendations for spooling/unspooling.
Operating temperature range and thermal aging test data.
Per-reel factory certificates: insulation resistance, high-voltage (hipot) test, DC resistance, and mechanical test reports tied to reel lot numbers.
Recommended termination hardware compatible with the elastomer chemistry.
Field references or case studies in similar environments.
Requesting these items makes supplier quotes comparable and reduces the chance of buying a product that looks right on paper but fails quickly in service.
Even high-quality elastomer sheathing requires correct handling to deliver its rated life. Follow these best practices:
Respect minimum bend radius across the entire installation; tight bends at terminations are frequent failure points.
Use compatible glands and boots that seal and mechanically protect terminations without attacking the elastomer chemistry.
Fit smooth guides and rollers at directional changes and across edges to prevent concentrated abrasion.
Control spool tension and drum diameter during reeling; small drum diameters can dramatically shorten flex life.
Protect high-wear zones with sleeves or spiral wraps if concentrated contact is unavoidable.
Label and record reel lot numbers during installation so performance can be traced back to factory tests.
Training crews on these practices is inexpensive compared with repeated emergency repairs.
When a reel arrives, perform these acceptance steps before installation:
Visual inspection for consistent jacket finish, print markings, and absence of extrusion defects.
Verify per-reel test certificate that corresponds to the reel lot number.
Uncoil a sample length to check flexibility and confirm the stated minimum bend radius.
Optional quick abrasion sample test if the route is extremely aggressive (compare against the supplier’s datasheet claims).
Check termination kit compatibility — fit the gland and ensure a clean mechanical seal.
Reject or quarantine reels that lack traceable test certificates or show visible defects.
A routine inspection and testing program multiplies the value of a premium cable:
Periodic visual checks for abrasion, cuts, bulging or delamination.
Scheduled insulation resistance tests and trending to detect early moisture ingress.
Thermographic surveys at terminations to spot resistive heating before damage occurs.
Measurement of jacket thickness at key locations to track wear and plan replacements before failure.
Record-keeping that links inspection results to reel lot numbers helps refine future procurement and hold suppliers accountable.
A properly specified MYP elastomer sheathed cable may cost more per meter than a generic product, but the total cost of ownership nearly always favors the engineered choice when uptime has real value. Fewer emergency splices, reduced labor for field repairs, longer mean time between replacement, and decreased collateral equipment damage add up to clear savings — and improved safety is an additional, non-monetary benefit that matters in many operations.
When you evaluate vendors, prefer those who provide:
complete datasheets and material property data,
per-reel, batch-level test certificates,
guidance on installation and termination compatible with the elastomer,
field references for similar environments, and
reasonable spare-reel commitments and lead time guarantees.
Contract language should require traceable test evidence and define acceptance criteria so warranty claims are enforceable.
exact cable model and conductor sizes required
elastomer compound name and material datasheet required
minimum jacket thickness and reinforcement plan for wear zones
flex/spooling cycle data expected at specified drum diameters
abrasion, tear and cut-through test numbers required
minimum bend radius and termination hardware specification
per-reel factory certificates and lot marking requirement
recommended spare-reel policy and lead time
An MYP elastomer sheathed cable is engineered to survive real service conditions: movement, abrasion, oils and repeated flex. By specifying measurable materials and tests, insisting on traceable factory documentation, and enforcing installation and inspection discipline, you convert cable procurement from a recurring problem into a predictable part of your infrastructure.
