In demanding industrial, mining and mobile equipment environments, the cable that carries power is a working part of the machinery — not a passive commodity. When cables are dragged, spooled, flexed, or exposed to abrasive floors, oils and moisture, ordinary wiring quickly fails. An MYP copper cable is engineered to meet those demands: it pairs flexible copper conductors with rugged insulation and jackets so power keeps flowing and maintenance stays predictable.
Below you’ll find practical guidance that a purchasing manager, maintenance supervisor or design engineer can use right away: what an MYP copper cable is, why copper is chosen in flexible mining and industrial cables, how to match cable construction to the application, and what to require from suppliers so the cable performs in the field for years.

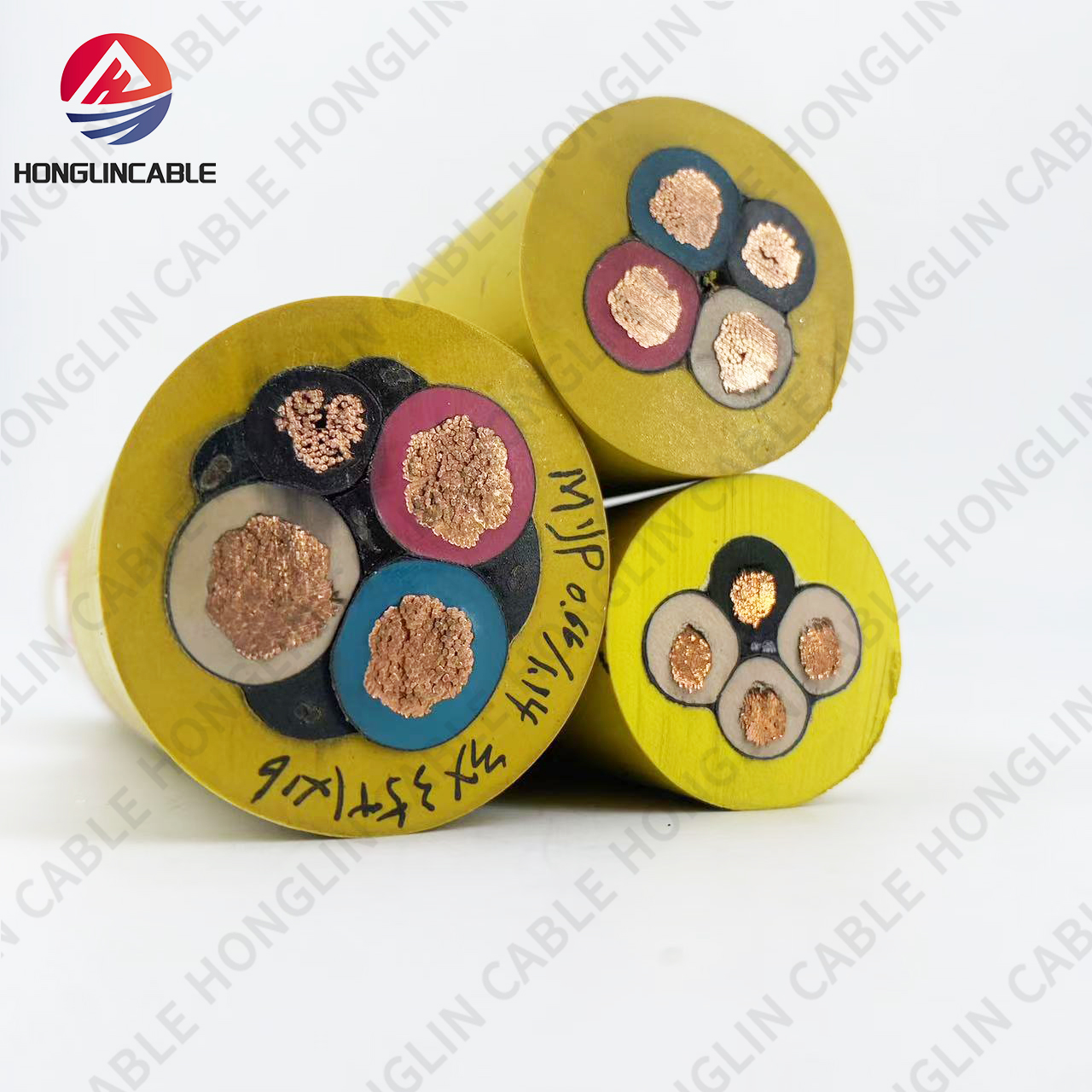

An MYP copper cable refers to a member of the MYP family — flexible, rubber-insulated power cables — where the conductor material is copper. Typical MYP constructions pair finely stranded copper conductors with elastomeric insulation and an abrasion-resistant outer jacket. The design emphasis is on movement: spooling, trailing and repetitive bending. In many operating environments the conductor is tinned copper to improve corrosion resistance, but plain copper is commonly used where appropriate.
Where single-use or static cables prioritize cost, an MYP copper cable prioritizes sustained service life under mechanical and environmental stress.
Copper remains the conductor of choice for flexible power cables for several strong reasons:
Superior conductivity. Copper’s electrical conductivity is high, so required conductor cross-sections are smaller for the same ampacity compared with many alternative conductors. That helps keep cable outer diameters down while maintaining current capacity.
Excellent ductility. Copper stretches and bends without fracturing. When finely stranded, copper tolerates repeated flex cycles far better than thicker, less-ductile conductors.
Reliable thermal behavior. Copper handles thermal cycling well, which is important where motors start frequently or loads fluctuate.
Compatibility with tinning. Tinning copper conductors improves corrosion resistance without significantly reducing flexibility — a practical benefit in humid, wet or chemically active galleries.
All of the above make an MYP copper cable a dependable choice where movement, durability and electrical performance must coexist.
An MYP copper cable is an engineered assembly. Key layers and why they matter:
Conductor: finely stranded copper, often class 5 or higher for flex life. Specify tinned copper if corrosion is expected. Conductor strand count and class directly affect flexibility and fatigue resistance.
Insulation: elastomeric materials (EPR, EPDM or purpose-formulated rubbers) that retain dielectric strength and remain pliable across the operating temperature range.
Optional insulation screen: in some designs a semi-conductive screen is applied for stress control and improved fault behavior.
Metallic screen or braid: provides predictable earthing and reduces electromagnetic interference where power and control cables run in proximity.
Outer jacket: abrasion- and oil-resistant compounds such as chlorinated polyethylene (CPE), neoprene, or polyurethane blends protect the cable from mechanical wear and site chemicals.
Optional armor or reinforcement: used where crushing or impact is likely.
When specifying an MYP copper cable, each layer should be selected to solve a known site problem — abrasion, oil exposure, spooling fatigue, or EMC concerns.
Choose an MYP copper cable in these high-demand scenarios:
Trailing power for mobile equipment. Loaders, mobile cranes and shuttle cars drag cables across rough floors; the abrasion-resistant jacket and flexible copper conductor reduce downtime.
Reeling/spooling drums. Reeling drums impose cyclic bending; cable designs with high strand counts and appropriate jackets survive many spooling cycles.
Movable transformer feeds. When transformers are relocated as faces advance, flexible copper feeder leads make movement safe and reliable.
Temporary power during maintenance. Robust reels of MYP copper cable support quick setups for temporary distribution.
Industrial automation & robotics. Where cables must flex thousands of cycles, copper conductors in flexible constructions sustain service life and reduce failures.
In short, any application that combines load, movement and rough service is a candidate for an MYP copper cable.
A precise specification reduces surprises. Use these decision points as a shopping checklist:
Voltage and current requirements. Define U0/U rating and continuous as well as starting currents. Copper conductor cross-section must match ampacity and temperature rise limits.
Movement profile. Is the run static, dragged (trailing), repeatedly spooled, or flexing in place (robotic arm)? Spooling needs different flex performance than simple trailing.
Conductor details. Specify conductor class (stranding) and whether tinned copper is required. For high flex and reeling, higher strand counts help.
Insulation and jacket compounds. Match materials to environmental hazards: oils, solvents, coal dust, salt spray, UV, or low temperature. Ask for compound property data.
Mechanical metrics. Minimum bend radius (often expressed as a multiple of outer diameter), abrasion index, tear resistance.
Screening & earthing. For installations with nearby sensitive control lines, request braided screens and specify bonding points.
Factory testing & traceability. Require per-reel test certificates for insulation resistance, dielectric/hipot tests, conductor resistance and flex/bend testing. Insist each reel be marked with a lot number linked to the test record.
Termination accessories. Ask suppliers for compatible glands, boots and strain reliefs sized for the jacket chemistry.
Specifying these items in your RFQ ensures apples-to-apples offers and reduces acceptance friction at site.
A credible supplier should deliver documentation as standard:
Full datasheet with conductor stranding, insulation/jacket materials, voltage class, recommended bend radius and temperature ratings.
Batch-level test certificates tied to reel lot numbers: insulation resistance, hipot, DC resistance, and mechanical flex tests.
Material property sheets for the jacket and insulation compounds (abrasion, oil and low-temp flexibility).
Recommended termination kits and handling guidance.
Don’t accept vague claims — require measured data and traceability.

Even the best MYP copper cable can be compromised by poor installation. Follow these rules:
Respect the manufacturer-stated minimum bend radius — tight bends cause internal strand stress and premature failure.
Use proper strain relief and cable glands to transfer mechanical loads away from conductors and terminations.
Protect runs where cable crosses edges or is exposed to vehicle traffic with rollers or guards.
Avoid sharp pulls and twisting during laying and spooling. Use proper drum sizes and tension controls for reeling.
Seal terminations and splices against moisture and contaminants.
Careful installation preserves the designed flex life and the warranty.
Routine checks prolong service life:
Periodic visual inspections for jacket wear, cuts or kinks.
Scheduled insulation resistance testing to detect moisture ingress or insulation degradation.
Infrared thermography at terminations to spot resistive heating before it leads to failure.
Planned replacement thresholds based on measurable wear criteria (e.g., sheath thinning depth or insulation resistance decline).
Tracking reel lot numbers against field performance helps refine future procurement choices.
An MYP copper cable may cost more per meter than a generic cord, but when you measure total cost of ownership the investment often pays for itself: fewer emergency repairs, less downtime, lower labor for splicing and longer intervals between replacements mean lower lifecycle cost. For operations where uptime has high value, properly specified copper flex cable is an economic decision, not just a technical one.
When procuring flexible power cable for demanding service, treat the purchase as infrastructure planning:
Define your movement profile and environmental hazards clearly.
Specify copper conductor class and whether tinned conductors are needed.
Require measurable mechanical properties and per-reel test certificates.
Insist on compatible termination accessories and installation guidance.
Implement a maintenance regime tied to measurable thresholds.
Doing these things gives you an MYP copper cable that delivers years of predictable service, keeps crews safer, and reduces the total cost of ownership.
