In heavy-duty mining operations and large-scale industrial environments, delivering reliable power to mobile equipment and transformer connections is a critical priority. The demand for robust, flexible and high-performance cable solutions has never been greater. When machines become larger, loads increase, and operating conditions become harsher, a standard cable simply will not suffice. A MYP 3.6/6kV cable is specifically engineered to meet these mid-voltage power distribution challenges with a design that balances electrical performance, mechanical resilience, and operational safety.
The MYP 3.6/6kV cable series is part of a broader family of rubber-sheathed, flexible mining cables that provide dependable electrical connectivity for movable power connections. Rated at U0/U 3.6/6 kV, this class of cable bridges the gap between low-voltage trailing cables and full medium-voltage systems, delivering the performance needed for high-current equipment while retaining flexibility and durability for dynamic applications such as trailing, reeling, and movable transformer feeds.

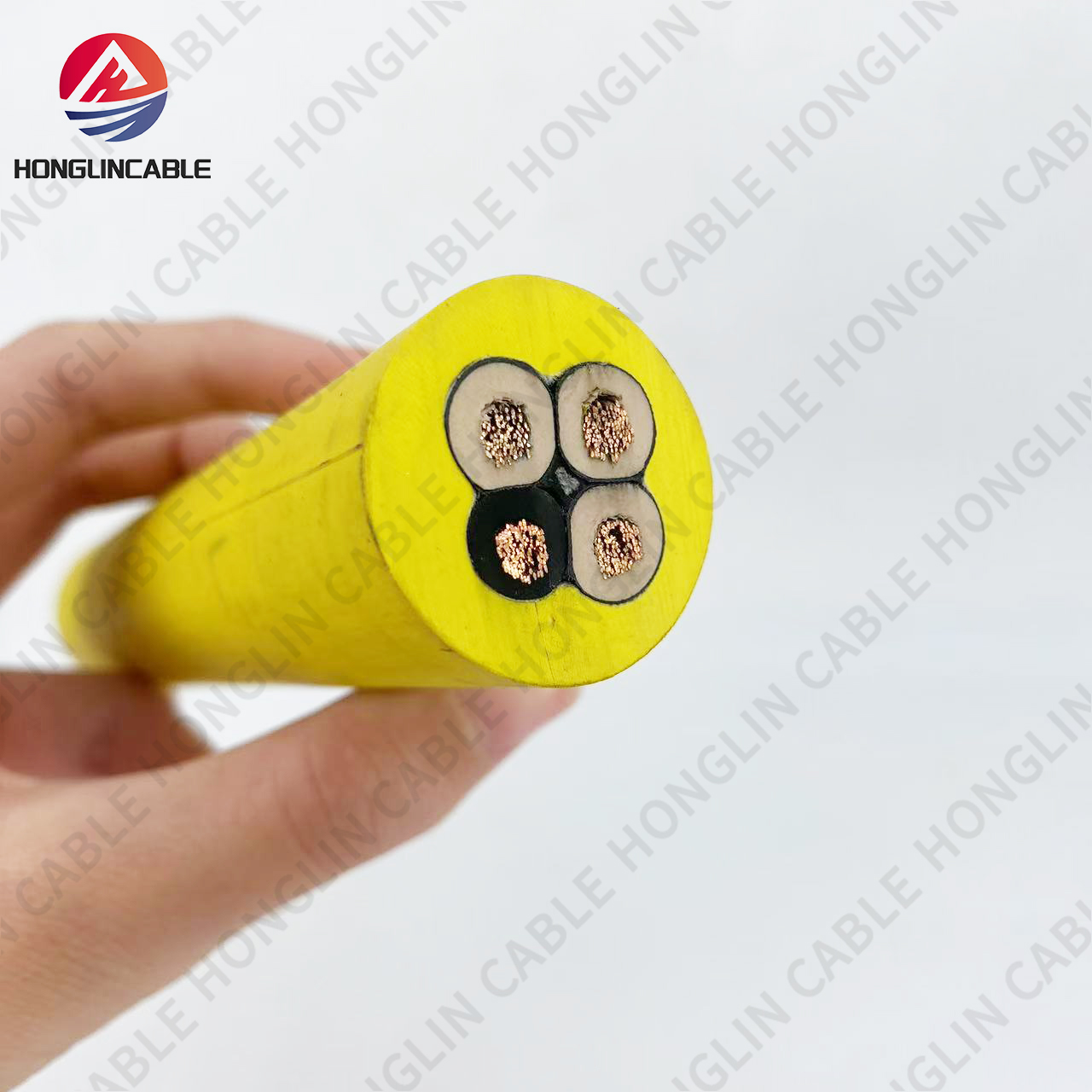

A high-quality MYP 3.6/6kV cable is not simply a thicker version of its low-voltage counterparts. It is an engineered composite of conductor, insulation, screening and protective jacket, each layer selected to withstand the unique stresses of mining environments:
Conductors:
At the core, flexible, finely stranded copper conductors (often tinned for corrosion resistance) provide the electrical backbone. Fine stranding enhances flexibility and reduces fatigue under repeated bending or coiling — a must for reeling and trailing applications.
Insulation:
Robust elastomeric materials such as ethylene propylene rubber (EPR) are used to maintain dielectric strength even under prolonged mechanical stress and temperature variations. These insulation compounds resist thermal aging and chemical exposure typical of mining environments.
Metallic Screen:
A metallic screen or braid is often included to manage electromagnetic interference and provide a reliable ground path. This is especially valuable when power cables are routed near sensitive instrumentation or control circuits.
Outer Sheath:
The outer jacket is formulated for mechanical toughness — resisting abrasion, tearing, moisture, and oil. Typical sheath materials include chlorinated polyethylene (CPE), neoprene, or specialized low-smoke, halogen-free rubbers. These compounds protect the internal structure from environmental hazards and mechanical impact.
The result is a cable that provides high reliability, enhanced safety, and long service life in environments that would quickly degrade ordinary cable types.
The MYP 3.6/6kV cable has become a preferred choice in a variety of demanding scenarios, including:
Movable Transformer Connections:
In large mining sites, power distribution often requires movable transformers that need to be repositioned as work faces advance. The 3.6/6 kV rating accommodates higher power demands while the cable’s flexibility supports relocation without structural damage.
Reeling Drum Power Delivery:
Large excavators, coal cutters, and heavy face machines often use reeling cables that are wound and unwound continuously. A cable engineered for this service resists fatigue from cyclical bending and withstands the mechanical demands of spooling systems.
Trailing Power to Heavy Machinery:
Loaders, conveyors, and mobile drilling units demand cables that can handle repeated dragging and movement. The MYP 3.6/6kV cable maintains conductivity and insulation integrity under these mechanical stresses.
Temporary High-Capacity Layouts:
During maintenance, restructuring, or temporary installations, high-capacity mobile connections are often needed. A cable of this class simplifies installations and supports reliable power distribution without the overhead of fixed medium-voltage systems.
Each application benefits from the cable’s combination of electrical robustness and mechanical resilience, translating into reduced downtime and maintenance costs.
Choosing the appropriate cable variant involves a methodical evaluation of electrical, mechanical and environmental conditions:
Electrical requirements:
Start with the system’s voltage and current demands. Ensure that the cable’s rated voltage (U0/U 3.6/6 kV) aligns with your power distribution architecture, and select a conductor cross-section capable of handling continuous load without exceeding temperature limits.
Movement and mechanical stress:
If the cable will be trailed or reeled repeatedly, prioritize fine-stranded conductors and flexible jacket compounds that are validated for dynamic fatigue performance. For fixed runs with minimal movement, a more robust jacket formulation may be appropriate.
Environmental challenges:
Assess exposure to moisture, oils, chemicals, temperature cycles and abrasion. Choose insulation and sheath materials that resist these exposures to extend service life.
Screening and signal integrity:
Where power cables run adjacent to control cables or instrumentation, include metallic screening in your specification to minimize electromagnetic interference and maintain system stability.
Mechanical protection:
In areas where mechanical impact or crushing is possible, consider additional reinforcement such as armored variants. While armor adds weight and slightly reduces flexibility, it significantly enhances physical protection.
Factory test documentation:
Require suppliers to provide detailed test results for insulation resistance, dielectric strength, bending fatigue and any applicable mining authority acceptance documentation for easier procurement and site approval.
Systematic specification ensures that the chosen MYP 3.6/6kV cable matches not only electrical needs but also the real-world demands of your project.
Even the best cable can be compromised by poor installation. Follow these field-proven guidelines:
Respect bend radius:
Maintain the manufacturer’s minimum bend radius throughout routing. Tight bends concentrate mechanical stress and can impair conductor and insulation integrity.
Strain relief at terminations:
Terminations are common failure points. Use appropriate glands and boots to provide strain relief and protect conductor terminations from mechanical loads.
Route protection:
Where the cable may contact sharp edges or be subjected to abrasion, use trays, rollers, or protective guides to shield the jacket.
Moisture protection:
Ensure that entry points, terminations and splices are sealed against moisture ingress, which can accelerate insulation aging.
Documentation:
Accurate as-built documentation and labeling help future maintenance teams identify cable runs and termination points quickly, reducing errors and downtime.
These measures prolong the service life of the cable and protect the investment.
A proactive maintenance strategy keeps systems reliable:
Regular visual inspections: Spot surface abrasion, cuts, or deformation early.
Thermographic scanning: Detect hot spots at joints or terminations before they escalate.
Electrical testing: Periodic insulation resistance and continuity checks quantify cable health over time.
Lifecycle thresholds: Replace sections based on measurable signs of wear rather than waiting for catastrophic failure.
Predictive maintenance minimizes emergency repairs and improves operational continuity.
Mining environments require strict safety standards. Many MYP 3.6/6kV cable variants are offered with flame-resistant jacketing options and low-smoke, halogen-free materials to improve personnel safety in confined spaces. Selecting the right safety profile for your environment ensures that electrical faults do not produce hazards that compromise evacuation routes or worker health.
Although higher-rated cables like the MYP 3.6/6kV cable can carry a higher upfront price tag than basic low-voltage alternatives, the savings over time are significant. Longer service life, fewer emergency replacements, reduced downtime, and lower maintenance costs all contribute to a lower total cost of ownership. Procurement decisions based solely on first cost often overlook these long-term benefits — a comprehensive evaluation that includes lifecycle economics usually favors quality cable solutions.
Work with suppliers who provide:
Detailed factory test records that you can verify independently.
Material traceability to support warranty and quality assurance processes.
Technical support for acceptance testing and installation guidance.
Field references or case studies demonstrating performance in similar operational contexts.
A supplier that backs their product with documentation and support reduces risk and simplifies project delivery.
Mining operations and heavy industrial sites demand power infrastructure that can endure mechanical stress, environmental exposure, and continuous operation. The MYP 3.6/6kV cable is engineered to meet these challenges with a balanced design that delivers flexibility, durability, and stable electrical performance.
By aligning cable specs with operational needs, following best installation and maintenance practices, and selecting a supplier with strong technical support, you ensure that your electrical network is reliable and resilient. Whether powering movable transformers, reeling applications, or heavy mining machinery, the MYP 3.6/6kV cable provides a professional solution that supports safer, more efficient, and more predictable operations.
