If your mine uses medium-voltage mobile equipment — modular crushers, portable substations, long conveyors with mobile heads or heavy mobile pumps — you need a cable that carries more power than low-voltage leads while still being flexible enough for movement and reeling. The MYP 3.3/6kV mining cable family answers that need: medium-voltage capability, engineered insulation for electrical safety, and rugged mechanical construction for repetitive handling in harsh environments.
This article explains exactly what the MYP 3.3/6kV mining cable is, why it’s often the right choice for medium-power mobile duty, the measurable specification fields to demand in procurement, installation and testing best practices, and maintenance routines that preserve service life. The goal is to give you copy-ready content that converts curious buyers into qualified RFQs, and to make it simple for engineers to choose the correct cable for their application.
MYP denotes a flexible rubber-sheathed mining cable family designed for movable power leads.
3.3/6kV is the rated voltage class (phase-to-earth / phase-to-phase), placing the product in a medium-voltage bracket common for larger motors and higher-power mobile systems.

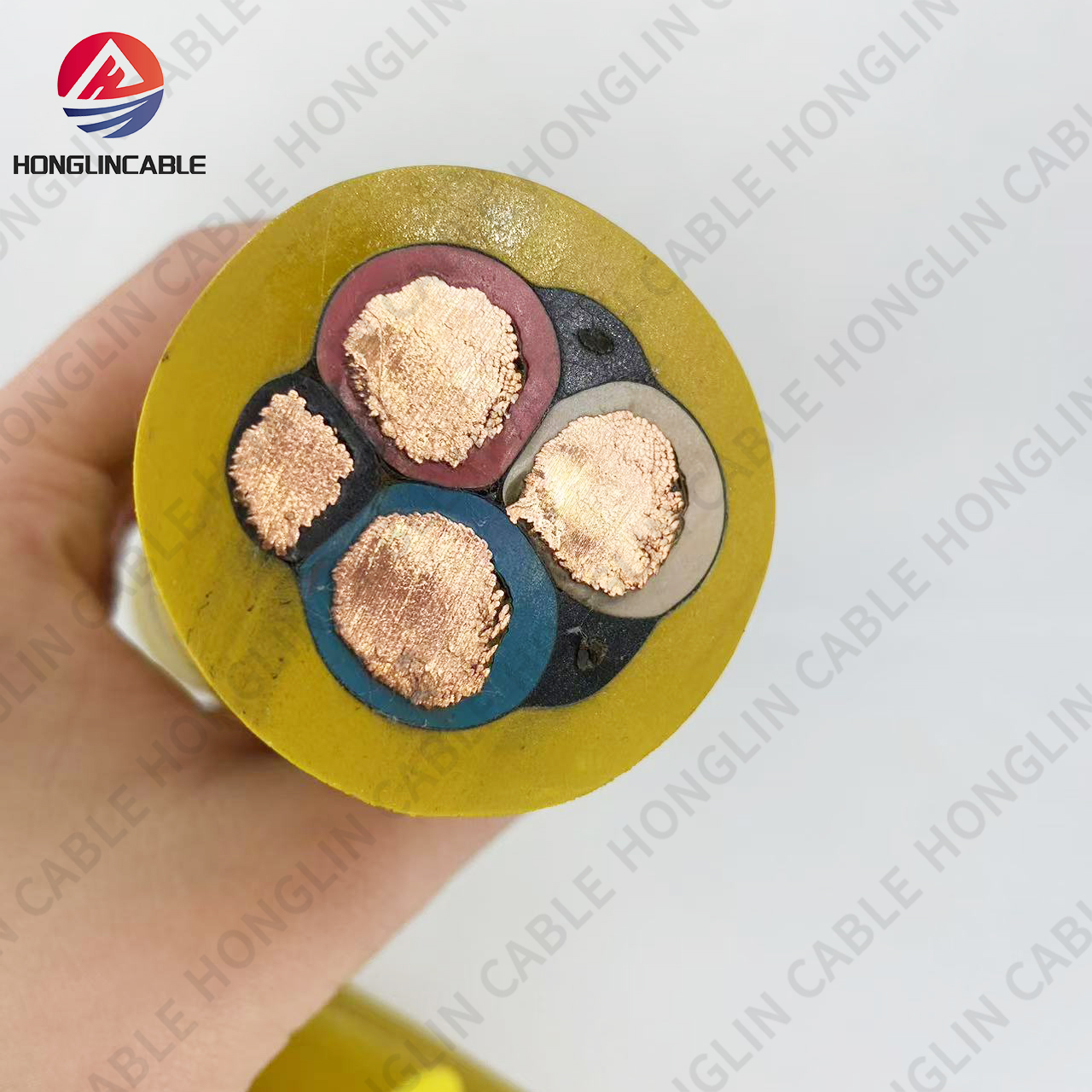

The bundle is an engineered assembly: fine-stranded conductors for flexibility, medium-voltage elastomeric insulation for dielectric safety, optional metallic screening/armor for fault and mechanical protection, and a heavy-duty jacket formulated for abrasion, oil and low water absorption.
Put simply: an MYP 3.3/6kV mining cable gives you safe medium-voltage power where mobility and ruggedness are both required.
Right voltage class for mobile medium-loads. Where low-voltage leads would generate excessive current or voltage drop, a 3.3/6kV cable moves power more efficiently with fewer terminations.
Flexibility plus protection. The MYP construction balances conductor flexibility with a robust jacket that resists mechanical abuse common in mining.
Designed for reeling and trailing. Many MYP variants are validated by spool/flex tests at recommended drum diameters — essential for portable substations, pump reels and mobile drives.
Per-reel traceability for QA. Reputable suppliers provide per-reel electrical and mechanical test certificates tied to reel lot numbers so acceptance is objective and auditable.
Lower total installed cost. Fewer splices, reliable terminations and longer mean time between replacements reduce lifecycle costs versus using multiple low-voltage solutions or underspecified cables.
When you read a datasheet for an MYP 3.3/6kV mining cable, compare these elements carefully:
Conductor
Fine-stranded copper or tinned copper (specify mm² and strand count). For medium-voltage mobile leads, stranded classes that preserve flexibility under bending and reeling are critical.
Insulation
Medium-voltage elastomers such as EPR/HEPR or equivalent cross-linked rubbers rated for 3.3/6kV system stress. Insulation thickness per core is an electrical acceptance metric — don’t accept vague phrasing.
Screening / Earth Conductor
Metallic screens (copper braid or concentric conductors) provide a fault path and help reduce induced voltages; optional armor adds mechanical protection but reduces flexibility.
Inner bedding / water-blocking
Bedding materials keep roundness and can include water-blocking tapes or gels for wet duty.
Outer jacket
Robust rubber compounds (CPE, neoprene, TPU blends) formulated for abrasion, oil resistance and low water uptake. Vendors should publish abrasion cycles, tear strength and oil-swell data.
Mechanical specs
Minimum bend radius, recommended drum diameter if reeling, tensile strength and elongation numbers.
All these fields should be spelled out numerically on a datasheet for any MYP 3.3/6kV mining cable you plan to buy.
Mobile crusher trains and portable plants — feed motor clusters on moveable crushing units with fewer voltage drops and robust flexibility.
Modular conveyors with mobile heads — head drives often require medium-voltage flexible feeders to handle higher power needs as conveyors reconfigure.
Dredges and floating plant feeders — medium-voltage flexible lines with water-resistant jackets and tinned conductors for corrosion resistance.
Mobile substations and temporary distribution — where a portable substation moves and needs flexible medium-voltage jumpers.
Medium-voltage pumps and dewatering systems — long-span pump leads where higher voltage reduces losses and cable bulk.
In each case, the MYP 3.3/6kV mining cable reduces the number of series terminations and improves distribution efficiency while keeping installation flexible.
To get comparable, verifiable offers, include these specific fields in procurement documents:
Rated voltage class: U₀/U = 3.3/6 kV (confirm notation).
Conductor size and construction: mm² with exact strand count and whether tinned; specify conductor DC resistance tolerance.
Insulation: material name, standard reference, insulation thickness per core (mm) and dielectric strength (kV/mm).
Screen/armor: type (tinned copper braid, concentric), coverage percentage and armor spec (steel tape, wire armor) if required.
Inner bedding/water-blocking: method (swellable tape, gel) and hydrostatic test data where relevant.
Outer jacket: compound (CPE / neoprene / TPU), minimum thickness and numeric mechanical properties (Taber abrasion cycles, tear strength N/mm, oil swell %).
Mechanical: minimum bend radius (×OD), recommended drum diameter for reeling, tensile strength and elongation.
Spooling/flex tests: cycles-to-failure at the specified drum diameter with test protocol.
Electrical tests per reel: insulation resistance (MΩ), dielectric (hipot) test (kV), conductor OD/Ω tests — each tied to reel lot number.
Environmental rating: temperature range, low-temp flex test, UV and ozone resistance if surface use.
Documentation: per-reel certificates, MSDS for insulation/jacket, and traceability to batch codes.
Termination kits: vendor-approved gland/boot part numbers compatible with jacket chemistry.
Vendors that return numeric test reports and per-reel certificates are the ones you can accept without guesswork.

Even the best MYP 3.3/6kV mining cable will fail early if mishandled. Enforce these practices:
Respect minimum bend radius at pulleys and terminations. Medium-voltage insulation is more sensitive to tight bends than low-voltage jackets.
Use recommended drum diameter when spooling and unspooling — small drums accelerate flex fatigue and can damage insulation layers.
Protect edges with rollers or plates; avoid dragging over sharp chutes.
Seal terminations properly with manufacturer-approved glands and fill methods — most water or corrosion failures start at poor terminations.
Avoid compressive loads and kinking during storage and transport; mark reels with safe handling instructions.
Record reel batch numbers at installation for future warranty and failure tracing.
Good handling doubles the life you get from a medium-voltage flexible cable.
Before installation, run these checks and attach them to project records:
Match reel markings to the test certificates supplied. No match — no install.
Insulation resistance measured on a sample length — the reading must exceed the vendor’s stated minimum.
Hipot test per the datasheet on a sample length or as vendor recommends for medium-voltage.
Conductor resistance spot checks against the datasheet.
Visual inspection for extrusion quality, print accuracy, and mechanical damage.
If reeling is critical, witness a short spool/flex test per the provided protocol.
Store acceptance records with serial/lot numbers for traceability.
A predictable maintenance regime keeps medium-voltage feeders reliable:
Daily visual checks of exposed runs and reels for cuts or deformations.
Weekly termination inspections for gland integrity and moisture intrusion.
Monthly insulation resistance trend logs at critical points to detect slow water ingress.
Track spooling cycles and retire reels before expected end-of-life as per vendor flex data.
Maintain spare reels of the same lot for mission-critical systems to avoid compatibility surprises.
A data-driven replacement strategy reduces emergency downtime and keeps safety margins intact.
Medium-voltage mining cables like MYP 3.3/6kV mining cable should be sourced from suppliers who publish full datasheets, per-reel testing workflows and who can support termination training. Prioritise vendors with proven QA systems and field references. Choose materials and construction that meet your site’s fire, chemical and mechanical exposure profiles, and insist on testable acceptance criteria.
U₀/U = 3.3/6 kV (confirm notation)
conductor mm² & strand count (explicit) and tinning requirement
insulation material & thickness + dielectric rating
screen/armor type & coverage % (if required)
jacket compound & min thickness + abrasion/tear/test numbers
minimum bend radius & recommended drum diameter
flex/spooling cycles @ specified drum diameter (protocol & result)
per-reel certificates: insulation resistance, hipot, DC resistance, mechanical tests
water/hydrostatic test data if wet duty expected
termination/gland kit part numbers & installation procedure
lead time, MOQ, warranty terms tied to measurable acceptance tests
An MYP 3.3/6kV mining cable turns medium-voltage mobility into an operational advantage only when you select the right construction and insist on numeric evidence. Specify the conductor, insulation, screening and jacket you need; demand per-reel test certificates; install with discipline; and maintain with simple inspection regimes. Do that and your mobile medium-voltage distribution will be safer, more reliable and less costly over the long run.
