Oct. 14, 2025
When underground operations demand reliable, long-term power distribution, cable selection is not an afterthought — it’s a foundational decision. The MVV22 Cable family is designed precisely for those conditions: PVC-insulated cores, a robust PVC sheath, and steel-tape armour combine to create a product that resists mechanical damage, performs in humid or dusty settings, and meets typical mining and tunnel installation requirements.

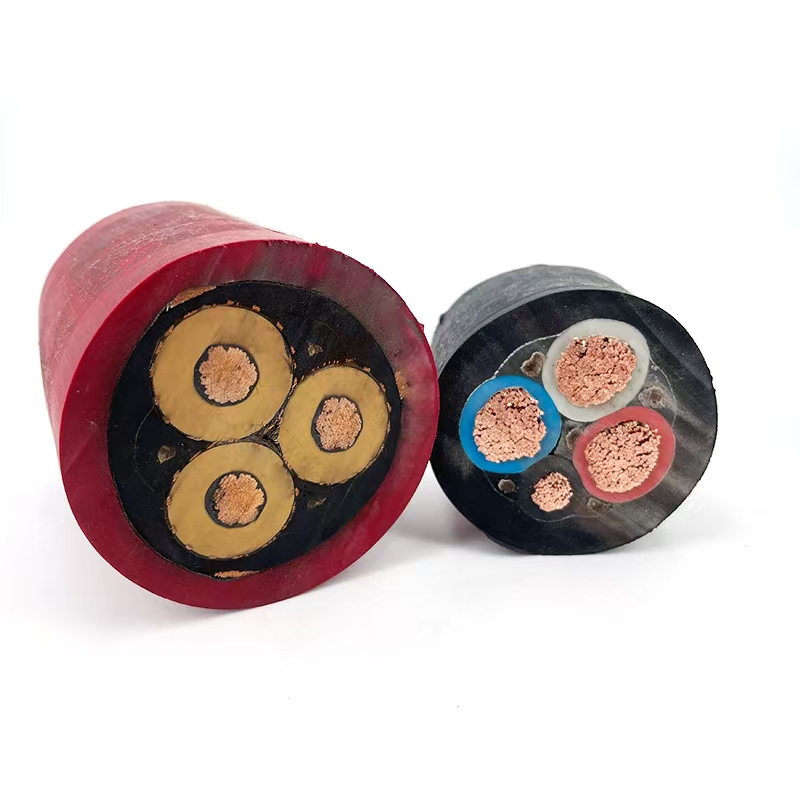

At a glance, the MVV22 Cable is a PVC insulated, PVC sheathed power cable that includes steel tape armour for mechanical protection. It’s most commonly specified for low-voltage distribution in mining and underground routes up to the 0.6/1 kV class. That combination of materials gives project teams a predictable baseline for electrical performance, mechanical resilience, and on-site handling. als-cable-instrument
Tunnels, shafts and mining drifts expose cables to crushing loads, abrasion from shifting rock or machinery, and contamination by oils and greases. The steel tape armour in an MVV22 Cable provides radial crush resistance during installation and service — a simple mechanical insurance policy against many common failure modes. The PVC sheath, formulated for oil and abrasion resistance and often with flame-retardant properties, protects insulation and conductors from the site environment.
Most MVV series cables use fine-stranded copper conductors that balance flexibility with conductivity. PVC insulation is a proven choice for many mining applications due to its dielectric strength and mechanical toughness at the typical operating temperatures encountered underground. For long runs, matching conductor cross-section to expected load and voltage-drop allowances is essential to minimize heater losses and preserve motor performance.
Fixed distribution feeders to substations, motor control centers and lighting circuits inside tunnels and underground facilities.
Powering fixed plant such as conveyors, pumps and fans where mechanical risks exist.
Ducted or direct burial runs where steel tape armour adds measurable protection during both installation and operation.
Temporary works where robust armoured cable reduces the need for frequent replacement during construction. hiseacable.com
When procuring an MVV22 Cable, demand clear numeric ratings on the datasheet: rated voltage (often 0.6/1 kV), continuous conductor temperature (commonly 70°C for PVC types), and the factory test voltages used during manufacture. Also confirm the manufacturing standard the supplier follows (e.g., local mining standards or MT818 equivalents) and ask for mill certificates and batch traceability to ensure acceptance at site. fy-powercable.en.made-in-china.com+1
Many tunnel and mine projects require flame-retardant cable behaviour. MVV variants are often supplied with flame-retardant PVC formulations; verify the supplier’s test reports and any applicable classifications. For circuits that must maintain operation under fire conditions (life-safety circuits), a dedicated circuit-integrity solution may be required in addition to flame retardance.
Even armoured cable benefits from good installation practice. Respect the manufacturer’s minimum bend radius, avoid sharp edges in trays and ducts, protect runs where vehicle crossings occur, and terminate armour properly using approved glands to preserve earthing continuity and mechanical strength. These practices preserve the delivered performance of the MVV22 Cable and avoid accidental damage that would undermine warranty coverage.
In underground projects, access to cable runs can be constrained — this makes lifecycle planning essential. Establish a maintenance regime that includes periodic visual inspections, infrared termography at terminations to detect hot spots, and insulation resistance trend checks on critical feeders. Document reel and batch numbers during installation so any potential manufacturing issue can be rapidly isolated.
MVV22 provides an excellent balance for many underground distribution needs, but there are scenarios where other constructions may be preferable:
Use thicker wire armour or full corrugated steel armour where long pulls or high tensile strength are required.
Choose low-smoke zero-halogen (LSZH) sheaths in enclosed public tunnels or passenger areas to reduce smoke toxicity.
Specify fire-resistant circuit-integrity cables for emergency lighting and essential control circuits that must remain alive during a fire.
Matching the right cable to the circuit’s function avoids over-specifying and inflating cost, while ensuring critical circuits have the protection they require.
To get a comparable and compliant quotation for an MVV22 Cable, include the following in your RFQ:
Exact conductor cross-section (mm²) and core count.
Rated voltage class and continuous conductor temperature.
Armour type and thickness, and any corrosion protection requirements.
Sheath composition including flame retardant or LSZH options if needed.
Required test certificates — high-pot, conductor resistance, insulation resistance and mill test certificates.
Sample reel provision and batch traceability for acceptance testing on arrival.
Insisting on these details removes ambiguity from bids and reduces the chance of unfit product arriving on site.
On many projects, the marginal cost of an appropriately armoured MVV22 Cable is quickly offset by reduced field failures, lower maintenance labour, and fewer unplanned outages. In constrained underground environments the cost of a single emergency repair — plus any resulting production losses — can easily exceed the incremental cost of specifying the right cable from the start.
A reputable supplier for MVV series cables provides clear datasheets, transparent test certificates, and technical support for installation and termination. They should be able to advise on conductor sizing, armour options, and sheath chemistry for specific site constraints, and provide sample reels or witnessed tests for mission-critical runs.
Selecting the right MVV22 Cable means matching electrical loads, environmental exposure and mechanical risk to the cable construction. Use numeric requirements in your specification, demand test evidence at delivery, and adopt disciplined installation and maintenance practices. When these steps are followed, the result is a reliable underground distribution network that minimizes downtime and protects both personnel and equipment.
