Choosing the right multi conductor control cable is a small decision with outsized consequences. Get it right and your system runs quietly for years; get it wrong and you spend weeks troubleshooting intermittent faults, replacing runs under walls, or chasing false alarms at 2 a.m. This guide is written for procurement managers, integrators and site engineers who need clear, usable guidance: what specs actually matter, how to compare offers, and which on-site practices preserve the value of your purchase.

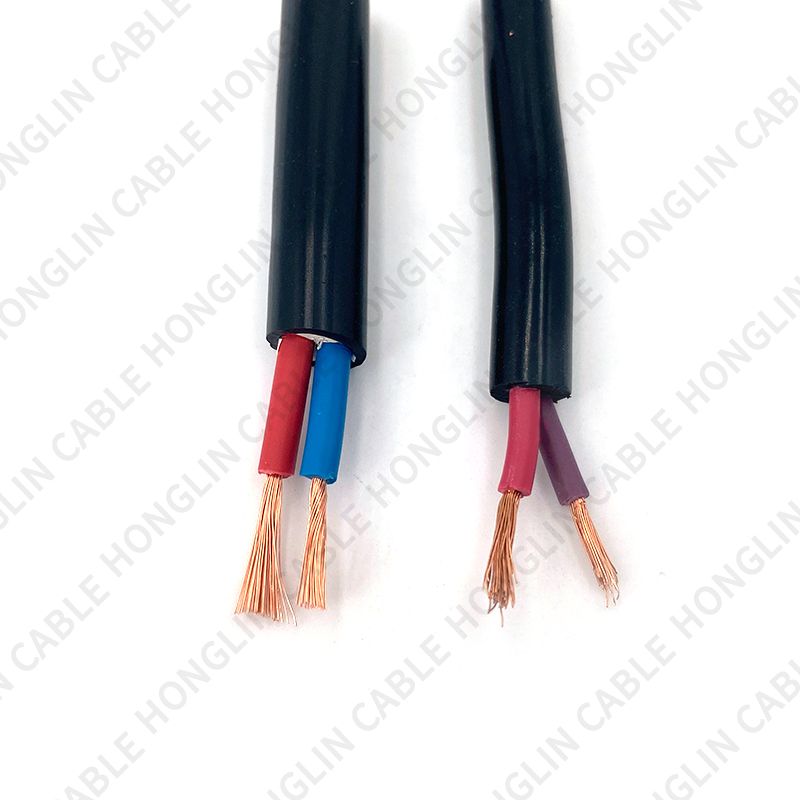

A multi conductor control cable combines multiple insulated conductors within a single jacketed assembly. Some versions are simple—several unshielded power or signal conductors bundled together—while others are complex: multiple twisted pairs, coax or power cores, individual pair shields, overall braid or foil shields, fillers for geometry control, and jackets rated for UV, oil, flame or low smoke. The phrase covers everything from panel-internal multicore to 600 V tray-rated control and instrumentation cable; always confirm the specific construction when you buy.
When comparing candidate parts for a multi conductor control cable, the conductor build (strand count, filament diameter, copper quality) tells you more about long-term behaviour than the headline gauge. Fine-strand, flex-rated conductors spread bending stress across many filaments and survive millions of flex cycles; coarse strands save cost but fracture sooner under reel-and-unreel duty. For fixed panel wiring coarse stranded or standard stranded copper may be fine. If you expect movement—drag chains, portable rigs, or repeated removal—insist on a flex-rated conductor spec.
Electrical noise is ubiquitous around machines. If your multi conductor control cable runs near VFDs, high-current feeders or welding equipment, add shielding. A foil shield is thin and effective at high frequencies; a braided shield provides mechanical robustness and better low-frequency rejection; combined foil+braid gives the best of both. Remember: shielding only helps when terminated correctly. Define the shield strategy for each run (single-ended vs double-ended) and document how the drain/ground will be connected at the controller end to avoid ground loops.
The outer jacket is the first thing that fails in many installations. PVC is common for indoor, dry use; LSZH or low-smoke jackets are essential in egress or occupied spaces; PE, TPU or specially compounded elastomers work for oil, chemical or outdoor exposures. For a multi conductor control cable expected to sit on a factory floor, investment in oil- and abrasion-resistant jacketing pays off quickly. Factor in temperature ratings as well—some processes require continual 90 °C rating or higher.
Even control circuits can fail due to voltage drop. When a multi conductor control cable carries power feeds for sensors, actuators or small motors, compute round-trip voltage drop using the vendor’s DC resistance at 20 °C. For long runs, increase conductor size for power cores or use local supply/regulation at the remote cell. For signal pairs, impedance and attenuation matter for long runs or high-speed serial links—ask for characteristic impedance data where relevant.
Most cable problems show up at the termination. A correctly specified multi conductor control cable only delivers while joints are clean and mechanically sound. Use ferrules on stranded conductors, torqued screw terminals, and when shielding is present, terminate shields with proper continuity and bonding hardware. Commission with insulation resistance and continuity tests, and perform a thermal check on power terminations under load to detect hot spots early.
If your design moves, demand a flex-rated multi conductor control cable and test it in representative conditions. For cable carriers and robotic cells, look for manufacturer flex-cycle ratings (millions of cycles where provided) and prefer live-flex constructions with elastomeric insulation. Store reels correctly: avoid kinking, use mandrels for long pulls, and don’t pull past the manufacturer’s recommended maximum tension. Small on-site habits make a big difference to lifespan.
Pre-terminated assemblies save labour and guarantee factory-tested joints, but they cost more per metre and may constrain final routing. Field termination gives you flexibility and lower unit cost but requires trained technicians and calibrated tooling. For mission-critical runs of multi conductor control cable, factory termination plus warranty is often the safe bet; for bulk panel wiring, buying spool and terminating on site is usually more economical.
To avoid ambiguous offers, include these fields in every RFQ for a multi conductor control cable:
exact conductor list (number, AWG/mm², strand count),
conductor material and purity (OFC vs standard),
shield type(s) and drain wire details,
insulation material and thickness for each conductor,
jacket compound, outer diameter and UV/oil/chemical ratings,
voltage and temperature ratings, approvals (UL, CSA, VDE, IEC),
minimum bend radius and recommended pulling tension, and
packaging (cut lengths, coils, spool), sample policy and lead time.
Require datasheets and lab test certificates for load-bearing orders. Vendors who supply these numbers make selection straightforward.
Cables sell by the metre, in convenience coils, and on full spools. The per-metre price falls as quantity increases; for fleet outfitting buy spools. Pre-assembled harnesses are priced to include labour. When evaluating a multi conductor control cable quote, normalize cost to the same construction and include estimated termination and installation labour to get the true installed price.
Match cable construction to duty:
Panel wiring and short sensor runs: unshielded multi-core with PVC or PE jacket.
Long runs near power: shielded multi-pair with foil+braid and dedicated drain.
Drag chains and robotics: flex-rated multi conductor control cable with elastomeric insulation.
Harsh chemical or high-temp environments: high-temperature chem-resistant insulations and jackets.
Selecting the right baseline reduces surprises during commissioning.
Protect your multi conductor control cable investments by following simple on-site rules: respect bend radius, protect pass-throughs with grommets, separate power and sensitive signal bundles, use cable trays or conduits where possible, and label both ends with part and reel numbers for traceability. Documenting installation practices pays off during maintenance and audits.
When things go wrong, the usual culprits are damaged jackets, broken strands at crimps, incorrectly terminated shields, and water ingress. Use a bench of quick diagnostic checks—continuity, insulation resistance, and thermal scans under load—to isolate faults. Keeping sample reels of the exact multi conductor control cable used on site speeds repairs and avoids accidental cross-replacement.
Consider small upgrades that are cheap today and valuable tomorrow: extra spare pairs for future sensors, tinned conductors for humid or marine installations, numbered conductors or printed jackets for faster troubleshooting, and slightly higher temperature ratings if you anticipate process changes. These choices improve lifecycle value without large upfront cost.
Treat the purchase of any multi conductor control cable as an engineering decision. Define your duty profile, insist on strand and shield numbers, pick jacket chemistry to match exposure, require datasheets and sample reels for mission-critical buys, and plan termination and testing into project timelines. Do this once and the cable you choose will be a quiet, durable conduit for your control logic—not a recurring source of calls and overtime.
