Feb. 25, 2026
When a pump fails underground or at a remote dewatering station, the cost is more than lost production: flooded faces, stalled conveyors and safety hazards follow. The cable that feeds remote and submersible pumps is a critical, high-stress component. A correctly specified mining pump cable will tolerate immersion, abrasion, oil and chemical exposure, repeated flexing on reels, and the knocks and impacts that come with busy operations. Choose the wrong cable and you’ll be repairing terminations, splicing under miserable conditions and chasing downtime.
This guide is written for procurement engineers, maintenance supervisors and pump installers. It explains why a mining pump cable is different from a generic power lead, which construction choices matter for submersible, trailing and fixed pump installations, what measurable tests and documentation to demand, and practical installation and maintenance tips that preserve service life.
Pump power cables face a combination of stresses most other circuits do not:
Water and immersion — continuous submersion, splash and hydrostatic pressure;
Abrasion and cut risk — rock edges, metal guides and abrasive debris;
Oil, chemical and mud exposure — hydraulic leaks, slurry and cleaning chemicals;
Flexing and spooling — repeated reeling onto drums for portable pumps;
Impact and crushing — forks, buckets, tools or falling lumps;
Thermal extremes and UV — hot motors, sun exposure on surface runs.
A mining pump cable must be engineered to resist these combined threats, not just one of them.

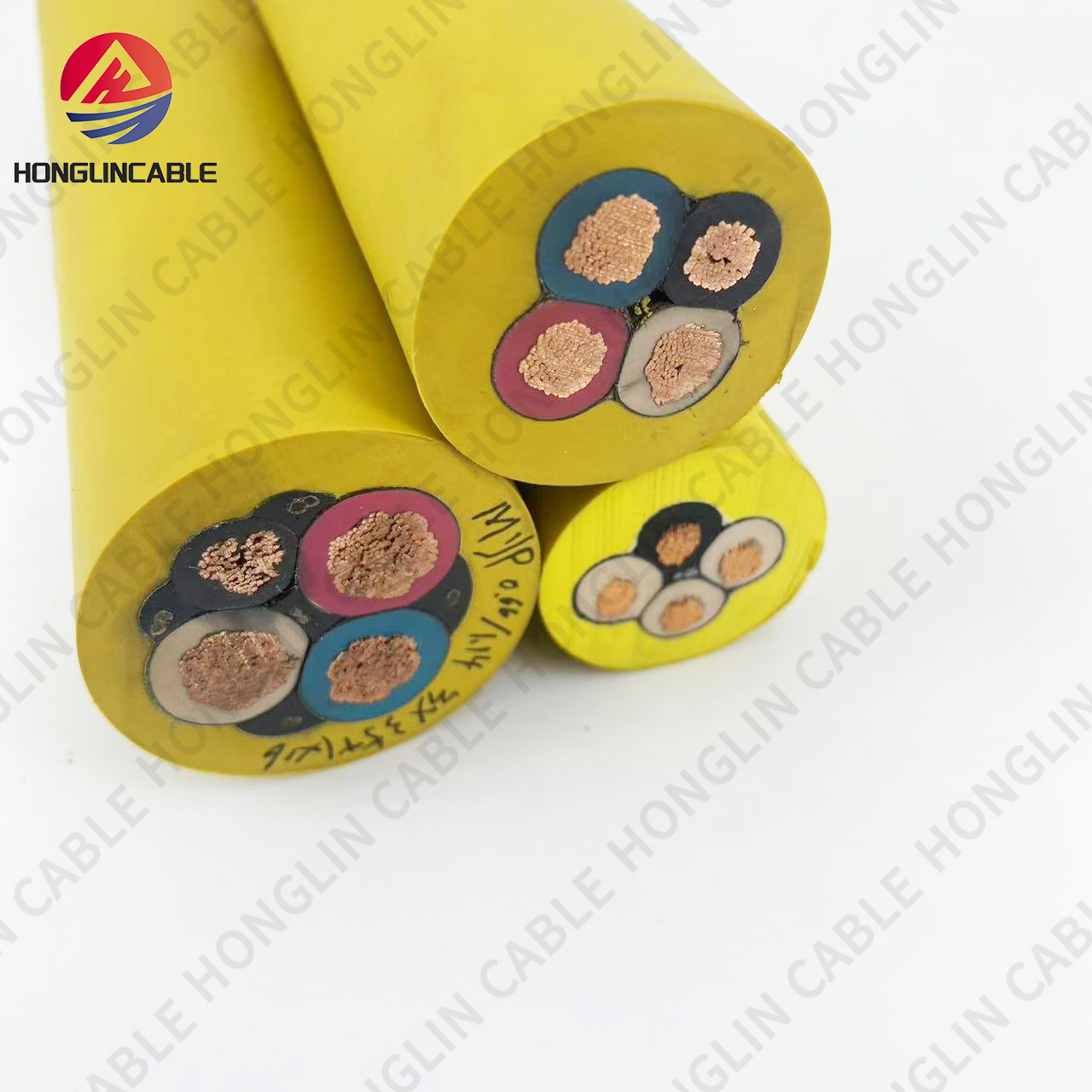

A durable mining pump cable is an engineered assembly where each layer solves a real problem:
1. Flexible conductor
High strand-count copper conductors reduce fatigue under repeated bending and flex cycles. For corrosive environments, tinned conductors extend life by resisting oxidation.
2. Insulation
Elastomeric insulations (EPR, EPDM or specially formulated heat- and chemical-tolerant rubbers) keep dielectric strength and flexibility under mechanical stress and when wet.
3. Water-blocking features
For submersible pump leads, water-blocking tapes, swellable fillers or sealed cores prevent water migration along the conductor path and keep the insulation dry even when the jacket is breached.
4. Bedding and fillers
Dense inner bedding spreads local impacts and maintains roundness for predictable spooling behaviour.
5. Outer jacket
The jacket compound is the visible defense: chlorinated polyethylene (CPE), neoprene blends or polyurethane (PU) variants are common. For submerged, abrasive or chemical-exposed routes, choose compounds proven for low water absorption, hydrolytic stability and oil/chemical resistance.
6. Optional metallic screen or armor
Where grounding, screening or mechanical protection is required, include a tinned braid or shallow armor — but specify it carefully since armor affects flexibility.
When these layers are selected and tested together, the result is a mining pump cable that stands up to real field conditions.
Submersible pump cable (wet-rated, water-blocked)
Used for borehole and submersible dewatering pumps. Requires water-blocking elements, tinned conductors for corrosion resistance, and a jacket chemistry that resists hydrolysis and chemical contaminants. These cables often have specific hydrostatic pressure ratings and must include per-reel water-ingress tests.
Trailing pump cable (portable / reeling)
Portable pumps moved across the site or reeled on drums need flexible, abrasion-tolerant jackets and high strand conductors. If reeling is frequent, insist on spooling/flex cycle tests at your actual drum diameter. For wet floors or muddy drifts, water-resistant jackets and sealed terminations are essential.
Fixed-run pump cable (stationary, exposed)
Stationary runs to set pumps demand UV, oil and abrasion resistance and strong termination sealing. If runs are exposed to mechanical contact, consider reinforced jackets or local armor.
High-temperature pump cable
In some process areas pumps run near hot equipment. Use heat-tolerant insulations and jackets, and follow thermal derating guidance in ampacity tables.
Match the cable family to the specific pump duty — a universal “one-size” cable usually underperforms.
Make vendor responses comparable by asking for numeric results:
Voltage rating and conductor size (mm²) with ampacity tables;
Conductor strand count and whether conductors are tinned;
Insulation type and thickness (dielectric properties);
Minimum bend radius (multiple of OD) and recommended drum diameter for reeling;
Water ingress / hydrostatic test results (immersion test duration, pressure, leakage rates) for submersible cables;
Water-blocking method (swellable tape, gel, sealed cores) and performance data;
Abrasion resistance (Taber or similar numeric result), tear strength, puncture resistance;
Chemical/oil resistance tests for your site fluids (hydraulic oil, diesel, cleaning detergents, slurry components);
Spooling/flex cycle tests showing cycles to failure at the specified drum diameter;
Temperature ratings including cold-flex tests if used in low temperatures;
Per-reel test certificates (insulation resistance, hipot, DC resistance, mechanical tests) tied to reel lot numbers.
Require certificates and test methods with each quote. If a vendor cannot produce numbers, treat the claim as marketing, not specification.
Even the best mining pump cable fails if terminations are poor. Ensure:
Use gland kits rated for immersion and the jacket compound; IP68-rated terminations are common for submersible leads.
Match sealing materials to jacket chemistry — incompatible sealants can degrade the jacket and void water resistance.
Use shrink boots, potting resins or mechanical seals as required by application and allow for inspection access if frequent reconnections are expected.
Document termination procedures and torque values so crews can install consistently.
A cable’s water-blocking and waterproof ratings mean nothing if the termination leaks.
Follow these field rules to protect your investment:
Respect minimum bend radius — tighter bends reduce flex life on reels and at terminations.
Use proper reels and controlled tension during reeling/unreeling to avoid kinks and strand damage.
Protect runs from sharp edges with rollers or guide plates. Where abrasion is concentrated, use sacrificial sleeves.
Avoid dragging cable across abrasive surfaces when possible; lift and route when moving pumps.
Park pumps and reels in shelter or cover reels to prevent sun/UV damage on surface operations.
Label reels with lot numbers and test certificates at the point of installation.
Good installation practice is often more decisive than small differences in compound chemistry.
A short inspection regime prevents surprises:
Daily visual checks on portable pump leads for cuts, gouges and exposed conductors.
Insulation resistance tests at scheduled intervals to detect moisture ingress.
Splice and termination checks for seal integrity and corrosion.
Spooling records for portable pumps — track cycles and retire reels before failures occur.
Log failure data by reel lot number so systemic manufacturing issues can be identified and corrected.
Predictable maintenance reduces emergency repairs and keeps pumps operational when they are needed most.
In wet environments, electrical safety is paramount. Use RCD/ground fault protection appropriate to pump motor sizes, ensure earthing and bonding follow local electrical codes, and use cables with documented insulation resistance values that meet your site acceptance criteria. For explosive atmospheres (e.g., certain chemical plants), select cables and terminations certified for the environment.
A high-quality mining pump cable may cost more per metre, but the total cost of ownership favours quality: fewer failures, less emergency downtime, fewer splices (which are weak points), and lower labour costs for reactive repairs. For critical dewatering or process pumps, reliability is worth the premium.
voltage rating and conductor mm² with ampacity table
conductor strand count and tinned/untinned status
insulation & jacket compound names and datasheets
water-blocking method and immersion/hydrostatic test results
minimum bend radius and recommended drum diameter for reeling
abrasion, tear and puncture test numbers
chemical and oil resistance tests for site fluids
spooling/flex cycle test results at specified drum diameters
per-reel test certificates and reel lot marking requirement
termination/gland kit recommendations and IP rating
lead time, MOQ, spare reel policy, warranty terms
Paste that checklist into vendor RFQs and technical bids so offers are directly comparable.
A mining pump cable is not a routine consumable — it’s a reliability decision that affects safety, production and maintenance costs. Specify measurable performance criteria, insist on per-reel test documentation, use the right terminations and install with care. Do that, and your pumps will keep water out of the working face and your crews focused on productive tasks, not emergency repairs
