Jan. 12, 2026

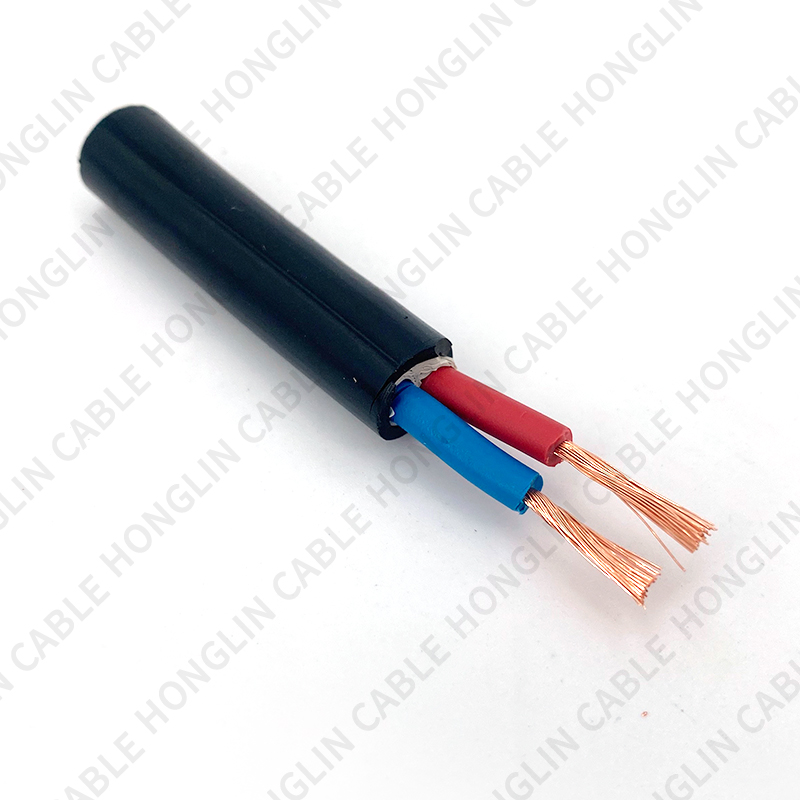

Choosing the correct lighting control cable is one of those invisible engineering decisions that either keeps your lights behaving perfectly or turns commissioning into a parade of intermittent faults. Whether you’re wiring an auditorium, a hotel, a corporate office, a retail façade or a touring rig, the cable you specify affects signal integrity, installation time and long-term maintainability. This guide explains the real technical tradeoffs, the purchase checklist you should use, and the installation rules that protect your investment.
In practice, “lighting control cable” covers two overlapping families:
Stage/entertainment cables (DMX/XLR): built for low-latency serial links between consoles and fixtures, usually using 3-pin or 5-pin XLR termination or ruggedized Neutrik assemblies. These cables favor low-capacitance pairs and heavy shielding to survive noisy touring environments.
Architectural/building control cables (Lutron, DALI, 0–10V, proprietary room control): composite cables that combine power, dedicated data pairs and sometimes a shield/drain, often sold specifically for a control vendor’s system and rated for plenum, tray or in-wall use.
Pick the family that matches the system. Mixing expectations (for example: using a thin patch cable designed for temporary stage use inside a permanent plenum-ceiling run) creates problems later.
Not all control signals are equal. DMX512 is an asynchronous, unidirectional serial protocol that benefits from balanced twisted pairs and robust shielding; its electrical characteristics favor low-capacitance, low-loss cable over very long runs. Conversely, some building control buses use low-voltage power combined with data (e.g., two power conductors + data pair), where conductor gauge for the power legs matters to avoid voltage drop.
When specifying a lighting control cable for a panel-to-fixture power+data run, check the vendor’s datasheet for recommended conductor sizes and maximum run lengths. If the run carries power for luminaire drivers, upsizing the power cores reduces voltage drop and keeps dimming performance consistent.
Electromagnetic noise is everywhere on active sites. Choosing the right screening depends on the dominant noise and mechanical needs:
Foil shield: excellent for high-frequency interference, very conformable, low profile — common in data-style control pairs.
Braid/tinned-copper shield: more mechanically robust and better at low-frequency rejection; common where cables may be handled or mechanically stressed.
Foil + braid: the pragmatic hybrid used in runs that cross both VFDs/large motors and higher-frequency sources, and where mechanical robustness is useful.
A well-terminated screen makes a huge difference. Terminate the shield with a proper drain conductor to chassis/earth per the controller manufacturer’s guidance — floating shields or two-ended bondings are frequent causes of trouble. A correctly selected and terminated lighting control cable prevents nuisance triggers and data errors.
Many projects require specific fire and smoke performance or placement in air-handling spaces. When specifying a lighting control cable, confirm the jacket chemistry and the approvals you need: CMP/CMP (plenum), CMR (riser), FT6, or CPR classes for Europe. If the run is inside a plenum or return-air pathway, LSZH or CMP-rated constructions are typically required. For exterior or exposed installations choose UV-stable and oil/chemical resistant compounds.
Skipping this will either fail inspection or force expensive rework later. Always ask vendors for the exact part number and the published approval list in the datasheet.
Using Cat5/6 for DMX and LED control is common, especially when integrating networked lighting controllers or distributing DMX-over-Ethernet. Advantages include easier termination and abundant infrastructure. But note:
Cat5/6 may not be as mechanically rugged for road-case use as purpose-made DMX cable.
There are distance and topology considerations (some DMX-over-IP deployments push data over switches and multiple hops — plan carefully).
For portable or high-traffic applications, choose shielded Cat5/6 or dedicated DMX-rated twisted pairs and rugged connectors.
If you plan to use Cat5/6 as your lighting control cable, treat it as a functional substitution — check the control system’s guidance and consider shielded variants for noisy environments.
Many lighting control vendors publish dedicated control cables (for example, composite Lutron cables that mix power and data in one sheath). These parts exist because the vendor defines the electrical characteristics (voltage classes, pair impedance, recommended terminations). Using a vendor-approved lighting control cable simplifies warranty and reduces the risk of installation-related issues. If your project uses a vendor-specific system, strongly prefer the vendor’s cable families or a guaranteed equivalent.
A few practical rules protect the cable and the system:
Respect minimum bend radius — pulling through small bends can crush internal geometry and ruin impedance.
Avoid bundling control runs tightly with power feeders; cross at right angles or provide physical separation.
Use proper strain relief at terminations to prevent conductor fatigue and shield displacement.
Protect cable entries with grommets where metal edges exist.
Installers who follow these rules find that the selected lighting control cable behaves predictably for years.
The termination is where most field failures appear. For good results:
Use ferrules on stranded cores to prevent strand splay.
Crimp and torque power terminations to the device maker’s spec.
For shielded runs, make a single-point bond to earth and use the drain conductor specified by the cable maker.
Label both ends with circuit and run IDs for troubleshooting.
A disciplined termination process turns a good lighting control cable into a long-lived, low-maintenance run.
Buy spools for long, continuous runs to reduce per-metre cost; buy convenience coils for shorter runs or retrofit work; specify factory pre-terminated assemblies when labour cost or termination reliability is a concern. For critical installations, request sample reels and perform a short bench test (continuity, insulation resistance, shield continuity) before bulk acceptance.
Choosing the right procurement format ensures the installed lighting control cable meets both technical and logistical needs.
When you ask suppliers for quotes, include these mandatory fields so you get comparable offers:
exact conductor list (number of cores, AWG/mm²),
shield type and braid coverage (if any), drain conductor spec,
insulation and jacket compound and temperature rating,
voltage and approvals (CL3, CMR, CMP, FT6, CPR),
minimum bend radius and flex rating (if motion expected), and
packaging format and sample policy.
Vendors that return complete datasheets reduce procurement risk and accelerate approvals.
Consider ordering cables with printed sequential footage markings, numbered conductors, or a few spare pairs for future expansion. Tinned braid is helpful in humid or marine environments. These modest spec upgrades make maintenance and future changes faster and cheaper.
Treat the lighting control cable decision like an engineering milestone: define the system (DMX vs bus vs power+data), pick cable family and jacket chemistry to suit the environment, require datasheets and sample reels for mission-critical runs, and document termination and routing rules for the installation team. Do that once and your lighting system will be a quiet, dependable part of the building or stage — not a recurring source of commissioning headaches.
