In demanding heavy industries—such as port logistics, mining operations, construction sites, and heavy manufacturing—electrical cabling must withstand constant dynamic bending, mechanical abrasion, extreme temperatures, and exposure to oil or corrosive fluids. For procurement teams and electrical engineers sourcing flexible power transmission lines, H07RN-F 7*95mm² heavy-duty rubber cables represent the gold standard for high-power distribution under severe environmental stress.
This guide explores the engineering advantages, structural specifications, and international/JB/T compliance standards of H07RN-F 7*95mm² flexible cables to help you make informed procurement decisions.
| Parameter / Feature | Engineering Specification |
| Cable Type | H07RN-F Heavy-Duty Rubber Cable |
| Core Configuration | 7 Cores × 95mm² Nominal Cross-Section |
| Rated Voltage | 450/750V (Mobile) / 0.6/1kV (Fixed Protected Installation) |
| Conductor Material | High-Purity Class 5 Flexible Stranded Oxygen-Free Copper Wire |
| Insulation Material | Ethylene Propylene Rubber (EPR) |
| Sheath / Outer Jacket | Chloroprene Rubber (CR) or Equivalent Heavy-Duty Synthetic Rubber |
| Compliance Standards | EN 50525-2-21, IEC 60245, & JB/T 8735 (National Standard Alignment) |
| Operating Temperature | -25°C to +60°C (Dynamic) / Up to +90°C Conductor Max Temp |

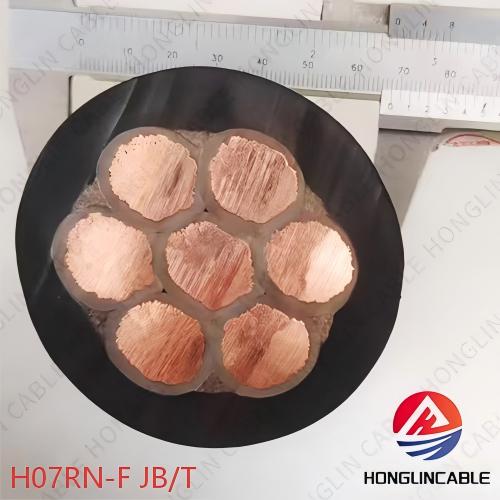

The 7*95mm² configuration is designed for high-power distribution systems requiring multi-channel power and signal control integrated into a single cable assembly. Utilizing Class 5 fine copper strand conductors, the cable offers outstanding flexibility despite its heavy cross-section, allowing for easier routing, coiling, and dynamic movement.
Mechanical Strength: The heavy chloroprene outer sheath provides superior resistance to mechanical tearing, dragging, compression, and impact in harsh industrial environments.
Chemical & Oil Resistance: Fully resistant to industrial oils, lubricants, acids, and atmospheric moisture, preventing rubber swell or surface cracking over prolonged exposure.
Weathering & UV Stability: Built to withstand direct sunlight, ozone exposure, and extreme cold without losing mechanical integrity.
While H07RN-F is a European Harmonized (HAR) designation standardizing voltage rating ($07 = 450/750\text{V}$), insulation ($R = \text{EPR}$), sheath ($N = \text{Chloroprene}$), and conductor flexibility ($F = \text{Class 5}$), global projects operating in Asia often require compliance with China's mechanical industry standards (JB/T, specifically JB/T 8735 for rubber insulated cables).
Dual-compliant H07RN-F JB/T cables provide distinct operational guarantees:
Strict Dielectric Integrity: Every batch undergoes high-voltage immersion testing to ensure zero current leakage under wet or submerged conditions.
Enhanced Flame Retardance: Compliant with IEC 60332-1 / GB/T 18380 flame-propagation tests to ensure self-extinguishing safety in high-density industrial runs.
Tensile & Bend Endurance: Engineered to pass rigorous dynamic flexing tests, ensuring long service life on cable reels, festoons, and mobile cranes.
Mining & Heavy Machinery: Powering mobile excavators, conveyors, and underground equipment subject to severe abrasion.
Port Facilities & Gantry Cranes: Ideal for festoon systems, container cranes, and dockside power supply lines where continuous flexing is required.
Construction & Temporary Utilities: Supplying stable power to high-capacity diesel generators, crane operations, and temporary distribution boxes.
Stage Lighting & Marine Engineering: Reliable power transmission for outdoor events, shipyards, and offshore support machinery.
Choosing quality-certified H07RN-F 7*95mm² (JB/T compliant) cables minimizes unexpected system downtime, lowers total operating costs (TCO), and ensures full compliance across international engineering audits.
