When a site needs durable, flexible power — and downtime is not an option — specifying the right cable makes all the difference. The 6mm2 4 core ho7rnf rubber flexible cable delivers a practical blend of electrical capacity, mechanical resilience and weather/oil resistance that installers and maintenance teams trust time after time.

In harsh environments you need a cable that moves with the equipment, resists oils and abrasion, and keeps circuits safe during repeated handling. The 6mm2 4 core ho7rnf rubber flexible cable is built for that reality: flexible conductors for reeling and routing, rubber insulation and sheath for mechanical protection, and clear electrical ratings for safe power distribution. For projects requiring portable power distribution or tough fixed runs in industrial areas, this cable reduces failures and simplifies on-site logistics.

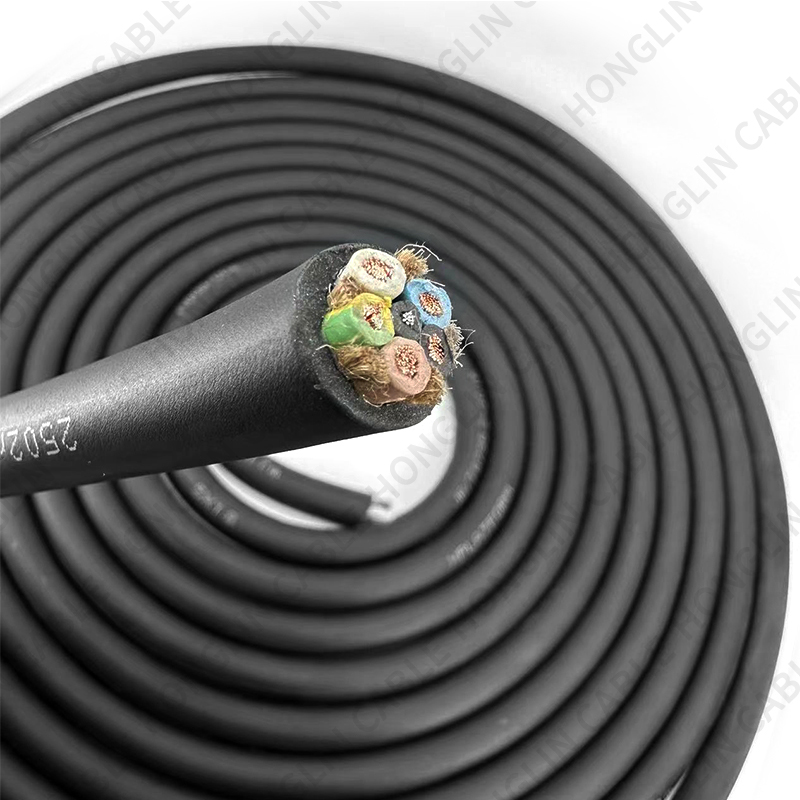

A typical 6mm2 4 core ho7rnf rubber flexible cable contains:
Flexible stranded copper conductors (class 5) sized at 6 mm² to carry typical motor and feeder currents without excessive voltage drop.
Rubber insulation (EPR or equivalent) that maintains dielectric strength under flexing and temperature fluctuation.
Bedding/fillers to stabilise core geometry and protect conductors from compression.
Robust rubber outer sheath formulated for oil, abrasion and weather resistance.
Multiple cores (4 core) for 3-phase plus protective/neutral conductor arrangements in mobile or fixed installations.
That layered construction is why electricians choose the 6mm2 4 core ho7rnf rubber flexible cable for both temporary site power and permanently routed runs that may be exposed.
When sizing and specifying, engineers want the numbers. The 6mm2 4 core ho7rnf rubber flexible cable is commonly offered with the following practical attributes (check vendor datasheets for exact values):
Voltage rating: 450/750 V for standard low-voltage distribution.
Conductor class: class-5 flexible copper to meet bending and dynamic requirements.
Temperature range: flexible use down to around −15°C to −25°C depending on sheath; fixed installations often have higher short-term endurance.
Current capacity: vendor tables show permissible currents for the 6 mm² size — use these plus voltage-drop calculations for long runs or high starting currents.
These ratings make the 6mm2 4 core ho7rnf rubber flexible cable a practical choice for feeders to motors, transformers, portable switchgear and other distribution tasks.
This cable is a go-to on many sites:
Temporary power distribution at construction sites and events — the cable reels easily and stands up to repeated handling.
Connections to portable machinery and pumps — oil and moisture resistance protects service life.
Harbour, port and dockside equipment — weather and salt exposure demand rugged sheathing.
Drainage and water treatment plants — where wet conditions and abrasion are common.
Stage and events where repeated roll-out and storage cycles occur.
In all of these roles the 6mm2 4 core ho7rnf rubber flexible cable balances flexibility with power capacity.
Look for these features when evaluating options:
Sheath compound (EPR, PCP/neoprene) — affects oil/chemical and abrasion resistance.
Bend radius and flex class — ensures the cable can be pulled or reeled without damage.
Outer diameter and weight — important for reel capacity and handling equipment.
Cut-through and abrasion test results if available — these predict field durability.
Specifying these items ensures the cable you order behaves as expected once it’s on site.
To get the longest life and best performance from your 6mm2 4 core ho7rnf rubber flexible cable, follow these practical rules:
Respect bend radii — don’t force tight bends around small pulleys or corners.
Use suitable glands and terminations that preserve the integrity of the sheath and the earth/PE conductor.
Avoid sharp edges in trays and chases; protect the cable where it passes through metalwork.
Plan pulling tensions on long reels and use rollers or cable drums to prevent overstress.
These steps prevent common field damage and avoid expensive remedial work.
For 3-phase installations, correct earthing is essential. The 6mm2 4 core ho7rnf rubber flexible cable typically includes a conductor that serves as protective earth; use proper armour or conductor terminations and high-quality glands to maintain conductor continuity and grounding effectiveness. Where additional EMC or fault protection is needed, coordinate with your electrical engineer to determine the correct earthing/bonding method.
Routine, simple checks preserve service life:
Visual inspections at terminations for cuts, nicks or sheath abrasion.
Infrared checks at connections to identify hot spots early.
Mechanical checks after heavy events (vehicle impact, site reconfigurations).
Logging reel and batch numbers when installing — traceability aids warranty or failure investigations.
Proactive maintenance reduces unplanned downtime and extends cable lifecycles for the 6mm2 4 core ho7rnf rubber flexible cable.
Rubber-sheathed cables vary in smoke and halogen behaviour. In public or enclosed spaces, consider whether you must specify low-smoke, zero-halogen (LSZH) alternatives or additional fire rating. For many heavy-duty site and outdoor uses, oil- and abrasion-resistant rubber compounds are standard, but always check project fire safety requirements before final selection.
To make vendor comparisons straightforward and risk-free, include the following in your RFQ:
Exact conductor cross-section (6 mm²) and number of cores (4).
Voltage and temperature ratings (e.g., 450/750 V, conductor temperature limits).
Conductor class (flexible class 5) and strand count specification.
Sheath and insulation compound specification (EPR/PCP/neoprene) and oil/abrasion claims.
Bending radius, outer diameter and reel packaging.
Test certificates: high-pot/insulation resistance and batch traceability.
Any required fire/smoke performance or approval documents.
Asking for these items up front avoids substitutions and speeds installation sign-off.
A correctly specified 6mm2 4 core ho7rnf rubber flexible cable often costs a bit more per metre than a generic cable, but it repays that delta through fewer failures, less emergency labour, and fewer premature replacements. On busy sites the ability to roll out, handle and re-use robust flexible cable without damage has measurable operational value.
Require numeric datasheet values in the tender, plan for correct terminations and pulling practices, and document installation batch numbers for maintenance traceability. Do these things and the cable becomes a durable part of your power system — not a recurring problem to fix.
