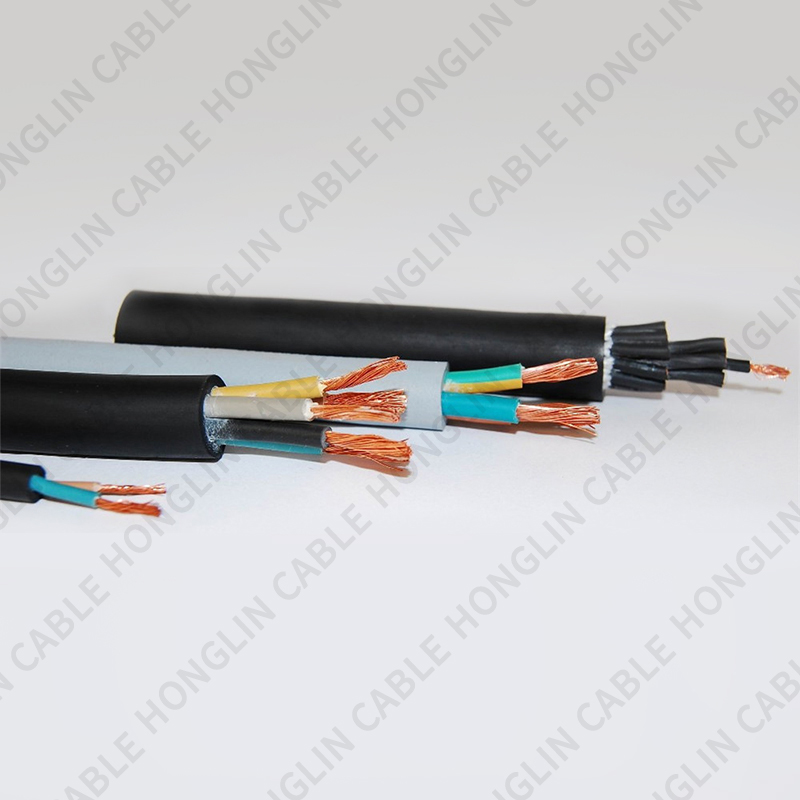

If your project requires power that will be moved, rolled, dragged and reused — often in dirty, wet or oily environments — the right cable matters. The h07rn f rubber flexible cable is engineered for exactly those circumstances: flexible Class-5 conductors, resilient elastomeric insulation and a tough outer sheath that resists oil, abrasion and weather. When installed and handled correctly, this cable keeps site operations moving with fewer failures, less downtime and lower lifecycle cost.
Temporary power feeds and mobile equipment place unique stresses on cabling. Repeated coiling, uncoiling and bending will fatigue ordinary cables, while exposure to oils, grime and mechanical abrasion will rapidly degrade underspecified sheathing. That is why the h07rn f rubber flexible cable is specified: it combines flexibility with ruggedness so reels can be deployed and retrieved repeatedly without conductor breakage or early sheath failure. For rental fleets, construction sites, theatre rigs or harbour equipment, the ability to withstand rough handling is a major operational advantage.
A properly manufactured h07rn f rubber flexible cable uses deliberate materials and construction techniques:
Flexible Class-5 copper conductor: consisting of fine, annealed strands arranged for bending fatigue life and reliable current carrying.
Rubber insulation (EPR / EPDM variants): retains dielectric properties despite repeated flexing and temperature cycles.
Bedding and filler materials: stabilise core geometry and prevent core-to-core abrasion inside the cable.
Robust elastomeric outer sheath (neoprene / polychloroprene or equivalent): selected for oil and abrasion resistance, UV tolerance and weather performance.
Clear colour coding and marking: to speed installation and ensure safe terminations.
This layered design is why technicians choose the h07rn f rubber flexible cable for harsh site conditions.
When specifying or comparing offers, focus on the numeric data on the vendor’s datasheet:
Rated voltage: commonly 450/750 V (some protected, fixed installations use 0.6/1 kV designations).
Test voltage / high-pot: manufacturers typically state factory test voltages (for example 2.5 kV) and insulation resistance values.
Temperature range: typical flexed use ratings are down to around −15 °C and up to +60…+90 °C depending on compound and application.
Conductor class and resistance: class-5 conductor reference (EN 60228) and DC resistance at 20 °C are key for voltage-drop calculations.
Demanding these figures in your RFQ prevents surprises and ensures the h07rn f rubber flexible cable you buy matches the job.
The cable’s characteristics make it ideal in multiple environments:
Temporary construction power and generator leads: reels deployed daily need abrasion and oil resistance.
Dewatering pumps and submersible equipment: robust sheathing tolerates splash and grime.
Stage, AV and event rigs: repeated roll-out cycles require high flex life.
Harbour and dockside machinery: weather, salt spray and grease demand durable outer jackets.
Portable plant and equipment feeds: compressors, welders and mobile substations benefit from rated, tested flexible cable.
In each of these roles, specifying the h07rn f rubber flexible cable reduces field failures and maintenance load.
Even the most rugged cable needs correct handling:
Respect minimum bend radius listed by the manufacturer — tighter bends stress conductors and reduce life.
Use rollers and controlled payout for long reel pulls to avoid twisting and excessive tensile loads.
Protect edges and entry points with grommets or soft guides to prevent sheath cuts.
Terminate with factory-approved glands and strain reliefs to retain sheath integrity and proper earth continuity.
Avoid pulling by the sheath alone; use appropriate grips and hoists.
Following these practices ensures the h07rn f rubber flexible cable performs like the datasheet promises.
Not all rubber compounds are equal. When selecting the h07rn f rubber flexible cable, verify:
Oil resistance: look for manufacturer test claims or EN/IEC references for oil resistance.
Abrasion and cut resistance: ask for abrasion test data if the cable will be dragged over rough surfaces.
Cold-flex behaviour: verify flexibility at expected site temperatures — some compounds remain supple down to −25 °C.
UV / ozone resistance for outdoor exposure.
Choosing the right sheath chemistry for the environment keeps the cable in service longer and avoids premature replacement.
Rubber-sheathed cables are excellent for industrial outdoor or site uses, but in enclosed public spaces you must assess fire and smoke behaviour. If the run passes through passenger areas or enclosed public zones, discuss low-smoke zero-halogen alternatives or additional fire performance with your safety team. For many site and dockside applications, the standard rubber compound is appropriate, but compliance with local fire codes is essential.
A simple maintenance routine extends life and avoids incidents:
Visual inspection at each deployment — check for cuts, abrasions or flattening.
Thermographic checks at terminations to detect high-resistance joints.
Record batch and reel numbers at installation for traceability if manufacturing defects later surface.
Replace deeply damaged sections rather than applying temporary repairs that may fail under load.
This basic regime reduces emergency failures and keeps operations moving.
To compare suppliers and ensure delivered product fits your needs, require these items in quotes:
Exact conductor cross-section and class (e.g., 2.5 mm² class-5).
Voltage, operating and flex temperature ratings.
Sheath and insulation material specifications and relevant test reports.
Minimum bend radius and outer diameter.
High-pot / insulation resistance test certificates and batch traceability.
Any required approvals (HAR, AENOR, DNV, CPR classification etc.).
A clear RFQ makes bids comparable and avoids incorrect substitutions at delivery.
On a major rental fleet, switching to factory-specified h07rn f rubber flexible cable for generator tails reduced cable-related callouts by over 40% in one season. The improved abrasion resistance and correct bending practice meant fewer emergency replacements and faster job turnover — the initial material cost was recouped in reduced downtime and lower labour for emergency repairs.
Purchasing on price per metre alone often hides higher operational costs. A well-specified h07rn f rubber flexible cable costs more up front but typically reduces lifecycle expenses through fewer replacements, less emergency labour, and more predictable maintenance windows. For contractors, rental companies and plant operators this reliability has direct, measurable value.
When your work involves portable power, temporary distribution or mobile plant, treat cable specification as a project-level decision: require clear numeric ratings, insist on tested sheath chemistry for your environment, and adopt installation and inspection practices that protect the asset. Do this and the h07rn f rubber flexible cable becomes a reliable, low-maintenance part of your operations — not a recurring problem to fix.
