When a generator installer, electrician or procurement manager orders a generac 7 conductor control cable, they’re not buying a single wire — they’re buying a system backbone that carries power, grounding and all the low-voltage control signals between the generator and the transfer switch. The right cable keeps the system reliable, simplifies installation and avoids last-minute rework on site. This guide explains what to demand from suppliers, how to compare offers, and the installation and operational choices that protect uptime and reduce whole-life cost.
(Note: the phrase generac 7 conductor control cable appears naturally throughout this article.)

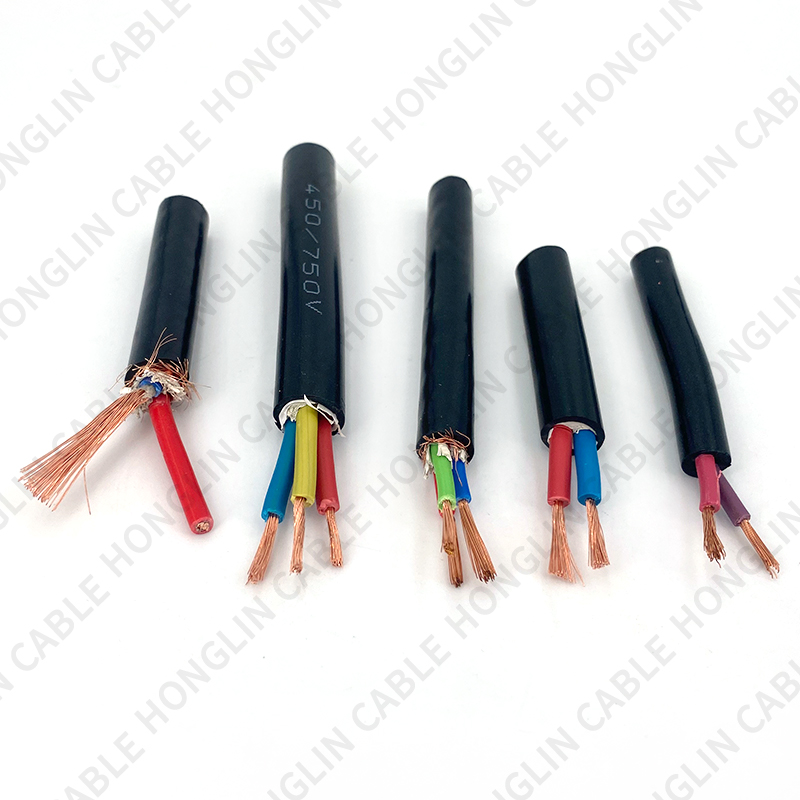

A composite generator cable that includes power conductors, a ground conductor and seven control conductors bundles everything you need into a single pull. For installers the advantages are immediate: one pull, one trench or tray route, consistent color coding that matches generator terminals, and fewer termination points to manage. Selecting the correct generac 7 conductor control cable avoids the mess of separate power, ground and multiple control runs — especially important on retrofit jobs and home standby installs.
Typical supplier datasheets for a generac 7 conductor control cable show:
three power conductors sized for the generator output (often aluminum alloy or copper, depending on model),
one equipment grounding conductor sized to match local code, and
seven 18 AWG (or similar) control conductors, color-coded to match Generac terminal conventions.
Datasheets also list strand class, insulation thickness, nominal outer diameter and whether the cable is TC-ER / tray-rated or acceptable for direct burial. When you compare quotes, request these exact fields to ensure the cable you buy is a fit for the intended generator model and run length.
Some manufacturer and distributor offerings use aluminum alloy for the power and ground conductors while keeping copper for the control conductors. Aluminum power conductors reduce weight and cost for larger generator sizes, but local AHJ rules or installer preference sometimes require copper. Don’t accept a generac 7 conductor control cable without confirming the conductor materials and adjusting lugs/terminals accordingly — aluminum and copper terminations require different treatments.
Because generator cable often runs in trays, outdoors or buried, the usual approvals matter: UL TC-ER, UL 1685 vertical tray flame test, IEEE 1202/FT4 and the relevant NEC passages. A vendor-supplied generac 7 conductor control cable datasheet should show voltage rating (commonly 600 V), temperature rating (e.g., 90 °C dry / 75 °C wet) and any tray/joist pull or burial suitability. These numbers aren’t optional — they determine whether the cable can be installed the way you plan to route it.
Control conductors are typically small gauge (often 18 AWG), and some product pages explicitly recommend maximum reliable runs for the control pair to avoid signal errors and voltage-drop issues on starter or sense circuits. When specifying a generac 7 conductor control cable, calculate voltage drop for both power and any critical control circuits (starter coils, sense feedback). If your transfer switch or generator sits at the high end of the recommended distance, either choose a higher-grade control conductor spec or plan for a different cable route.
To get apples-to-apples pricing for a generac 7 conductor control cable, include these mandatory items in your RFQ:
power conductor sizes and material (e.g., 3 × #3 AWG aluminum or 3 × 1 AWG copper),
grounding conductor size and material,
number, gauge and strand class of the seven control conductors (e.g., 7 × 18 AWG, Class K stranded copper),
insulation and jacket chemistry (PVC/Nylon, PE, sunlight/oil resistance),
UL/NEC approvals (TC-ER, UL 1277, FT4 / IEEE 1202),
overall diameter, minimum bend radius and packaging (cut lengths, coils, spool), and
sample availability and lead time (critical for fast builds).
Vendors that refuse to answer these fields are adding risk. For a generac 7 conductor control cable you want full transparency before the cut is made.
Respect bend radii: power conductors and the inner arrangement increase stiffness; avoid tight bends that stress insulation.
Use color coding: many factory cables color the control conductors to match Generac terminal legends — this speeds wiring and reduces cross-wiring risk.
Terminate properly: use correct lugs/terminations sized to conductor material; aluminum requires anti-oxidant and compatible lug types.
Protect pull points: for long pulls use a messenger or joist-pull rating where specified to avoid damage.
Test before burying: continuity, insulation resistance and a functional control-signal test confirm the generac 7 conductor control cable is installed correctly before backfill.
Some integrators prefer factory-terminated leads for convenience; others buy spool and cut to length to control termination quality in house. Pre-terminated assemblies save time for small jobs and guarantee tested joints, but they cost more per foot. If you opt to terminate on site, ensure crimp tooling and procedures match the conductor materials — a correct crimp is the most common difference between long-lived and problematic generator installations.
If the cable routes outdoors or runs near fuel systems, pick a jacket compound rated for sunlight, oils and direct burial. PVC with a nylon overjacket is common for many generator cables, but for tunnel, marine or rail applications consider UV-stabilized or specially rated jackets. The generac 7 conductor control cable you choose should match the installation environment to avoid jacket embrittlement and premature failure.
intermittent control signals: usually caused by poor shield/ground practice or a damaged control conductor — inspect terminations and run continuity tests on the seven control wires.
hot lugs or voltage drop: verify conductor size, torque on terminals and correct lugs for aluminum vs copper.
shorted conductors after backfill: perform a pre-backfill insulation resistance test to catch damage early.
These checks save hours of diagnostic work and keep projects on schedule.
color-matched control conductors to Generac terminal labels;
tinned copper for marine or high-moisture environments;
extra control pairs for future-proofing;
pre-printed sequential markings for inventory and traceability.
Small features often pay back by speeding installation or reducing errors.
Generator cable is often sold by cut length, by convenience coil or on full spools. Long runs and large projects benefit from spool purchases to reduce unit cost, but spools add lead time. Confirm return policies: cut wire is frequently non-returnable. Also request a sample reel for mission-critical jobs so crews can validate bend feel and termination behaviour before committing to large quantities.
When you order a generac 7 conductor control cable, treat the purchase as an engineering decision: specify conductor materials, strand classes and approvals up front; calculate voltage drop and max run lengths; require datasheets and, where needed, a sample reel. Do this once and your installation will be cleaner, faster and far more reliable than ordering to a picture or an ambiguous part description. The right cable protects uptime, reduces callbacks and makes the entire generator system deliver the backup power it was bought for.
