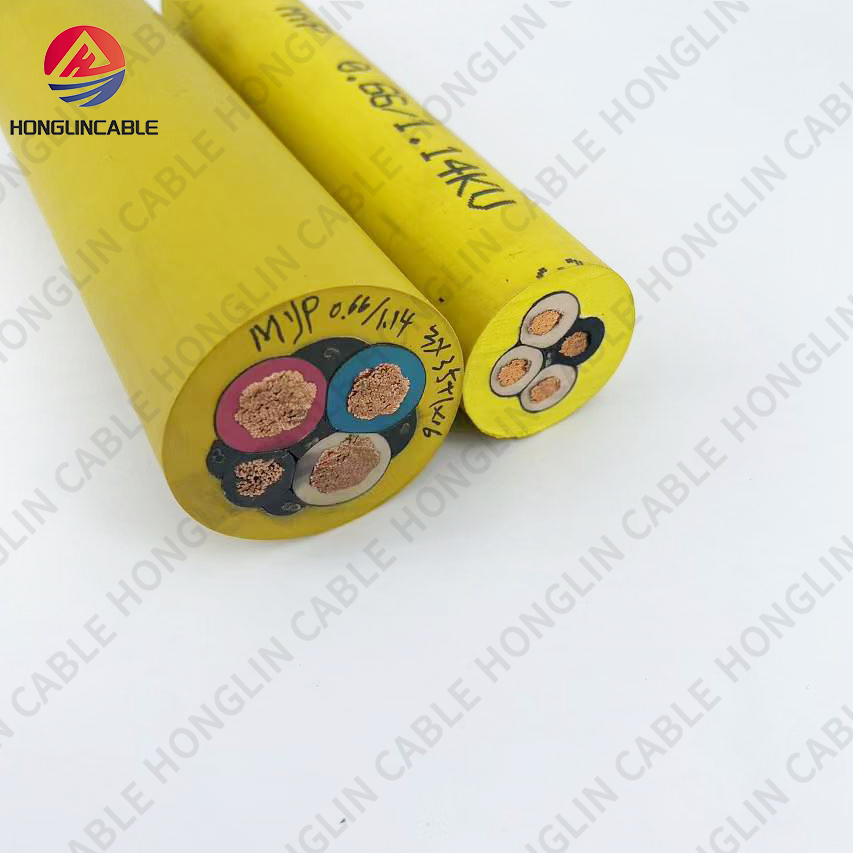

If you buy cables for mines, you want two things: electrical certainty and field survival. The phrase GB/T 12706 mining cable tells buyers they’re looking for cables built to China’s extruded-insulation power-cable standard and then enhanced so they survive the reality underground: reeling, abrasion, water, chemicals and crushing loads. This guide explains what GB/T 12706 covers, why mining needs more than the baseline, exactly which mechanical and electrical tests to demand, and how to write procurement and acceptance language that leaves no room for guesswork.
GB/T 12706 is China’s national standard series for power cables with extruded insulation (the same technical family that IEC 60502 addresses internationally). The standard is divided into parts that cover different voltage ranges and accessory tests: Part 1 (low voltage), Part 2 (6–30 kV), Part 3 (35 kV) and Part 4 (accessory tests). These documents set the electrical rules: conductor materials and DC resistance, insulation type and thickness, semiconducting screen practice, dielectric test voltages and electrical acceptance procedures.
Important nuance: some parts of GB/T 12706 are written primarily for fixed installations and distribution networks, so a plain-vanilla GB/T 12706 datasheet alone doesn’t guarantee a cable will survive mining abuse. That’s why buyers searching GB/T 12706 mining cable expect a supplier to show the GB/T 12706 electrical pedigree plus mining-specific mechanical and environmental evidence.
Recognized electrical baseline. Quoting GB/T 12706 demonstrates the cable’s insulation thicknesses and dielectric testing are done to a recognized, published methodology — an important audit item in procurement.
Easier specification for local projects. In projects in China or where Chinese standards are accepted, GB/T 12706-based cables simplify approvals because the standard is already in the technical code.
Platform to add mining features. GB/T 12706 defines the electrical core: you then specify water-blocking, reeling cycles and jacket compound to create a genuine GB/T 12706 mining cable that survives the face.
A mining-grade cable is a system — conductor, insulation, screens, bedding, water-block, jacket and reinforcement work together. When you convert a GB/T 12706-based construction into a GB/T 12706 mining cable, insist on these physical features and the test evidence that proves them:
Water-blocking and hydrostatic performance. Swellable tapes, gel fills or sealed cores plus immersion/hydrostatic test numbers. Mines flood; the cable must not allow water to track along the cores.
Reeling and flex life at real drum diameters. Generic flex numbers are useless unless they are measured at your reel diameter; require cycles-to-failure or pass-at-X-cycles data for your drum size.
Abrasion and cut resistance. Taber or scrape abrasion cycles, plus puncture/tear numbers. These quantify the jacket’s ability to survive scraping on ribs, chutes and rollers.
Impact and crush resistance. Compressive/puncture loads and drop-impact tests that simulate run-over or falling-rock events.
Oil & chemical compatibility. Tests versus hydraulic fluids, diesel, solvents and cleaning agents used on site.
Corrosion protection where needed. Tinned conductors and corrosion-resistant screens in aggressive wet or saline environments.
Demand numeric test reports and the test method names — that’s how you turn a marketing claim into an acceptance criterion.
A practical GB/T 12706 mining cable datasheet will show these fields numerically (not just as buzzwords):
Rated voltage (U₀/U notation) and GB/T part reference (e.g., GB/T 12706.2-2020 for 6–30 kV).
Conductor type (fine-stranded copper or tinned copper), mm² and strand count.
Insulation material (XLPE or EPR) and insulation thickness per core (mm).
Semiconducting inner/outer screens per GB/T practice and screening continuity method.
Metallic screen or earth conductor and optional armor (specify material and coverage).
Water-blocking method (gel, swellable tapes) and hydrostatic test results.
Outer jacket compound name, minimum thickness and abrasion/tear numbers.
Mechanical data: minimum bend radius, recommended drum diameter, flex/spool cycle evidence.
Per-reel test certificates: conductor DC resistance, insulation resistance (MΩ), hipot/dielectric test (kV), mechanical report references.
If a vendor hands you a datasheet with these numeric fields and per-reel certificates, you have a purchase-grade GB/T 12706 mining cable.
Use this block in RFQs to force apples-to-apples offers:
Supplier shall supply GB/T 12706 mining cable — [insert U₀/U rating] — [cores × mm²]. Cables must comply electrically with GB/T 12706-Part [x] and additionally pass the following: (a) water-blocking immersion test: method and numeric result; (b) flex/reeling life: cycles @ drum ID = ____ mm, test protocol; (c) abrasion: Taber cycles to endpoint; (d) puncture/crush force (N) and impact test (J). Each delivered reel must include per-reel certificates referencing the reel lot number. Vendor to provide jacket compound MSDS and termination kit recommendations.
This language prevents vendors from substituting a standard GB/T-only cable that lacks mining resilience.
On arrival, don’t accept reels blindly. Perform or require:
Verify reel lot vs certificates. The test pack must reference the reel marking.
Insulation resistance test on sample length — reading must exceed the vendor’s minimum.
Hipot/dielectric test per GB/T clause (or per project protocol) on a sample length.
Spot DC resistance check on conductor(s).
Visual check for extrusion defects, jacket damage or wrong marking.
If spooled duty is critical, witness a short reeling test in yard conditions or accept vendor flex report done at your drum ID.
Per-reel traceability and these checks reduce installation-day surprises and support warranty claims later.
Even the best GB/T 12706 mining cable fails if mishandled:
Use the recommended drum diameter and controlled tension when spooling and unspooling.
Protect change-of-direction points with rollers or wide guides.
Fit sacrificial spiral wraps at predictable wear zones.
Use manufacturer-approved glands and termination procedures; improper seals are the most common cause of water ingress and early failure.
Keep installation records including reel lot numbers and any field test results.
Good installation discipline typically doubles installed life versus ad-hoc practice.
For predictable life and budget control:
Log and track reel lot numbers and the installed location.
Inspect exposed runs daily in abrasive or wet zones.
Trend insulation resistance at critical terminations monthly.
Plan replacement by measured wear or reel-cycle counts rather than calendar time where reeling occurs.
Keep matched spare reels of the same lot for critical feeders.
A data-driven lifecycle plan turns the GB/T 12706 mining cable into a reliability asset, not a recurring cost.
Upfront cost is only part of the story. A cable that meets GB/T 12706 electrically but also proves mining resilience saves money by:
Reducing emergency splices and unplanned downtime.
Avoiding collateral equipment damage from conductor exposure or shorting.
Lowering labour cost for reactive repairs.
Simplifying compliance and audit trails with per-reel evidence.
When uptime matters, the premium for a correctly specified GB/T 12706 mining cable pays back quickly.
GB/T part referenced (e.g., GB/T 12706.1 / GB/T 12706.2).
Rated voltage U₀/U and cores × mm².
Conductor: copper, strand count, tinning requirement.
Insulation: material and thickness (mm).
Semicon screens and metallic screen/armor details.
Water-blocking method + immersion/hydrostatic test numbers.
Jacket compound + thickness + abrasion/puncture numbers.
Flex/reeling cycles @ specified drum ID (protocol & result).
Per-reel certificates tied to reel lot numbers.
Approved glands/termination kits and installation method.
Warranty tied to acceptance test passing.
Use these fields to force transparent, verifiable bids.
A GB/T 12706 mining cable should give you the best of both worlds: internationally consistent electrical construction and field-proven mechanical resilience. Start with the GB/T 12706 electrical pedigree, then layer in the water-blocking, flex, abrasion and termination evidence miners need. Require per-reel test packs and enforce on-site acceptance. Do that and you’ll buy cables that keep the lights on, the pumps pumping and your production moving safely.
