Oct. 11, 2025
When your project puts people and critical infrastructure into confined underground spaces, the cable choices you make matter enormously. A Flame Retardant Tunnel Cable is engineered to limit fire propagation, reduce smoke and toxic gas release, and meet the regulatory and operational requirements unique to tunnels and mines. Specifying the right product up front reduces risk, shortens approvals, and protects lives and assets.
Tunnels concentrate hazards: fire spreads faster in enclosed spaces, smoke accumulates, and visibility and breathable air degrade rapidly. A standard power cable may continue to burn and contribute to fire growth or emit harmful gases; a Flame Retardant Tunnel Cable is built with materials and constructions that slow or arrest flame spread and limit smoke emissions. In many projects this behavior is not just preferred — it’s mandated by code or by the project’s safety case.
The phrase “flame retardant” is often confused with “fire resistant.” It’s important to be precise: flame retardant cables are designed primarily to inhibit flame propagation along the cable and reduce the intensity of combustion when exposed to a heat source. They do not necessarily guarantee circuit integrity under severe fire conditions — that is the remit of fire-resistant or circuit-integrity cables. A sound procurement strategy distinguishes these functions and applies the right product where required.

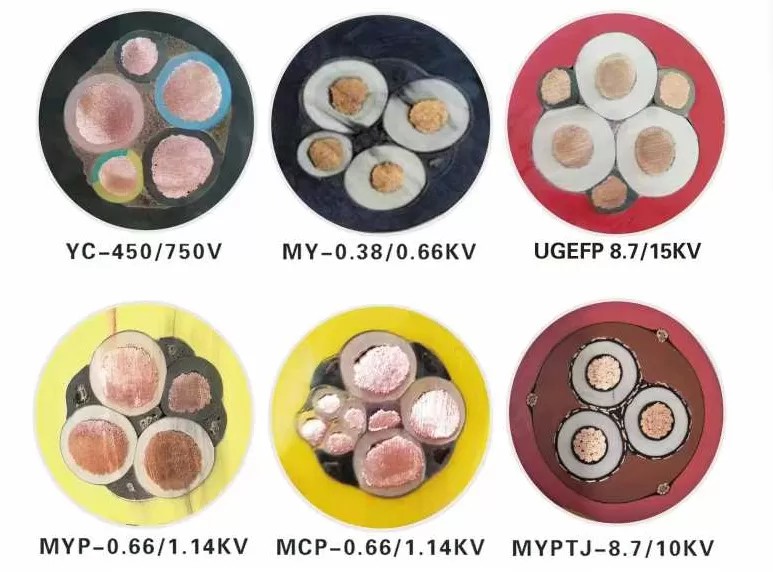

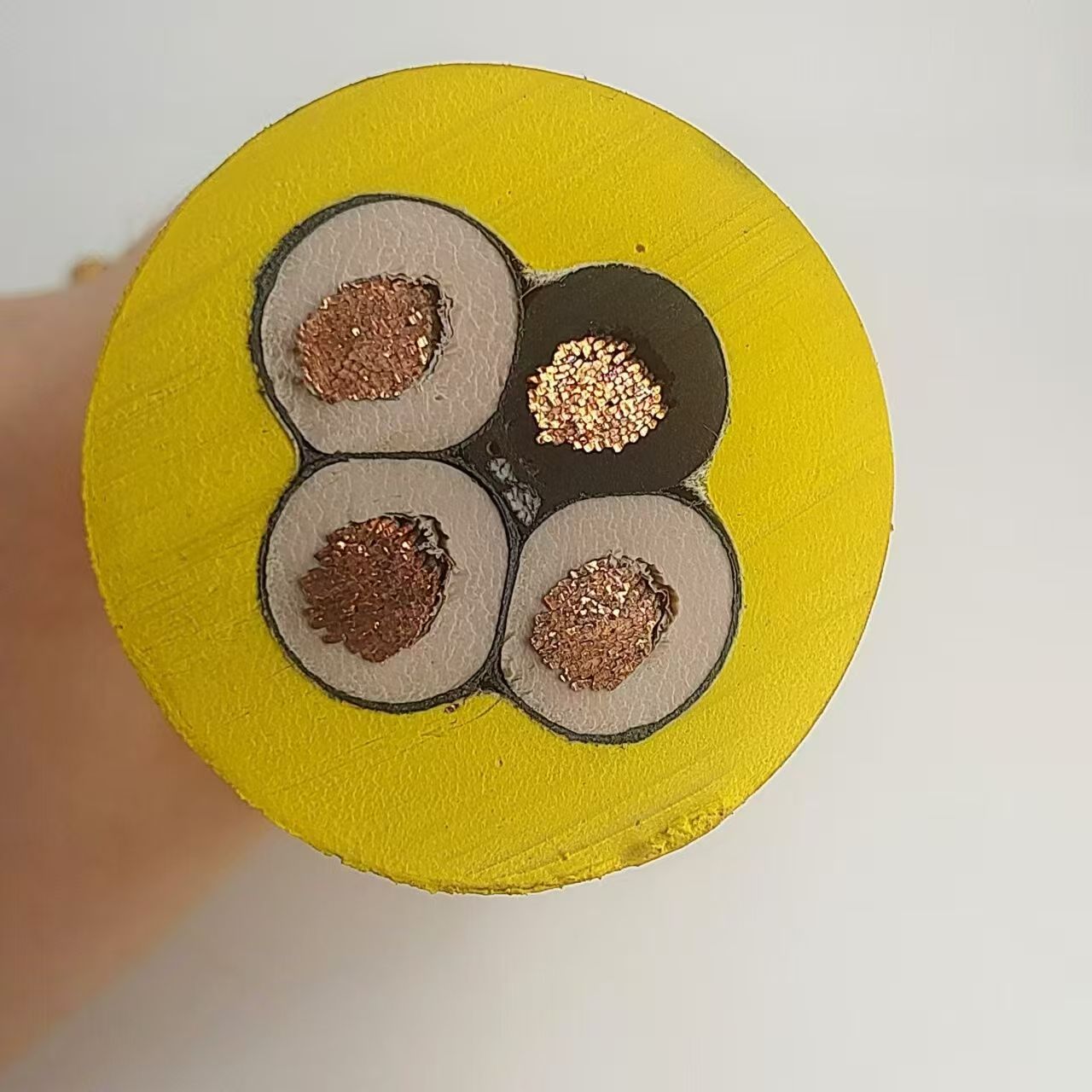

A robust Flame Retardant Tunnel Cable combines several engineered elements:
Insulation and sheath compounds formulated to self-extinguish and to produce lower smoke and halogen emissions. These compounds are the first line of defense in limiting flame propagation.
Fillers and bedding that maintain core geometry and limit the spread of a localized ignition.
Optional armour such as steel tape or wire when mechanical protection is needed for buried ducts or areas exposed during construction.
Conductor design (fine-stranded copper) chosen for flexibility and predictable resistance, enabling safe current carrying and manageable voltage drop calculations.
When all elements are selected for the route and environment, a Flame Retardant Tunnel Cable provides a tangible safety improvement over generic cables.
Because tunnel projects require verifiable performance, insist that vendors provide test certificates referencing recognized standards. Useful references include flame-propagation tests and smoke/toxicity standards (for example IEC 60332 family, EN tests, and local acceptance regimes). Where circuit integrity is required, specify fire-resistant tests separately (IEC 60331, BS 6387 CWZ, etc.). Require published test reports and mill certificates for every delivery so acceptance is based on evidence, not claims.
Not every circuit in a tunnel needs the same protection. Use these guidelines:
Select Flame Retardant Tunnel Cable for general power distribution runs where preventing spread and reducing smoke is the priority.
Use Fire-Resistant or circuit-integrity cables for life-safety circuits, emergency lighting, fire detection, and ventilation controls that must remain operational during a fire.
For bundled runs or where long series of cables are close together, verify how grouping affects flame propagation in vendor test data.
A deliberate, circuit-by-circuit approach avoids over- or under-specifying and aligns performance with safety objectives.
Tunnels pose mechanical hazards during construction and maintenance. If routes run in ducts, under trafficable surfaces, or near heavy plant, specify armour (steel tape or steel wire) matched to the route:
Steel tape armour offers strong radial crush protection, commonly used for underground or ducted runs.
Steel wire armour gives higher tensile strength for long pulls and exposed spans.
Consider galvanization and corrosion protection in damp or coastal environments.
Combining armour with a Flame Retardant Tunnel Cable ensures both fire-behavior and mechanical resilience are addressed.
The right Flame Retardant Tunnel Cable serves multiple roles:
General power distribution feeding substations, MCC rooms and fixed plant.
Secondary circuits that are not required to maintain power during a fire but do need to minimize spread and smoke generation.
Temporary and construction supplies in occupied zones where risk of ignition exists.
For life-critical systems, pair flame-retardant distribution with dedicated fire-resistant circuits as required by code and risk analysis.
Even the best Flame Retardant Tunnel Cable can be compromised by poor handling:
Follow manufacturer bend-radius and pulling tension limits to avoid conductor or insulation damage.
Terminate and seal joints correctly; water ingress or poor gland selection can undermine fire performance at terminations.
Avoid damaging the sheath during installation — cuts, abrasions and compressions weaken flame-retardant behavior.
Keep as-laid records and map batch numbers to installed lengths for traceability and future audits.
Good installation discipline ensures the cable performs as tested in real incidents.
To get comparable and certifiable offers, include the following in your RFQ:
Exact conductor cross-section, number of cores and rated voltage.
Specified flame-retardant class and referenced test standard(s).
Sheath chemistry requirements (e.g., low smoke, zero halogen if required).
Armour type and corrosion protection needs.
Required test reports, mill certificates and sample lengths for witness testing.
Batch traceability and marking on each reel.
Clear, numeric requirements eliminate ambiguity and speed approvals.
Tunnels are inherently challenging to access; a proactive lifecycle plan reduces unexpected outages:
Conduct routine visual inspections at access points and terminations.
Use infrared thermography to spot early hot spots at joints and switchgear.
Periodically measure insulation resistance to detect degradation.
Maintain clear records linking installed runs to batch numbers and test reports.
A documented maintenance regime keeps replacement planning predictable and supports safety cases.
On a recent metro project, a contractor replaced generic power cables in passenger areas with Flame Retardant Tunnel Cable and adopted LSZH sheathing for sections under public walkways. The change reduced smoke concerns in the risk assessment and simplified the building-approval process. During commissioning, the flame-retardant runs required fewer remedial works and helped the project meet tight handover milestones.
Treat cable selection as a risk-management decision, not a commodity buy. For distribution runs in tunnels, a Flame Retardant Tunnel Cable that comes with verified test evidence, matched armour and the correct sheath chemistry reduces the chance of devastating smoke and spread in the event of a fire. Demand test certificates, insist on batch traceability, and match cable type to circuit criticality. Those steps protect people, equipment and program schedules — and they deliver real value over the life of the asset.
