In any underground operation—whether a metro tunnel, highway bore or a deep mining drift—power systems must survive harsh conditions and, in the worst case, remain functional during a fire long enough to support evacuation and emergency systems. A Fire Resistant Tunnel Cable is purpose-built for that reality: it combines circuit-integrity performance under elevated temperatures, mechanical protection for confined routes, and suitable sheath chemistry for low smoke or low-toxicity scenarios. Choosing the right cable is an act of risk management; done well, it prevents costly outages and saves lives.
Tunnels concentrate both people and infrastructure in enclosed spaces. Smoke, toxic gases and loss of emergency lighting or ventilation controls are the principal life-safety hazards during a tunnel fire. That is why tunnel specifications often demand either fire-resistant cables that maintain circuit integrity for a specified duration or low-smoke, zero-halogen cables that minimize toxic emissions and support safer evacuations. International standards and accepted test methods exist precisely to quantify these behaviors and let designers specify a cable that performs as required. LAPP Camuna Cavi+1

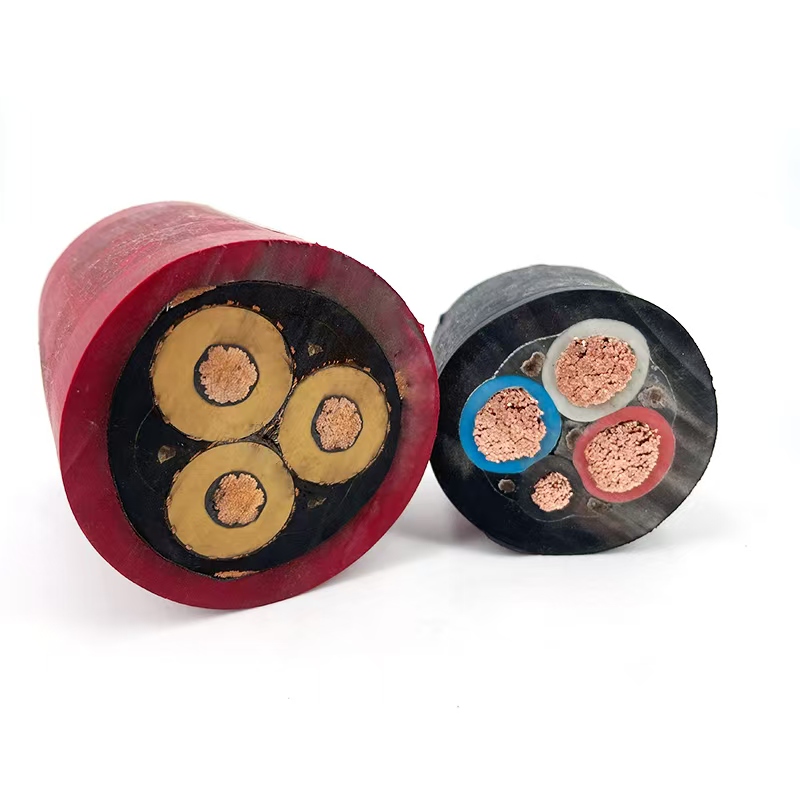

A reliable Fire Resistant Tunnel Cable is more than a label — it’s an assembly of materials and construction features selected for real world demands:
Conductor: High-quality, fine-stranded copper conductors resist mechanical fatigue and provide predictable electrical resistance for voltage-drop calculations.
Insulation: Fire-resistant insulating systems (often based on inorganic materials or specially formulated thermosets) are chosen to withstand high temperatures without rapid loss of dielectric strength.
Composite layers for circuit integrity: Many fire-rated designs include mineral or ceramic fillers and bedding that support core geometry at elevated temperatures and help maintain conductor separation.
Armour: Steel tape or wire armour provides crush resistance during installation and service life — essential when cables pass through ducts or are subject to site traffic.
Sheath: The outer jacket is selected for both environmental resistance (oil, water, abrasion) and fire behavior (low smoke, limited halogen emission when needed).
When these layers are engineered together, the end product is a cable that keeps power and control circuits alive through the most demanding events.
Tunnel projects rely on quantifiable test results. Good suppliers publish the test standards their cables meet and provide supporting certificates. Key tests to look for include:
IEC 60331 / IEC 60332 and similar flame/sustained-circuit-integrity tests for duration and temperature. ZMS kV Cable
BS 6387 CWZ classification for combined fire and mechanical shock scenarios, used in many tunnel applications. LAPP Camuna Cavi
Documented insulation resistance, conductor resistance (at 20°C), and factory high-pot test values.
Any regional approvals or acceptance lists relevant to mining or underground installations (for example, MSHA listings for certain mining cables). MSHA
Require these reports in tender responses. They’re the difference between a marketed claim and demonstrated performance.
Tunnels impose specific mechanical threats: crushing from heavy works, abrasion in ducts, and potential impact during maintenance or construction. A Fire Resistant Tunnel Cable intended for distribution should be specified with armour and bedding appropriate to the route:
Steel tape armour is common where radial crush resistance matters.
Steel wire armour provides higher tensile strength for long pulls.
Consider galvanization level and corrosion protection where moisture or corrosive atmosphere is present.
Where multiple circuits share a tunnel or duct, ensure fire tests account for bundled behavior (some standards address grouped-cable flame propagation).
Specifying armour correctly avoids post-installation failures and protects the investment.
A well-selected Fire Resistant Tunnel Cable serves several underground roles:
Primary distribution to substations and motor control centers within a tunnel network.
Safety circuits for emergency lighting, signage, fire detection and ventilation control that must remain operational during incidents.
Fixed plant supplies for conveyor drives, pumps and ventilation fans.
Temporary construction supplies when fire performance is required in occupied zones.
Each application may have different priorities (e.g., circuit integrity vs. low smoke), so tailor the cable selection to function and regulatory needs.
To avoid ambiguity and ensure delivered product matches expectations, include the following in your tender documents:
Exact conductor cross-sections and number of cores.
Rated voltage class and continuous conductor temperature rating.
Required fire performance level and referenced standard (specify test method and duration).
Armour type and thickness, plus corrosion protection where needed.
Sheath chemistry requirements (e.g., LSZH) and environmental resistance.
Test reports, mill certificates and batch traceability for each reel.
Sample reels or witness testing for mission-critical applications.
This level of specificity forces suppliers to respond with comparable offers and minimizes post-delivery disputes.
Even an approved Fire Resistant Tunnel Cable can be compromised by poor installation. Protect performance by following these practices:
Respect manufacturer bend radii and pulling tensions to avoid conductor deformation.
Terminate armour and screens properly with approved glands and bonding hardware to maintain earthing continuity.
Protect terminations from moisture and mechanical abrasion using sealed junctions and proper drainage.
Document as-laid positions and batch numbers to speed future inspections and fault tracing.
Installation discipline is the last line of defense to ensure the cable performs under emergency conditions.
Tunnels are constrained spaces; proactive maintenance is essential. A practical lifecycle plan includes:
Scheduled visual checks at access points, especially terminations.
Infrared thermography at joints and switchgear to catch hotspots early.
Periodic insulation resistance testing to detect degradation before failures.
Keeping records that map reels and batch numbers to installed runs for traceability.
A predictable maintenance regime reduces the risk of unexpected outages and helps manage replacement cycles cost-effectively.
Project teams often find that the incremental cost for a certified Fire Resistant Tunnel Cable is quickly offset by reduced downtime, fewer emergency repairs, and lower risk during safety incidents. In complex underground networks the value of cables that keep safety circuits and ventilation controls operating during an event cannot be overstated — they protect both people and program schedules.
Specify numeric requirements, demand published test evidence, and match armour and sheath chemistry to the route and regulatory environment. Treat the Fire Resistant Tunnel Cable not as a commodity but as a critical system component: the right choice protects operations, reduces long-term cost and ensures safer outcomes when the unexpected happens.
