Jul. 29, 2025
When every weld counts—on the shop floor, the construction site, or in the field—you need a welding cable manufacturer who understands that reliability, flexibility, and safety are non‑negotiable. Our company has over four decades of dedicated expertise in designing, extruding, and testing premium welding cables that stand up to the most demanding applications. From heavy‑duty industrial leads to lightweight, ergonomic stingers, we deliver customized solutions engineered for performance, durability, and ease of installation.
Subpar welding cables lead to arc instability, voltage drop, and premature failure—compromising both productivity and safety. As your trusted welding cable manufacturer, we ensure:
Consistent Conductor Integrity
Class 5 & Class 6 Copper Stranding per IEC 60228 for maximum flexibility and minimal fatigue in continuous flex applications.
Tinned‑Copper Options that resist corrosion in high‑moisture or marine settings.
Premium Insulation & Sheathing Compounds
EPDM and Chloroprene (CR) jackets tailored for oil, chemical, abrasion, and UV resistance.
Flame‑Retardant and Halogen‑Free formulations for indoor and public‑venue safety.
Rigorous In‑House Testing
100% continuity, insulation‑resistance, high‑pot, and tensile tests on every drum—batch‑traceable certificates included with each shipment.
Simulated reel‑flex and thermal‑cycling trials to guarantee performance under real‑world conditions.
By integrating compound formulation, conductor purity, and stringent factory‑floor controls, our welding cable manufacturer processes deliver cables that outlast generic alternatives—minimizing downtime and maximizing ROI.
| Feature | Benefit |
|---|---|
| Voltage Ratings up to 600 V AC | Powers welders, plasma cutters, and induction heaters safely |
| Conductor Gauges 6 AWG through 500 MCM | Covers light‑duty leads to 500 A–750 A high‑amp welding cables |
| Class 5 & Class 6 Flexible Copper | Superior pliability; ideal for static and dynamic reel use |
| EPDM, Chloroprene, & EPR Jackets | Tailored resistance to oil, chemicals, UV, and extreme temps |
| Flame‑Retardant & LSZH Options | Enhanced safety in confined or public settings |
| Tinned‑Copper Conductor Variant | Corrosion protection for marine, offshore, and wash‑down use |
| Custom Assemblies & Pre‑Terminations | Ready‑to‑use plug‑and‑play leads, stingers, and connectors |
| ISO 9001 & ISO 14001 Certified | Demonstrates our commitment to quality and environmental care |
Our modular manufacturing platform means every order from our welding cable manufacturer lineup can be precisely configured to your application‑specific needs.
Industrial Fabrication & Shipbuilding
In high‑volume welding shops and shipyards, heavy‑gauge welding leads flex on reels, resist weld‑slag, and withstand oil and hydraulic fluids—ensuring consistent arc control through long production runs.
Construction & Structural Steel Erection
Portable stinger‑to‑welder leads must endure job‑site abuse, while ground‑lead assemblies require durable, flexible jackets for rapid repositioning on beams and columns.
Automotive & Heavy Equipment Repair
Shop environments demand abrasion‑resistant cables routed through cable carriers, frequently re‑terminated for jigs and fixtures. Our welding cable manufacturer capabilities deliver custom lengths, color coding, and over‑molded strain reliefs.
Power‑Generation & Maintenance
Maintenance crews rely on reliable welding cable leads for turbine repairs, pipeline welding, and emergency fabrications—often in confined or elevated spaces where lightweight, highly flexible cables reduce installer fatigue.
Remote and Offshore Operations
Tinned‑copper, CR‑jacketed welding cables withstand salt spray, UV, and cleaning‑water wash‑downs on offshore rigs, platforms, and marine vessels—paired with halogen‑free options for enclosed control rooms.
“Working with this welding cable manufacturer cut our shop’s cable replacement rate by 75%. The enhanced jacket compounds stayed intact through daily reel‑flex cycles.”
—Jessica W., Facilities Manager, SteelFab International
“Their pre‑terminated leads and stinger assemblies saved our field team days of prep work—no more on‑site terminations.”
—Marco R., Project Supervisor, Northern Pipeline Co.
Choosing the perfect welding cable involves balancing electrical, mechanical, and environmental requirements. Our welding cable manufacturer specialists recommend this selection process:
Define Voltage and Ampacity
Light‑duty workshop leads: 600 V, 14 AWG–6 AWG (up to 100 A).
Heavy‑duty industrial: 600 V, 4 AWG–2/0 AWG (200 A–500 A).
High‑amp welding: 600 V, 4/0 AWG–500 MCM (500 A–750 A+).
Choose Conductor Stranding Class
Class 5 for static flex (stationary cables).
Class 6 for dynamic flex (reels, cable carriers).
Select Jacket Material
EPDM for broad chemical and weather resistance.
Chloroprene (CR) for superior oil and UV resistance.
EPR for high‑temperature endurance and ozone resistance.
Assess Safety and Compliance Needs
Flame‑Retardant PVC for general indoor use.
LSZH if low smoke and halogen‑free properties are required in public venues.
Determine Connector and Assembly Options
Bare‑end cables for customer termination.
Over‑molded stingers, electrode holders, and ground‑clamp assemblies for rapid deployment.
Custom over‑mold colors and strain reliefs to match corporate or safety color schemes.
Consider Environmental Exposures
For wash‑down or marine use, specify tinned‑copper conductors and halogen‑free jackets.
In extreme‑temperature environments, verify cable ratings cover the operational range (–40 °C to +90 °C).
Our team will collaborate with you on each criterion, ensuring your selected solution from our welding cable manufacturer offerings aligns precisely with your application.
Maximizing the service life of any welding cable begins with proper installation:
Maintain Minimum Bend Radius
Observe the manufacturer’s static and dynamic bend‑radius recommendations (typically 6× OD static, 8–10× OD dynamic) to prevent conductor fatigue and insulation cracking.
Use Approved Cable Glands and Clamps
Ensure strain relief at termination points—particularly for pre‑terminated assemblies—to eliminate pull‑out and minimize mechanical stress.
Avoid Sharp Edges and Abrasive Surfaces
Route cables through protective grommets or conduits when passing through metal panels, cable trays, or around machinery.
Support Cables Along Their Run
Use cable ties, clamps, or hangers rated for the cable’s weight and flex cycles to prevent sagging, kinking, or undue tension.
Perform Pre‑Operational Testing
Conduct continuity, insulation‑resistance, and polarity checks before energizing welders. Verify that over‑molded connections show no signs of moisture ingress or partial discharge.
Schedule Routine Inspections
In dynamic or harsh environments, inspect cable jackets, strain-relief boots, and connectors every 3–6 months. Replace any cable showing signs of abrasion, swelling, or brittle cracking.
Following these guidelines ensures that your investment in our welding cable manufacturer solutions yields long‑term reliability and uninterrupted productivity.
Decades of Welding‑Cable Expertise
Since 1978, we’ve specialized in premium welding‑cable design, compounding, and assembly—delivering solutions to the world’s leading fabricators, contractors, and OEMs.
Integrated Manufacturing Capabilities

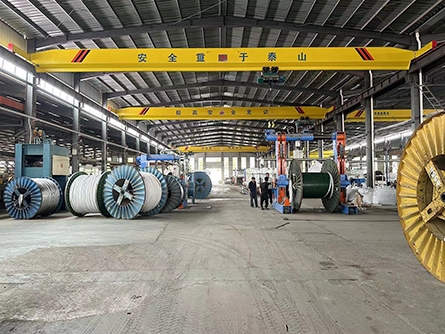

In‑house copper drawing, stranding, extrusion, and over‑molding facilities allow end‑to‑end quality control and rapid prototyping.
Stringent Quality Management
ISO 9001 and ISO 14001 certified. Every production batch undergoes full electrical, mechanical, and environmental testing to exceed UL 62, SAE J1127, and ASTM B172 standards.
Global Footprint with Local Support
Regional manufacturing and distribution centers across North America, Europe, and Asia ensure fast lead times, lower freight costs, and responsive on‑site technical support.
Custom Engineering & Value‑Add Services
From color‑coded jackets and printed legends to full over‑molded assemblies and cable‑management kits, our R&D team co‑engineers tailored solutions that streamline your installation and maintenance workflows.
When you partner with our welding cable manufacturer team, you gain a single source for world‑class cable quality, complete customization, and unwavering service.
Initial Consultation
Provide your application specs—voltage, amperage, environment, and any assembly requirements—and receive a preliminary recommendation within 4 hours.
Detailed Proposal & Samples
Within 24 hours, we’ll deliver a custom quote that includes datasheets, sample reels or assemblies, and volume‑based pricing.
Approval & Production Scheduling
Standard lead times for stocked configurations: 3–5 business days. Custom over‑molded assemblies and specialty compounds: 7–10 business days.
Global Logistics & Tracking
Choose CIF, DDP, or EXW shipping. Real‑time shipment tracking keeps you updated from our dock to your site.
Post‑Delivery Support
On‑site installation guidance, splicing services, and a 24/7 technical hotline ensure a smooth launch and ongoing operation.
Our streamlined workflow guarantees that your welding cable manufacturer solutions arrive on time, on budget, and ready to perform.
Contact us today for a free consultation, custom spec sheet, and rapid quote, and experience the difference that premium welding cables can make.
