Selecting the proper cable starts with a clear electrical cable types list that maps application to construction. Whether you’re wiring a home, feeding a production line, or specifying cables for a tunnel, the right list helps you match conductor size, insulation, jacket chemistry and mechanical protection to the real conditions on site. This saves cost, shortens approvals, and—most importantly—keeps people and equipment safe.
A concise electrical cable types list turns vague requirements into actionable specifications. Engineers use the list to translate loads and locations into conductor cross-sections and insulation systems; procurement uses it to demand the correct test certificates; and installers rely on it to know minimum bend radii, pulling tensions and acceptable terminations. When everybody works from the same list, projects move faster and disputes at handover vanish.
A practical electrical cable types list groups products so stakeholders can quickly find what they need:
Low-voltage power cables (single-core and multicore) for distribution and lighting. These come with PVC or XLPE insulation and may be armoured for buried or exposed runs.
Medium-voltage and high-voltage feeders with XLPE insulation and concentric or segmented screens for long-distance distribution.
Armoured and metallic-sheathed cables for direct burial and mechanical protection in ducts and trenches.

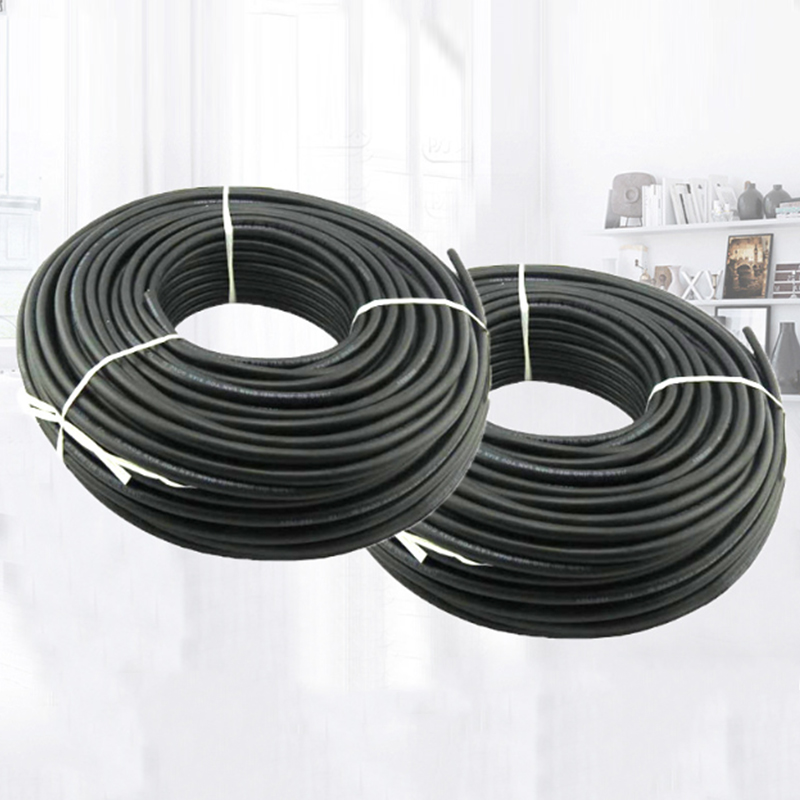

Flexible and trailing cables for mobile plant and reels—rubber or thermoplastic jackets and fine-stranded conductors.
Control, instrumentation and signal cables including screened pairs, twisted pairs and multi-core control assemblies.
Specialty cables such as fire-resistant circuit-integrity types, low-smoke zero-halogen (LSZH) jackets for enclosed spaces, and photovoltaic or welding cables for niche needs.
Organising your technical spec with a single electrical cable types list ensures the right families and variants are considered at the design stage rather than during emergency replacement.
Each row in a useful electrical cable types list should answer four basic questions:
Conductor: copper or aluminium, solid or stranded, and conductor class for flexibility. Copper is typical where conductivity and reliability matter.
Insulation: temperature rating and dielectric chemistry—XLPE and EPR raise ampacity and long-term thermal limits compared with basic PVC.
Sheath/jacket: how the cable resists oil, UV, abrasion and smoke—LSZH vs PVC vs neoprene each has tradeoffs.
Mechanical protection: whether the cable requires steel wire armour, steel tape armour, or a simple jacket for the planned routing.
A well-designed electrical cable types list presents these elements in a compact, comparable table so engineers and buyers can make apples-to-apples choices.
An electrical cable types list is only useful alongside ampacity and voltage-drop calculations. The list should link each conductor size to:
Continuous ampacity, adjusted for bundling, ambient temperature and insulation rating.
Short-circuit withstand and maximum short-time conductor temperature (important for motor feeders).
Voltage drop per 100 m so long runs don’t starve motors or sensitive electronics.
When you pair the list with a simple spreadsheet or calculation tool, you avoid common errors like undersizing for voltage drop or oversizing and wasting material.
For tunnels, transit stations, hospitals and other public spaces, your electrical cable types list must highlight fire performance:
Low-smoke zero-halogen (LSZH) options to reduce toxic emissions and corrosive by-products.
Fire-resistant / circuit-integrity cables for emergency lighting and critical control circuits that must remain alive during a fire.
Relevant test standards and certificates so approvals and inspectors can accept the design.
Including these distinctions in the electrical cable types list avoids site delays and secures smoother handover.
Don’t let the jacket chemistry be an afterthought. A complete electrical cable types list flags recommended jackets by environment:
Outdoor or buried: UV-stabilised, moisture-resistant jackets with optional armour.
Chemical or oil-exposed sites: neoprene, PCP or other resistant compounds.
Reeled or mobile use: flexible elastomeric jackets and class-5 conductors.
Cold environments: compounds tested for low-temperature flexibility to avoid brittle breaks.
Designers and site teams can then treat the list as a checklist: environment → sheath → conductor class → installation method.
The most useful electrical cable types list doesn’t just name types — it also specifies the documentary evidence required at delivery:
Standard references (IEC, EN, BS, UL) and relevant harmonised markings.
Factory test values (hipot, insulation resistance, D.C. resistance at 20 °C).
Batch and mill certificates for critical projects.
Fire and smoke test reports where applicable.
By including the documentary gate in the list, procurement reduces substitutions and speeds site acceptance.
An action-oriented electrical cable types list should include terse installation notes for each family:
Minimum bend radius and maximum pulling tension.
Recommended glands and armour termination kits for armoured types.
Conduit or tray use guidance and de-rating factors for bundled cables.
Recommended terminations for flexible cables or control pairs.
These short notes save installers time and protect the cable’s rated behaviour in service.
Use the electrical cable types list to plan maintenance intervals and spares strategy:
Identify high-wear cable families (reels, temporary leads) and stock spare lengths.
Plan thermographic inspections for high-current terminations.
Track installation batch numbers so any manufacturing issues can be isolated quickly.
Schedule replacement windows for cables in harsh exposures to avoid emergency work.
A list that ties design to lifecycle planning protects uptime and budgets.
We combine field experience, standards knowledge and supplier test evidence to deliver an electrical cable types list tailored to your project. Our approach:
Start with system function and routing (distribution, control, mobile).
Match voltage class and conductor sizing using ampacity and voltage-drop rules.
Choose insulation and sheath chemistry for environment and fire policy.
Specify mechanical protection and termination kits.
Attach the exact test certificates and mill documentation you need for acceptance.
This is a practical, procurement-grade list — not a vague catalog excerpt — and it makes tendering and installation straightforward.
When preparing a specification or RFP, include this minimal per-item information in your electrical cable types list:
Type name and harmonised designation.
Conductor material and cross-section (mm²).
Insulation and sheath material with temperature rating.
Voltage class and ampacity reference.
Mechanical protection and minimum bend radius.
Required test certificates and batch traceability.
Recommended termination kits and installation notes.
Using that checklist you’ll get quotes that are comparable, verifiable and fit for purpose—every time.
