Sep. 23, 2025
In industrial control systems, the cable that carries a signal is as important as the device that reads it. A carefully prepared kvvrp cable specification removes doubt during procurement, reduces commissioning delays, and prevents costly field rework. This article explains what specifiers, installers, and plant managers should expect from a modern screened control cable and how to use the kvvrp cable specification to ensure long-term reliability.
When control signals wander or equipment trips without cause, the root often lies in poor cable selection or lax installation practice. A concise kvvrp cable specification defines conductor sizes, screening method, sheath material, mechanical protections, voltage class, and acceptance tests — all in one place. Providing these details up front shortens vendor responses, accelerates approvals, and gives installers a reference to deliver a correct installation the first time.

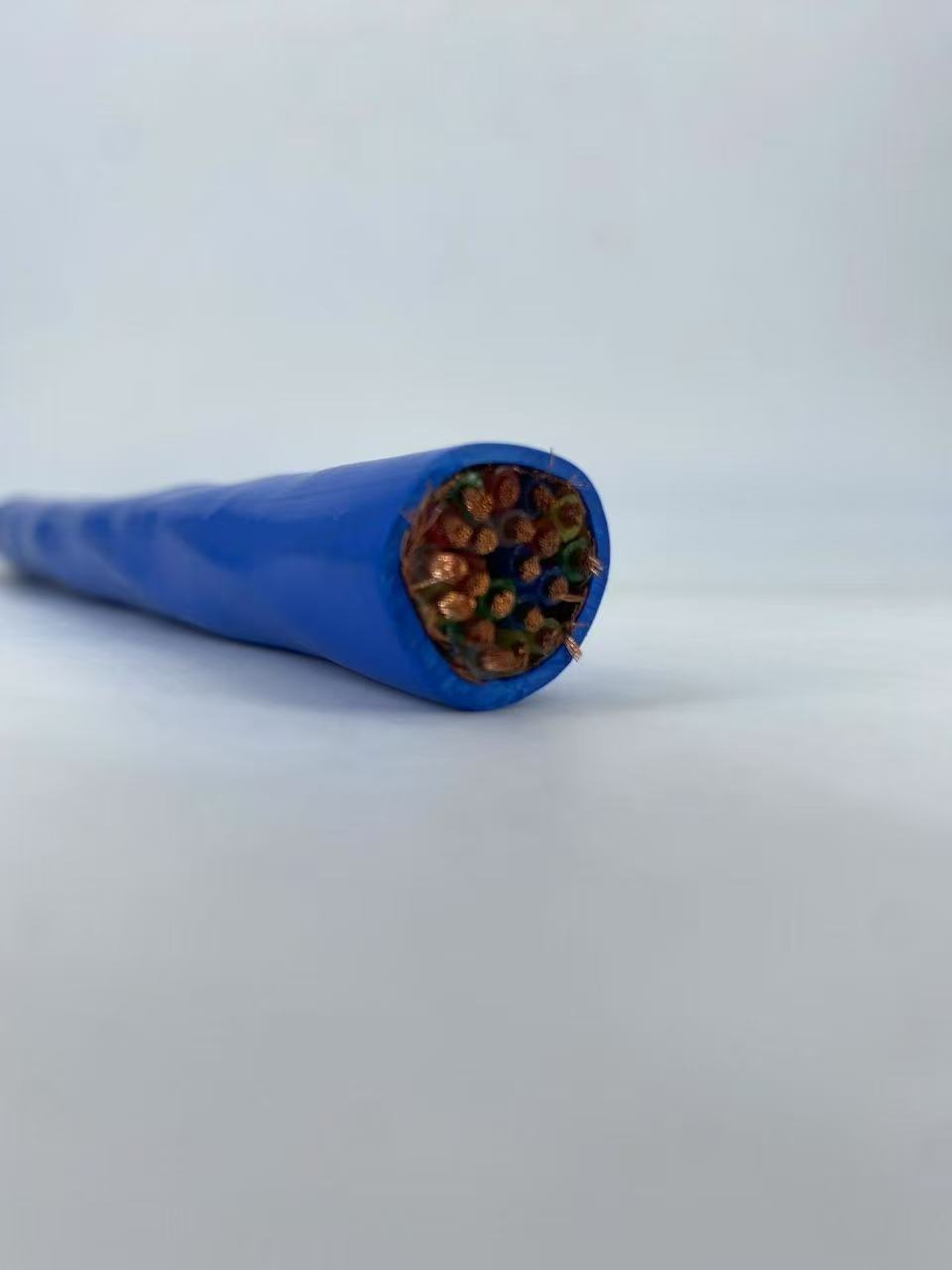

The kvvrp cable specification typically describes a screened, PVC-insulated multi-core control cable with the following elements: stranded copper conductors for low resistance and flexibility, PVC (or optional XLPE) insulation, an internal bedding and filler to hold cores stable, a copper tape or braid screen for electromagnetic compatibility, and an outer PVC sheath to resist oils and abrasion. Some variants include steel tape or wire armour for mechanical protection in trenches or exposed runs. 优瑞升电缆+1
Most control-class cables in this family are rated at 450/750V; the kvvrp cable specification should state the U₀/U rating explicitly, along with conductor maximum operating temperature (common PVC rating: 70°C; XLPE variants higher). These numerical values are the baseline for matching cable to system voltage, environmental temperature, and conduit capacity. 奇凡+1
Modern plants are electrically noisy environments: drives, contactors, transformers and frequency converters all produce interference. The kvvrp cable specification must state the type of screen (tape vs braid), coverage percentage, and required termination practice. A copper braid provides mechanical flexibility and good coverage, while copper tape gives continuous low-frequency shielding — each has trade-offs which should be matched to the installation’s EMC risks.
By including armour options and sheath chemistry in the kvvrp cable specification, project teams ensure the cable is suitable for its intended route. Armoured variants are appropriate for buried ducts, direct burial, or runs through areas with heavy mechanical load. For indoor protected runs, a non-armoured screened cable often suffices and offers easier handling. Practical applications include factory automation, processing plants, rail and tunnel infrastructure, and mining control circuits. 特变电工电缆
A good kvvrp cable specification balances flexibility with electrical performance. Typical conductor sizes range from small signal cores (0.5–0.75 mm²) up to 1.5–2.5 mm² or greater for control circuits with higher current. Specify conductor cross-section to limit voltage drop, avoid overheating, and match termination hardware. Also specify core counts and color coding so installers can terminate quickly and without mistakes.
The spec must define maximum continuous operating temperatures and short-circuit temperature allowances (PVC and XLPE differ significantly). It should also quote minimum bending radii: non-armoured screened control cables commonly require a multiple of cable diameter (e.g., 6–8×), while armoured or tape-screened variants often require larger radii (e.g., 12×) to avoid conductor strain. These values protect long-term conductor integrity and are routinely enforced at inspection. 新绿星电缆+1
To prevent substitution or field shortcuts, append installation guidance to the kvvrp cable specification: recommended pulling tensions, approved lubricants, minimum tray spacing, grounding and screen termination instructions, and environmental sealing methods for damp runs. Stipulating termination kits and glands at procurement reduces field improvisation and ensures continuity of the screen and armour.
A strong kvvrp cable specification defines delivery acceptance tests: conductor resistance checks, insulation resistance or high-pot testing, and visual inspection for sheath damage. Require mill test certificates and batch traceability; demand sample reels for validation where critical. Clear pass/fail criteria reduce disputes and accelerate commissioning.
Choosing the right cable up front reduces maintenance and replacement cycles. The kvvrp cable specification should steer buyers toward materials and screening that minimize false trips and electromagnetic faults, lowering the mean time to repair and improving system availability. When quoted over years of service, the slightly higher initial price of a correctly specified screened cable typically yields a lower total cost of ownership.
If runs cross public spaces or escape routes, specify flame-retardant and low-smoke, zero-halogen (LSZH) sheath options in the kvvrp cable specification. These variations reduce toxic emissions and smoke density during a fire event, aiding evacuation and protecting equipment. Where chemical exposure is likely, request oil- and solvent-resistant jacketing as an option.
When issuing an RFQ, include this concise checklist to ensure vendor responses are comparable:
Exact core count and conductor cross-section (mm²).
Voltage rating U₀/U and maximum conductor temperature.
Screen type (tape or braid) and termination method.
Sheath material and any flame/smoke requirements.
Armour option if mechanical protection is needed.
Required standards and test certificates (mill test, insulation test).
Packaging, labelling, and batch traceability requirements.
Provide installers and maintenance crews with a short maintenance annex: frequency of visual inspections, infrared scanning of terminations, how to record faults and batch numbers, and approved repair and splice procedures. Linking these practices back to the original kvvrp cable specification ensures consistent, auditable repair actions.
A mid-size plant faced sporadic PLC faults traced to EMI on long control runs. Replacing exposed multicores with properly screened control runs designed to the kvvrp cable specification eliminated most spurious alarms and reduced reactive maintenance calls. Because the specification included termination details, the installation team implemented consistent earthing and screen terminations — measurable wins in availability and repair cost reduction.
Write your kvvrp cable specification with decisive, numeric detail. Avoid vague language that allows substitutions. Require traceability, insist on sample validation for critical runs, and include installation best practices with the tender. These relatively small up-front steps prevent expensive rework and safeguard signal integrity for the life of the installation.
A well-crafted kvvrp cable specification does more than describe a cable — it sets expectations for performance, installation quality, and lifetime reliability. Use it to unify engineers, procurement, and installers around the one product that will carry your system’s most important signals.
