Sep. 26, 2025
When equipment must move, bend, and continue working in harsh conditions, the right cable isn’t just convenience — it’s critical reliability. The YC-450/750V family of cables is engineered for exactly those demands: flexible copper conductors, durable rubber insulation and sheathing, and voltage ratings that make them suitable for a wide range of portable and fixed installations. In environments where abrasion, oil, and mechanical stress are common, specifying YC-450/750V garments your systems with a cable that endures.
The “450/750V” rating indicates the cable’s nominal voltage class and is a reliable reference for matching cable to equipment and system voltage. In practice, YC-450/750V products are designed to serve portable power leads, trailing cables, and flexible supply lines under AC systems that do not exceed this class. These cables typically combine stranded copper conductors with rubber-based insulation and an oil-resistant outer sheath to maintain performance in tough field conditions. VWCable+1

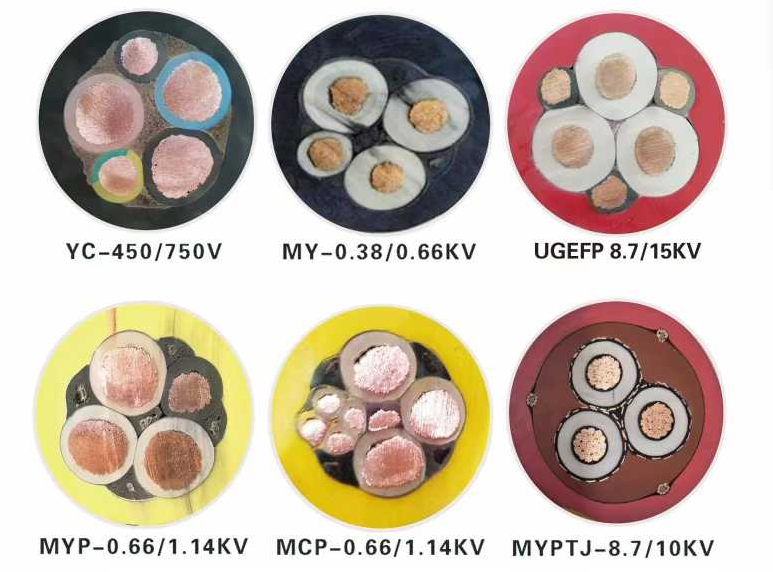

A typical YC-450/750V cable is assembled to deliver both electrical performance and mechanical resilience:
Stranded copper conductors provide low resistance and flexibility for repeated bending.
Rubber insulation (EPR, PCP, or similar elastomers) resists heat and preserves conductor isolation under flexing.
Rubber or CPE outer sheath offers abrasion, oil and weather resistance for outdoor and industrial use.
This combination ensures the cable keeps delivering power and control signals even when operators tug, wrap, or scrape the conduit during normal work cycles. CNCableWire+1
Portable machinery and power tools: the cable’s flexibility and durability make it ideal for tools and movable appliances that require frequent repositioning.
Construction and site equipment: robust jacketing stands up to abrasion, gravel, and the general wear of a construction environment.
Mining and heavy industry: models related to YC often appear in trailing cable roles and in flexible power supplies that must resist oil and mechanical damage.
Welding and maintenance equipment: where heat and mechanical movement are routine, the cable’s rubber composition helps preserve service life. SHENZHEN DONGJIAXIN WIRE&CABLE CO.,LTD+1
When you specify YC-450/750V, expect manufacturers to publish the following measurable attributes:
Nominal voltage class (450/750V) and test voltage values.
Continuous operating temperature — typically in the range that suits EPR/PCP rubbers (manufacturers commonly list conductor temperature limits around 60–70°C for rubber types).
Minimum bending radius and flexibility metrics — essential for routing through equipment and conduits without damaging conductor strands.
Mechanical and chemical resistance — abrasion, oil, and UV resistance values for the sheath.
These concrete parameters let engineers and procurement teams match the cable to the practical realities of the site. 新鲁兴电缆+1
Not every YC product is identical. When choosing a YC-450/750V cable, consider:
Core count and conductor cross-section (mm²) — choose sizes that limit voltage drop and suit the drive or motor starting currents.
Sheath compound — for outdoor or oil-exposed runs, select formulations designed for those specific stressors.
Flame and smoke performance — if routing through public or escape routes, select a flame-retardant or low-smoke variant as required.
Length and drum handling — plan delivery and site handling to avoid excessive tension during pulling.
A careful selection process reduces failures, speeds commissioning, and simplifies maintenance plans.
Correct handling during installation preserves the YC cable’s performance edge:
Respect bend radii: Adhere to manufacturer recommendations to avoid conductor damage.
Avoid excessive pulling force: Use rollers or cable lubricants approved by the cable vendor for long pulls.
Protect terminations: Use appropriate glands and strain relief to prevent moisture ingress and mechanical stress at connection points.
Label and record: Maintain reel and batch numbers at installation for traceability and warranty purposes.
These practices help the cable achieve the lifetime your budget expects.
Routine checks extend service life and prevent surprises:
Visual inspections for cuts, abrasion, or chemical damage on exposed runs.
Infrared scans at terminations to detect early hot spots before failure occurs.
Scheduled replacement windows in the most demanding zones to avoid sudden breakdowns.
Documenting these steps together with original product batch data ensures quick root-cause analysis if problems arise.
Although a high-quality YC-450/750V cable may command a greater upfront cost than a generic flexible wire, the real savings come from reliability:
Reduced emergency repairs and downtime.
Lower labor and parts costs over multiple years.
Fewer unplanned replacements due to improved abrasion and chemical resistance.
In many industrial cases, the slightly higher initial investment pays back quickly as maintenance events fall and production stabilizes.
When specifying YC-450/750V, insist on certificates and test reports — especially for high-duty applications. Look for documented test voltages, insulation resistance and relevant third-party approvals where required by local regulations. If the application involves public spaces or escape routes, require flame retardant and low-smoke jacketing to meet safety expectations. VWCable+1
A medium-size contractor replaced generic flexible cords on a fleet of portable pumps with properly specified YC-450/750V cables. The new cables resisted abrasion and oil exposure while the correct conductor sizing reduced voltage drop under load. Within the first year, pump downtime related to cable failure fell dramatically, and maintenance crews reported fewer emergency repairs — a clear demonstration of how correct selection impacts operations.
Ask suppliers for the following to ensure comparable quotes:
Exact core count and conductor sizes in mm².
Confirmed nominal voltage of YC-450/750V and test voltage figures.
Sheath material composition and resistance properties.
Expected operating temperature range and bending radius.
Certificates, mill test reports, and traceability information.
Including these items in RFQs prevents ambiguity and raises the chance that delivered reels match field needs.
For mobile power leads, trailing cables, and rugged flexible supplies, YC-450/750V stands out as a practical, proven choice. Its blend of flexibility, mechanical strength, and defined electrical ratings makes it well suited to construction, mining, welding, and many industrial applications. When you pair the right variant with careful installation and preventive maintenance, the result is predictable performance — and fewer interruptions to your operations.
