When a generator, mobile crane, pump reel or robot arm must move every day under load, the cable that supplies its power becomes as important as the machine itself. A well-designed copper conductor flexible cable delivers energy reliably while surviving thousands of bends, abrasion, oil exposure and the harsh handling common in industrial environments. This article is written for engineers, procurement managers and maintenance teams who need a practical, technical and buyer-ready guide to selecting, testing and installing flexible cables built with copper conductors.
(The phrase “copper conductor flexible cable” is used deliberately and naturally throughout for clarity and search relevance.)
Copper is the industry standard for flexible power and control cables because it combines excellent electrical conductivity with ductility. For flexible applications, copper conductors are manufactured as high-strand assemblies that reduce the mechanical stress that would otherwise break larger, stiffer strands.
A copper conductor flexible cable must meet two primary aims:
Electrical performance: low DC resistance, stable conductivity under load, and predictable ampacity.
Mechanical resilience: conductor geometry and strand class engineered to survive continuous bending and handling.
When both aims are met, the cable reliably supplies power with minimal voltage drop and far fewer in-service failures than poorly specified alternatives.

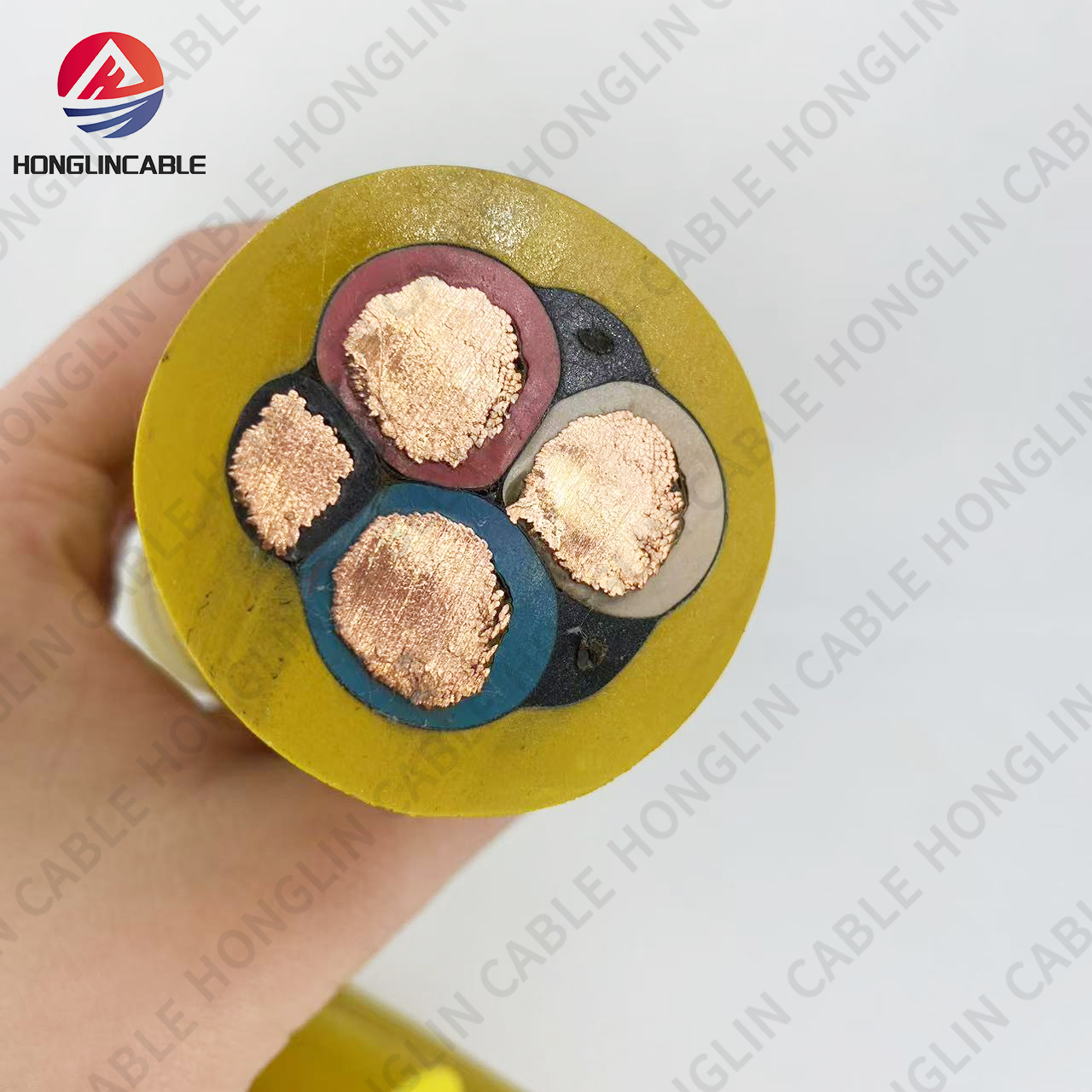

Understanding the layers helps you specify the right product:
Conductor core: For flexibility, prefer fine-stranded copper (Class 5 or higher per national standards) or specialized flex classes. In particularly corrosive environments, tinned copper strands improve corrosion resistance.
Insulation: Elastomeric insulations like EPR, silicone, or thermoset compounds provide mechanical cushioning and dielectric strength. For control and data cores, polymer insulations tuned for capacitance and impedance stability are used.
Inner bedding/fillers: These keep the core round, reduce local indentation, and can incorporate water-blocking materials if wet duty is expected.
Screening/shield: For sensitive control lines or long motor feeders, metallic shields (braid or tape) reduce external electromagnetic interference and provide a return/earth path.
Outer jacket: The visible defense — choose compounds (PUR/TPU, CPE, neoprene) based on abrasion, oil, chemical and UV exposure.
A complete datasheet will quantify conductor strand count, insulation thickness, minimum bend radius and jacket properties — demand those numbers.
Conductor strand geometry is the single most important variable for longevity in moving use. Higher strand counts (hundreds to thousands of filaments) yield better flex fatigue life but increase manufacturing cost. When evaluating a copper conductor flexible cable, consider:
Application duty: continuous flex vs occasional repositioning. Continuous flex (robotic energy chains, reeling drums) requires the highest strand counts and dedicated flex cables.
Drum diameter and bend radii: small drum IDs dramatically reduce conductor life for a given strand count — choose cable and drum as a system.
Environmental loads: repeated abrasion, chemical exposure or crush require complementary jacket and bedding design to prevent conductor strain concentrations.
Vendors should provide strands per conductor, flex class (if applicable), and ideally a flex-cycle test report at your drum diameter.
Portable power reels and pump leads: A flexible copper conductor cable that is rated for repeated spooling reduces emergency replacements at remote sites.
Mobile machinery and cranes: Flexible jumpers between moving frames and fixed supplies must tolerate flex and mechanical shock.
Robotic energy chains and factory automation: Continuous flex is the norm; only purpose-designed continuous-flex copper conductor cables survive these cycles.
Mining reels and trailing leads: Tough jackets plus tinned copper conductors resist corrosion and mechanical abuse underground.
Temporary power on construction sites: A robust copper conductor flexible cable endures dragging, kinks and weather exposure far better than standard cords.
Each of these contexts imposes a different failure mode; match cable construction to the dominant risk.
To avoid guesswork and ensure long service life, include the following numeric acceptance criteria in any RFQ for a copper conductor flexible cable:
Conductor details: mm², exact number of strands per conductor, flex class standard reference.
DC conductor resistance: Ω/km tolerance per IEC/ASTM standard.
Minimum bend radius: expressed as × outer diameter for static and dynamic conditions.
Flex/cycle life: cycles-to-failure (or pass criteria) at the actual drum or bend diameter you will use; include test protocol.
Insulation thickness and dielectric strength: specify mm and kV/mm.
Jacket material and mechanical metrics: Taber abrasion cycles, tear strength (N/mm), and oil/chemical swell percentages.
Temperature range: continuous and short-term peak operating temperatures.
Water-blocking and hydrostatic test data if used in wet duty.
Per-reel test certificates: insulation resistance (MΩ), hipot (kV) and mechanical test summaries linked to reel lot numbers.
Termination compatibility: list approved glands, boots and potting materials that match jacket chemistry.
Require vendors to return test reports and to mark each reel with a lot number that appears on the certificates — that traceability is the single most effective defence against poor batches.
Even a high-quality flexible cable can fail fast if mishandled. Enforce these rules on site:
Use the recommended drum diameter for spooling and controlled tension when reeling.
Maintain the specified minimum bend radius at pulleys and terminations.
Route over smooth rollers or protective plates at change-of-direction points.
Fit sacrificial spiral wraps or sleeves in predictable abrasion zones.
Use termination kits specified for the jacket material to avoid chemical incompatibility.
Keep reels stored upright, clean and protected from UV and solvents before use.
Training installation crews on these few practices typically doubles field life.
A copper conductor flexible cable is only as good as its termination. Poor glands, mismatched boots, or crushed clamping often create focal points that concentrate strain and allow water ingress.
Match glands and seals to the jacket compound (PUR glands for polyurethane jackets, oil-resistant elastomer boots for CPE jackets).
Use strain reliefs that distribute pulling force over a section of jacket rather than a single clamp point.
For continuous-flex applications, use flexible bending GRP or molded boots that maintain bend radii through the transition.
Test each terminated assembly with insulation resistance and, where applicable, a short acid or water immersion test to validate seal integrity.
Document termination methods in your installation pack and require vendors to support training.
A practical inspection program removes surprises:
Daily visual check for cuts, flattening, or exposed conductors.
Weekly checks at wear points and terminations.
Monthly insulation resistance trending at critical feeders.
Track flex cycles for reeling reels and retire reels proactively based on vendor cycle data.
Keep spare reels from the same batch for mission-critical lines.
A proactive replacement schedule based on measured cycles is far cheaper than reactive splicing and emergency procurement.
Choose suppliers who:
publish complete datasheets (not just marketing blurbs),
provide per-reel test certificates and lot traceability,
offer flex/cycle test reports measured at realistic drum diameters,
support termination training and approved accessory lists, and
supply field references for similar duty applications.
A supplier that stands behind measured evidence is easier to work with when issues arise.
Premium flexible cables cost more per metre, but the total cost of ownership usually favours quality:
fewer emergency replacements and splices,
lower labour and downtime cost,
improved safety and fewer unexpected faults, and
predictable lifecycle allowing planned maintenance budgets.
When uptime matters, the small initial premium for a correctly specified copper conductor flexible cable often repays itself in months.
conductor mm² and exact strand count
conductor DC resistance (Ω/km) and flex class reference
minimum bend radius (static & dynamic)
flex/cycle life at specified drum diameter (test protocol)
insulation type, thickness and dielectric rating
jacket compound, Taber abrasion cycles, tear strength, oil resistance
operating temperature range and cold-flex data
per-reel certificates tied to reel lot numbers
approved glands/boots & termination procedures
lead time, MOQ, warranty tied to measurable acceptance tests
A copper conductor flexible cable is an engineered product: conductor geometry, insulation, jacket chemistry, and verified test evidence must align with the real working conditions on your site. Insist on numeric test reports, per-reel traceability and correct handling practices. Do this and your power leads will be assets that keep equipment running — not recurring liabilities that drain maintenance budgets.
