When automation, instrumentation or machinery depend on precise signals, the right control cable is the difference between reliable operation and frustrating downtime. Control cables carry control and instrumentation signals between PLCs, sensors, motors and panels; they must protect low-voltage signals from noise, endure mechanical abuse, and meet the environmental and regulatory requirements of the site.
A well-chosen control cable reduces false trips, prevents costly troubleshooting, and simplifies installation and maintenance — outcomes every operations manager wants. This guide explains what to specify, how to compare products, and which practical choices deliver long-term value.
Not all multi-core cable is suitable for control systems. A proper control cable is typically a multi-conductor assembly where conductor sizing, insulation, geometry and shielding are designed to preserve the integrity of low-voltage signals over the required distance and in the environment. Typical features you’ll see on supplier datasheets include conductor AWG or mm² sizes, overall and individual conductor insulation types, shield construction (aluminium foil, braided drain), jacket chemistry and voltage rating.
Choosing a control cable without these numbers is risky — pictures and vague descriptions won’t tell you about impedance, crosstalk or long-term flex life.
Industrial environments are noisy: VFDs, motors and heavy switching create electromagnetic interference that will corrupt unprotected control signals. The right control cable uses appropriate shielding — a foil shield for high-frequency interference, a braid for high coverage and mechanical protection, or a combined foil-plus-braid for the best of both worlds. Matched to good grounding practice and proper termination, the right shield keeps PLC inputs stable and prevents spurious trips.
If you are routing cable alongside power feeders, choose a shielded control cable and route it with separation or in conduit to further reduce induced noise.
The jacket on your control cable is the armor that matches the wire to its environment. For indoor clean-room use, PVC or standard thermoplastic jackets are common; for outdoor, tray, or oil-exposed locations choose UV-resistant and oil-resistant compounds like PE, LSZH (low smoke zero halogen) or EPDM. In tunnels, ships or areas with strict fire codes, low-smoke halogen-free jackets are often required. Match the jacket to exposure — it’s one of the most reliable ways to reduce replacement frequency.
Flex life and mechanical robustness are determined by conductor construction. For stationary wiring inside panels a standard stranded conductor is fine; for cable that must flex or be routed through moving harnesses, choose fine-strand or extra-flex constructions. The right control cable conductor keeps terminations clean and crimpable, resists strand breakage and reduces intermittent faults over the life of the machine.
Control cables often carry low voltages, but proper insulation and rated voltage matter for safety and long-term reliability. Look for vendor datasheets showing rated voltage (commonly 300/500 V or 600 V class for industrial control), operating temperature range, and compliance marks (UL, CSA, VDE, or IEC). The control cable you select should meet local code and project specifications to avoid costly rework.
Control applications use a wide range of core counts: 2-core for simple relay control, 4–12 cores for multi-signal groupings, and larger multi-core cables for complex instrument clusters. Choose a control cable with the right conductor size and an outer jacket that fits your ducting and gland sizes — oversize bundles complicate installation and can stress termination space inside panels.
If the route exposes cable to mechanical impact, rodents, or heavy traffic, consider armoured control cable (steel tape or wire armour) or a robust outer jacket. Armouring raises the unit price, but in heavy industrial settings it frequently saves money by avoiding accidental cuts and crushing damage.
How a control cable is terminated and tested is as important as the cable choice. Use ferrules or terminal blocks sized to the conductor, ensure shields are carefully terminated to earth at a single point to avoid ground loops, and document continuity and insulation resistance testing after installation. For critical systems, perform a loop check and functional test before commissioning; poorly made terminations are one of the most common causes of intermittent control issues.
Installers often damage cable during pulling. Respect the manufacturer’s minimum bend radius, use lubricant for long conduit pulls, and avoid pulling by the jacket which can stretch insulation or separate inner fillers. Plan routing to minimize tight bends and chafing points — a properly installed control cable will last far longer and avoid costly troubleshooting.
When suppliers price a control cable, make sure your RFQ includes these fields so quotes are comparable:
conductor material and size (AWG or mm²) and strand count;
insulation type and thickness;
shield type (foil, braid, foil + braid), percent braid coverage and drain wire;
jacket compound and rated temperature range;
voltage rating and relevant approvals (UL/CSA/IEC); and
overall diameter and minimum bend radius.
A tight RFQ produces apples-to-apples pricing and avoids surprise substitutions that can cost time and money.
A low unit price for a basic unshielded control cable might look attractive, but calculate the installed cost over time. Shielded, oil-resistant or LSZH options cost more up front but reduce replacement and incident costs in harsh environments. For mission-critical automation, investing slightly more in the right control cable often delivers lower total cost of ownership.

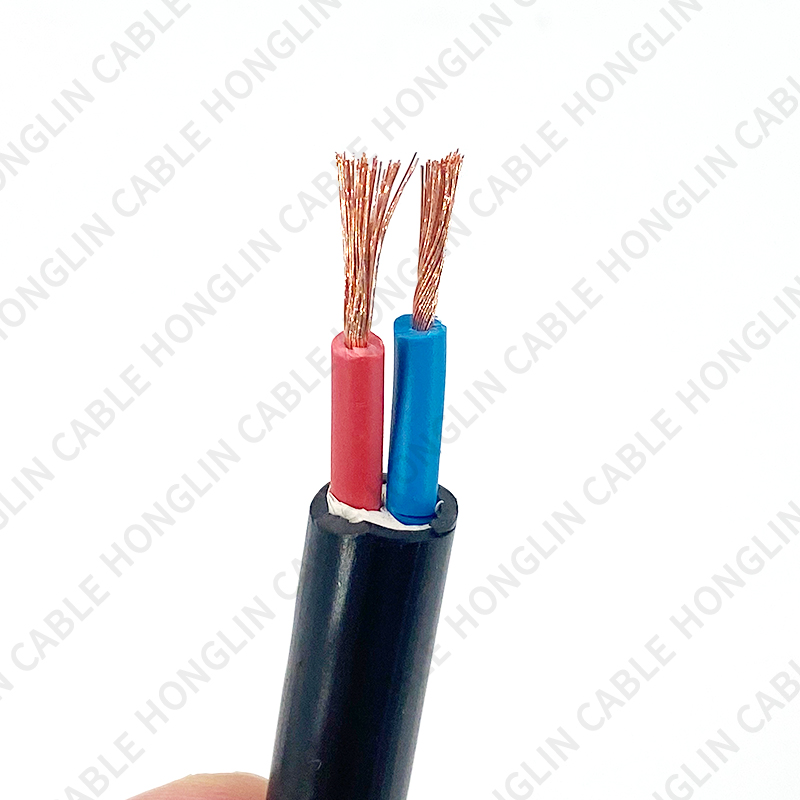

Panel internal wiring and short sensor runs: unshielded, fine-strand control cable with PVC jacket.
Long runs near power distribution or VFDs: shielded control cable with foil + braid.
Outdoor or oily environments: oil-resistant jacket (EPDM or specialized compounds).
Marine or tunnel projects: LSZH or flame-retardant jackets with appropriate marine approvals.
Match the control cable selection to the use case — the right match prevents failures.
For large orders, request sample reels and run acceptance tests: continuity, insulation resistance, physical flex testing and a small load test where applicable. A short sample validation catches substitutions and confirms the cable handles your intended routing and termination practice.
Add a simple maintenance routine: visual inspection of exposed runs, torque checks on terminal blocks, periodic insulation resistance testing for long runs in humid environments, and thermal scans of high-density terminations. A well-maintained control cable installation avoids surprises and extends asset life.
Treat the control cable buy as an engineering decision: specify conductor and shielding needs, match jacket chemistry to environment, demand datasheets and approvals, and require sample acceptance testing for mission-critical orders. When you buy with data and verify on-site, your control installations run cleaner, with fewer trips and easier maintenance — exactly the outcome operations teams aim for.
