When your system depends on a submerged motor, the cable between the control box and the pump is far more than a simple line—it is the lifeline that carries power, protects equipment, and keeps technicians safe. For every contractor, well driller, and facilities manager, choosing the right submersible pump cable is a decision that affects uptime, maintenance costs, and long-term system performance.
This guide covers what to look for, why specific features matter, how to select the right size, and practical installation advice you can rely on.
A proper submersible pump cable is engineered for continuous immersion, mechanical wear, and electrical reliability. That means several critical attributes must be present:
Stranded copper conductors sized to handle the pump’s full-load current without excessive voltage drop.
Waterproof, mechanically robust insulation and an outer jacket that resists abrasion and common chemicals found in wells and drainage systems.
Construction that supports either a flat orientation for tight boreholes or a round geometry for long, free-hanging runs.
A temperature rating and voltage class that match the installation environment and local electrical code.
Choosing a cable that meets these criteria reduces the risk of motor damage, prevents frequent failures, and saves money over the lifetime of the system.
Before ordering a submersible pump cable, always confirm these items on the datasheet:
Conductor Size & Stranding — The cross-sectional area (mm² or AWG) and stranding pattern affect conductivity and flexibility. For deep wells and long runs, heavier conductors reduce voltage drop.
Number of Conductors — Common configurations include 3 conductors plus earth for single-phase motors, or 4 conductors for three-phase installations.
Insulation & Jacket Materials — Materials like PVC, XLPE or neoprene each offer different balances of flexibility, thermal resistance, and chemical robustness. Match material to application.
Voltage & Temperature Ratings — Confirm the cable’s nominal voltage and operating temperature range to ensure compatibility with your equipment and environment.
Outside Diameter & Minimum Bend Radius — These affect how the cable installs in confined spaces or inside pump columns.
Termination & Seal Options — Factory sealed ends or compatible gland kits reduce the most common failure point: water ingress at the termination.
A well chosen submersible pump cable will list each of these clearly and include ampacity charts or tables mapping conductor size to pump horsepower and run length.
One of the most common mistakes is undersizing the power cable. When current travels through a conductor, voltage drop occurs; over long distances this reduces motor torque and efficiency. Use the pump’s full load amps and the run length as the basis for selecting conductor gauge. Where resistance calculations are complex, consult manufacturer tables—many datasheets include example sizing charts for common pump horsepower and lengths.
A correctly sized submersible pump cable prevents overheating, maintains starting torque, and extends motor life. If in doubt, err on the side of the next heavier conductor—the modest up-front cost is often repaid quickly through reduced failures.
Not every installation faces the same exposure. Your choice of submersible pump cable material should align with site conditions:
Freshwater wells & domestic use: PVC insulated and jacketed cables often suffice when the environment is benign and temperature fluctuations are moderate.
Agricultural and irrigation systems: Look for UV resistance and stronger abrasion protection—cables can be dragged across rough ground.
Marine or saline environments: Neoprene or specially formulated polymer jackets offer superior resistance to salt and chemical corrosion.
Industrial dewatering: Where chemicals or oils might be present, choose a jacket specifically rated for chemical resistance.
Matching material to the environment keeps performance predictable and reduces costly early replacements.

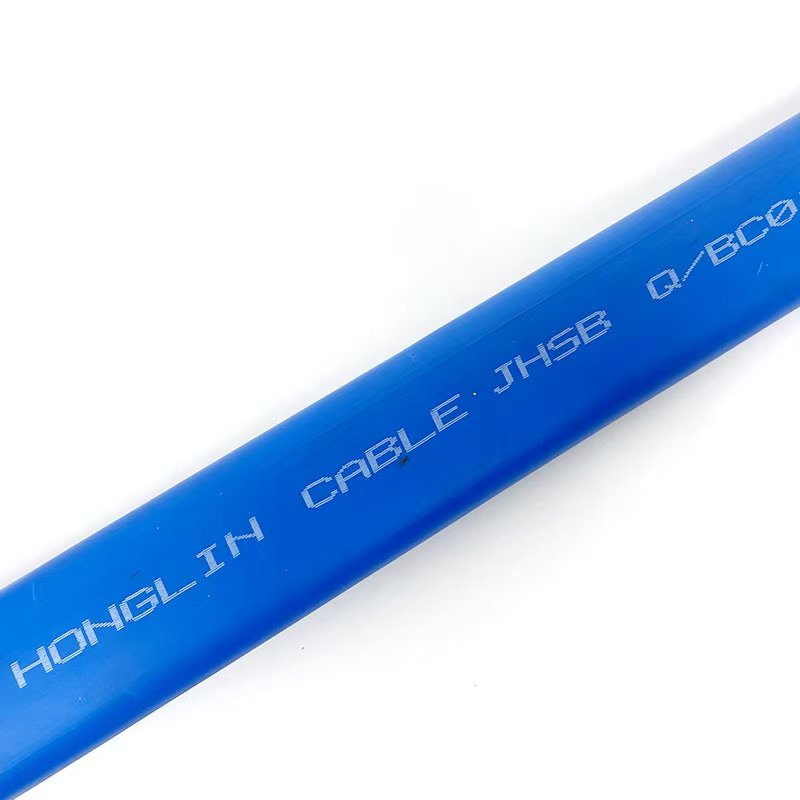

Submersible cables are typically available as flat or round constructions:

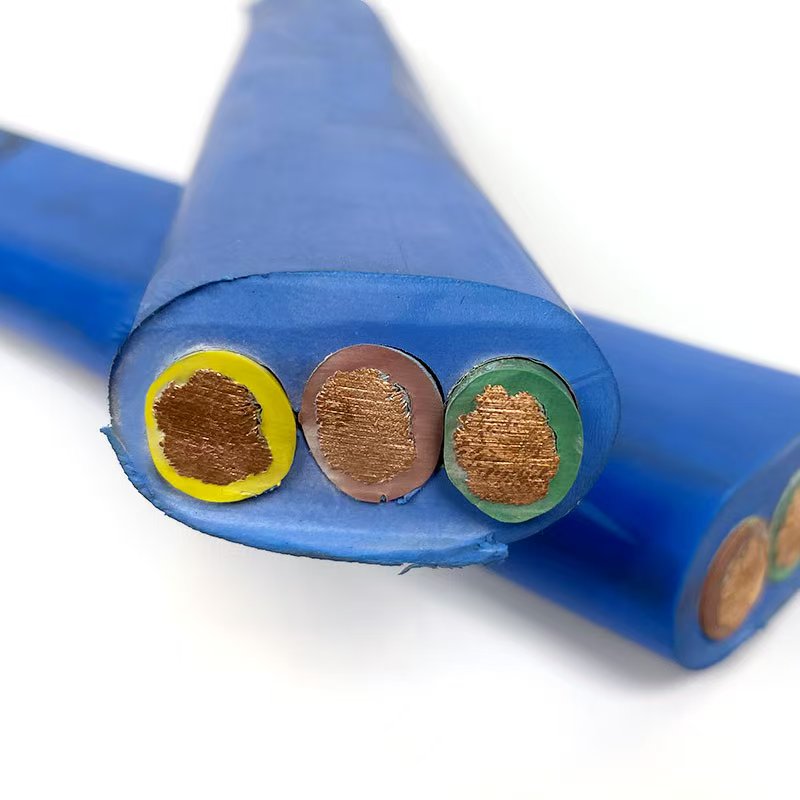

Flat cables tuck neatly beside piping and can be easier to install in narrow pump columns or when laying along a guide rail.
Round cables are preferable when the run is long, free-swinging, or when the cable must flex repeatedly during operation.
A datasheet for each submersible pump cable should explain recommended use cases. Choose the form factor that simplifies installation while meeting mechanical constraints.
Most failures occur at the cable termination. Water ingress, poor sealing, or mechanical strain at the connection point quickly leads to insulation breakdown. To avoid this:
Prefer factory-sealed terminations where available.
If field terminations are required, use tested sealing kits and follow manufacturer procedures precisely.
Provide strain relief and secure the cable above the wet zone to prevent pulling on the termination.
A robustly sealed submersible pump cable termination is one of the best investments you can make in preventing downtime.
Uncoil carefully: Avoid kinks and sharp bends. Respect the minimum bend radius on the cable’s specifications.
Protect against chafing: Use protective sleeves where the cable contacts pipe or structural edges.
Secure the run: Clamps or tie points every few meters reduce motion and stress.
Label and document: Record cable part numbers, installation depth, and termination type for faster troubleshooting.
Test before finalizing: Insulation resistance (megger) tests prior to submersion confirm there were no handling damages during installation.
Following these steps preserves the life of your submersible pump cable and simplifies future maintenance.
A municipal dewatering project experienced repeated pump motor failures caused by brittle, underspecified cables. After switching to a heavier, factory-terminated submersible pump cable with a more robust jacket and higher temperature rating, the same pumps ran continuously for seasons without further cable-related issues—reducing both repair costs and downtime.
In another case, an irrigation contractor standardized on flexible, UV-stabilized submersible pump cable for portable well systems. The improved handling and reduced maintenance translated to faster installs and fewer field calls.
Inspect visible lengths annually for abrasions or cuts.
Check terminations for signs of corrosion or moisture ingress.
Replace any cable with compromised jacket or broken strands—never splice when submerged unless using a rated splice kit.
Keep the manufacturer’s datasheet on site; it is the authoritative reference for replacement or troubleshooting.
A modest maintenance program protects the investment in your submersible pump cable and the motors they supply.
When you select a cable, insist on full datasheets with clear conductor dimensions, ampacity tables, insulation/jacket material listings, and temperature/voltage ratings. That transparency allows technicians to make informed choices rather than guessing—and avoids dangerous installations that put people and equipment at risk.
Selecting the correct submersible pump cable is an exercise in matching electrical requirements, environmental conditions, and installation mechanics. Prioritize complete specifications, proven materials, and secure terminations. When those elements align, your system will deliver reliable performance, lower lifecycle costs, and fewer emergency repairs.
If you need assistance comparing options for a specific pump model or installation depth, a single datasheet review with a qualified supplier will quickly confirm the correct conductor size, jacket type, and termination option—eliminating uncertainty and protecting the whole system.
