Buy with confidence from the right China MYP cable factory

When your operation depends on reliable mobile power — pumps, reeling feeders, conveyors, mobile crushers — the cable you buy must survive reels, abrasions, oil, water and repeated flexing. A proactive procurement team buys more than raw metres: they buy documented performance. A well-run China MYP cable factory supplies product that arrives labelled, tested, and ready to install. This guide explains exactly what to expect from a credible factory, which numeric test evidence to demand, how to write RFQs that produce comparable quotes, and the acceptance checks that keep bad reels out of service.

(Throughout this article the phrase China MYP cable factory is used deliberately and naturally so that buyers and engineers find copy that answers practical questions — not vague marketing claims.)

What “MYP” means and why factory choice matters

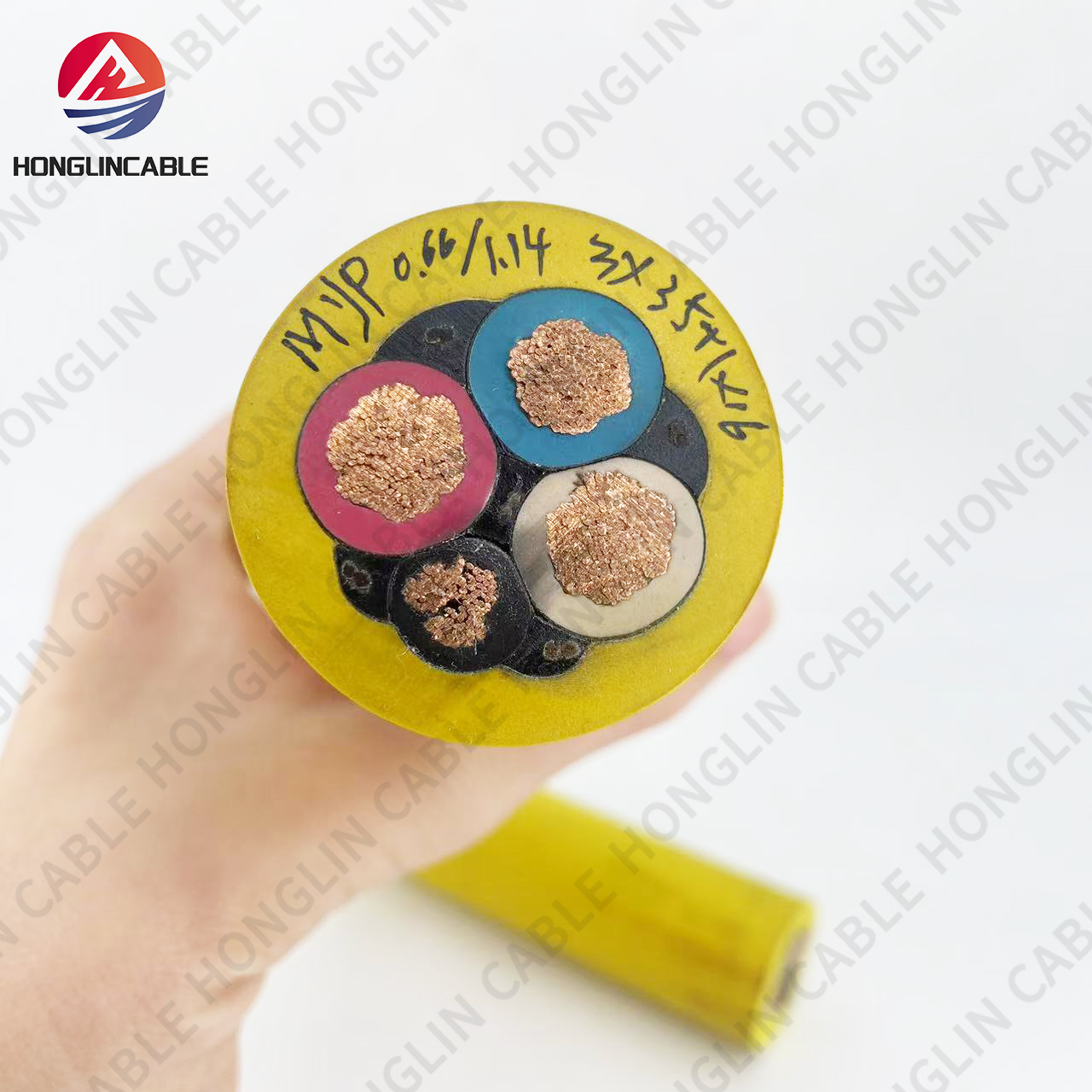

MYP denotes a family of mobile, rubber-sheathed mining cables used for flexible power connections. The right China MYP cable factory will design and test the entire assembly — conductor, insulation, bedding, screen and jacket — to meet the specific mechanical duty you expect:

• Conductor: fine-stranded copper (or tinned copper) sized for ampacity and flex life.

• Insulation: elastomeric or cross-linked compounds chosen for dielectric endurance and flex behavior.

• Water-blocking: gel, swellable tapes or sealed cores for wet or submersible leads.

• Outer jacket: compounds (CPE, neoprene, PUR/TPU) selected for abrasion, oil resistance and temperature range.

• Optional armor/shielding: where mechanical protection or earthing demands it.

A seasoned China MYP cable factory will present numeric datasheet fields for each of these elements rather than vague adjectives.

How to vet a factory — minimum evidence checklist

Before placing a PO, require the following items from any China MYP cable factory you shortlist:

1. Complete datasheet for the exact part number: conductor mm², exact strand count, insulation thickness (mm), jacket compound name and thickness, minimum bend radius, recommended drum ID for reeling and expected ampacity.

2. Per-reel test certificates — each delivered reel must include insulation resistance (MΩ), conductor DC resistance (Ω/km), and dielectric/hipot test values (kV). Certificates must reference the reel lot number printed on the drum.

3. Flex/reeling test report — cycles-to-failure or pass-at-N-cycles performed at the drum diameter you intend to use (this is non-negotiable for reeling duty).

4. Abrasion and puncture numbers — Taber cycles or equivalent and puncture/tear strength values.

5. Water/hydrostatic test results if the cable will be used in wet service (pumps, submersibles).

6. Material data sheets (MSDS) for conductor, insulation and jacket compounds to verify chemical compatibility with oils and fluids on your site.

7. Factory process documentation showing extrusion controls, in-process inspections and sample retention policies.

8. Export & packaging proof — photos of reel blocking, packing lists and prior export references.

A reliable China MYP cable factory will supply all of these items promptly and without evasive language.

How to write an RFQ that forces apples-to-apples bids

Use precise, numeric fields in your RFQ so suppliers return comparable offers. Copy-paste this block into tenders you send to a China MYP cable factory:

• Product: MYP rubber-sheathed flexible mining cable — U₀/U = [specify].

• Core configuration: [e.g., 3 × 50 mm² + 1 × 25 mm² (earth)]. Specify exact strand count per conductor.

• Insulation: compound name and insulation thickness per core (mm). Provide MSDS.

• Screen/armor: type (tinned copper braid / concentric conductors / corrugated steel tape) and coverage %.

• Water-blocking: method (gel / swellable tape / sealed cores) and required hydrostatic/immersion test evidence.

• Jacket: compound (CPE / neoprene / PUR/TPU), minimum jacket thickness (mm), Taber abrasion cycles to endpoint and tear strength (N/mm).

• Mechanical: minimum bend radius (×OD), recommended drum ID for reeling, tensile strength and elongation.

• Per-reel tests required: insulation resistance (MΩ), conductor DC resistance (Ω/km), dielectric/hipot (kV), flex/spool test summary — each certificate must reference reel lot number.

• Packaging & marking: private label printing, barcode/lot on reel face, packing photos.

• Lead time, MOQ, payment terms, warranty tied to per-reel acceptance tests.

Suppliers that return full numeric answers and attach sample test packs are true China MYP cable factory candidates.

Typical construction options and real tradeoffs

A professional factory will explain the tradeoffs rather than sell a single “one-size-fits-all” cable.

• Conductor strand count: for continuous reeling or energy-chain use, higher strand counts greatly improve fatigue life. Expect to pay more per metre for fine-wire stranding, but it often reduces lifecycle costs.

• Insulation chemistry: EPR or cross-linked elastomers vs silicone rubbers — choose based on operating temperature, ageing resistance and dielectric needs.

• Jacket selection: PUR/TPU offers the best abrasion resistance; CPE or neoprene can be the right balance for oil resistance and flexibility. Ask the factory for Taber numbers and oil-swell data.

• Water-blocking: gel fills are common for pump leads; swellable tapes are lighter but may not be suitable for long immersion.

• Armor: adds crush and impact resistance but increases bend radius. Only add armor where mechanical risk demands it.

An experienced China MYP cable factory will present measured comparisons and recommend the best fit for your duty.

Tests to demand and how to interpret results

Never accept vague test claims. Ask for numeric results with test method references.

• Insulation resistance (MΩ): higher is better; compare to vendor minimum and your acceptance threshold.

• Hipot/dielectric test (kV): confirm test voltage and duration. For medium-voltage cables, check whether partial discharge was measured.

• Flex/spool cycles: require cycles at your drum diameter; a supplier who only shows flex cycles at a tiny laboratory drum is providing useless data.

• Abrasion (Taber) cycles: ask for cycles to a defined mass loss or through-cut endpoint.

• Hydrostatic/immersion: for pump leads ask for post-immersion insulation resistance readings and test duration/temperature.

• Material certificates: confirm polymer family and grade to ensure chemical compatibility.

A China MYP cable factory that provides raw test reports (not just pass/fail stickers) demonstrates mature QA.

Incoming inspection — keep bad reels out of stores

Implement a simple incoming inspection routine to protect operations:

1. Match reel lot to test pack. No match — no accept.

2. Spot insulation resistance test on a short sample and a quick conductor DC resistance check.

3. Visual inspection for extrusion defects, print errors, or obvious physical damage.

4. Witness a short spool/unspool test with the drum you will use when reeling duty is critical.

5. File the test pack and log lot number in your stores system linked to the installed location.

These steps convert the factory’s per-reel paperwork into practical control at site.

Packaging, labeling and freight — factory responsibilities

A good China MYP cable factory will pack reels for the real world: heavy reels are handled roughly in ports and on site.

• Blocking & skids: reels should be skidded or bolted to prevent axle damage in transit.

• Weatherproofing: drums should be shrink-wrapped with breathable covers to avoid condensation.

• Marking: clear printed face labels with part number, lot, gross/net weight, and handling orientation; barcodes or QR codes speed intake.

• Test packs: glue a weatherproof pouch containing the per-reel certificates to the reel face.

• Export docs: provide accurate commercial invoice, packing list and any certificate of origin required.

Require photos of packing before shipment for high-value orders.

Warranty, acceptance and contract language

Protect your project with clear clauses:

• Acceptance: “Final acceptance is contingent on per-reel test certificates matching the reel lot and passing buyer spot checks for insulation resistance and conductor DC resistance within agreed tolerances.”

• Rejection / replacement: “Supplier shall replace any reel with mismatched or out-of-spec certificate at supplier cost within [X] days.”

• Warranty: “Supplier warrants material free from manufacturing defects for [Y months / Z operating hours] when installed per supplier instructions; warranty remedies limited to replacement of defective reels and reasonable labour as pre-agreed.”

• Traceability: “Supplier shall retain production records for each lot for at least 3 years and provide them on audit request.”

These terms turn a China MYP cable factory quote into a reliable contractual supply.

Choose the right factory: auditing & red flags

If possible, audit before a large order. Verify:

• functioning test lab (hipot, Taber abrasion, reeling rig),

• process logs and per-process QC checks,

• visible reel marking and test-pack attachment during packing,

• MSDS and batch material control for jacket/insulation compounds,

• export packing lanes and prior shipment photos.

Red flags: no per-reel paperwork, vague test method descriptions, inability to show sample test reports, or refusal to label reels with lot codes.

Final thought — convert metre price into lifecycle value

A cheap metre today can become a high-cost liability tomorrow if reels fail in service. Buying from a competent China MYP cable factory means paying for tested, traceable product that fits your drum, your terminations and your harsh site conditions. Demand numeric datasheets, per-reel test packs, documented packing and honest warranty terms. Do that and your cable purchases will shift from emergency repairs to predictable lifecycle management — and your operations will run smoother with fewer surprises.
