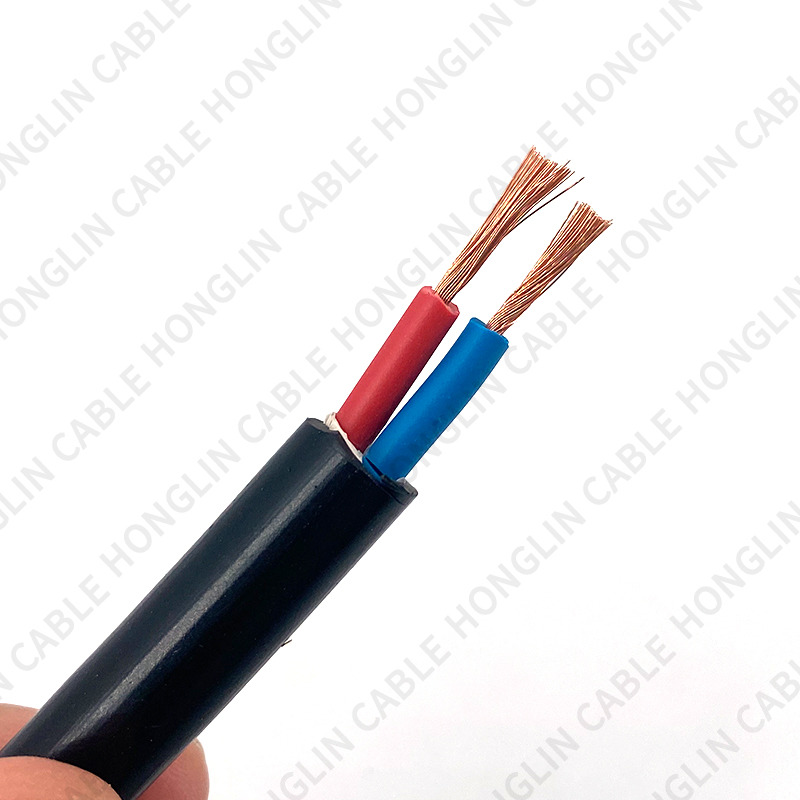

Belden control cable — a buyer-focused sales article for engineers and procurement

When specifying a belden control cable, you’re making a decision that affects signal integrity, installation time, and long-term reliability. For automation, instrumentation, access control and audio-control installations, the right cable reduces troubleshooting, prevents nuisance trips and simplifies maintenance. This guide explains what to demand on datasheets, which construction choices matter in the field, and how to convert product pages into predictable, low-risk purchases.

Why the right Belden control cable matters

A belden control cable is more than a bundle of copper and plastic: it’s the signal path that keeps PLC inputs clean, sensor readings stable and operator panels dependable. On factory floors and in building systems, interference, temperature swings and mechanical handling are constant threats. Choosing the correct belden control cable means matching conductor design, shielding, insulation and jacket chemistry to the real duty the cable will face — not to a picture or a part number.

Conductor construction — the flex and electrical tradeoff

The conductor inside any belden control cable decides two things: how well the cable carries current and how long it survives motion. Fine-stranded conductors flex far more cycles than coarse strands; they also crimp and terminate more cleanly when ferrules are used. For fixed panel wiring you can accept coarser strands, but for routing through conduits, occasional reconfiguration, or in-portable harnesses insist on the published strand count and class. Belden’s product pages typically show strand and material details — use them to compare true flex life, not just gauge numbers.

Shielding strategies — foil, braid, and combined designs

Electromagnetic noise is the most common hidden cause of intermittent control faults. A belden control cable with the right shield prevents that noise from corrupting low-voltage signals. Foil shields are thin and excellent for high-frequency interference; braided shields provide mechanical protection and superior low-frequency rejection. Many Belden control products combine foil + braid to get the best of both worlds for mixed-noise industrial environments. If your run crosses motor feeders, VFDs or welding cells, choose a shielded belden control cable and plan shield termination as part of the design.

Pairing and twisting — reduce crosstalk on long runs

For multi-signal runs, Belden’s twisted-pair control constructions reduce crosstalk and preserve signal margins. A belden control cable that offers individually twisted pairs (or individually shielded pairs) will outperform a simple bundled multi-core in long runs or where multiple signals ride together. Where differential signalling or long-distance sensor links exist, prefer twisted-pair or pair-shielded Belden cores to protect against both longitudinal and near-end crosstalk.

Insulation and jacket chemistry — match the environment

The outer jacket is the cable’s armor against the real world. Indoor, dry-panel applications can use PVC jackets; where fire codes, plenum spaces or escape routes are involved, choose LSZH/plenum-rated options. On factory floors exposed to oil, chemicals or sunlight, choose oil-resistant, UV-stable compounds. Belden’s access-control and industrial catalogs list jacket options — request the exact compound and temperature range on your RFQ so the delivered belden control cable survives the installation environment.

Voltage ratings and approvals — don’t skip the datasheet

A belden control cable datasheet should state voltage class (commonly 300/500 V or 600 V for tray-rated parts), test voltage, operating temperature range and applicable approvals (UL, CSA, VDE, IEC, CPR ratings where relevant). These numbers are essential for inspectors and for ensuring the part fits your routing plans (tray, conduit, plenum). Always keep the datasheet with the installation records — it prevents change-order disputes later.

Form factor and purchasing options — cut length, coils or spools

Belden sells control cables by the metre/foot, on convenience coils and on full spools. Per-foot cuts and pre-terminated coils speed small jobs, while spools reduce unit cost for fleet or large-quantity projects. Decide in advance whether you need factory-terminated leads: factory terminations guarantee crimp quality but cost more. For a belden control cable buy that involves many terminations, weigh the labour savings from pre-termination against the per-foot premium.

Termination best practices — where failures start

Most real-world faults start at the termination, not in the middle of the run. For every belden control cable termination:

• Use ferrules on stranded conductors to prevent strand splay.

• Use lugs and crimps matched to conductor geometry and material (aluminum vs copper needs different treatment).

• Torque screw terminals to manufacturer specs to avoid high-resistance joints.

• When shields are present, terminate the drain and bond to earth per the grounding plan to avoid floating shields or ground loops.

A short thermal scan under expected load after commissioning will reveal bad crimps before they become a service call.

Pulling, bend radius and installation protection

Respect minimum bend radius and pulling tension published on the product sheet. Protect pass-throughs with grommets and use lubricant for long conduit pulls. For belden control cable runs through tight trays or around rollers, use support to avoid point loading and abrasion. These small practices preserve insulation and jacket life.

Acceptance testing — simple checks that avoid rework

Before accepting a spool of belden control cable into inventory or before burying a run, do a few quick tests: continuity of each core, insulation resistance between cores, and for shielded runs, continuity of the shield/drain. For long critical runs, perform a short live load test to confirm voltage under expected current. Require vendors to supply test certificates for large lots so you can trace quality numerically.

Procurement checklist — fields to demand in your RFQ

To get apples-to-apples offers for belden control cable, include these required fields in your RFQ:

1. exact conductor list (number of cores and AWG/mm²),

2. strand count and filament diameter or strand class,

3. shield type and percent coverage (foil, braid, foil+braid) and drain-wire spec,

4. insulation and jacket materials and temperature ratings,

5. voltage rating and approvals (UL/CSA/IEC/CPR),

6. minimum bend radius and DCR (Ω per length) at 20 °C, and

7. packaging options (cut lengths, coils, spools) and sample availability.

Vendors who return full datasheets and test certificates reduce procurement risk dramatically.

Common application patterns — match the build to the job

• Panel internal wiring and sensor clusters: unshielded, fine-strand belden control cable with PVC or LSZH jacket.

• Long runs or runs near power feeders: shielded LiYCY / LiYCY(TP) style belden control cable with foil+braid and drain.

• Drag-chain or robotic applications: flex-rated belden control cable with optimized strand counts and elastomeric insulation.

• Access control and composite installations: Belden access-control composite cables that combine power and data pairs in a single jacket.

Lifecycle cost thinking — buy for duty, not for sticker price

A modest premium for the correctly specified belden control cable usually pays back quickly through fewer replacements, less troubleshooting and reduced downtime. Evaluate installed cost over expected life rather than bare per-metre price. For mission-critical lines, small upfront spec upgrades (tinned conductors, higher braid coverage, extra spare pairs) are often the best insurance.

Maintenance and labeling — make later work easier

Label both ends of each belden control cable run with part and reel numbers; maintain a cable schedule in your documentation. Periodic visual inspection, torque checks on terminations, and occasional insulation resistance measurements on long runs prevent surprises. Good labeling also dramatically speeds fault isolation.

Final recommendation — specify precisely, verify simply

When you specify a belden control cable, treat the purchase like an engineering decision: define the duty, insist on strand and shielding numbers, choose jacket chemistry to match exposure, require datasheets and a sample reel for mission-critical orders, and include acceptance tests in the contract. Do that once and your installed cables become quiet, dependable infrastructure instead of recurring maintenance headaches.
