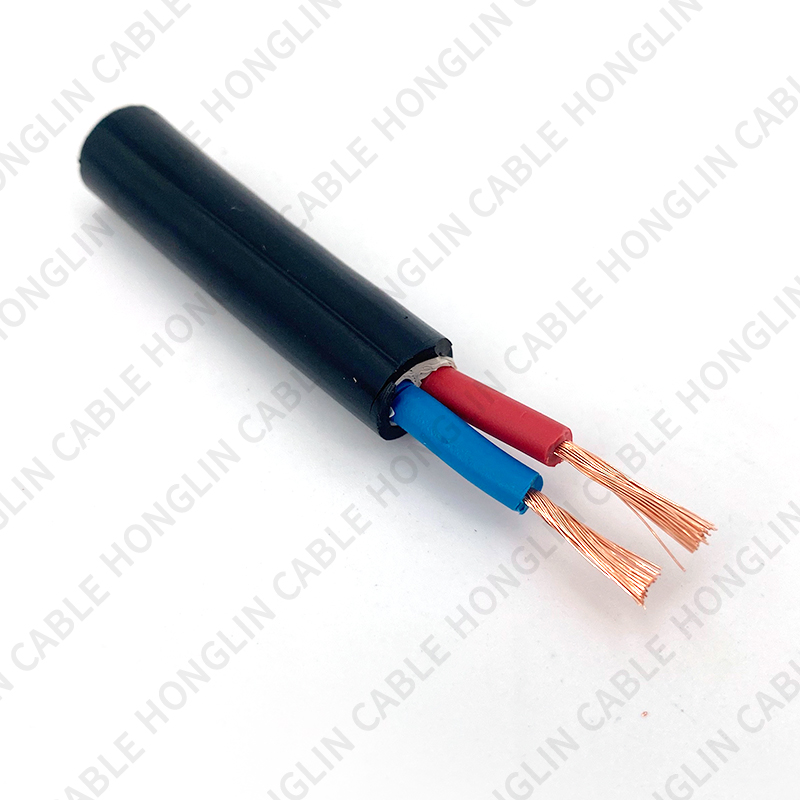

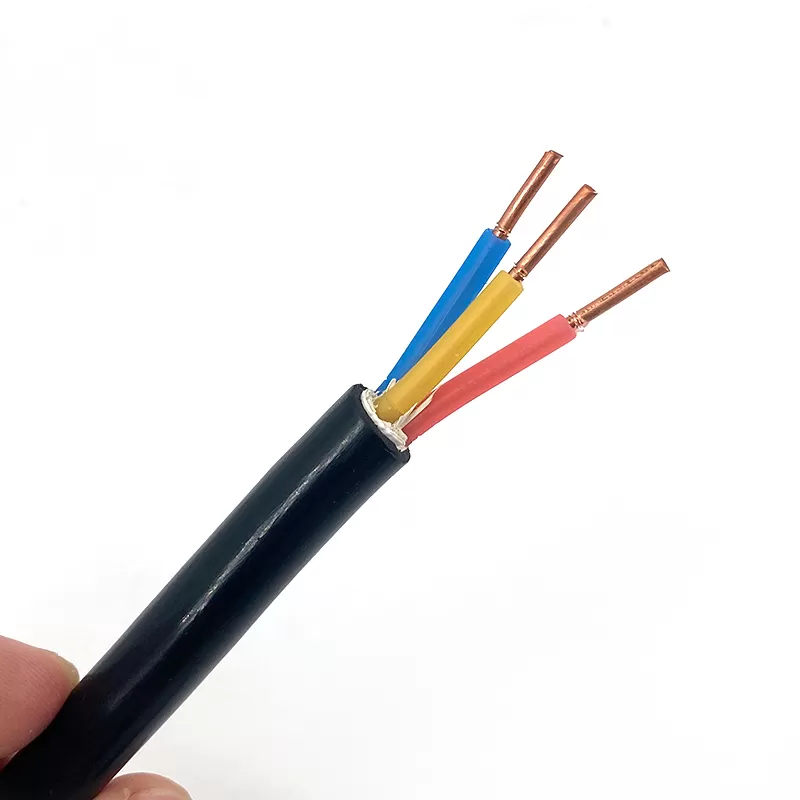

When you specify a belden access control cable you’re choosing a product family built around the realities of door hardware and card-reader installations: multiple signal types, quick termination nestraints. Pulling one composite cable that contains lock power, reader pairs, request-to-exit and spare conductors is far faster and less error-prone than pulling individual conductors for each function. A purpose-built access control assembly reduces install time, simplifies labeling and keeps future troubleshooting straightforward.
Don’t buy on appearance alone. The key technical fields that predict field performance are:
conductor size and strand class (flex vs. fixed),
which inner cores are dedicated to "Lock Power" vs "Card Reader" vs "Door Contact",
whether reader pairs are twisted and/or screened,
presence and type of overall screen (foil or braid) and the drain conductor spec, and
jacket chemistry and fire rating (CMP for plenum, CMR for riser, LSZH for low-smoke requirements).
A good datasheet removes ambiguity. If the product page doesn’t publish the strand count, braid coverage, or insulation type — ask for the PDF data sheet. Those numbers are the difference between a cable that works and one that forces a re-pull.
Shielding is often the single most important selection detail for reader pairs. Where reader cabling runs near HVAC motors, variable-frequency drives, fluorescent ballasts or large feeds, induced noise can cause missed reads or intermittent device faults. A foil or foil+braid screen with a drain conductor — and correct termination practice — prevents this. For long runs or those that cross noisy circuits, choose screened reader pairs to keep the communication path clean.
Access control cabling frequently traverses ceilings and return air plenums. Code compliance is not negotiable: plenum spaces often require CMP/CMP rated jackets; risers need CMR; and many owners prefer LSZH in occupied spaces. Specify the required jacket chemistry in the tender documents and require datasheet confirmation. Ordering a cable without the right fire/smoke rating can cost you a failed inspection and a costly rework.
Belden and other mature cable families have small but very useful features: Banana Peel® designs that remove the need for a full outer jacket strip, and individually printed inner jackets (e.g., “Lock Power,” “Reader Pair”) that take guessing out of terminations. These features remove opportunities for human error and speed termination across dozens of doors — saving time and reducing punch-list items at handover.
A cable only reaches its potential when terminated correctly. Follow these practical rules:
label both ends with the cable part and door ID,
use ferrules on stranded lock-power conductors to prevent strand splay,
fold back any foil/braid and secure the drain to a single earth point per the controller vendor’s guidance, and
torque power and lock terminations to the device manufacturer’s spec.
Correct termination avoids the most common post-commissioning calls: intermittent reads, dead locks, and voltage-drop issues.
Composite access control cable packages the usual door-level conductors into one neat assembly and reduces labour for large new builds. However, in retrofit scenarios with many short runs and easy access, separate discrete cables may be acceptable. For new construction and long runs, a composite solution is usually faster and neater. If you choose composite, ask the supplier to confirm which cores map to which function so your wiring diagrams match what the techs see at the door.
To get apples-to-apples quotes for an access-control run, include these fields:
exact conductor list (core count and AWG/mm²) and strand class,
mapping of cores to functions (Lock Power, Card Reader, Rex, Door Contact),
shield type and any per-pair shielding, plus drain conductor spec,
jacket compound and fire/smoke rating required,
operating temperature range and minimum bend radius, and
packaging options (reel/coil/cut-length) and sample policy.
Vendors that return complete datasheets and part-specific test data accelerate approval and reduce procurement risk.
Before committing to long runs, test a sample reel in situ: verify continuity, insulation resistance, shield continuity, and perform a short load test on lock power cores to check voltage drop under load. For screened reader pairs, do a functional read test with the actual reader and controller. Require factory test certificates for large lots so you can trace back any anomalies to production batches if needed.
A few modest spec add-ons often pay back rapidly in the field:
tinned conductors or tinned braid for humid or corrosive environments,
a couple of spare cores for future upgrades,
printed footage or door IDs on the jacket for rapid maintenance, and
factory-cut and labeled convenience coils to match room drops.
These options reduce onsite labour and speed troubleshooting when doors later go offline.
Choose manufacturers or distributors who publish technical PDFs and have a clear sample policy. For large programs lock part numbers and ask for batch traceability — this helps ensure consistency across future purchases. Also check for local support, returns policies for cut orders, and clear warranty terms. A reliable supplier makes rollouts predictable and keeps spares compatible throughout the building’s lifetime.
A correctly specified access control cable usually costs more per metre than the cheapest commodity cable, but installed cost is the true metric. Re-pulls, failed inspections, extra termination labour and troubleshooting calls quickly outweigh any initial savings. Buy to the duty, document acceptances, and you’ll find the modest premium buys uptime and fewer service calls.
A mid-size office building has 120 door controllers. Using individually pulled conductors meant long crew days and repeated labeling errors. Switching to composite, application-printed multicore packages reduced pull time by a third and cut termination errors by half. The project completed on schedule and the owner saw lower commissioning costs — a typical outcome when the cabling choice matches installation realities.
Treat the access control cable decision as an engineering milestone: specify conductor mapping and jacket chemistry up front, require datasheets and a sample reel for critical runs, document termination practice in the installation procedure, and enforce it at site handover. Do this once and your cable infrastructure becomes dependable, maintainable, and quiet — the foundation of a reliable access control system.
