Uncompromised Power Distribution with E-YY-J 5x6 mm² Black 0.6/1kV Electric Cable NYY-J

In critical infrastructure projects—underground power networks, industrial plants, or renewable energy installations—the margin for electrical error is zero. When permanent installations demand resilience against moisture, mechanical stress, and decades of service, engineers turn to a proven solution: the E-YY-J 5x6 mm² black 0.6/1kV electric cable NYY-J. This isn’t just wiring; it’s engineered permanence for environments where failure threatens operations, safety, and investment.

Why NYY-J? Decoding the Standard for Fixed Installations

The E-YY-J 5x6 mm² black 0.6/1kV electric cable NYY-J (conforming to DIN VDE 0276-603) solves challenges generic cables cannot:

1. Impervious Environmental Protection:

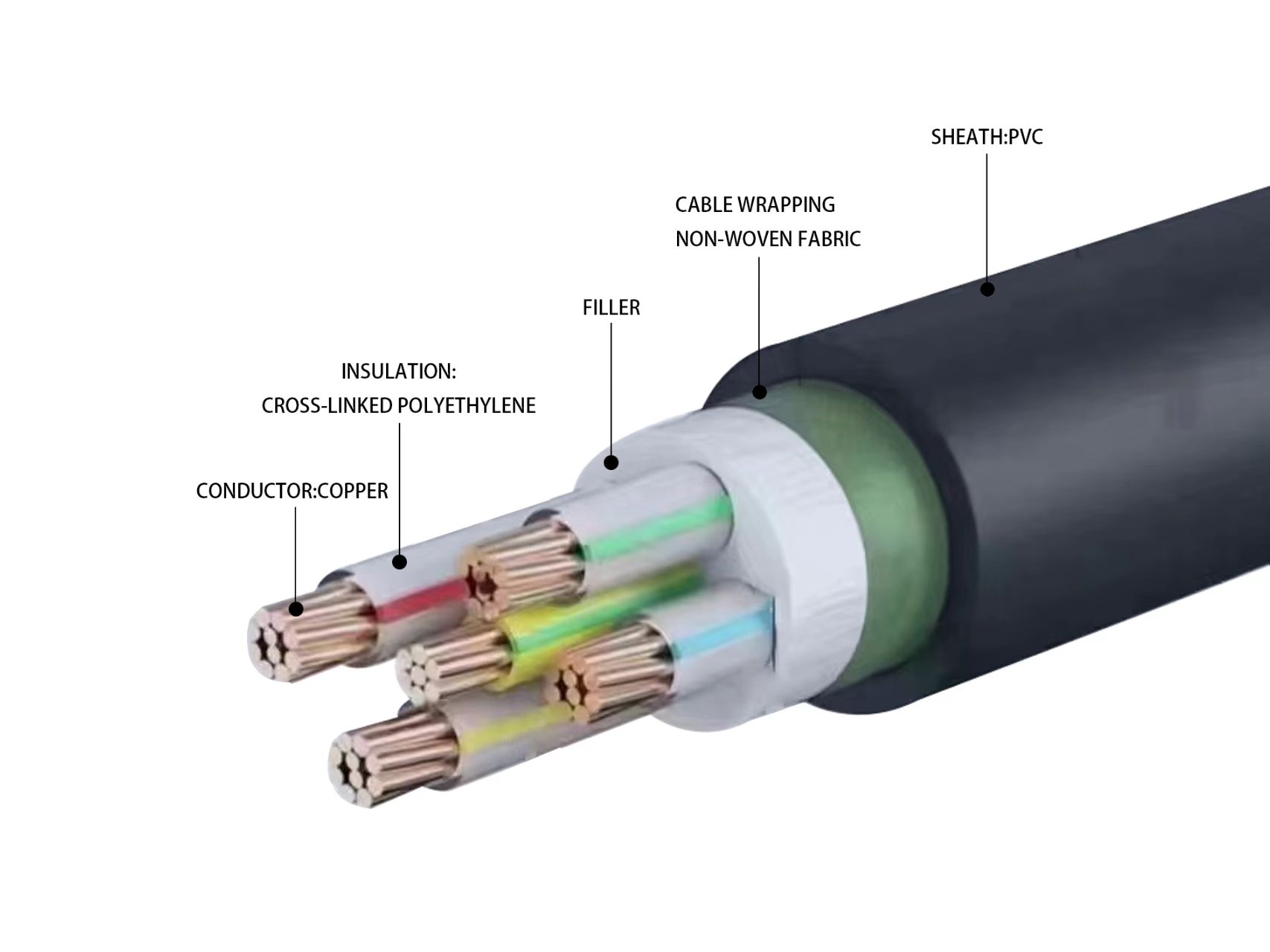

   Triple-layer construction—copper conductors, XLPE insulation, PVC outer sheath—creates a hermetic barrier. It withstands:

• Groundwater & Humidity: Rated for direct burial or wet conduits without degradation.

• Chemical Exposure: Resists oils, acids, and alkalis in industrial settings.

• UV & Ozone: Black PVC sheath prevents sunlight degradation.

2. Optimised Current Capacity:
   5 cores (3 phases + neutral + earth) in 6 mm² cross-section deliver balanced 46A per phase (at 30°C ambient). Ideal for feeder lines, distribution boards, or machinery requiring multi-circuit redundancy.

3. Voltage Integrity:
   0.6/1kV rating ensures safety in 400V three-phase systems with reserve for voltage spikes—non-negotiable for transformer connections or long runs.

4. Mechanical Fortitude:

• Crush Resistance: Withstands backfill pressure in direct-burial applications.

• Abrasion Immunity: Survives conduit pulls through rough surfaces.

• Temperature Stability: Operates from -30°C to +70°C.

Where This Cable Defines Reliability: Critical Applications

Specifying NYY-J cable 5x6mm² is a mark of engineering diligence:

• Industrial Power Distribution: Feeds switchgear, motor control centers (MCCs), and heavy machinery in factories.

• Renewable Energy Plants: Connects solar inverters, wind turbine transformers, and battery storage systems.

• Underground Network Infrastructure: Powers street lighting, traffic systems, and substations via direct burial.

• Marine & Port Facilities: Supplies dockside cranes, HV shore connections, and coastal substations (corrosion-resistant).

• Commercial Complexes: Backbone wiring for shopping malls, hospitals, and data centers requiring fire-retardant circuits.

Technical Non-Negotiables: Your Specification Checklist

Compromising on E-YY-J cable 5x6mm² black invites systemic risk. Verify:

1. Conductor Compliance:

• CSA: Exact 6 mm² x 5 cores (tolerance ≤ ±0.1 mm²).

• Material: Class 2 stranded copper (IEC 60228). Bare or tinned for corrosive environments.

2. Insulation & Sheath:

• Inner Insulation: XLPE (cross-linked polyethylene) for thermal stability (90°C max).

• Outer Sheath: UV-stabilized black PVC (type ST2). Thickness ≥1.8mm (per VDE 0276-603).

3. Voltage & Standards:

• Rated Voltage U₀/U: 0.6/1 kV.

• Certifications: DIN VDE 0276-603 (NYY-J), HAR (H07V-K), CE/UKCA.

• Fire Performance: IEC 60332-1 (flame retardant).

4. Packaging & Marking:

• Drum length: 500m standard.

• Continuous surface printing: "NYY-J 5x6mm² 0.6/1kV VDE 0276-603."

Why Honglincable Delivers Trust for Mission-Critical Installations

In markets rife with sub-spec "NYY-J equivalents," [Your Brand] guarantees authenticity:

• Material Integrity:
  We use 99.9% electrolytic copper and virgin XLPE/PVC compounds—no recycled fillers degrading performance.

• Precision Manufacturing:
  Cables exceed VDE 0276-603 mechanical/electrical thresholds. Third-party tested (e.g., KEMA, BASEC).

• Certified Traceability:
  Batch-specific test certificates (IEC 60432, EN 50525) included. Full compliance documentation.

• Project-Ready Logistics:
  Stock includes E-YY-J 5x6 mm² black 0.6/1kV electric cable NYY-J on 500m drums with same-day dispatch.

• Engineering Support:
  Our team calculates voltage drop, conduit fill ratios, and bending radii for your substation or burial trench.

The Catastrophic Cost of Counterfeit Cable

"Value-engineered" NYY-J alternatives risk:

• Insulation Breakdown: XLPE impurities cause premature failure at 70°C+.

• Earth Faults: Undersized cores overheat during faults, failing to trip breakers.

• Project Delays: Rejected shipments due to non-VDE compliance halt construction.

• Liability Claims: Fire or electrocution from non-compliant installations.

Genuine NYY-J cable 5x6mm² from Honglincable ensures:

• 40+ Year Service Life: Proven in German industrial infrastructure.

• Zero Surprises: VDE-compliant from first to last meter.

• Total Cost Savings: Eliminates rework, penalties, and warranty claims.

Engineer Permanence. Specify Certainty.

When your project powers hospitals, factories, or cities, the E-YY-J 5x6 mm² black 0.6/1kV electric cable NYY-J isn’t a component—it’s a 50-year commitment to safety and performance. Substitutes gamble with liability; certified quality builds legacy.

Demand DIN VDE 0276-603 compliance. Eliminate risk.
