4 Core 0.75 Sq mm Shielded Control Cable: Precise Engineering Meets Signal Integrity

In industrial automation, robotics, and instrumentation systems, uninterrupted signal transmission and electromagnetic interference (EMI) control are non‑negotiable. The 4 core 0.75 sq mm shielded control cable offers the perfect balance of compact size, reliability, and protection, making it indispensable in advanced control environments.

Why Shielding Matters

Electromagnetic interference can corrupt data signals, causing erratic behavior in Programmable Logic Controllers (PLCs), sensors, motors, and actuators. A high-performance shielded cable—with foil, braided copper, or both—ensures noise doesn’t compromise system accuracy or uptime. Common top solutions from manufacturers like Belden and Nassau feature dual-layer shielding (foil + braid) for maximum EMI suppression.

Technical Construction and Specifications

Attribute	Specification

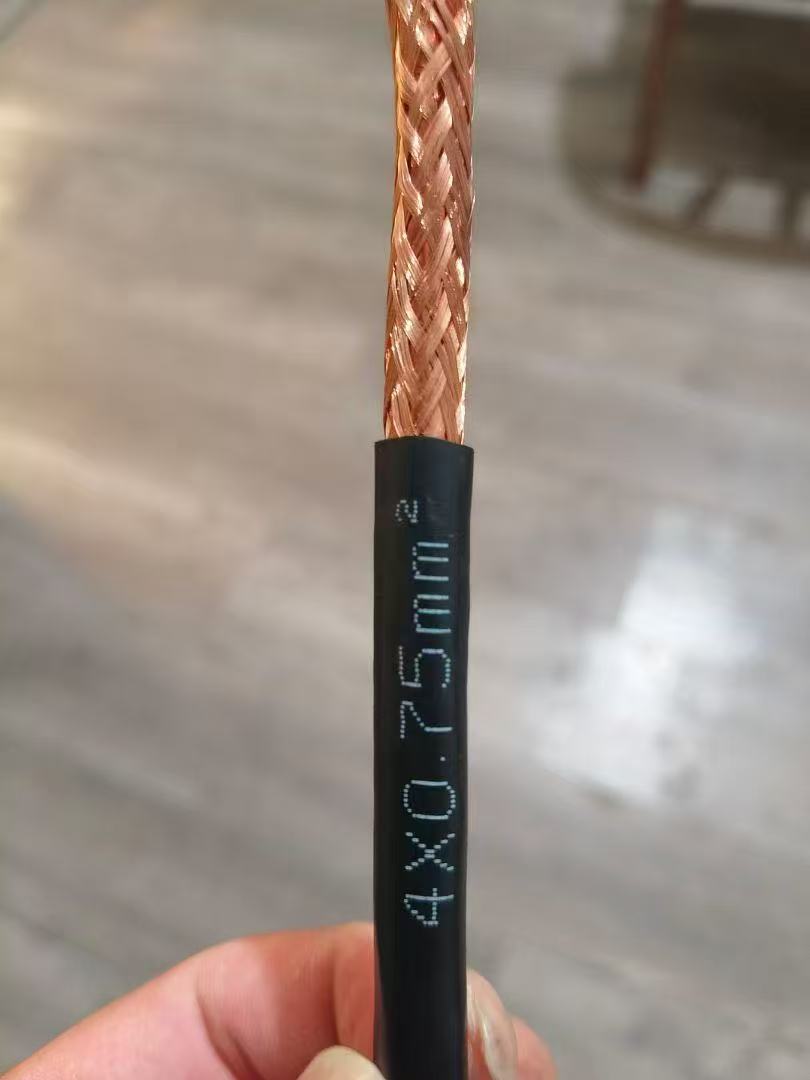

Conductors	4 × 0.75 mm² stranded bare copper

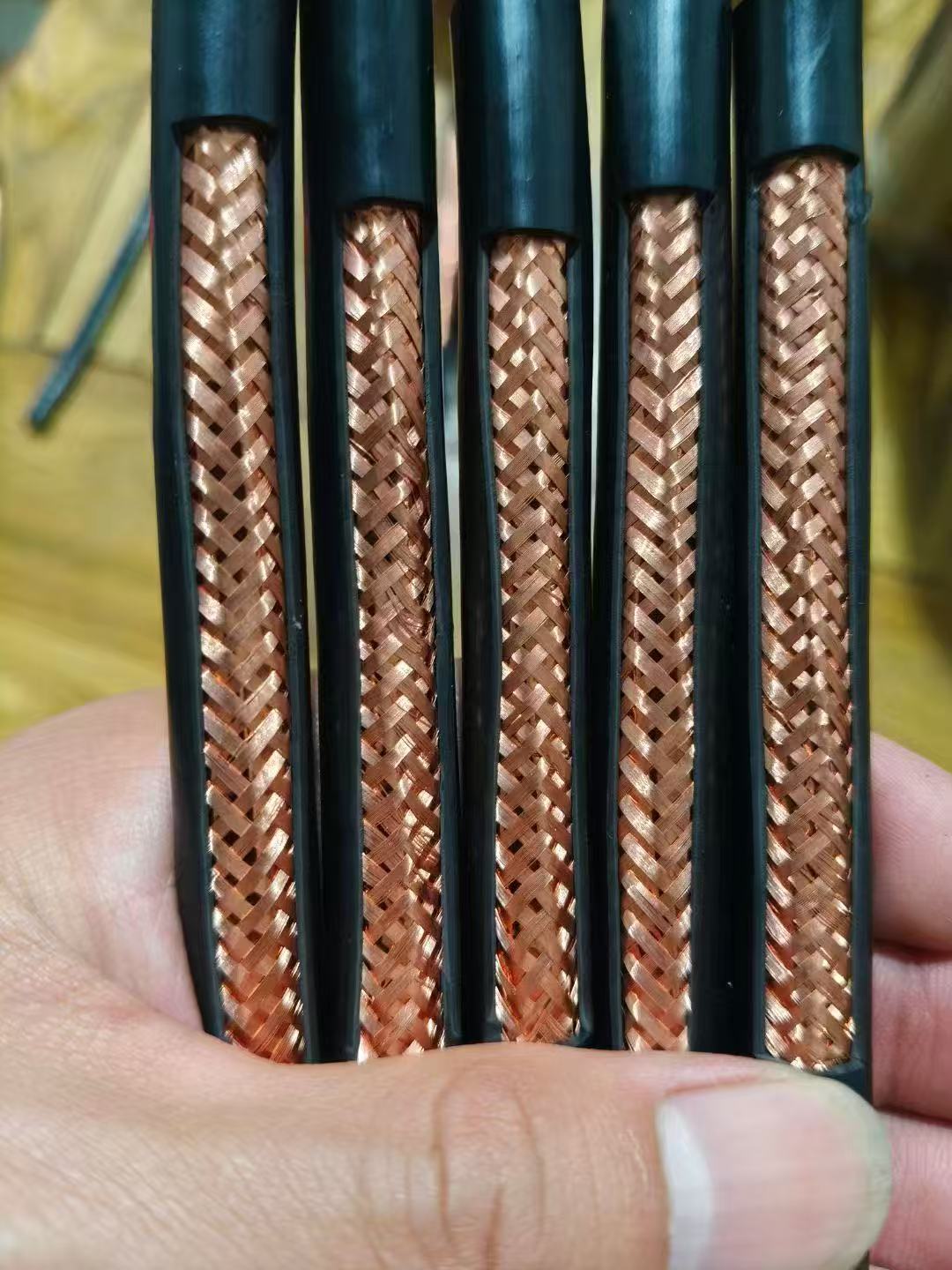

Shielding	Tinned copper braid ± Al‑foil + drain wire
Jacket Material	PVC, LSZH, or PUR (abrasion-resistant options)
Voltage Rating	300/500 V; select versions up to 450/750 V
Temperature Range	−20 °C to +90 °C (some rated −40 °C to +90 °C)
Core Coloring	Black numbered + earth or classic color-coded finishes
Flexibility	Rope‑lay stranding, bending radius ~6× outside diameter
Compliance Standards	IEC 60227, IEC 60332‑1, VDE, RoHS, CPR Eca

Real-World Applications

1. Factory Automation & Panels
   Ideal for critical interconnections among PLCs, motor drives, relays, and sensors. Its compact 0.75 mm² conductors are efficient for control voltages while limiting cable bulk.

2. Machine Tools & CNC Equipment
   Tinned-copper shielding and flexible sheaths withstand harsh, moving environments, reducing downtime from cable wear.

3. Instrumentation & Audio Systems
   LSZH variants ensure low smoke and no halogen emissions—essential for labs, broadcast, or audio-visual setups.

4. Retrofits & OEM Products
   Internationally certified (VDE, CE, RoHS) and standardized core sizes make the cable suitable for global OEM builds and retrofit operations.

Advantages of Our 4 Core 0.75 mm² Shielded Cable

• Custom Lengths & Reel Options
  Order any length from reels of 100 m or more, with options for LSZH, PUR, or braided shielding.

• Competitive Pricing
  Starting at €1.20–£1.50/m (PVC braid), with volume discounts at quantities over 100 m.

• Global Certified Quality
  Meets VDE, IEC, EN 50575 CPR Eca, RoHS. Each cable is 100% electrically and mechanically tested.

• Expert Support & Traceability
  Dedicated technical team assists in cable selection, installation tips, and EMC compliance. Batch traceability included.

• Additional Services
  Termination, on-label printing, custom spool packaging, and urgent shipping available.

How to Choose the Right Cable

1. Shield Type

• Use foil + braid where EMI is high (e.g., near frequency drives).

• Braid-only suits less critical or cost-sensitive uses.

2. Jacket Material

• LSZH for smoke-sensitive environments.

• PUR for rugged industrial or outdoor settings.

3. Voltage and Temperature

• Standard 300/500 V suits typical control voltage.

• Choose higher-rated variants for special conditions.

4. Flexibility Requirement

• 6× OD bending radius is sufficient for fixed installations; choose cables labeled "flexible" for moving machinery.

5. Standards & Compliance

• VDE and IEC ensure compatibility with global OEM systems.

• CPR Eca compliance might be required in European installations.

Buying Guide: What to Request

• Cable type: 4 core 0.75 mm² shielded control cable

• Shield: foil + braid           Jacket: PVC / LSZH / PUR

• Voltage rating: 300/500 V (450/750 V if needed)

• Certifications: VDE, IEC, RoHS, CPR

• Quantity: cut‑to‑length or standard reel (≥100 m)

4 core 0.75 sq mm shielded control cable Conclusion

When control reliability, EMI protection, and space efficiency matter, the 4 core 0.75 sq mm shielded control cable is the ideal solution. While many suppliers offer comparable cables, our products stand out—offering tailored lengths, certified quality, expert support, and competitive pricing. Choose us to elevate your control systems with precision-engineered solutions.

Call to Action
Contact us today for price quotes, sample reels, or custom-tailored solutions. Ask about our installation support services and get your order processed within 24 hours. Enhance your control system performance—start with our shielded cables designed for durability and accuracy.
