When your site, stage or plant depends on power that must be moved, wound and reused without fuss, you need a cable that’s engineered for motion and exposure. The 4 core rubber flexible cable brings together flexible conductors, resilient insulation and a heavy-duty outer jacket so electricians can roll, route and rely on it day after day. It’s the practical choice when durability, safety and handling matter more than lowest cost per metre.
Temporary power distribution and mobile equipment create repeated mechanical stresses that ordinary fixed wiring was never designed to face. A purpose-made 4 core rubber flexible cable uses fine-stranded copper conductors that resist fatigue when bent and unreeled, while the rubber insulation and sheath absorb knocks and abrasion instead of cracking. The result: fewer brittle failures, less rework, and safer sites that keep running.

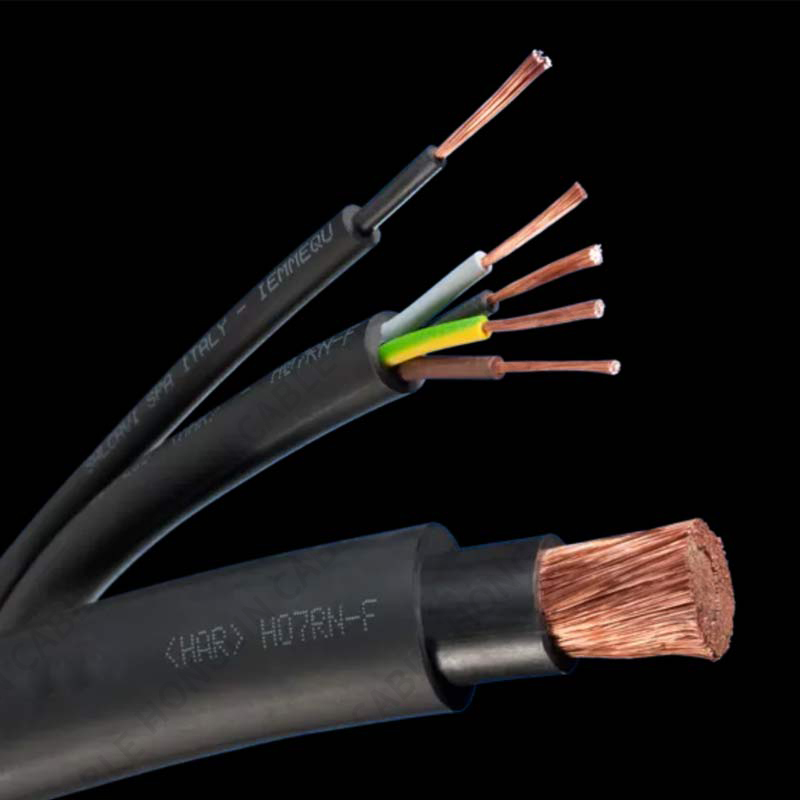

A high-quality 4 core rubber flexible cable is not a single material — it’s a layered system where each component has a role:
Flexible conductor: class-5 annealed copper strands give excellent bend life and low DC resistance for practical runs.
Insulation: elastomeric compounds (EPR, neoprene variants) retain dielectric properties under flex and temperature cycling.
Inner bedding and fillers: these stabilise the core geometry and prevent cores rubbing each other under movement.
Outer sheath: oil- and abrasion-resistant rubber (commonly PCP/neoprene) protects against mechanical and chemical wear.
Four-core configuration: provides three phase or phase/neutral/protective arrangements (or two conductors plus control), tailored for the application.
That engineering combination is why professionals specify a 4 core rubber flexible cable for jobs where the cable will be handled and re-used.
Functional procurement depends on numbers. Typical datasheets for a 4 core rubber flexible cable list the following:
Voltage rating: commonly 450/750 V for flexible trailing cables (some fixed applications may be rated to 0.6/1 kV).
Temperature range: flexed service commonly rated down to around −15 °C (some compounds work to −25 °C) and up to +60…+90 °C depending on construction.
Bend radius: manufacturers specify minimum radii for fixed and flexed installation—observe these to avoid conductor damage.
Conductor class: class 5 flexible conductors for repeated bending.
Knowing those values keeps your power runs reliable and safe during repetitive handling.
Field teams reach for a 4 core rubber flexible cable whenever a combination of portability, robustness and clear ratings is required:
Temporary construction power — generator leads and distribution tails that get rolled and unrolled daily.
Stage and events — lighting and audio rigs that are packed, transported and deployed repeatedly.
Mobile machinery — feed to compressors, welders and site pumps where movement and abrasion are constant.
Harbour and outdoor equipment — oil and weather resistance matters when cables are exposed to grease and salt air.
Industrial temporary supplies — emergency power feeds and temporary plant connections.
In these scenarios the cable’s tolerance for mechanical abuse and clear electrical limits reduce downtime and improve safety.
Even a heavy-duty 4 core rubber flexible cable benefits from correct handling:
Respect minimum bend radius specified by the manufacturer — tighter bends concentrate stress and break strands.
Use roller pay-off and controlled pulling for long reels to avoid twist and excess tension.
Protect edges and entries with grommets or cushioning to prevent sheath cuts at entry points.
Terminate with approved glands and strain reliefs so the earth/PE conductor and outer sheath remain intact and functional.
Good installation habits preserve warranty and make the cable behave as the datasheet promises.
Not all rubber-sheathed cables are identical — verify the specifics that matter for your site:
Sheath compound and claims: PCP/neoprene and some EPR blends show good oil and abrasion resistance—confirm the vendor’s test claims.
Abrasion and cut resistance: ask for test data where frequent dragging occurs.
Cold-flex properties: where sub-zero work is likely, confirm flexibility ratings at low temperature.
UV and ozone resistance for extended outdoor exposure.
Verify these parameters in the datasheet so the selected 4 core rubber flexible cable matches the real-world environment.
In many outdoor or industrial uses the standard oil-resistant rubber sheath is appropriate. If the route passes through public or enclosed areas where smoke toxicity matters, consult your safety team: low-smoke, zero-halogen alternatives or additional fire integrity requirements may be necessary. For pure site-equipment use, the rubber flexible variant prioritises handling durability; for enclosed public zones, ask whether a different material class is mandated.
Routine inspections keep flexible cables reliable:
Visual checks for cuts, deep abrasions or exposed conductors, especially at terminations and high-wear points.
Infrared scanning at connections to detect hot spots before they cause failures.
Batch and reel traceability recorded at install to simplify warranty or investigation if a manufacturing defect appears.
Planned replacement intervals for heavily used reels in rental fleets to avoid in-service failure.
A modest maintenance regime extends life and reduces emergency interventions.
To avoid ambiguity and ensure comparability, request these items in your RFQ for a 4 core rubber flexible cable:
Exact conductor cross-section and class (e.g., 2.5 mm² class-5).
Voltage and temperature ratings and applicable standards (H07RN-F / EN 50525-2-21 if relevant).
Sheath chemistry and claims for oil/abrasion/cold-flex performance.
Minimum bend radius and outer diameter for reel handling.
Test certificates (hipot/high-pot, insulation resistance) and batch traceability.
Reel lengths, drum specs and labelling details.
A clear RFQ prevents substitutions and delays at delivery.
Choosing the cheapest cable per metre often costs more in practice. Properly specified 4 core rubber flexible cable reduces replacement frequency, lowers labour on rework, and avoids equipment down-time caused by cable faults. Particularly for hire fleets, production sites and repeat event organisers, the higher upfront cost is offset quickly by reduced maintenance and failure costs.
When your operation relies on flexible, reusable power distribution, specify a factory-tested 4 core rubber flexible cable that matches electrical load, environmental exposures and handling frequency. Demand clear datasheets and certificates, install with care, and maintain a simple inspection routine. Do this and you’ll get many seasons — and many events or projects — from each drum: safer sites, fewer surprises, and power that keeps working when you need it.
