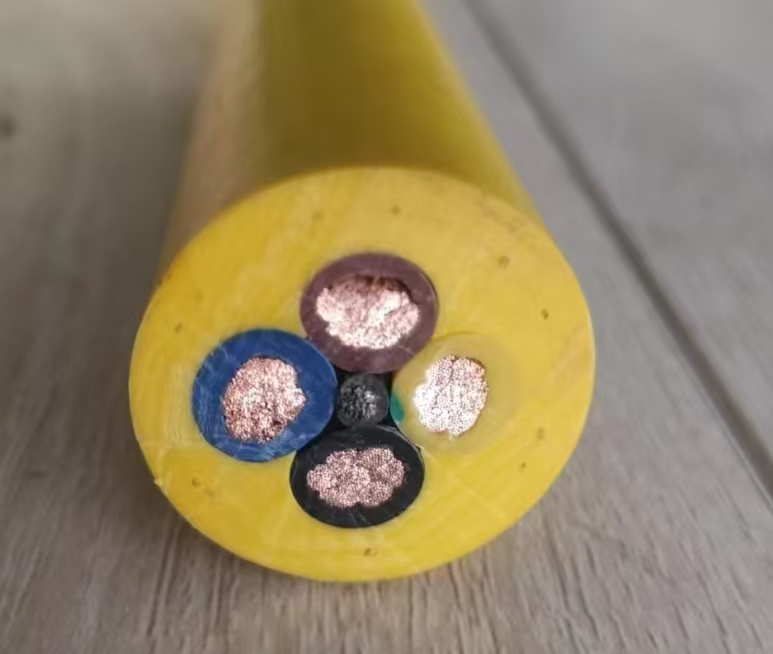

4 Core Copper Flexible Rubber Cable for Submersible Pumps (JHS / YC / YCW Waterproof Power Cable)

In industrial, agricultural, and water management systems, reliable power supply for submersible equipment is critical. One of the most widely used solutions is the 4 core copper flexible rubber sheathed cable, commonly known as JHS submersible pump cable or YC/YCW heavy-duty rubber cable.

Designed for harsh and wet environments, this cable provides excellent waterproof performance, flexibility, and electrical stability, making it ideal for submerged and outdoor applications.

1. What is a 4 Core Rubber Sheathed Flexible Cable?

A 4 core copper flexible rubber cable is a type of heavy-duty power cable consisting of:

• Multiple copper conductors (typically 4 cores)

• Rubber insulation and sheath

• High flexibility structure

It is widely used in:

• Submersible pumps

• Industrial equipment

• Construction machinery

• Outdoor and mobile power systems

2. JHS Submersible Pump Cable – Specialized Waterproof Solution

The JHS cable is specifically designed for long-term underwater operation.

Key Features:

• Fully waterproof rubber insulation

• Suitable for continuous immersion in water

• Excellent resistance to oil, abrasion, and chemicals

• Stable performance under mechanical stress

Typical Applications:

• Deep well pumps

• Sewage pumps

• Aquaculture systems

• Flood control and drainage systems

Compared with standard rubber cables, JHS cables offer superior sealing and water resistance, ensuring long service life even in extreme conditions.

3. YC / YCW Heavy-Duty Rubber Cables

YC Cable

• General-purpose heavy rubber cable

• Suitable for dry or slightly wet environments

YCW Cable

• Enhanced version of YC

• مقاوم للماء (water-resistant) and weather-resistant

• Suitable for outdoor and harsh environments

Key Advantages:

• High mechanical strength

• Flexible bending performance

• مقاومة التآكل (abrasion resistance)

• Good electrical conductivity

4. Cable Structure and Technical Specifications

Conductor

• Material: High-purity copper (bare or tinned copper)

• Structure: Fine-stranded for flexibility

Core Configuration

• 4 core design (3 phase + 1 ground or neutral)

Insulation

• Rubber (EPR or similar elastomer materials)

Outer Sheath

• Durable rubber sheath

• Waterproof and UV resistant

Voltage Rating

• Typically: 300/500V or 450/750V

Temperature Range

• -25°C to +60°C (or higher depending on material)

5. Why Choose Rubber Sheathed Submersible Pump Cable?

1. Superior Waterproof Performance

Designed for immersion, especially JHS cables, ensuring safe operation underwater.

2. High Flexibility

Fine-stranded copper allows:

• Easy installation

• Resistance to bending and movement

3. Strong Mechanical Protection

Rubber sheath protects against:

• Abrasion

• Impact

• Harsh environmental conditions

4. Long Service Life

Resistant to:

• Moisture

• Oil

• Corrosion

5. Stable Electrical Performance

Ensures efficient power transmission for pumps and motors.

6. Key Differences: JHS vs YC vs YCW

7. Application Scenarios

These cables are widely used in:

• Submersible water pumps

• Mining operations

• Construction sites

• Agricultural irrigation systems

• Marine and offshore equipment

8. Customization Options

We provide customized solutions based on customer requirements:

• Number of cores (2–5 cores or more)

• Conductor size (mm² / AWG)

• Insulation material (rubber, neoprene, EPR)

• Sheath thickness and color

• Special waterproof or oil-resistant designs

9. MOQ and Supply Capability

We support flexible MOQ (Minimum Order Quantity) depending on:

• Standard vs customized cable

• Production complexity

Fast delivery and stable quality control are guaranteed for bulk orders.

10. Conclusion

The 4 core copper flexible rubber sheathed cable, especially JHS submersible pump cable and YC/YCW heavy-duty rubber cables, is an essential solution for waterproof, flexible, and durable power transmission.

Whether used in deep water pumps, industrial systems, or outdoor applications, these cables ensure safe, efficient, and long-lasting performance.
